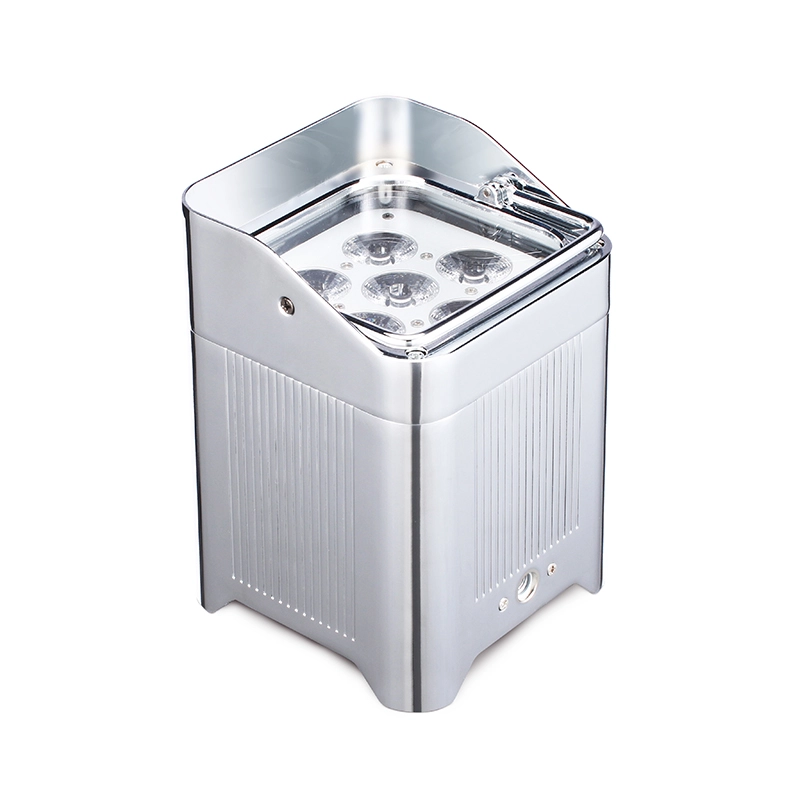

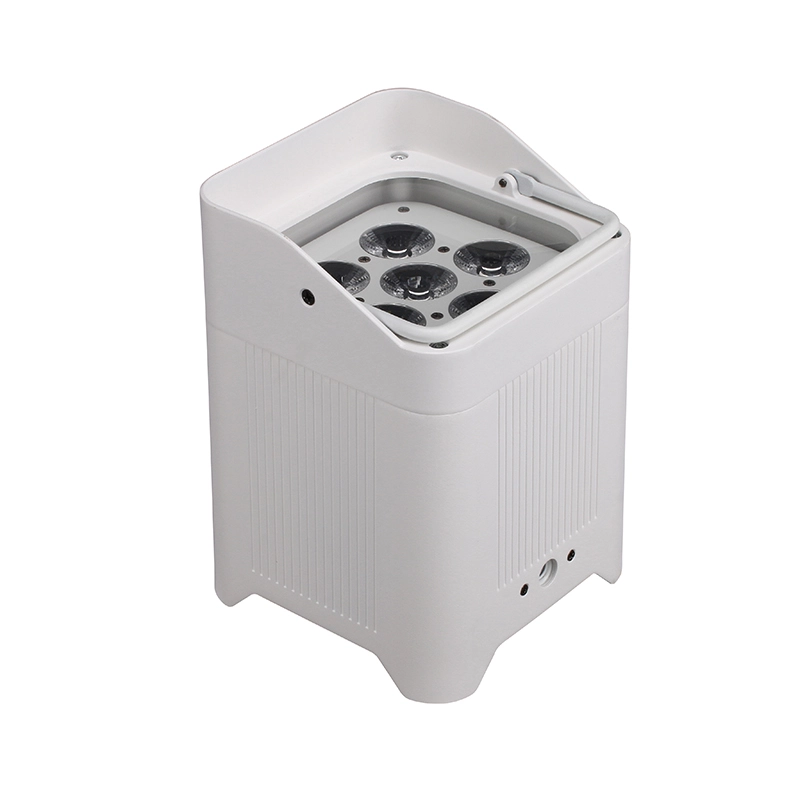

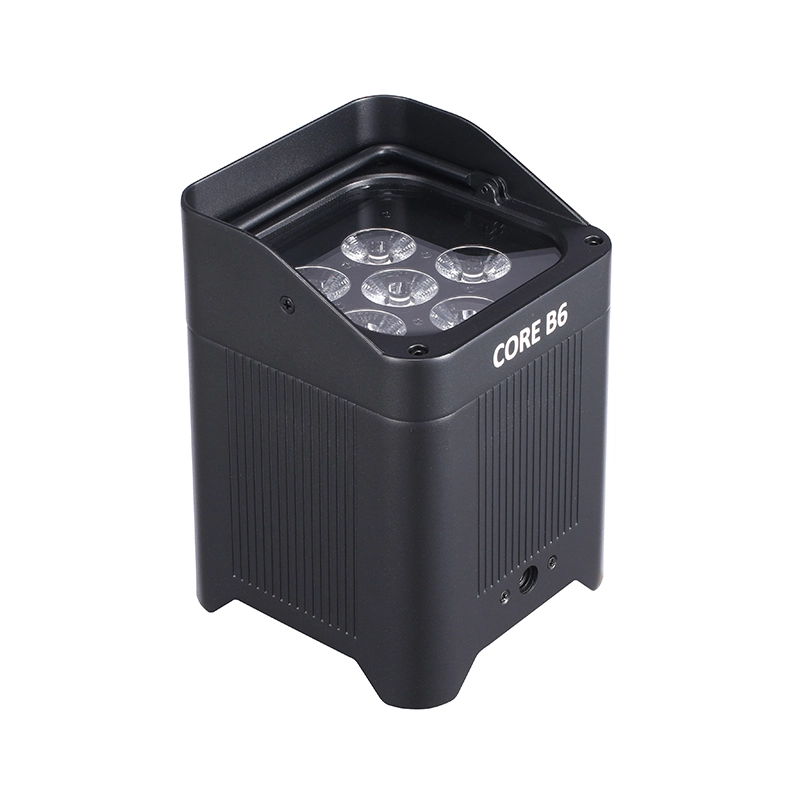

GML WELL PAR Wireless Battery Powered LED PAR Light

Optical Architecture and Color Calibration

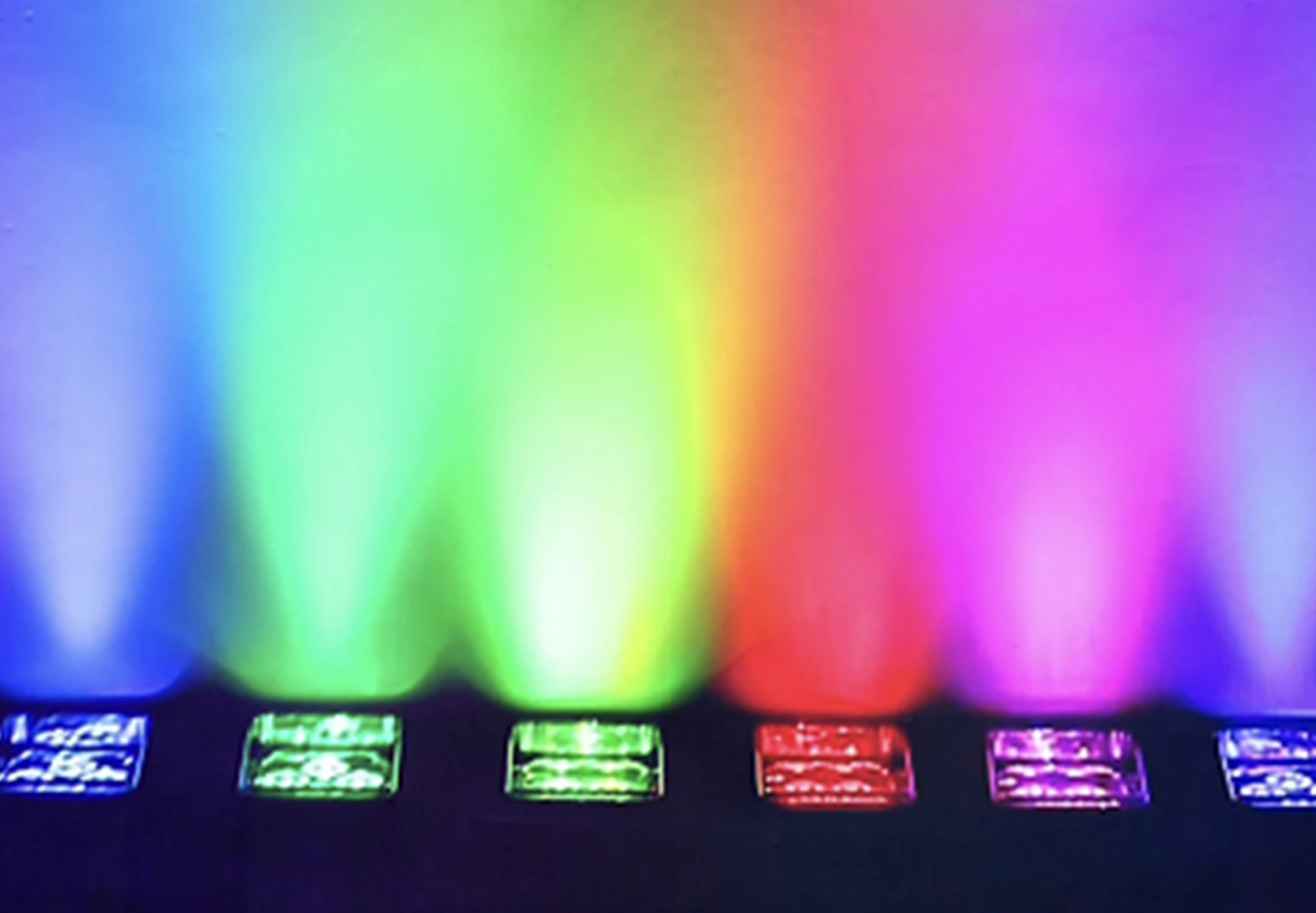

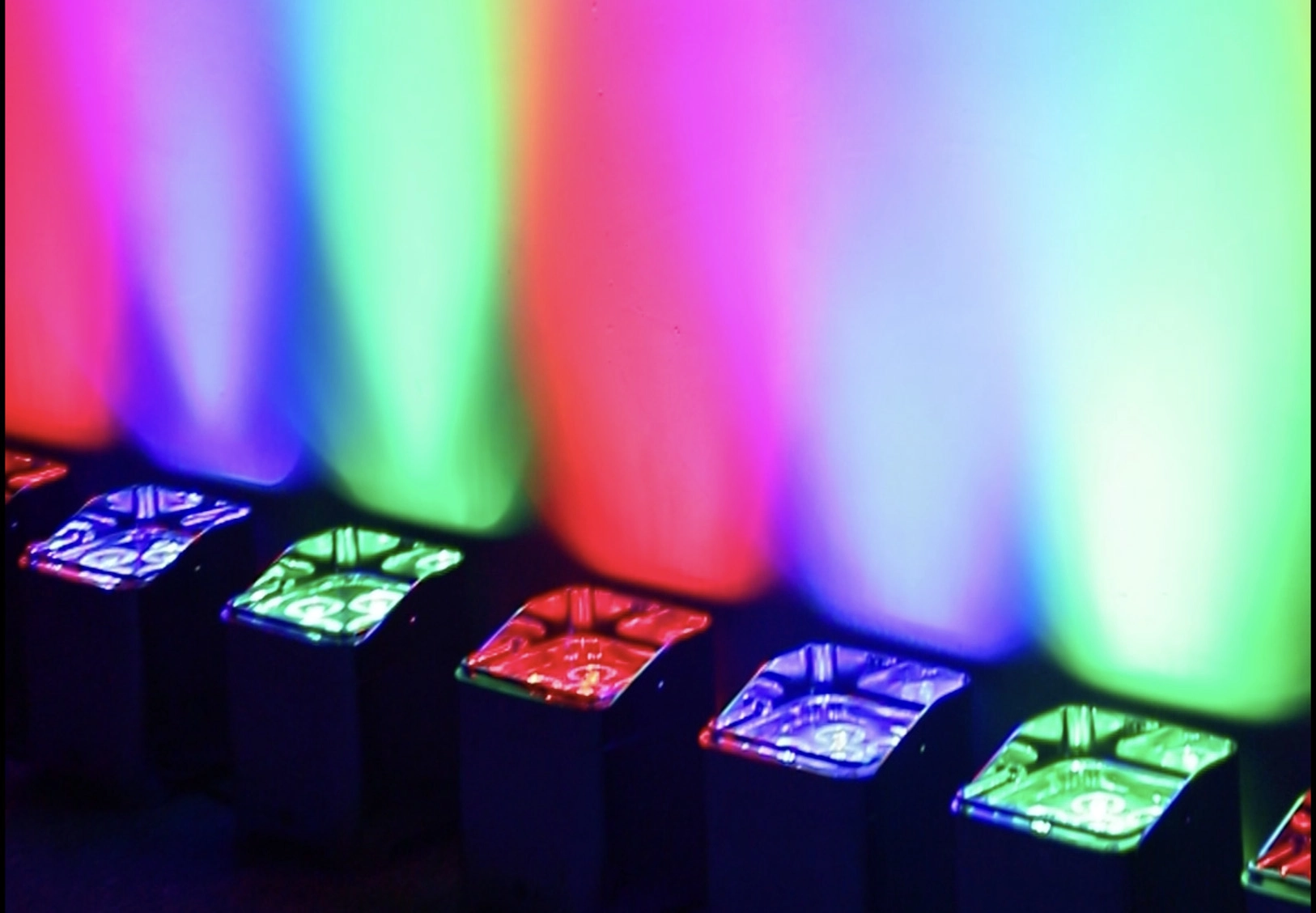

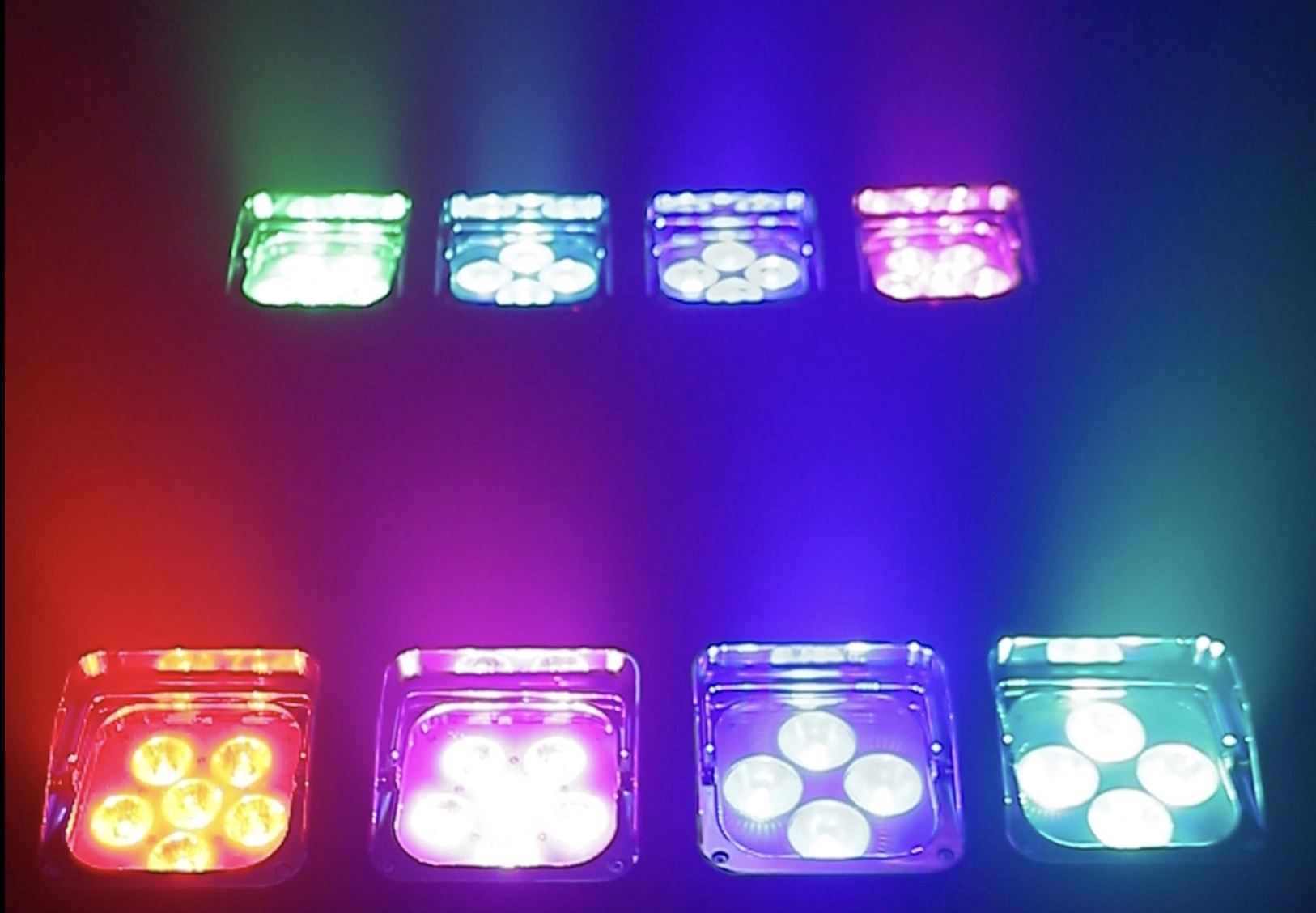

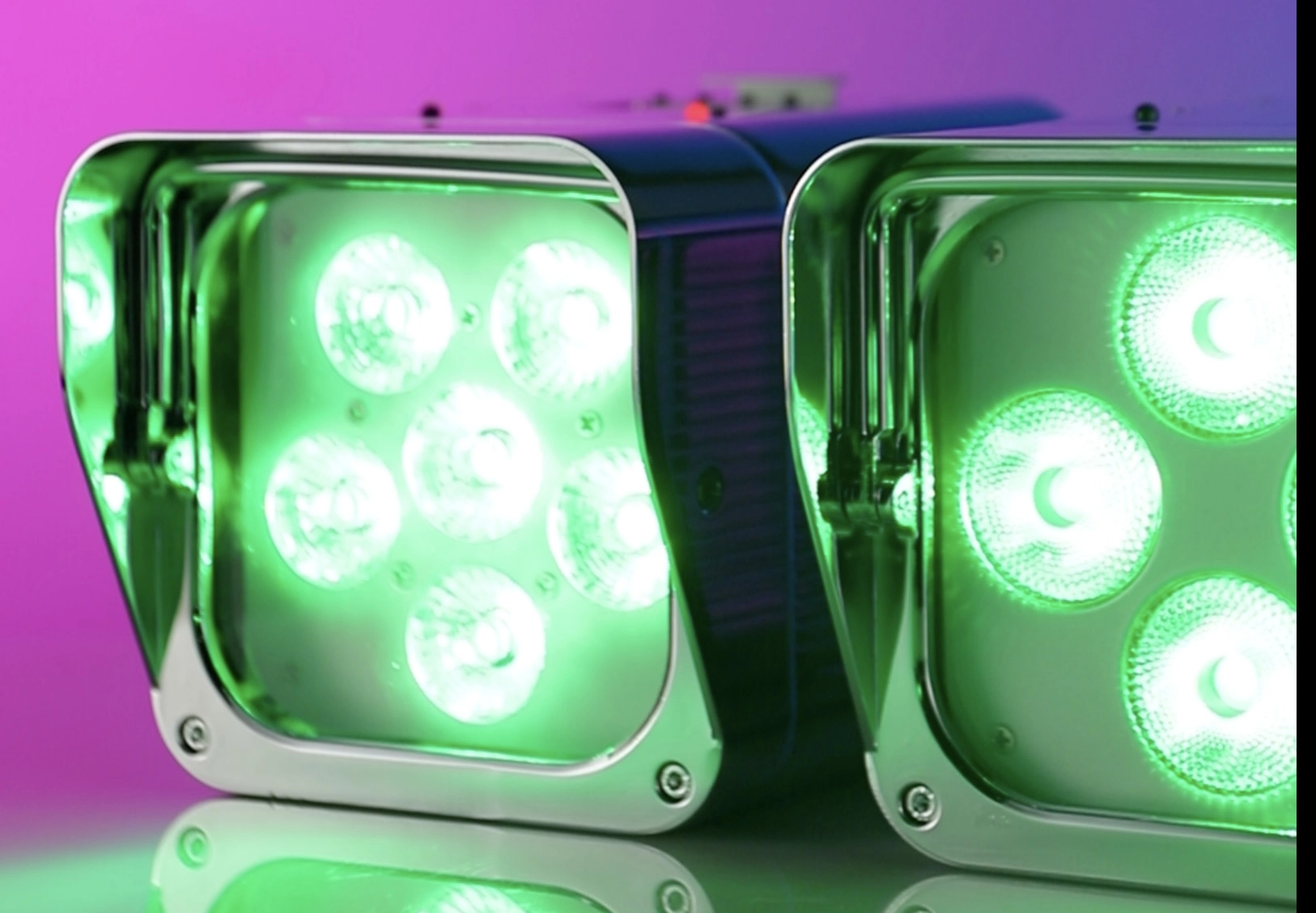

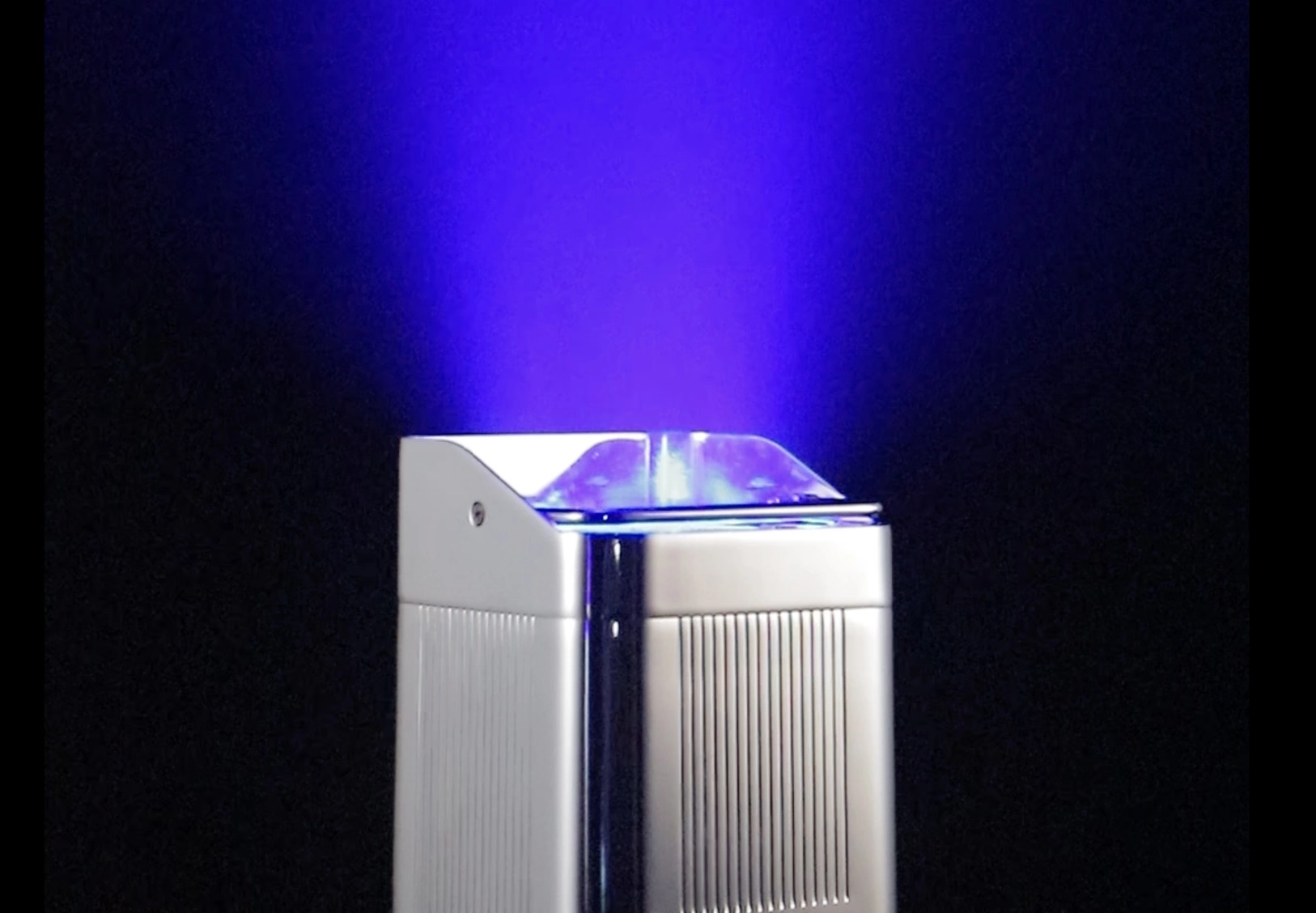

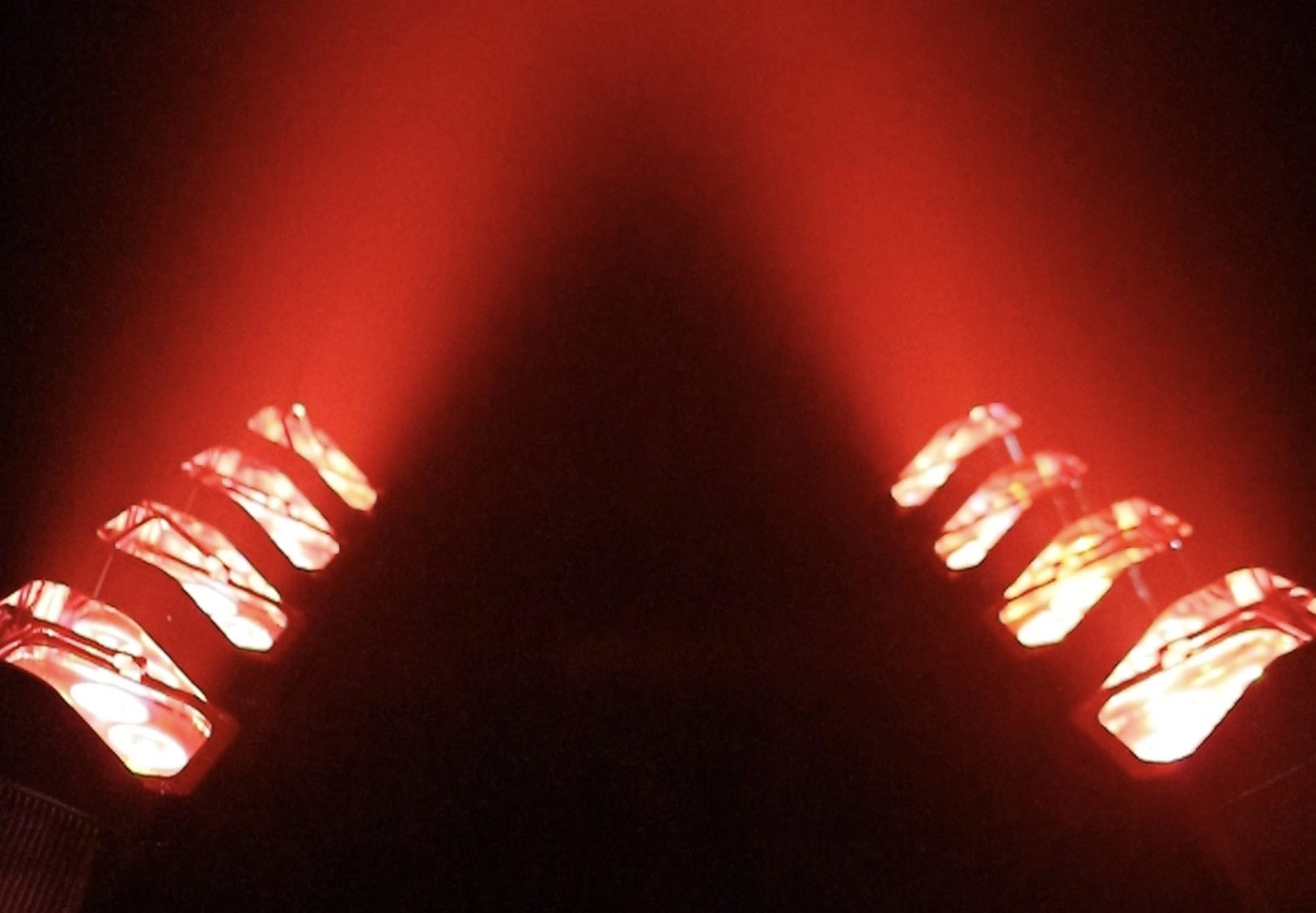

The GML WELL PAR is an autonomous wireless fixture engineered for stage accents, event decor, and venue uplighting. The optical assembly integrates 6 high-output 18W RGBWA+UV 6-in-1 LEDs. Correlated color temperature is continuously variable from 2700K to 10000K in 300K steps. Dual optical configurations of 10° or 20° beam distribution deliver defined directional projection. A 64kHz ultra-high PWM drive ensures flicker-free operation under broadcast and studio recording environments.

Battery Power Management and Runtime Profiles

Fixture operation is sustained by an internal 24,000 mAh battery bank constructed with heavy-duty 18650 lithium cells, supporting 500+ charge/discharge cycles. The system features a 3-hour rapid replenishment phase and reaches complete charge in 8 hours. Operating profiles span 3 hours at maximum full-gamut RGBWA+UV emission, up to 15 hours in single-color static operation, and 7 hours in automated scene transitions. An active runtime limiter allows selectable discharge durations of 2, 4, 6, or 8 hours.

Control Interfaces and Enclosure

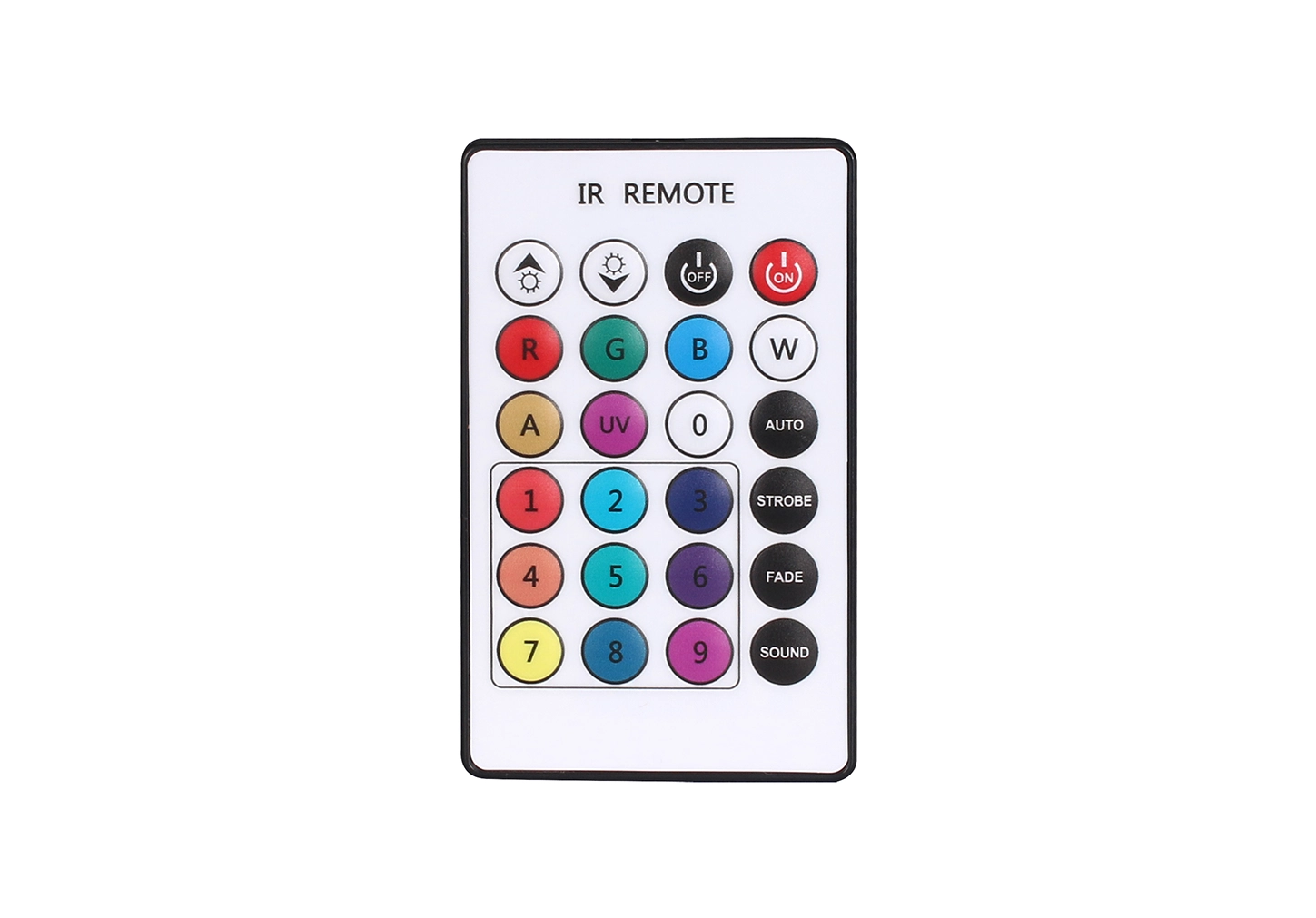

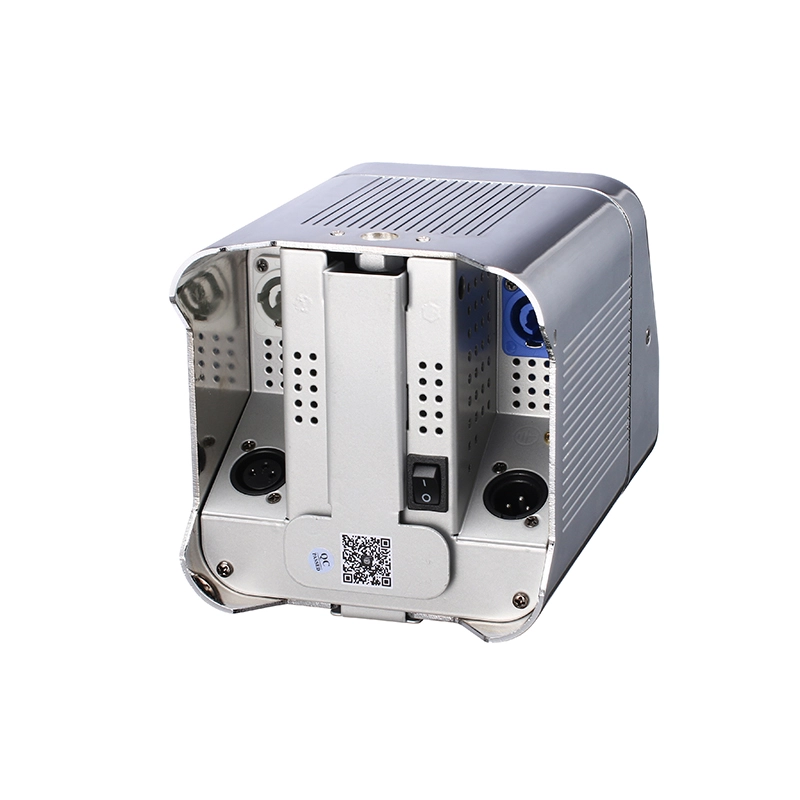

Control access is provided via an intuitive OLED touch screen with a dedicated CCT shortcut key. The communication hardware incorporates standard DMX512, an internal 2.4G wireless DMX receiver, infrared wireless remote, and iOS/Android application connectivity. Channel personalities are selectable between 2CH, 6CH, 8CH, and 11CH. Input voltage spans AC 100–250V 50/60Hz with a power rating of 110W under IP20 enclosure protection.
