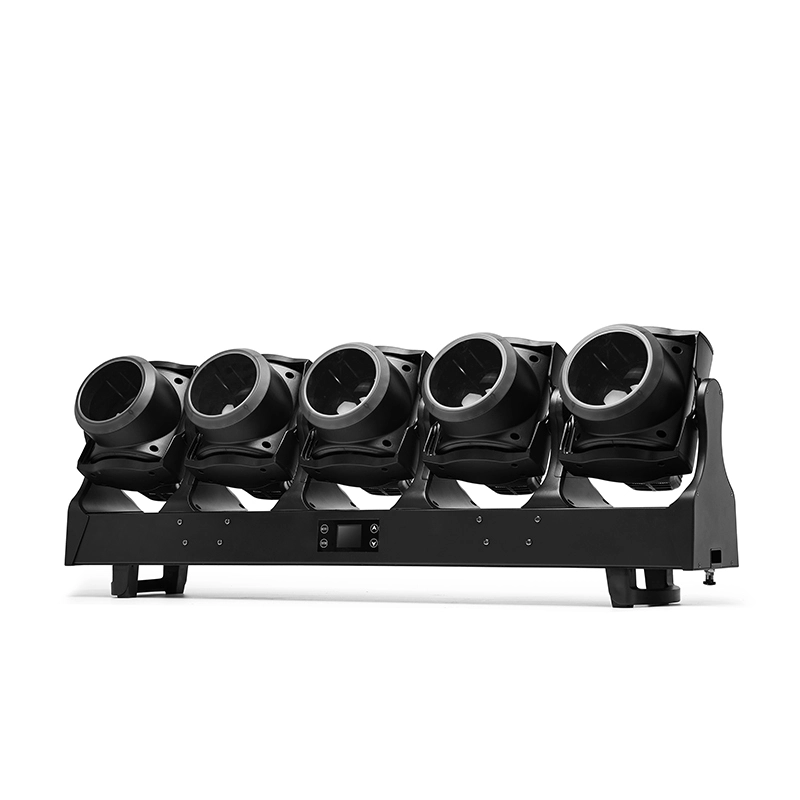

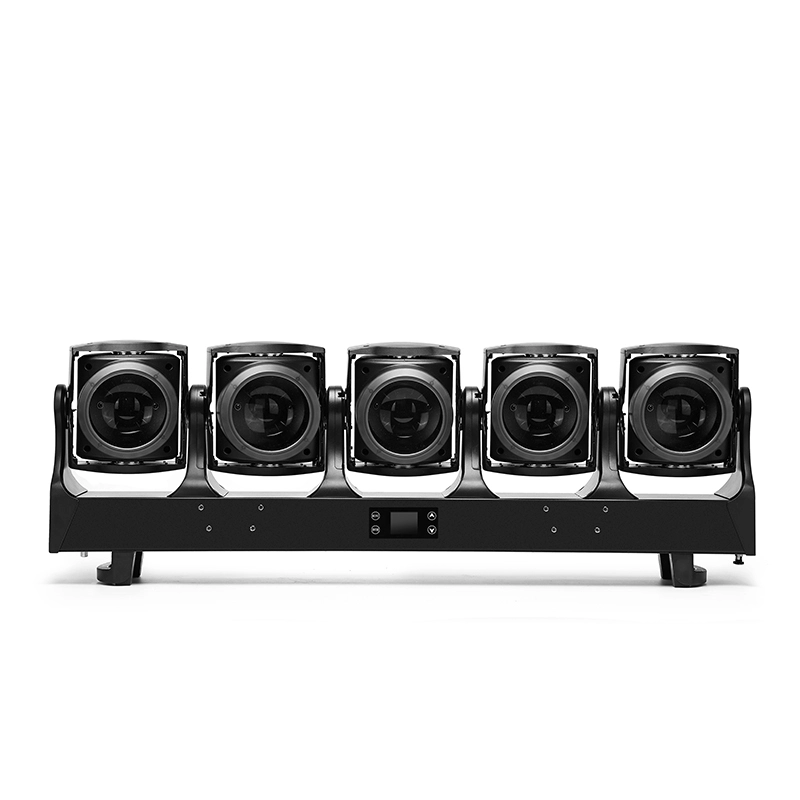

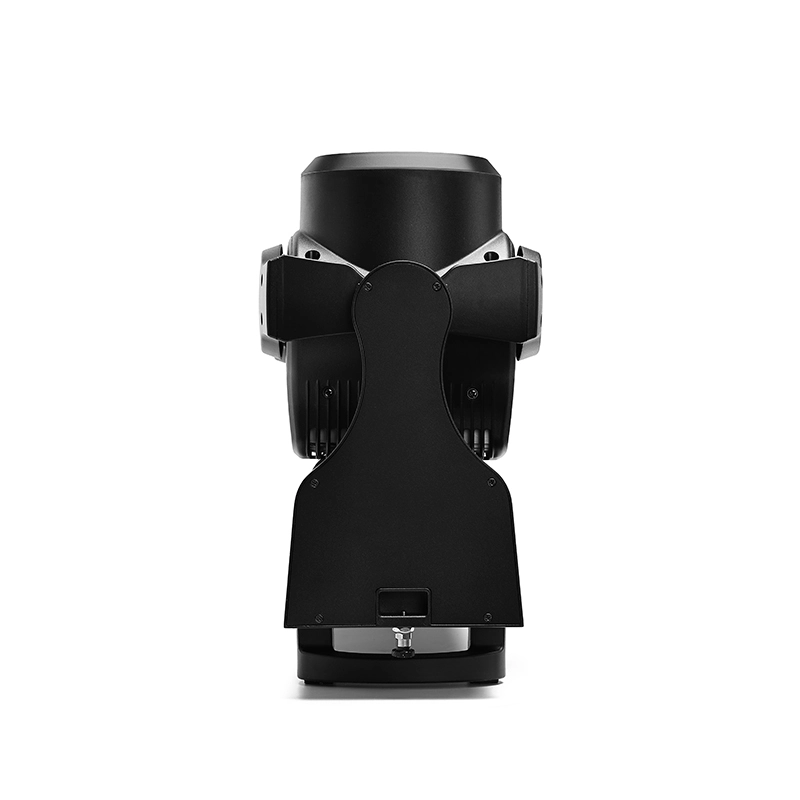

GML TORNADO Motorized Linear LED Fixture
GML TORNADO incorporates 5 main 120W RGBL (4-in-1) LED emitters and an outer ring of 120 × 0.5W RGB LEDs. The optical engine produces a total luminous output of 13,000 lumens with an LED life expectancy of 20,000 hours. The zoom system delivers a 3°–30° beam angle and 4°–35° field angle with linear motorized focus.
Kinematics and Motion Control
The fixture features 16-bit movement resolution covering 59° Pan and 221° Tilt with automatic position correction. It supports independent control over the primary light sources and surrounding pixel rings, 0–100% electronic dimming, and variable-speed strobe effects.
Connectivity and Rigging

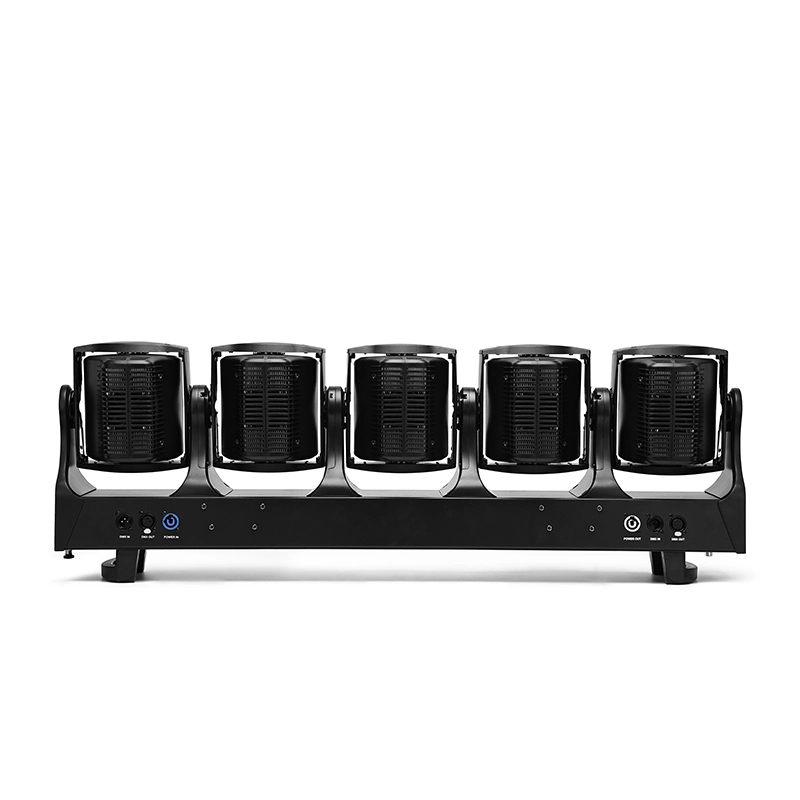

Control integration is supported via DMX512 and RDM across 2 protocol modes (41 / 71 channels). Power is supplied via waterproof True1-compatible power connectors (IN/OUT), and signal is routed via 3-pin XLR. The IP33-rated chassis accommodates horizontal or vertical rigging using two Omega brackets.
Specifications

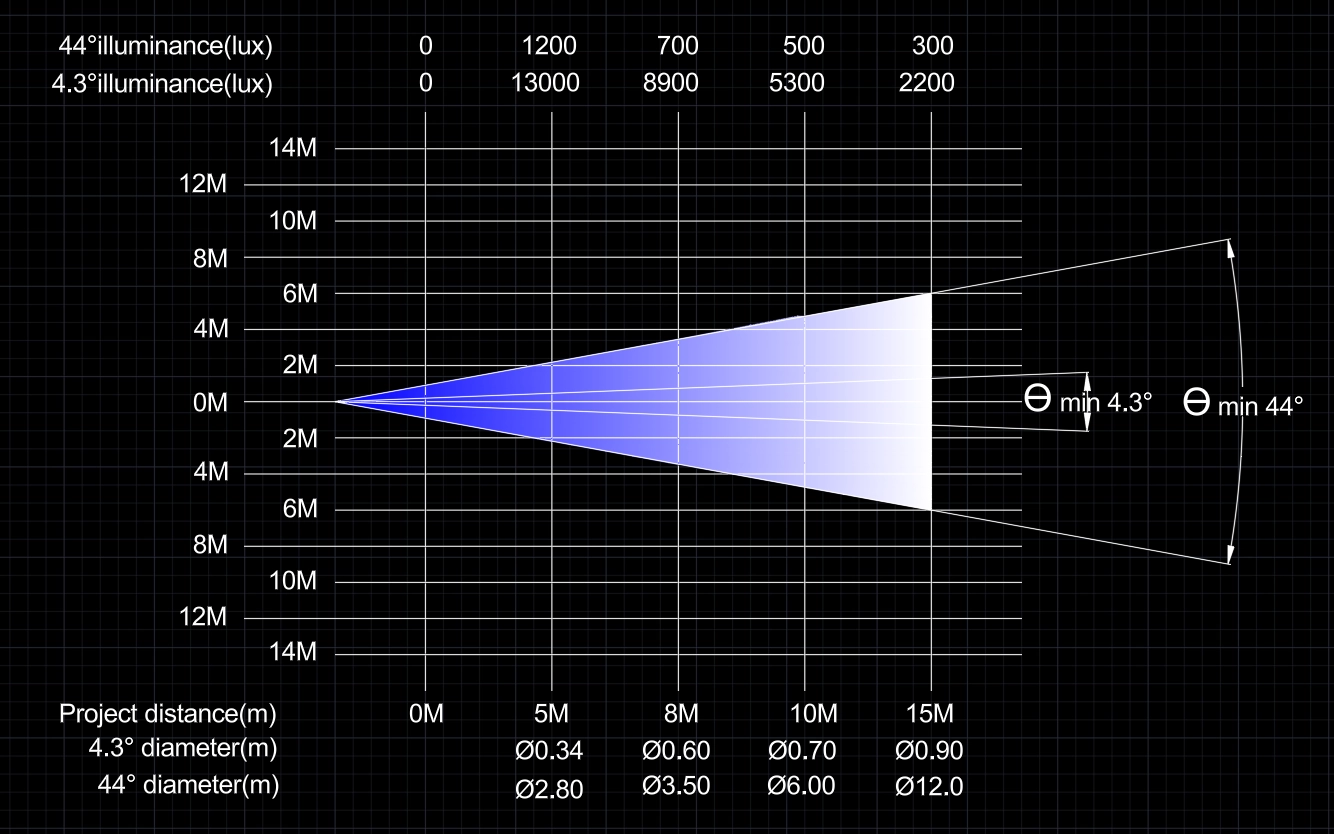

PHOTOMETRICS
DIMENSIONS(MM)
Technical Dossier
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.

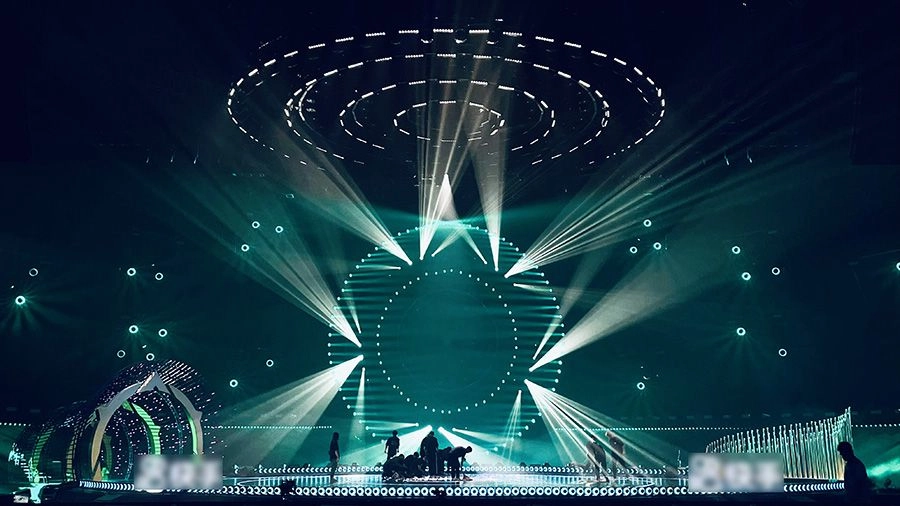

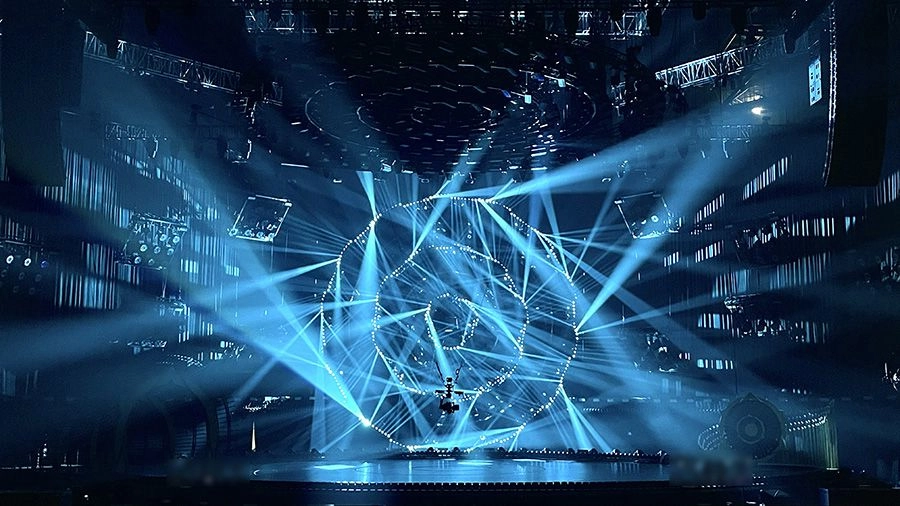

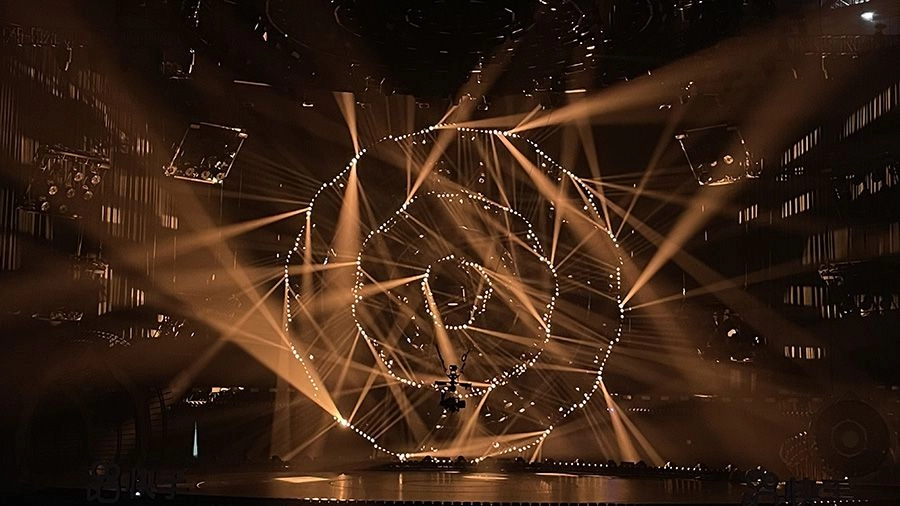

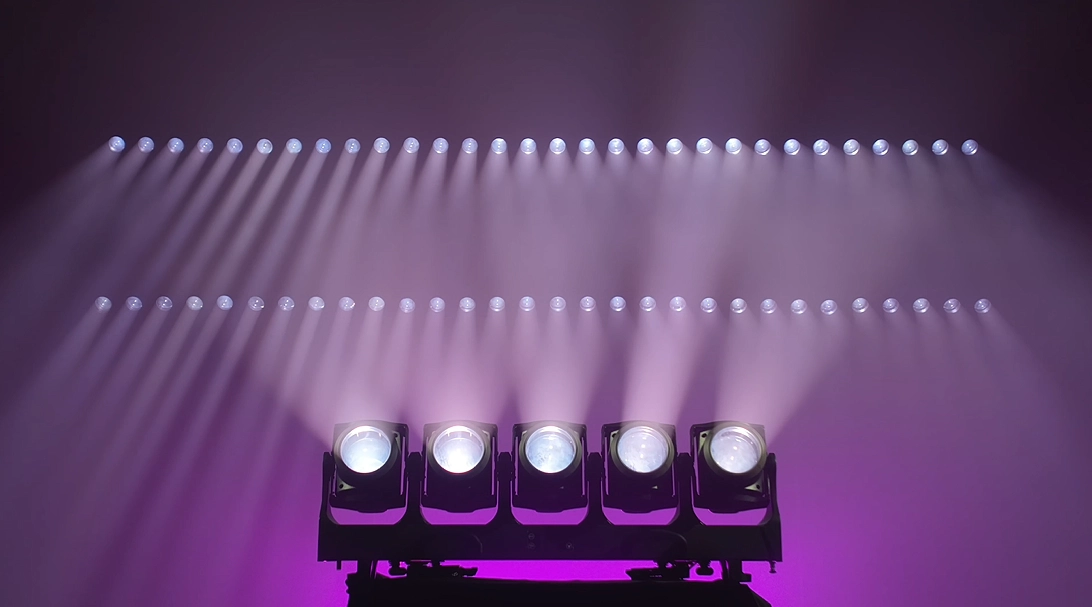

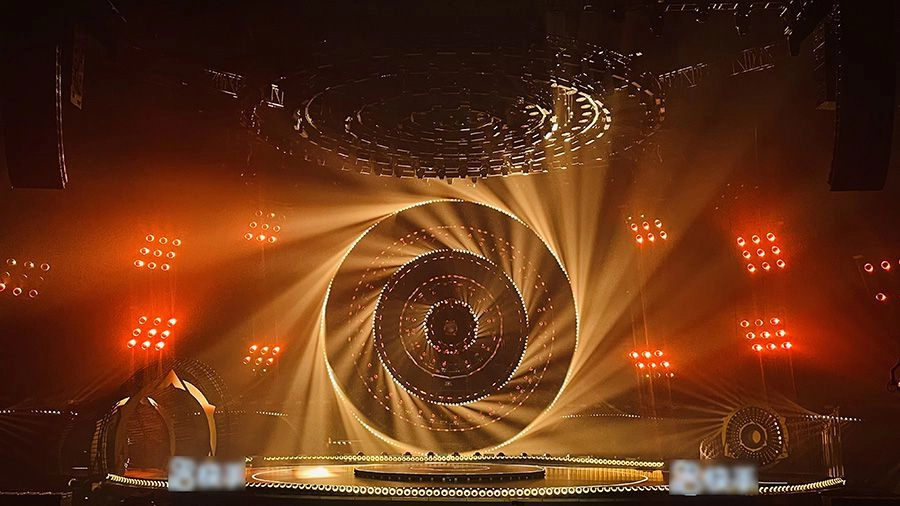

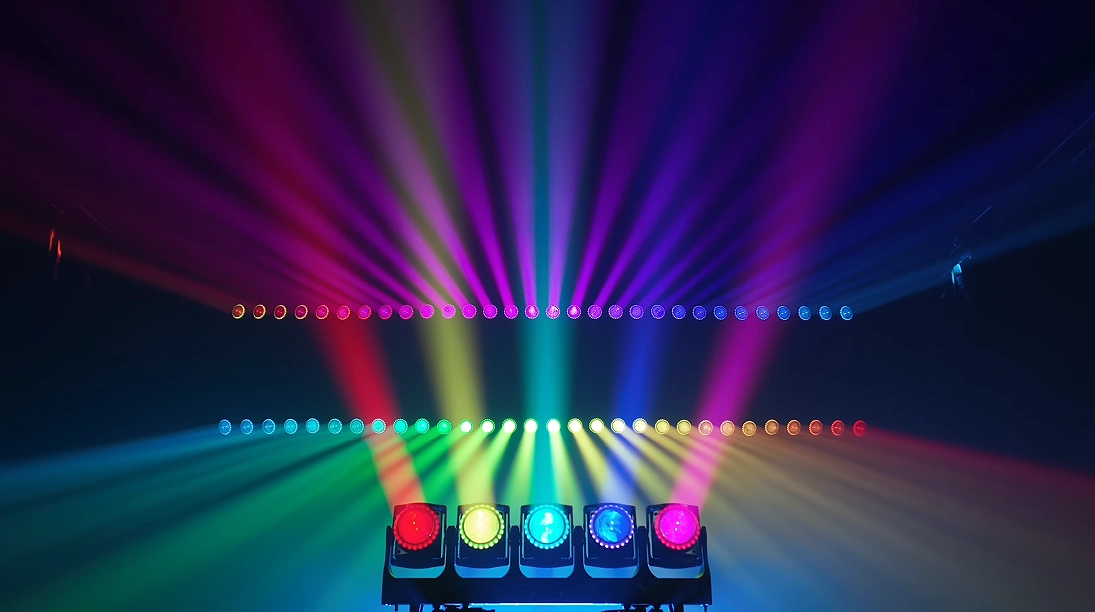

Effect Projections
