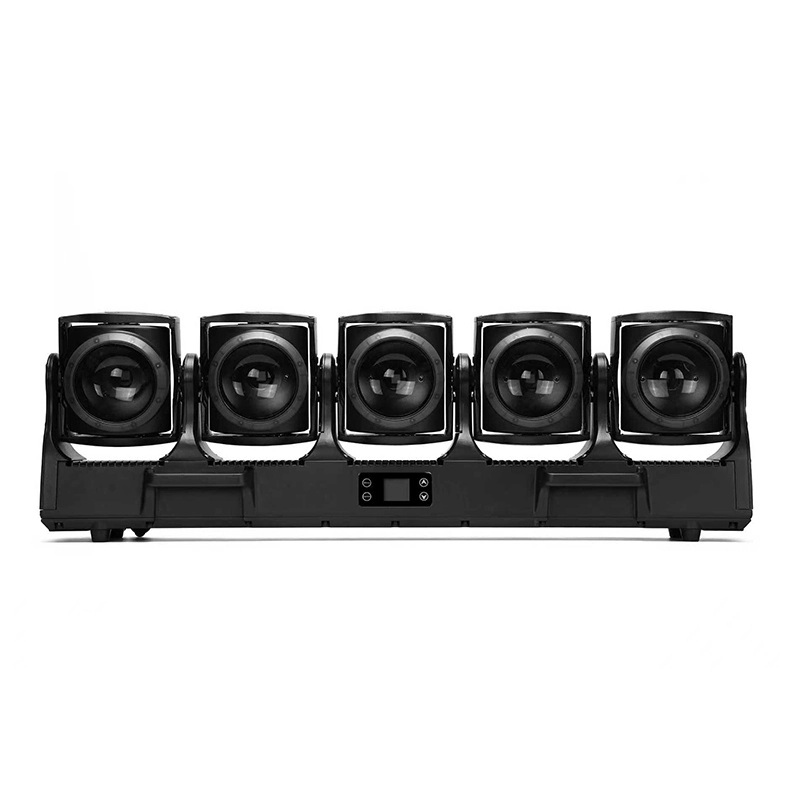

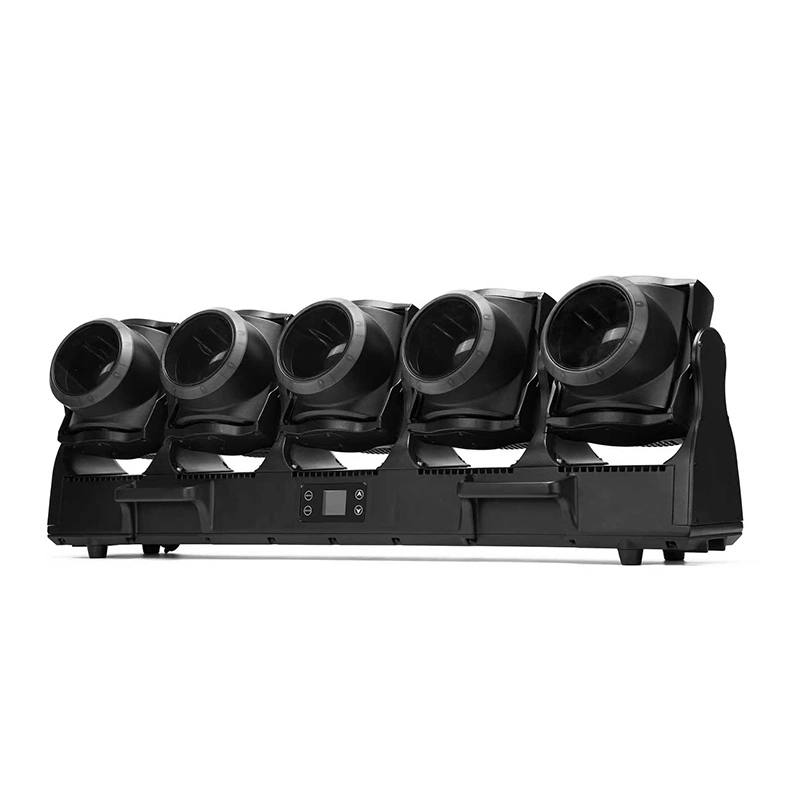

GML TORNADO IP All-Weather Motorized Linear LED Fixture
GML TORNADO IP All-Weather Motorized Linear LED Fixture
GML TORNADO IP All-Weather Motorized Linear LED Fixture

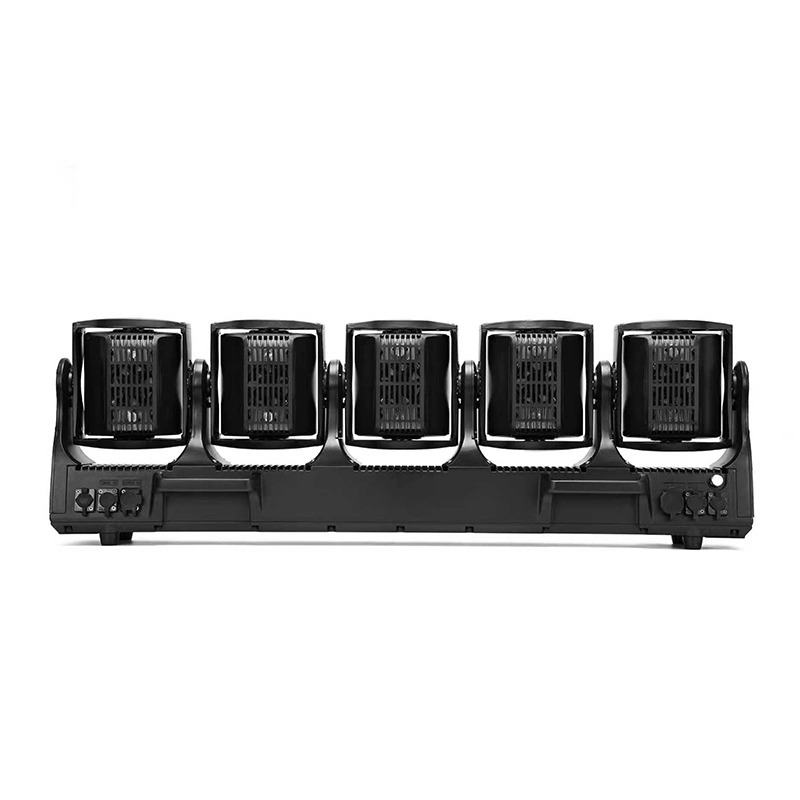

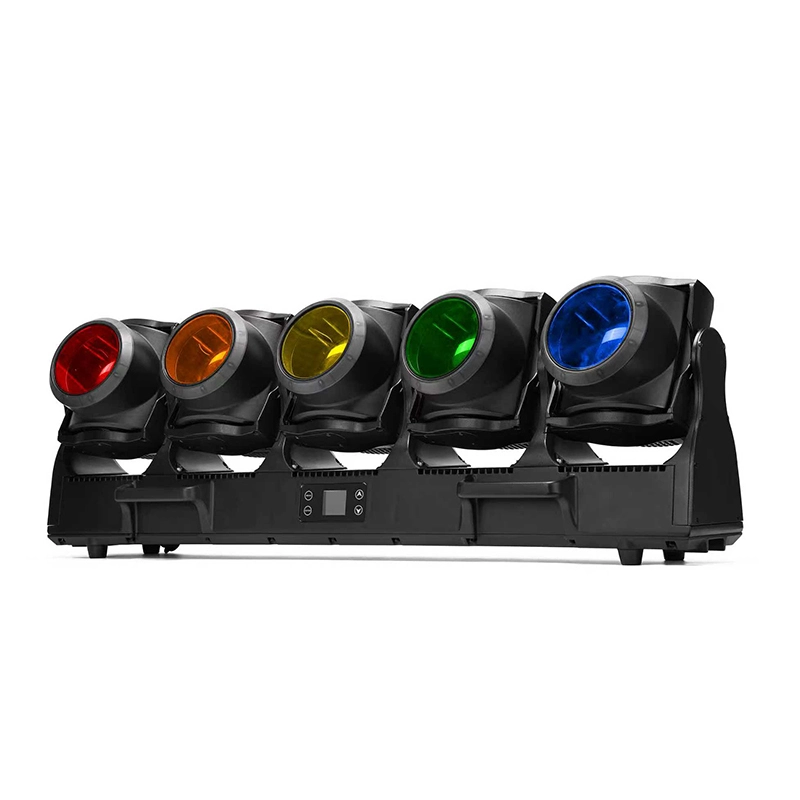

GML TORNADO IP is engineered for outdoor event production and festivals under demanding atmospheric conditions, protected by an IP65 sealed housing. The primary light engine utilizes 5 × 120W RGBL (4-in-1) LEDs complemented by an outer perimeter of 120 × 0.5W RGB LEDs, delivering 13,000 lumens across a 20,000-hour emitter lifetime.
Optical System and Kinematics
The motorized zoom mechanism provides a 3°–30° beam angle and 4°–35° field angle with precise linear focusing. Accurate 16-bit drive mechanics govern 59° Pan and 221° Tilt motion with automatic position repositioning.
Touring Connections and Rigging
Rugged Seetronic PowerCON TRUE1 (IN/OUT) power connections and Seetronic 3-pin XLR data ports ensure field reliability. Controlled via DMX512 and RDM across 41 or 71 channels. The fixture accommodates vertical or horizontal truss rigging using two Omega brackets.
Specifications

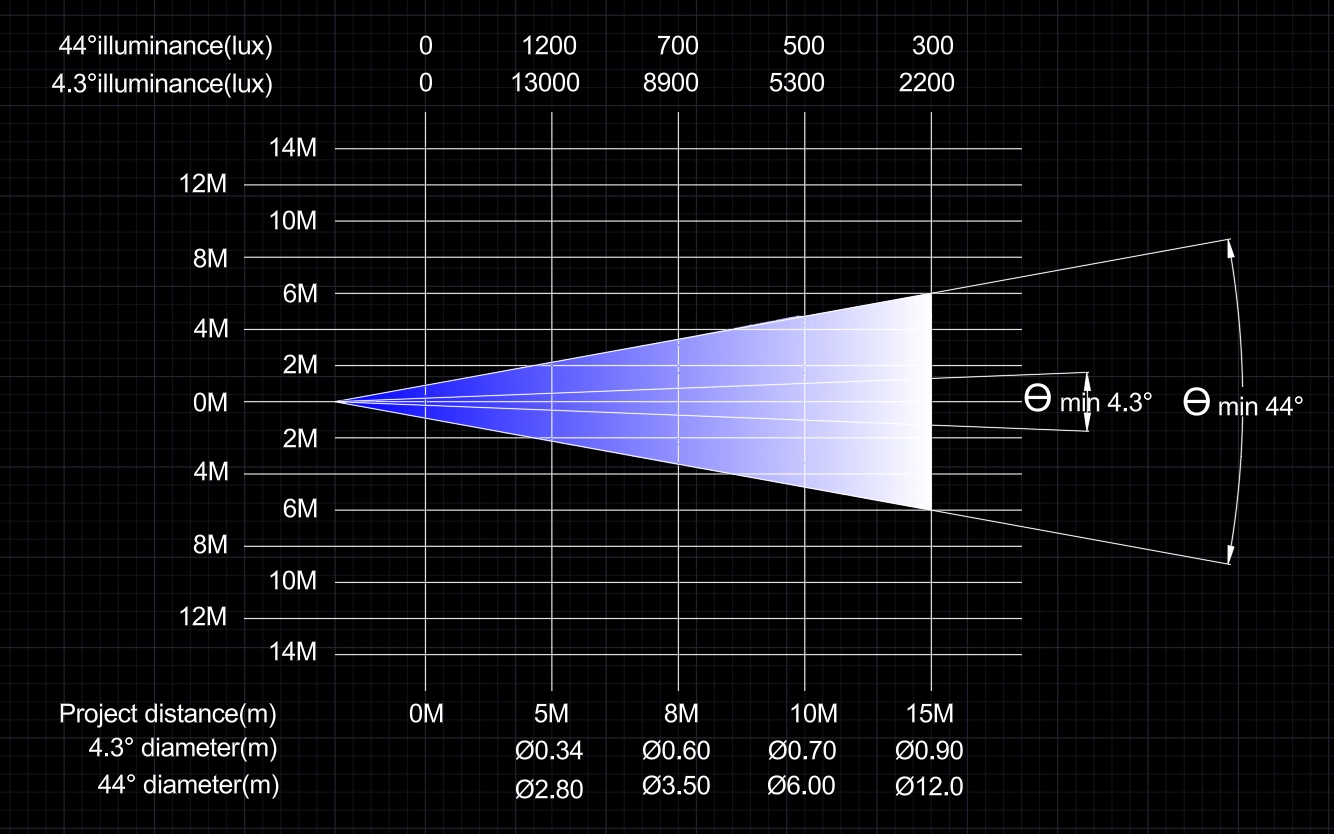

PHOTOMETRICS
DIMENSIONS(MM)
Technical Dossier
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.

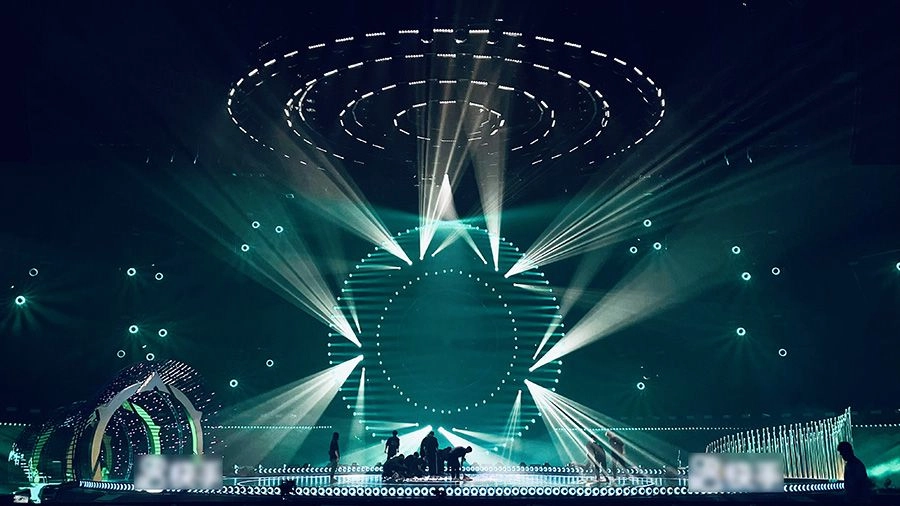

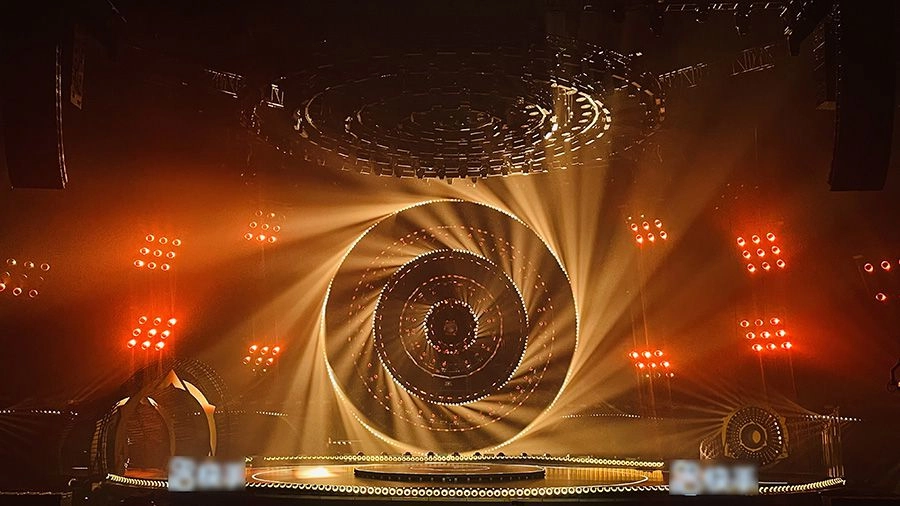

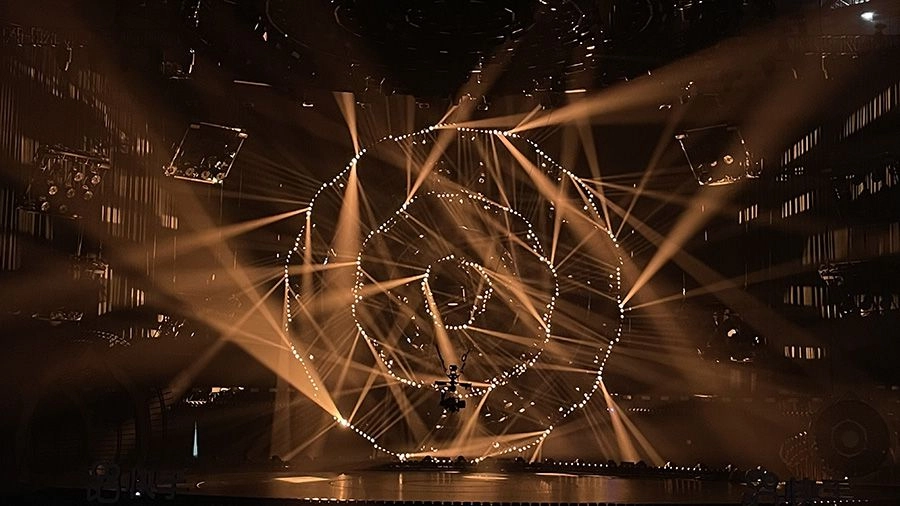

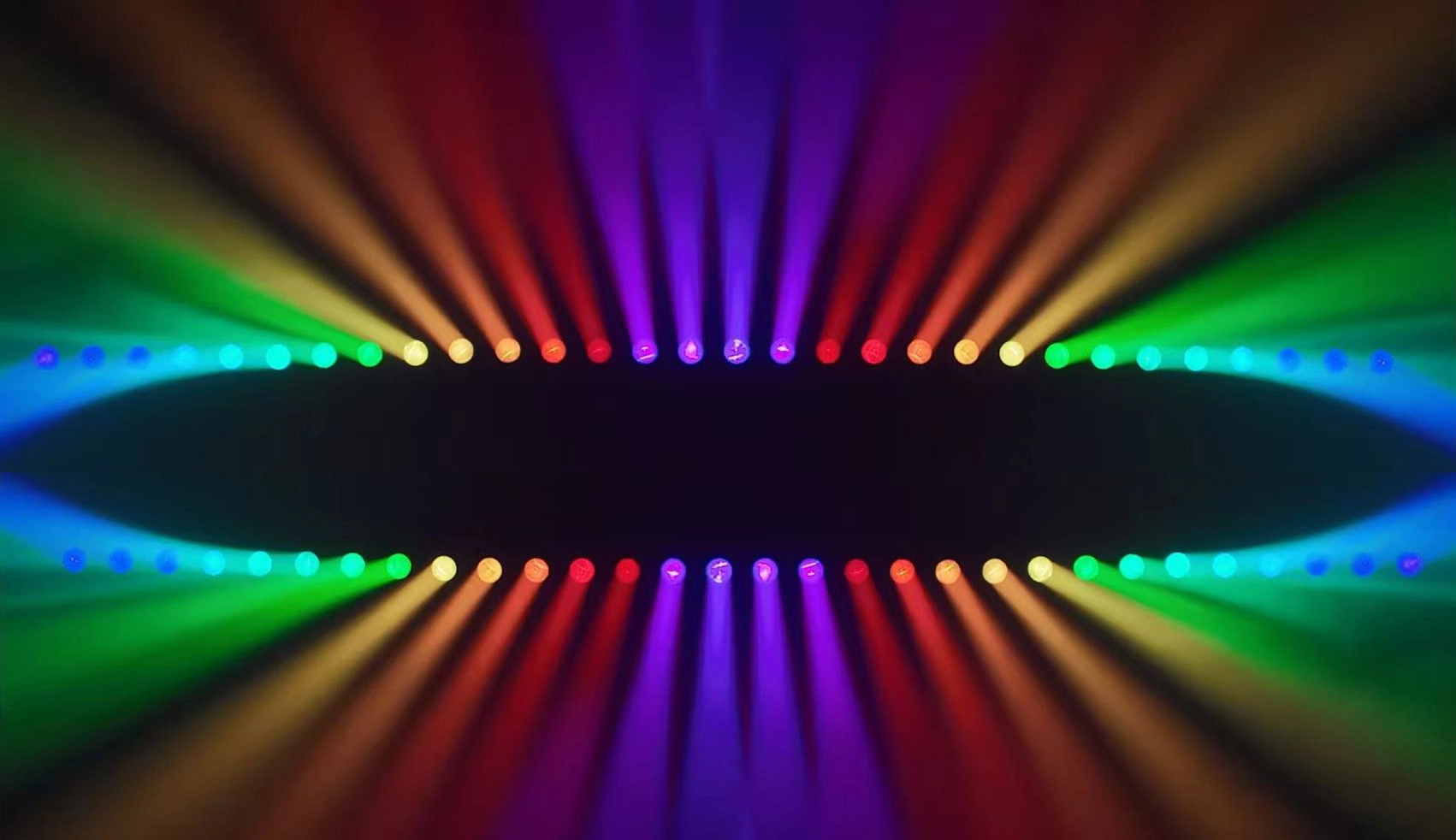

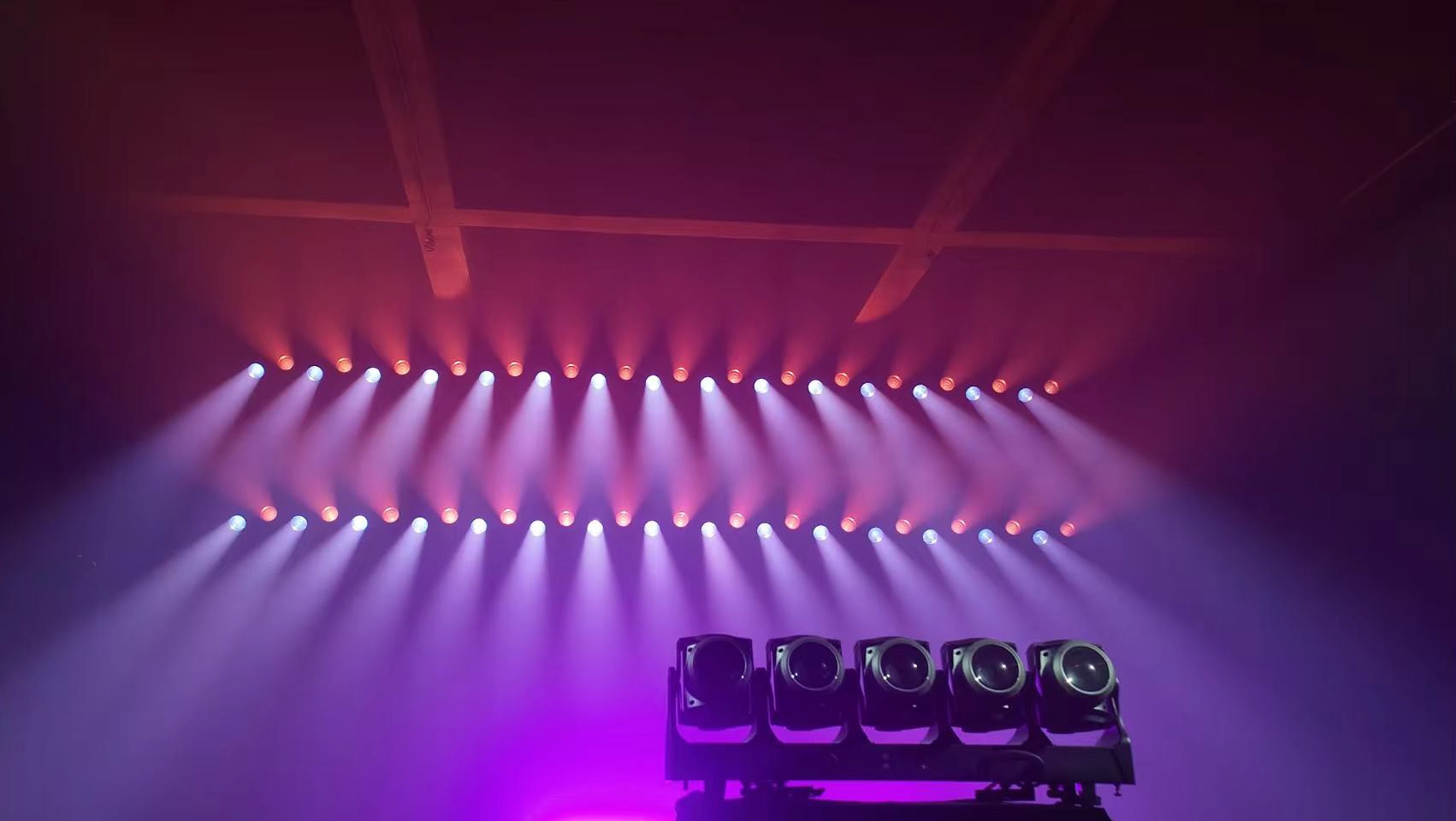

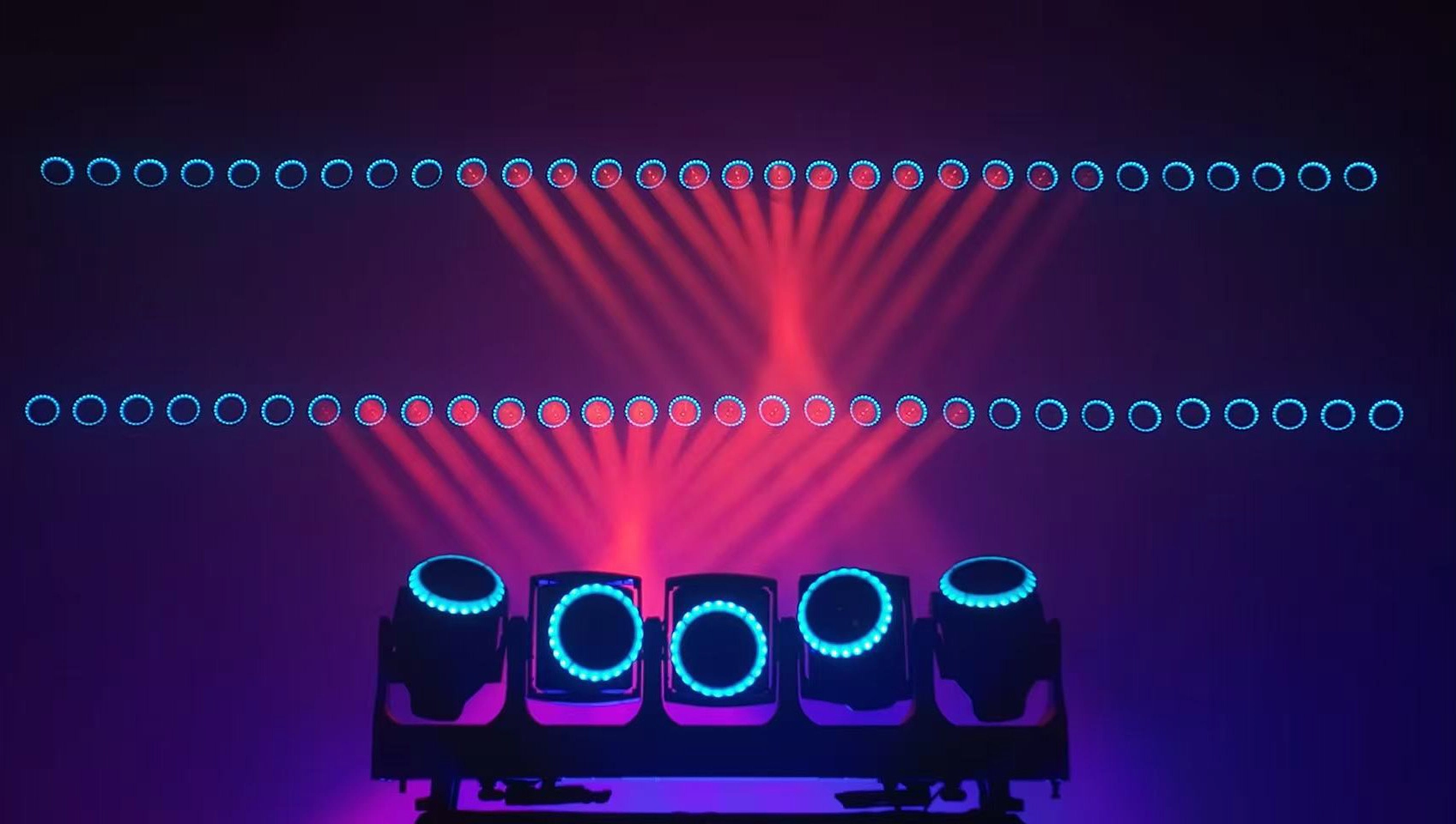

Effect Projections
