GML · HYBRID STROBE & WASH · TILT 185°

STRIKE PRO

784 × RGB · 392 × CW · 185° Motorized Tilt · IP65

1200W Hybrid Strobe · 14 RGB Segments · 28 CW Segments · DMX / RDM / Art-Net

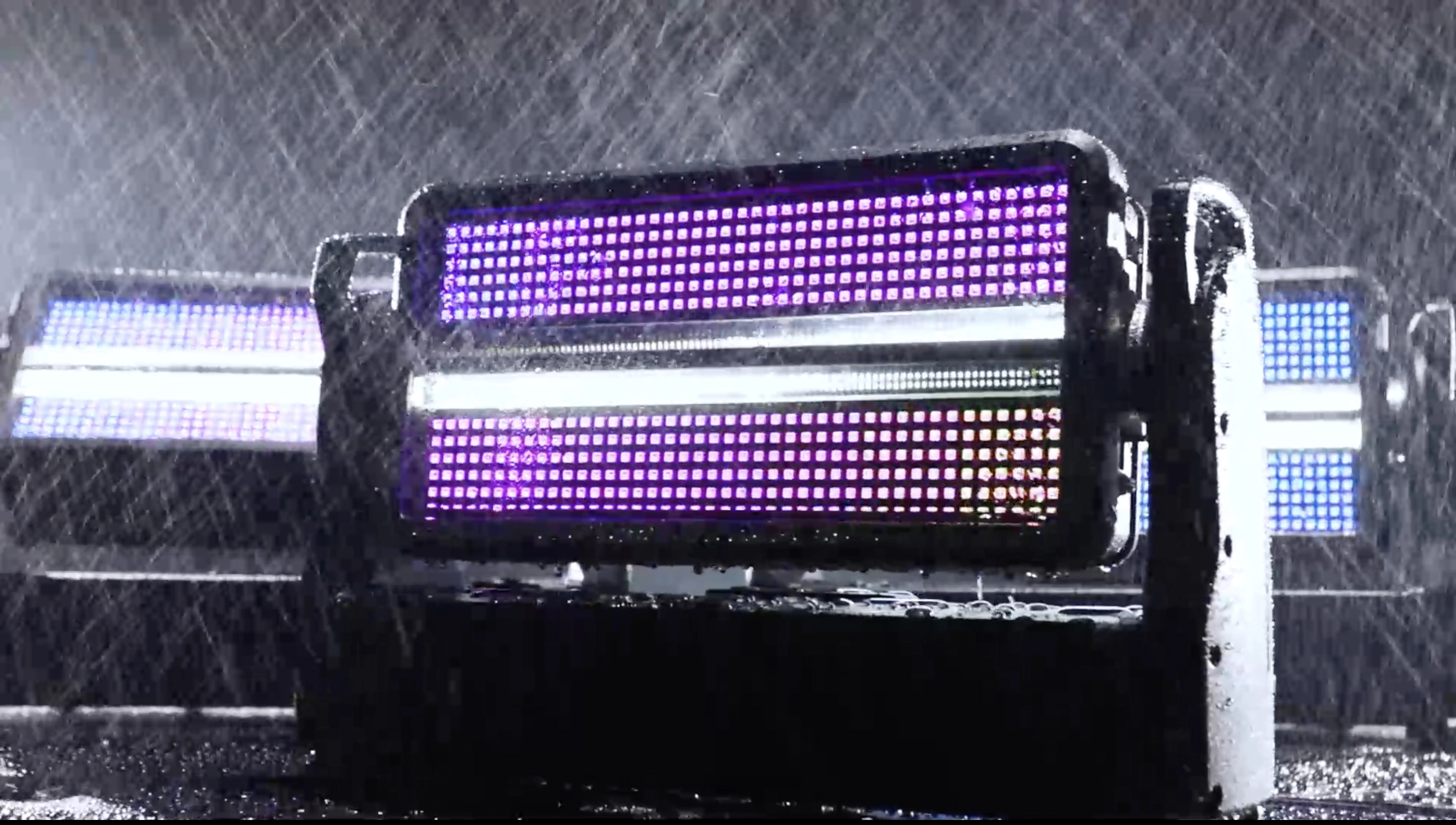

GML STRIKE Pro IP LED Strobe

GML STRIKE Pro IP is a high-output motorized LED strobe and wash fixture engineered for concert stages, festival rigs, touring productions, and broadcast environments. The light engine integrates two independent light sources with a total power consumption of 1200W : a primary background matrix of 784 RGB 3-in-1 LEDs divided into 14 addre...

40 351 UAH

03 // TECHNICAL SPECIFICATIONS

Specifications

Dimming

Linear, 0–100%

Strobe

1–25 Hz

Strobe modes

Standard, random, pulse

Tilt

185°

Tilt resolution

8/16 bit

Main light source

784 × RGB 3-in-1 LED (5050, 0.5W)

RGB segments

14 (2 × 7)

Strobe light source

392 × Cold White LED (3535, 5W)

Color temperature

6500K

Housing color

Black

Control protocols

DMX512, RDM, Art-Net

Wireless DMX

2.4 GHz W-DMX (optional)

DMX modes

5 / 8 / 11 / 13 / 14 / 24 / 74 / 97 channels

Power supply

AC 100–240 V, 50/60 Hz

Power consumption

1200W

Power connection

Seetronic PowerCON TRUE1 IN/OUT

Net weight

11.2 kg

Gross weight

13.5 kg

Fixture type

LED strobe with motorized tilt

Cold White segments

28 (2 × 14)

Built-in effects

LED Macro Effects

Position Feedback

Yes

Display

Backlit graphic OLED

Cooling

Automatic temperature control with overheat protection

Housing material

Die-cast aluminum

Signal connection

Seetronic XLR 3-pin or 5-pin IN/OUT

Length

502 mm

Width

137 mm

Height

326 mm

Packaging options

Individual cardboard box or road case for 4 units

Technical Dimensions

Precise engineering specifications

Length502 mm

Width137 mm

Height326 mm

GML STRIKE Pro IP LED Strobe technical drawing

07 // PROJECT DESK

SYS.REF: INQUIRY.DIRECT|STATUS: OPERATIONAL

PROJECT DESK

LET’S START WITH THE REQUIREMENTS.

Tell us what you are planning, replacing or trying to solve. A useful first message can include the space, intended use, mounting position, control system, environmental conditions and approximate quantity. We can then point you to suitable fixtures, documentation or the next technical question.

PHONE PROTOCOL+380 67 486 72 34

DIRECT EMAILgm.light.com@gmail.com

GML STAGE AUTOMATION

01 · HYBRID ARCHITECTURE

Hybrid Luminous Matrix

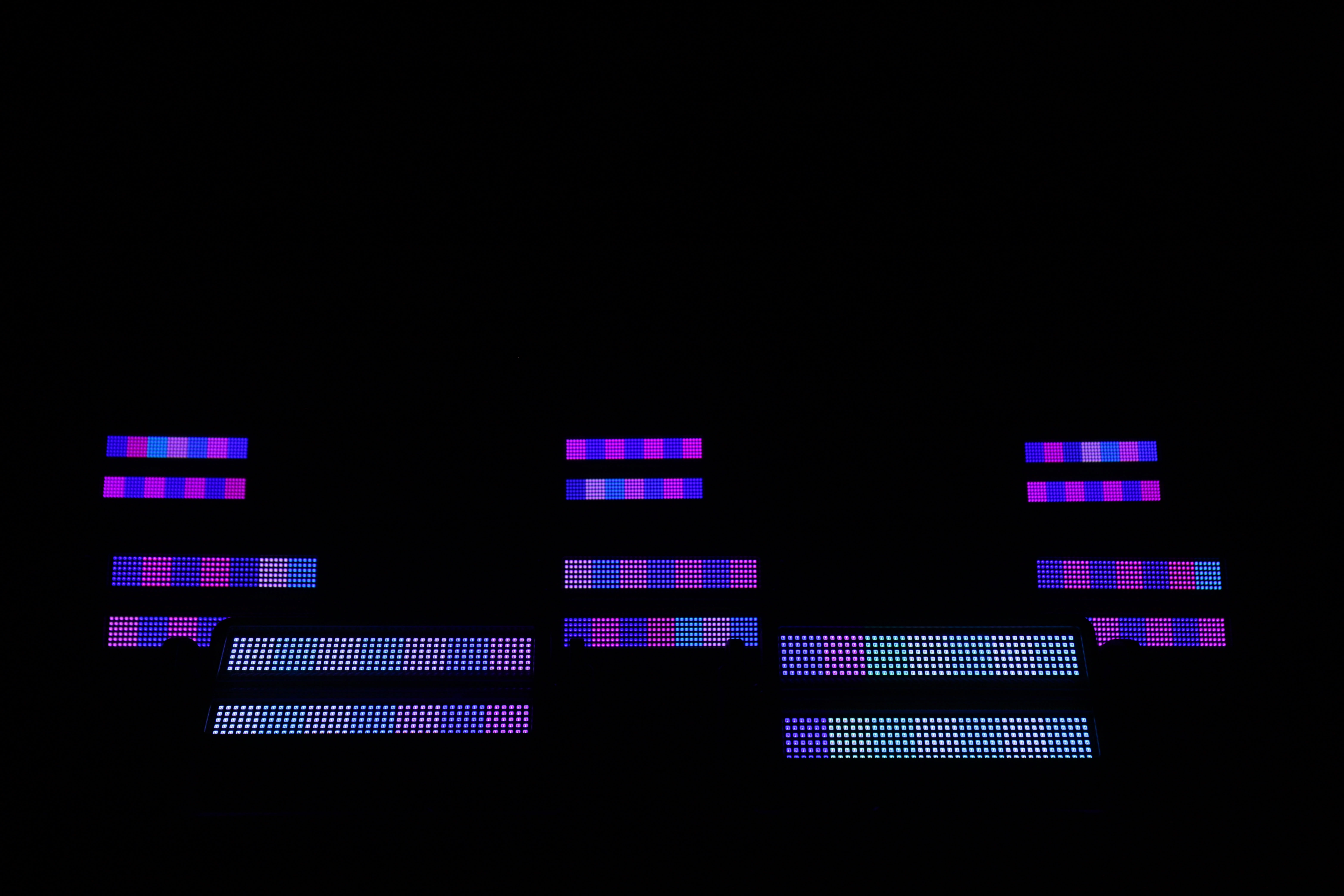

Combines 784 RGB LEDs arranged in 14 independently addressable zones (2 × 7 grid) with 392 Cold White 6500K LEDs arranged in 28 zones (2 × 14 grid) for a total power draw of 1200W.

Zone Control Map14 RGB (2×7) · 28 CW (2×14)

GML STRIKE Pro IP LED Strobe — 14 RGB and 28 CW zone control map

RGB14 (2 × 7) Segments

784 × RGB 3-in-1 LED (5050, 0.5W)

14 independent pixel blocks (2 × 7 matrix)

Cool White Strobe28 (2 × 14) Segments

392 × Cold White LED (3535, 5W)

28 independent strobe zones (2 × 14 matrix) · 6500K

Total Fixture Power1200W

02 · KINETIC MOTION

Dynamic 185° Motorized Tilt

The motorized yoke provides 185° vertical tilt movement with 8/16-bit positioning resolution and automatic Position Feedback for accurate position restoration.

Tilt Range

185°

Resolution

8/16 bit

Position Feedback

Yes

Protocols:DMX512, RDM, Art-Net

185°MOTORIZED TILT

03 · STROBE & STAGE ARRAYS

High-Impact White Strobe & Stage Arrays

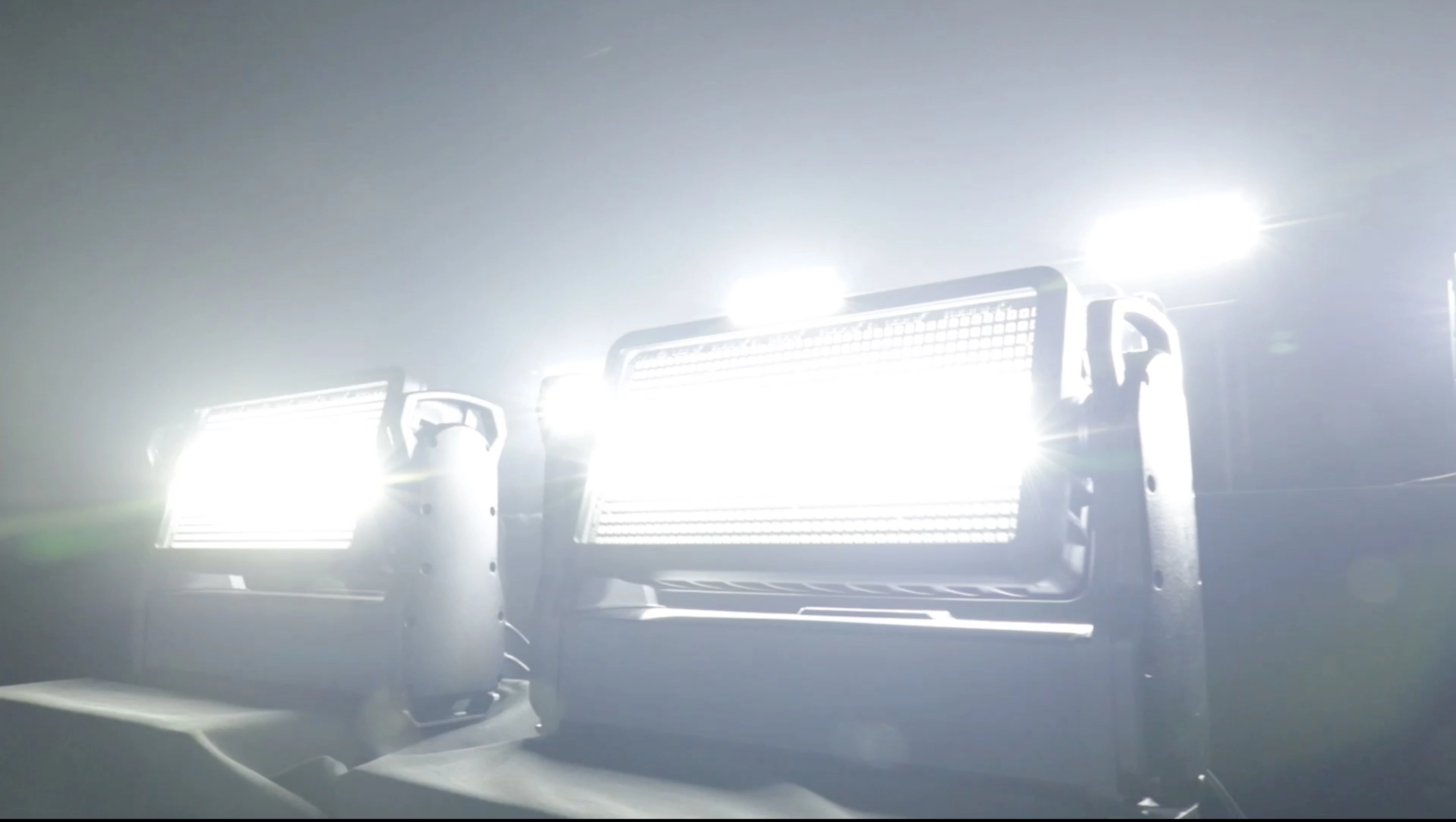

392 high-power 5W Cold White LEDs deliver explosive strobe flashes (1–25 Hz) with standard, random and pulse modes. Arranged in multi-fixture arrays, STRIKE Pro IP creates massive, synchronized walls of light.
