GM-L · MULTISOURCE LED

GML SPIDER 760

Zoom 8–50°7 × 60W RGBW 4-in-1 LED

GML SPIDER 760

Product Overview

Concept and Optical Capabilities

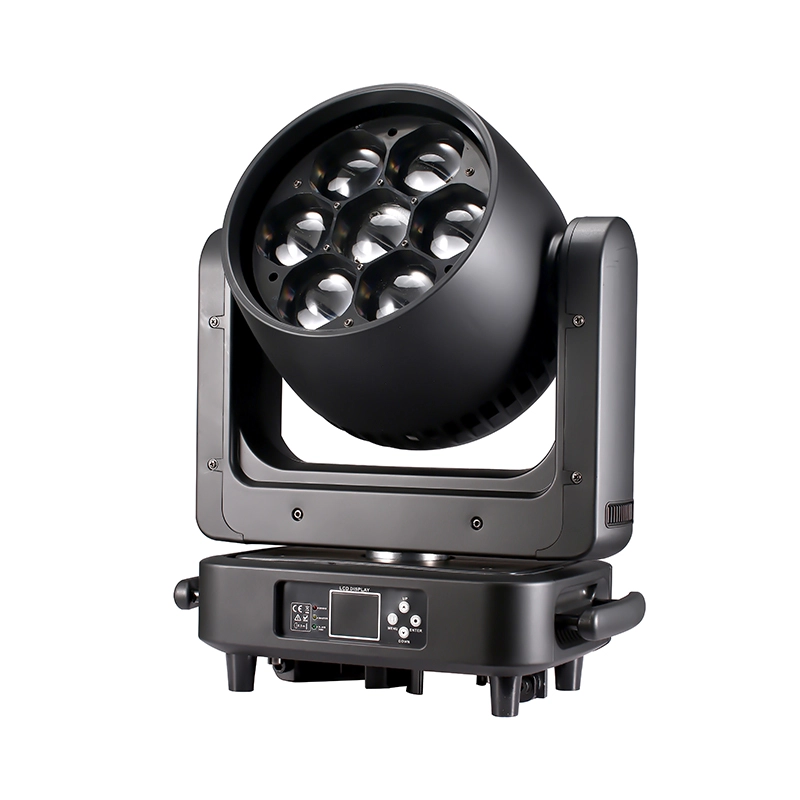

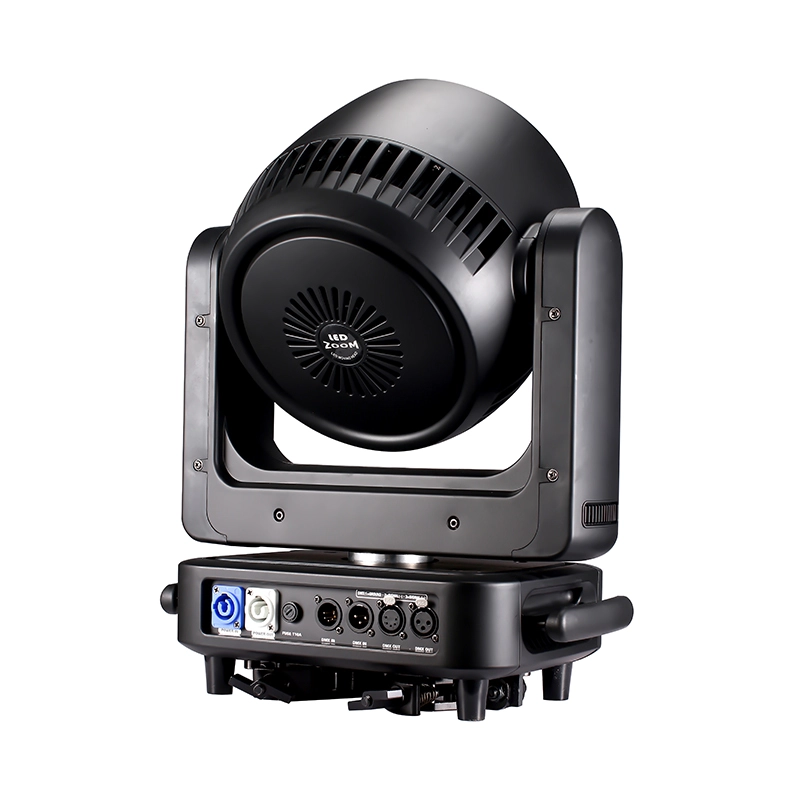

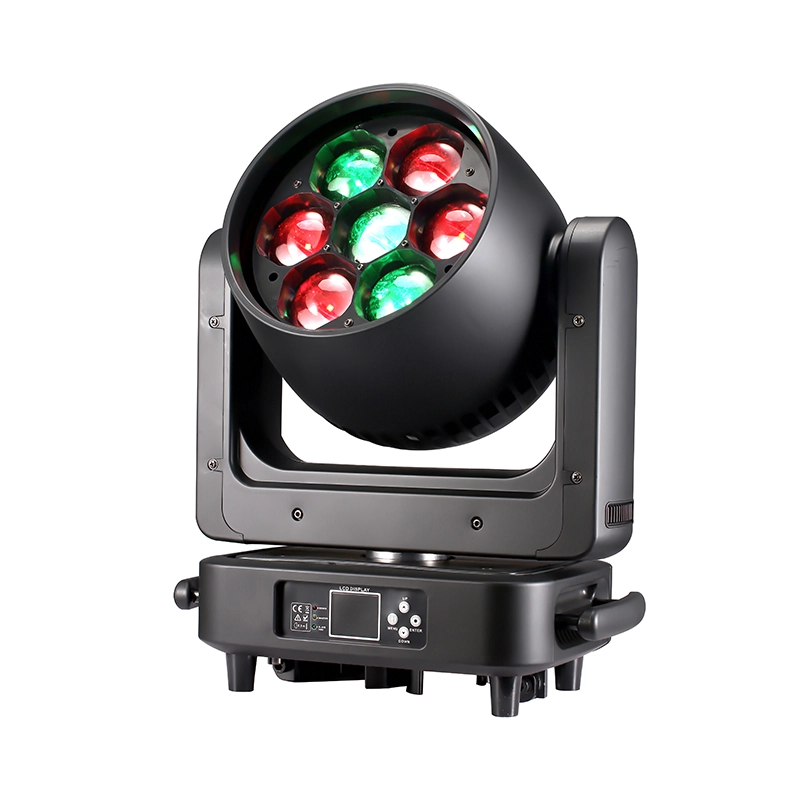

The GML SPIDER 760 is a versatile LED moving head luminaire combining Wash, Beam, Graphic, and dynamic multi-effect capabilities. Its optical core is driven by 7 high-output 60W RGBW 4-in-1 LEDs with full individual pixel control.

Key Functional Features

Optical Assembly and Lens Rotation: An 8–50° motorized linear zoom enables seamless shifts from a punchy beam to a wide wash, complemented by an endless bi-directionally rotating front lens.

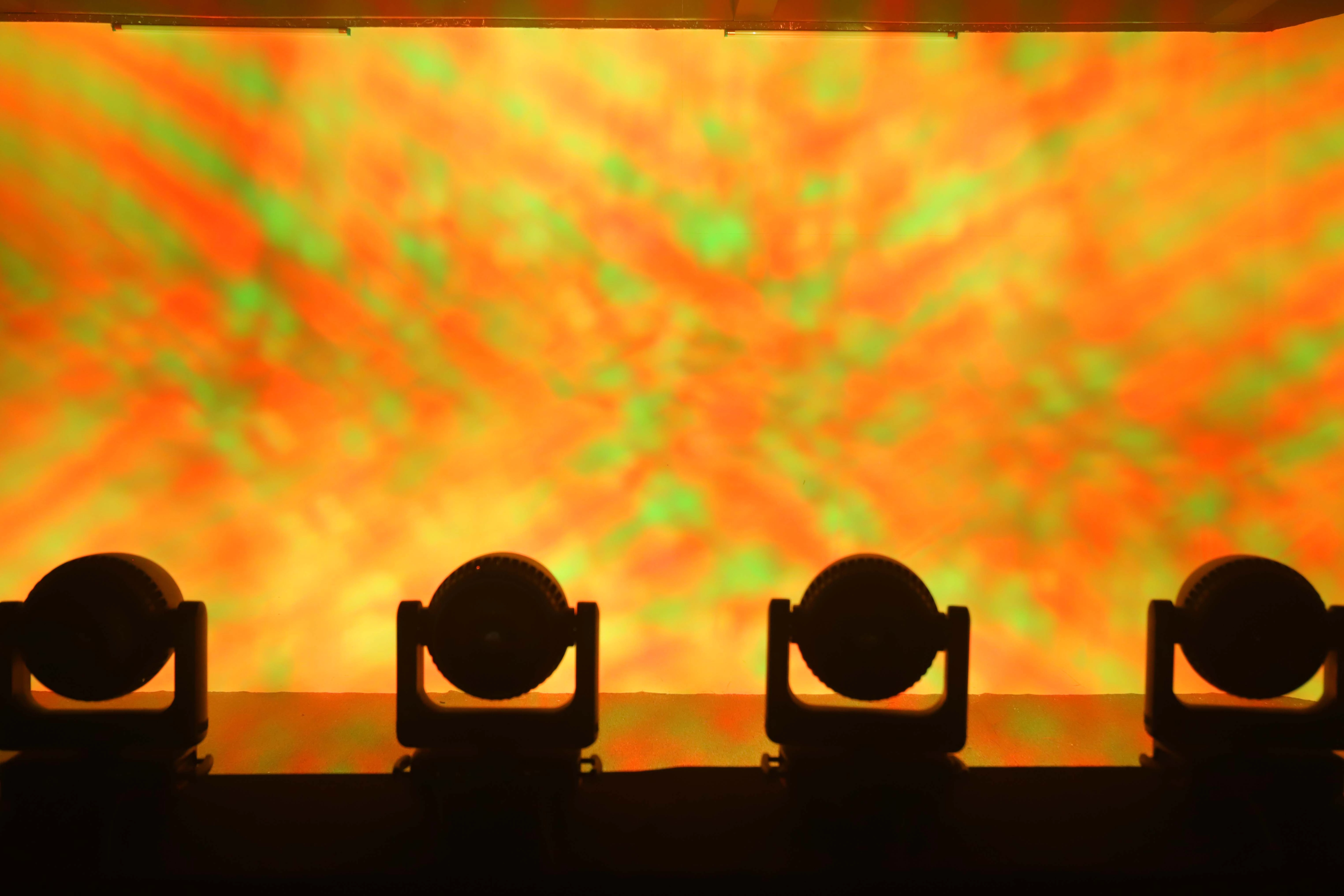

Specialized Dynamic Effects: Signature Spider Web, Vortex, and Kaleidoscope patterns produce intricate geometric aerial textures.
Color Synthesis and Control: Linear RGBW color mixing, calibrated color temperature from 2500K to 8000K, prominent color macro mode, and 4 selectable linear dimming curves (0–100%).
Control and Mechanics: Native DMX512 control across 19/44 channels, responsive Pan (540°) and Tilt (270°) motion, and a 1–25 Hz strobe with pulse and random flash macros.

Application Scope

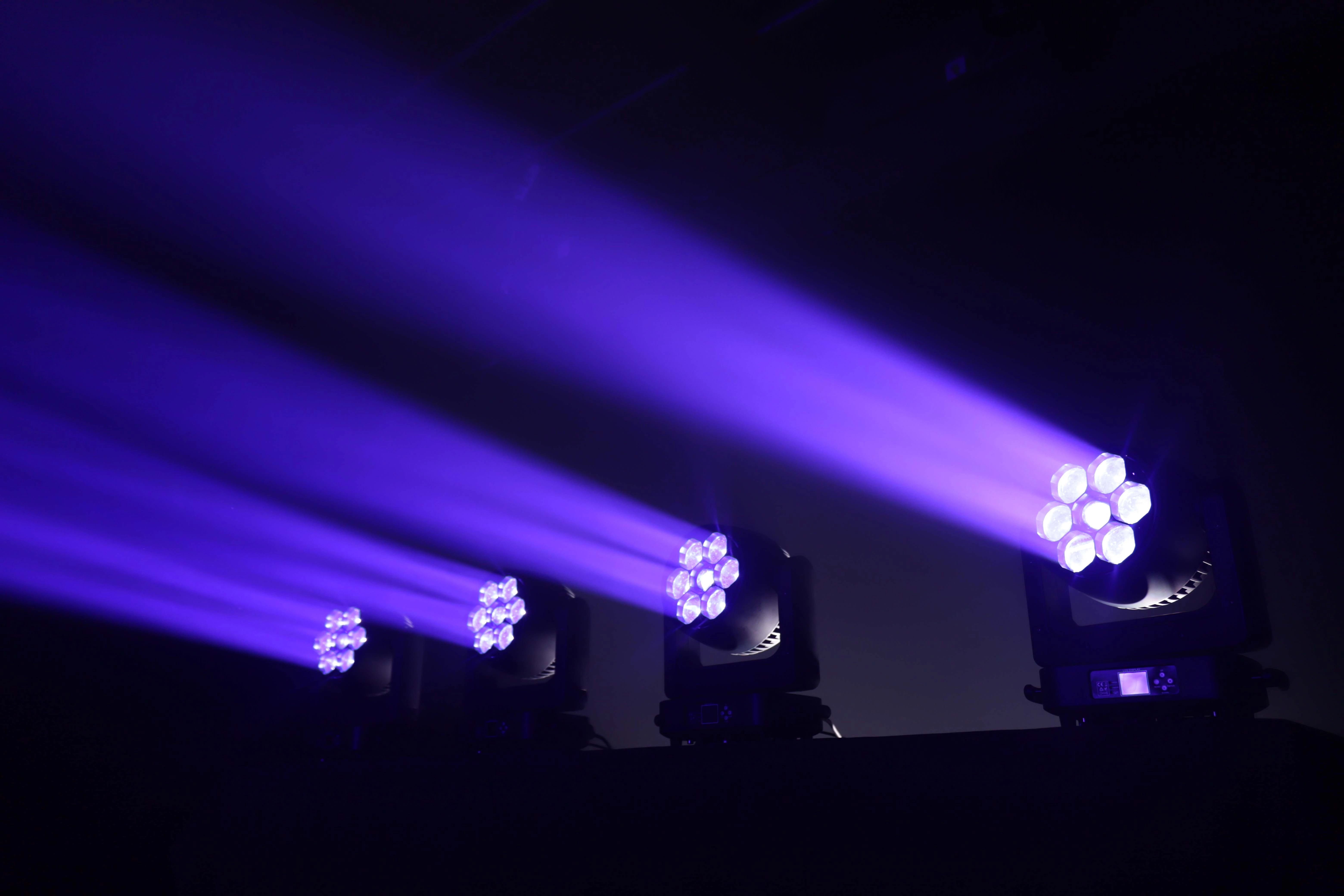

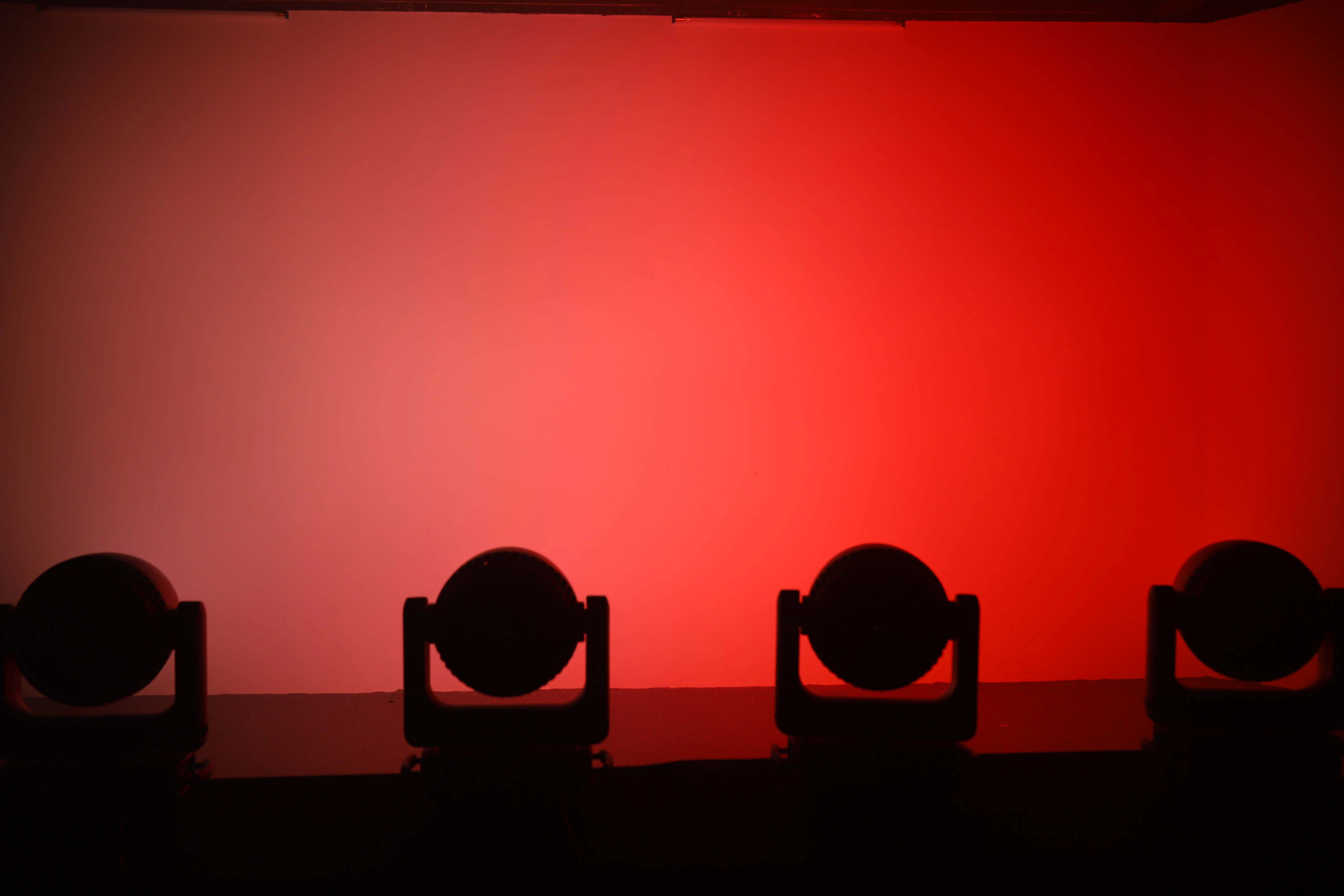

Weighing 10.5 kg, the fixture delivers dynamic aerial visuals for live event venues, clubs, broadcast studios, and touring rental inventories.

$966

Download File

03 // TECHNICAL SPECIFICATIONS

Specifications

Zoom range

8–50°

Strobe

1–25 Hz, random and pulse flash

Tilt movement

270°

Light source

7 × 60W RGBW 4-in-1 LED

Light source lifetime

50,000 h

Color temperature

2500–8000 K

Color mixing

RGBW linear color mixing adjustment

Color macro mode

Prominent color macro mode

Control protocols

DMX512

DMX channels

19/44 channels

Input voltage

AC 90–240V, 50/60 Hz

Power consumption

450 W (@ 220 V)

Fixture dimensions

430 × 246 × 512 mm

Net weight

10.5 kg

Fixture type

LED Wash / Beam / Graphic Effect Moving Head

Optical system

Endless bi-directional front lens rotation

Pixel mapping

Individual LED control

Dynamic effects

Spider Web, Vortex, Kaleidoscope effects, built-in dynamic macros

Dimmer

Electronic 0–100%, 4 linear dimming curves

Pan movement

540°

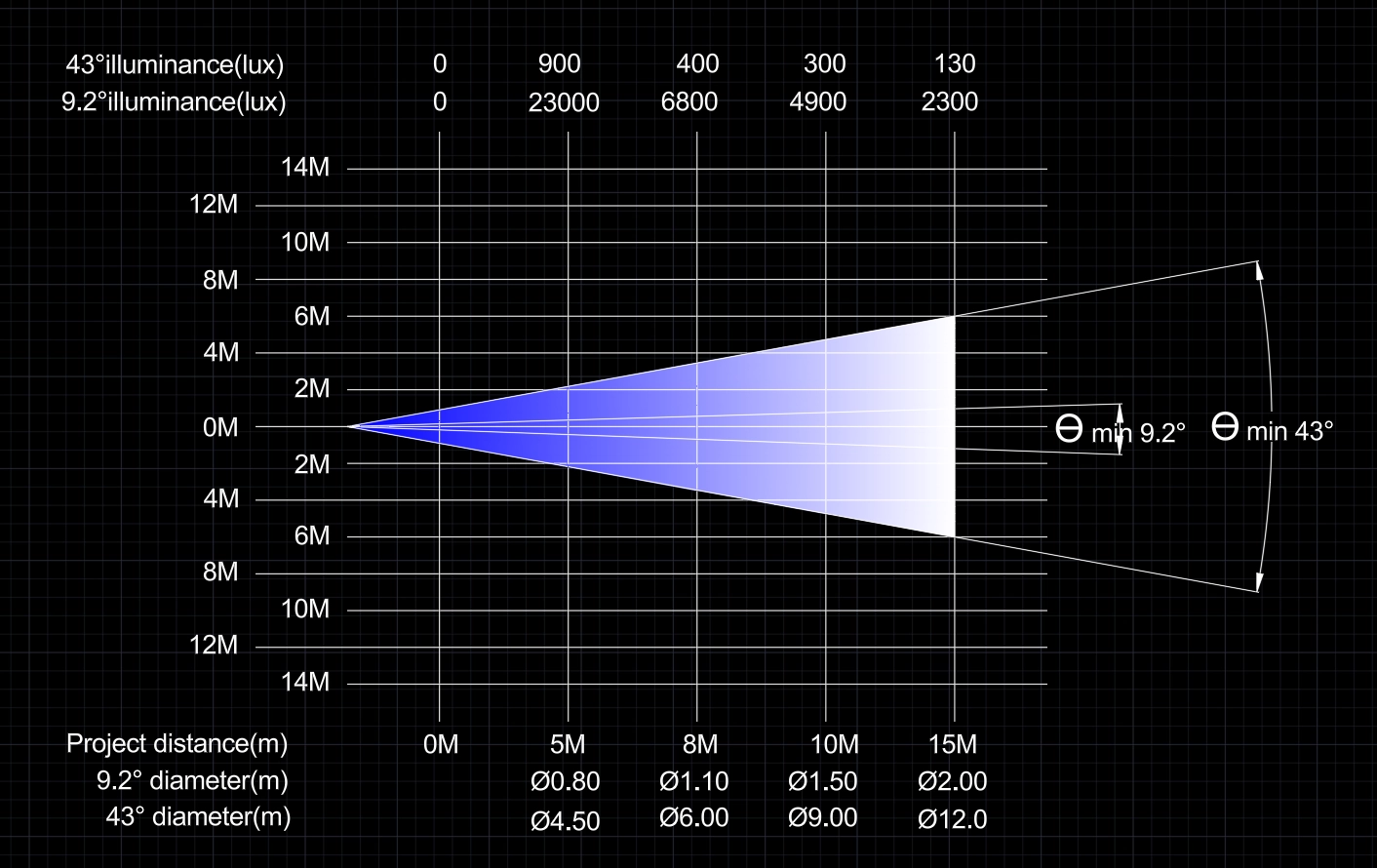

PHOTOMETRICS

DIMENSIONS(MM)

Technical Dossier

1 DOCUMENTS

TYPEDOCUMENTVERSION

PDF

GML SPIDER 760 User Manual

v1.0
