GML SOLARIS 1525Z

Concept and Optical Capabilities

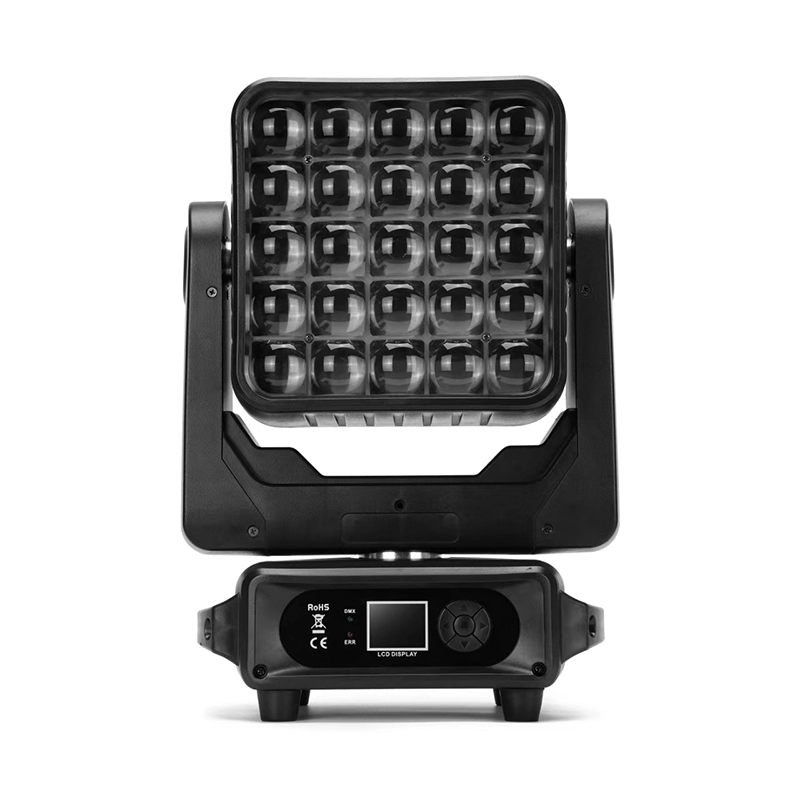

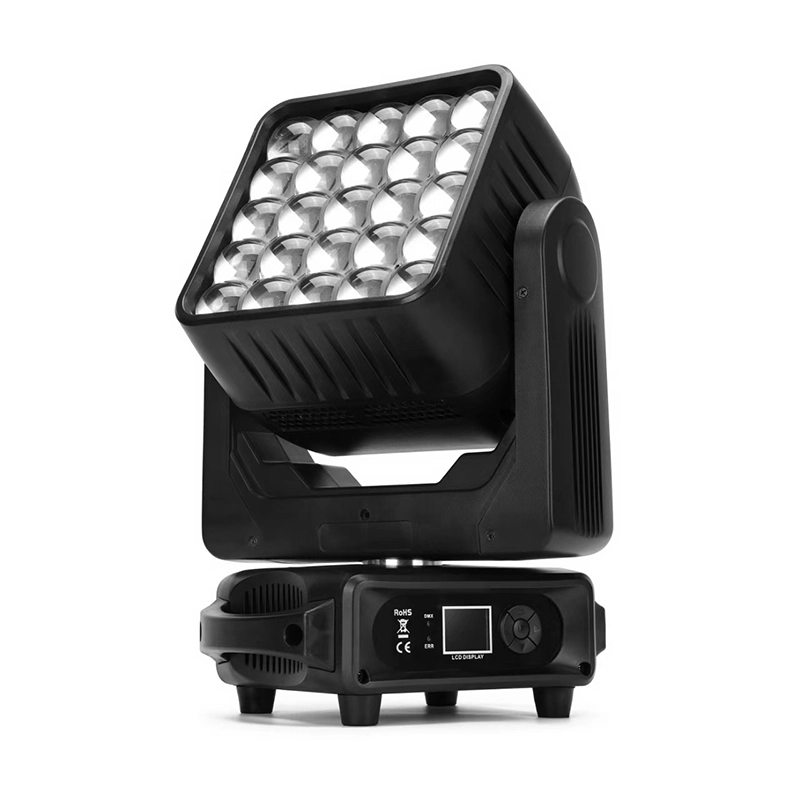

The GML SOLARIS 1525Z is a high-output LED moving head driven by a matrix of 25 × 15W RGBW 4-in-1 emitters with independent pixel-mapping capability. The luminaire transitions effortlessly between razor-sharp beam projection and broad spatial wash effects.

Key Functional Features

• Optical Assembly and Extensive Zoom: A motorized zoom spanning 4.5° to 60° provides extreme versatility, shifting from intense aerial columns to widespread field illumination.
• Pixel Mapping and 32-Bit Dimming: Full discrete control across all 25 LEDs (up to 115 DMX channels), pre-programmed dynamic graphic macros, and a 32-bit linear dimmer for ultra-smooth fades.
• Color Spectrum: Linear RGBW color mixing covering a wide white CCT range from 2500K to 9000K, coupled with a 1–25 Hz strobe offering random and pulse flash modes.

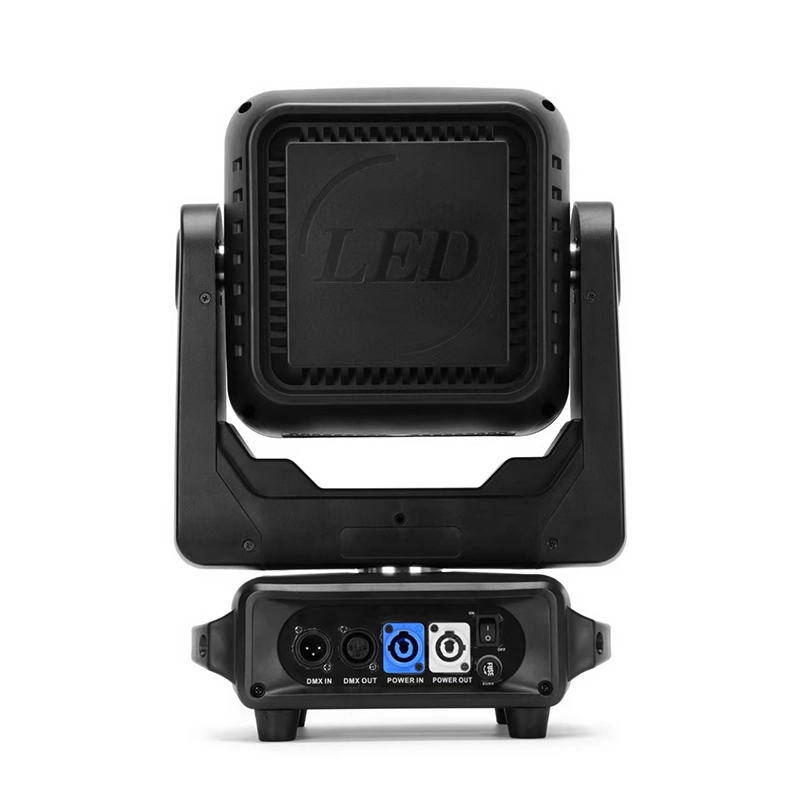

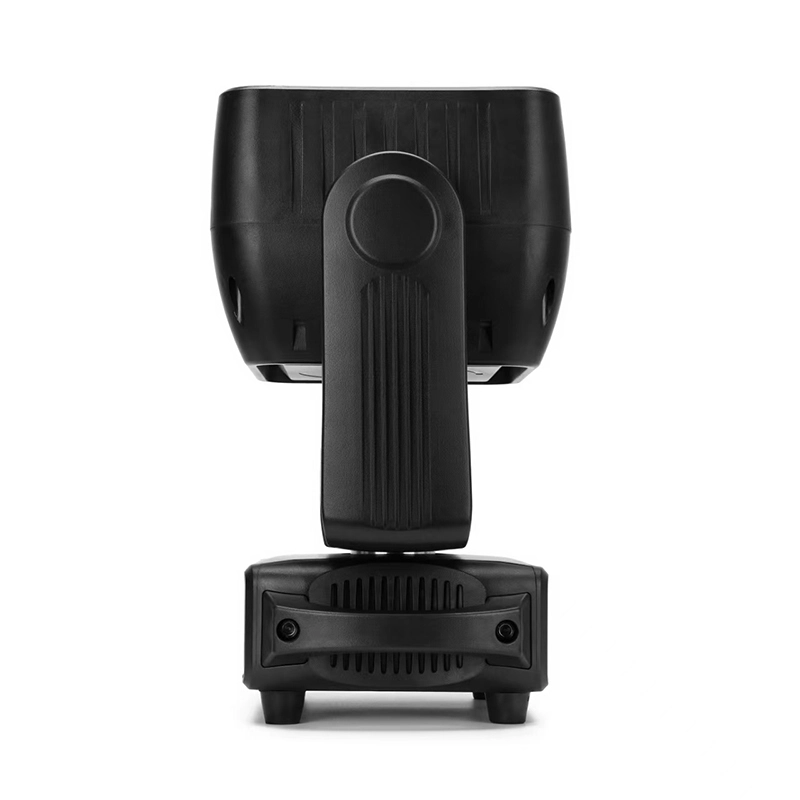

• Chassis and Controls: Flame-retardant black ABS enclosure weighing only 9 kg, responsive 16-bit Pan/Tilt mechanics (540/270°), reversible LCD interface, PowerCON in/out, and 3-pin XLR terminals.

Application Scope

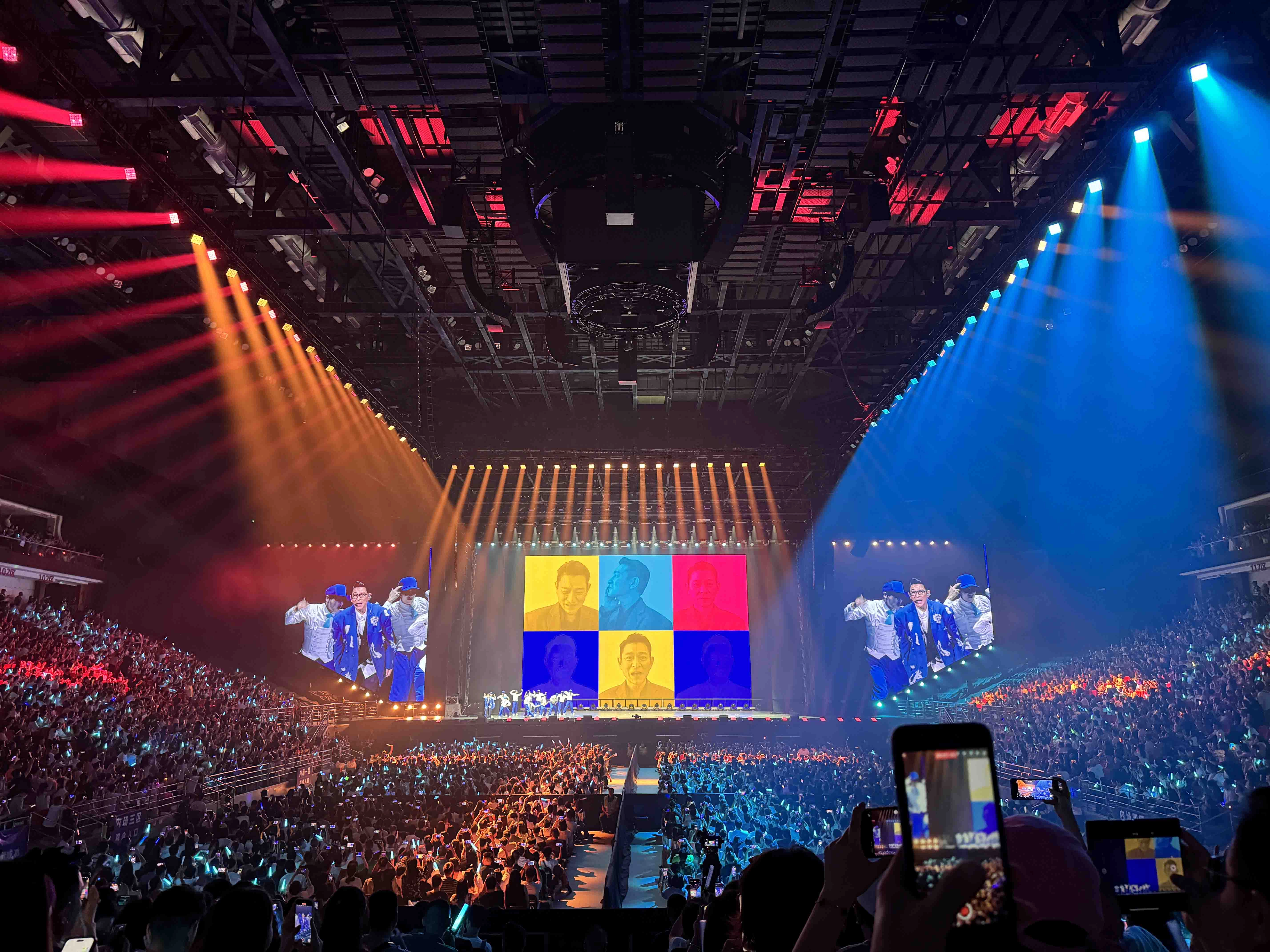

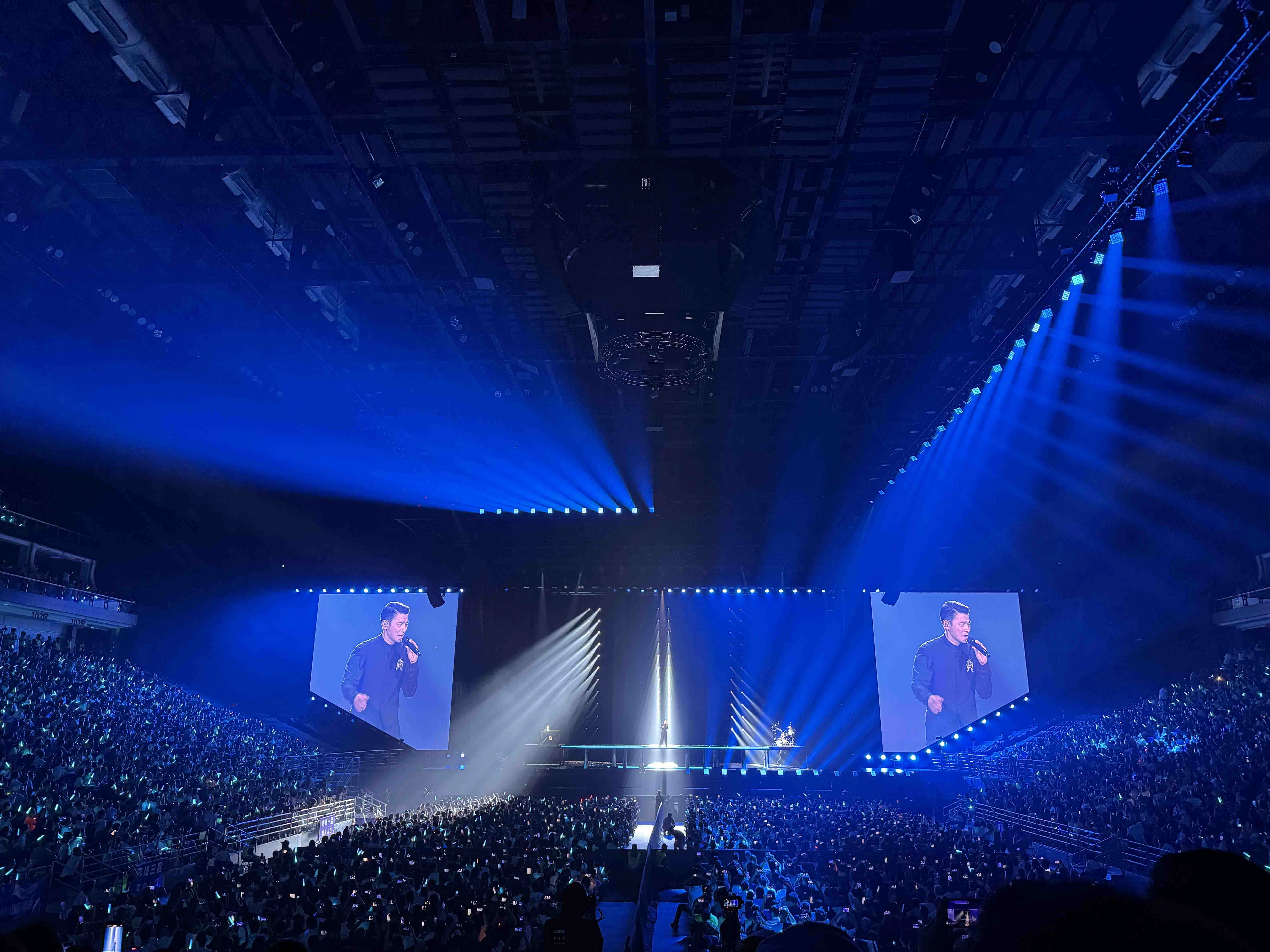

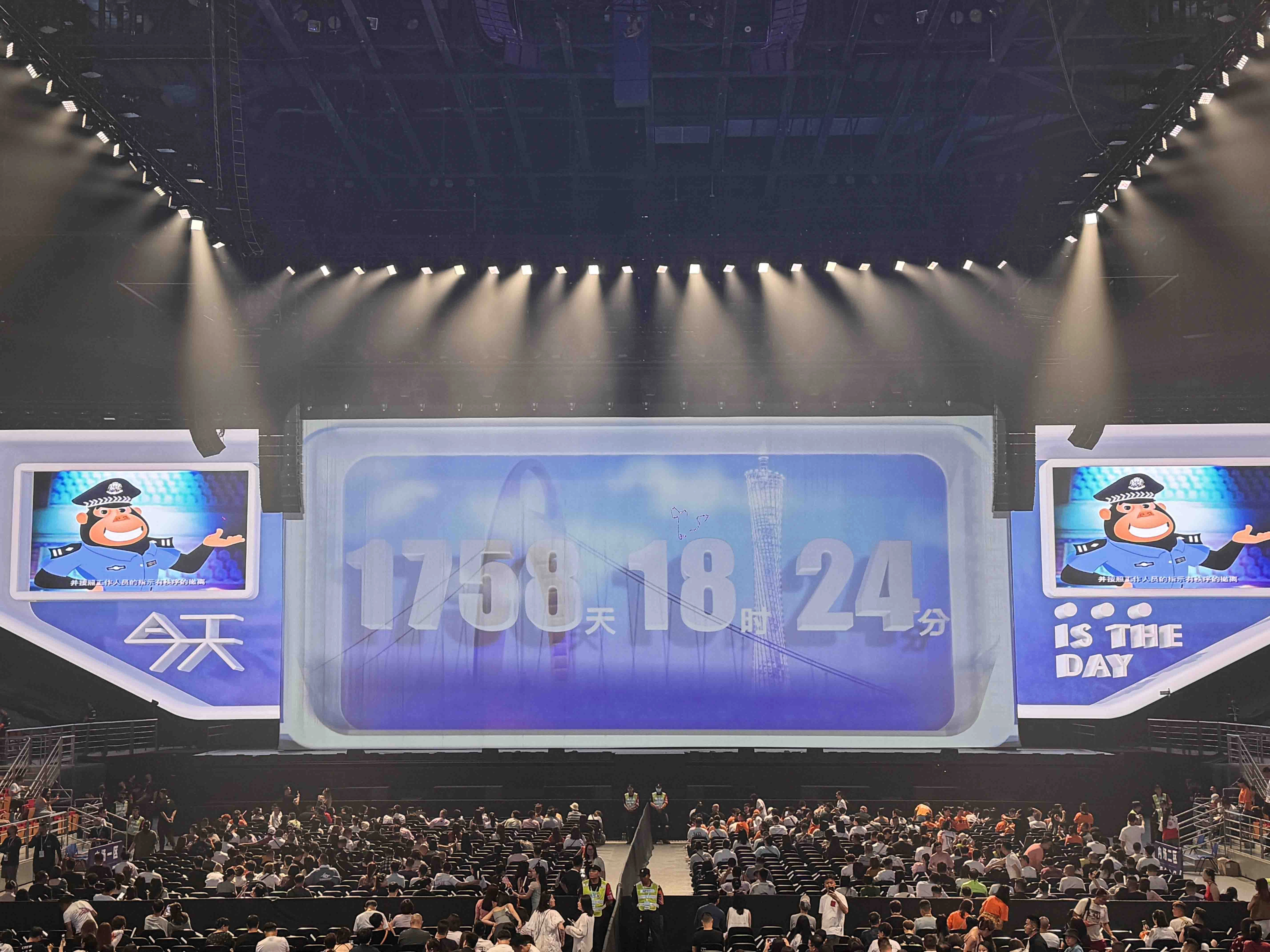

A compact form factor and a punchy 5×5 pixel matrix render this fixture ideal for nightlife venues, concert touring, indoor arenas, and festival stage architectures.
