GML PULSAR Multi-Effect Infinite LED Moving Head
GM-L · MULTISOURCE LED

GML PULSAR Multi-Effect Infinite

Zoom 2.5°–28°400W
GML PULSAR Multi-Effect Infinite LED Moving Head DB photo 1

GML PULSAR Multi-Effect Infinite LED Moving Head

Product Overview

GML PULSAR Multi-Effect Infinite LED Moving Head

GML PULSAR integrates two optical engines: a motorized beam/wash section (4 × 60W RGBW LEDs with a 2.5°–28° zoom) and a hybrid pixel strobe panel (9 × 10W CW + 96 × 3W CW + 108 × 0.3W RGB). The luminaire delivers versatile combinations of tight aerial beams, wide washes, high-rate strobe pulses, and auxiliary pixel animations.

Dual Infinite Rotation Kinematics

Continuous 360° infinite Pan and Tilt motion is governed by 16-bit drives with auto-position correction and physical transport locks. Electronic dimming features 32-bit linear resolution with 4 user-selectable dimming curves.

Control and Compact Form Factor

Supported protocols include DMX512 and RDM across 24, 39, or 97 channels. Power draw is 400W on an auto-ranging AC 100–240V supply. The compact body measures 300 × 200 × 500 mm with an overall weight of 12 kg.

$538(w/o VAT)
03 // TECHNICAL SPECIFICATIONS

Specifications

Section 1 (Beam/Wash)

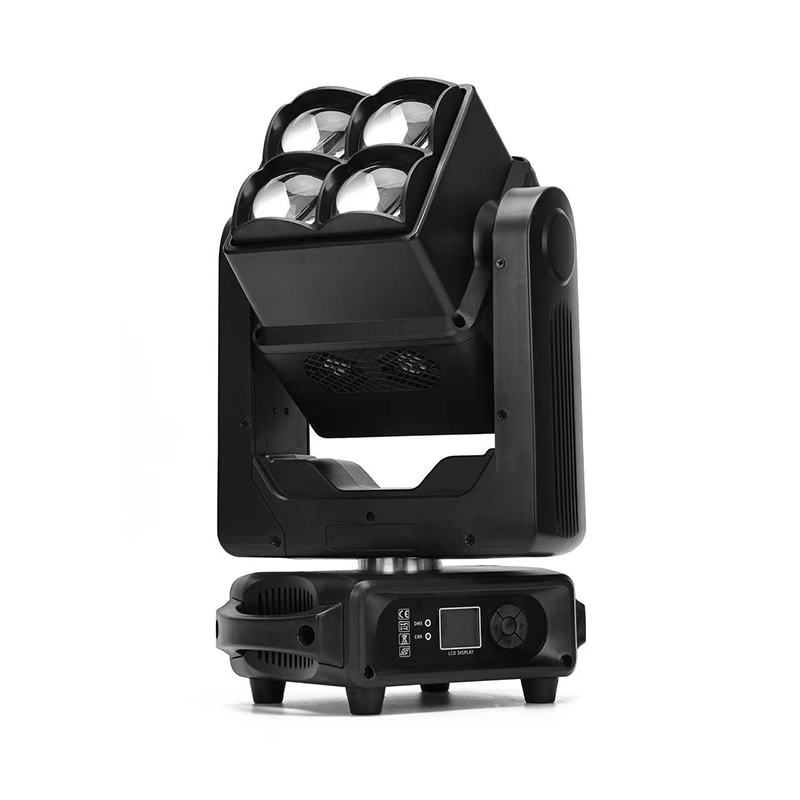

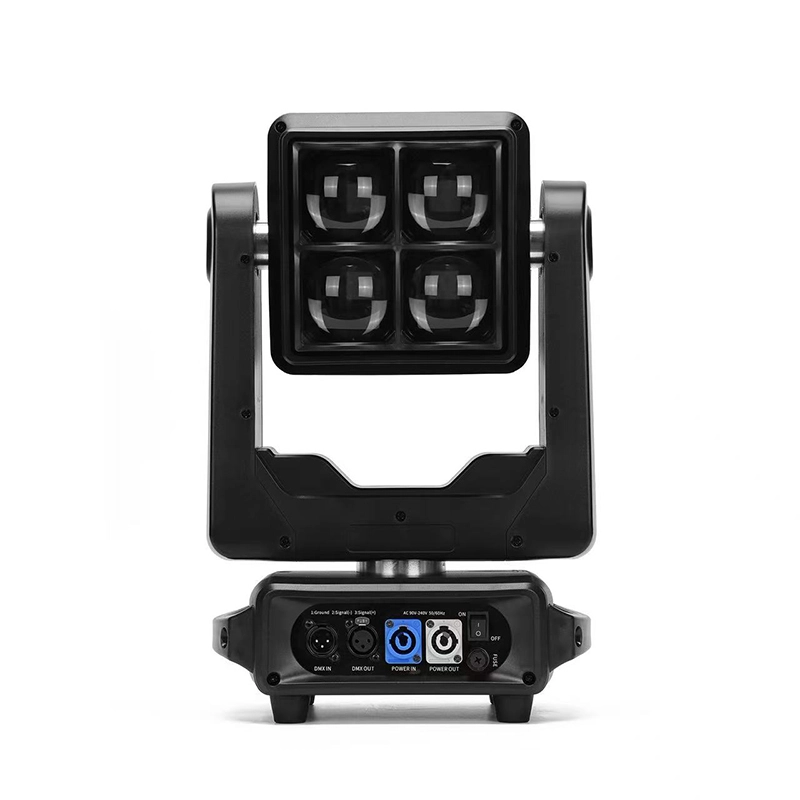

4 × 60W RGBW LED with motorized zoom
Section 2 (Strobe/Pixel)

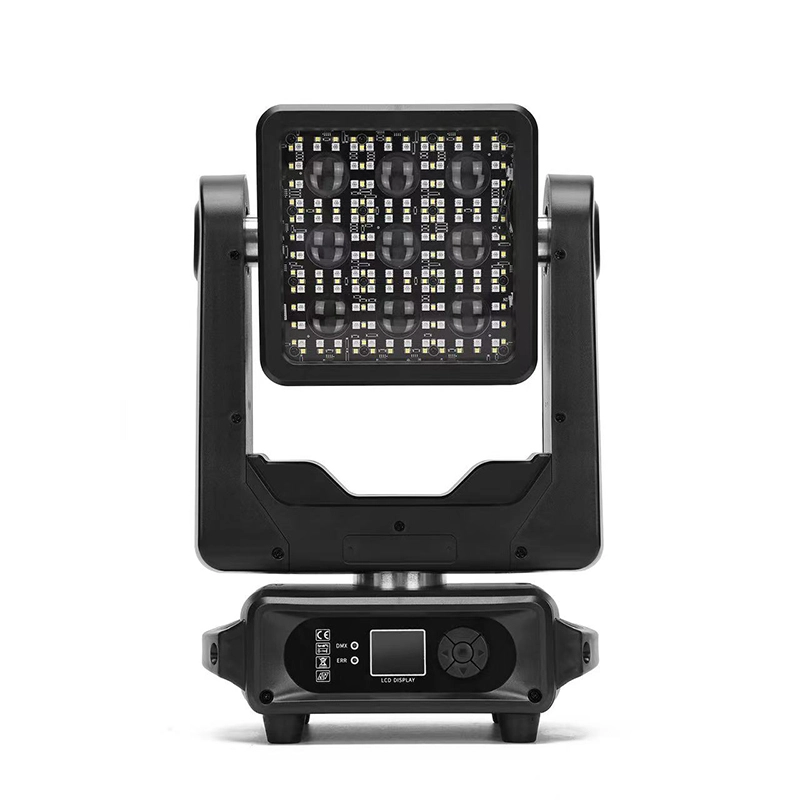

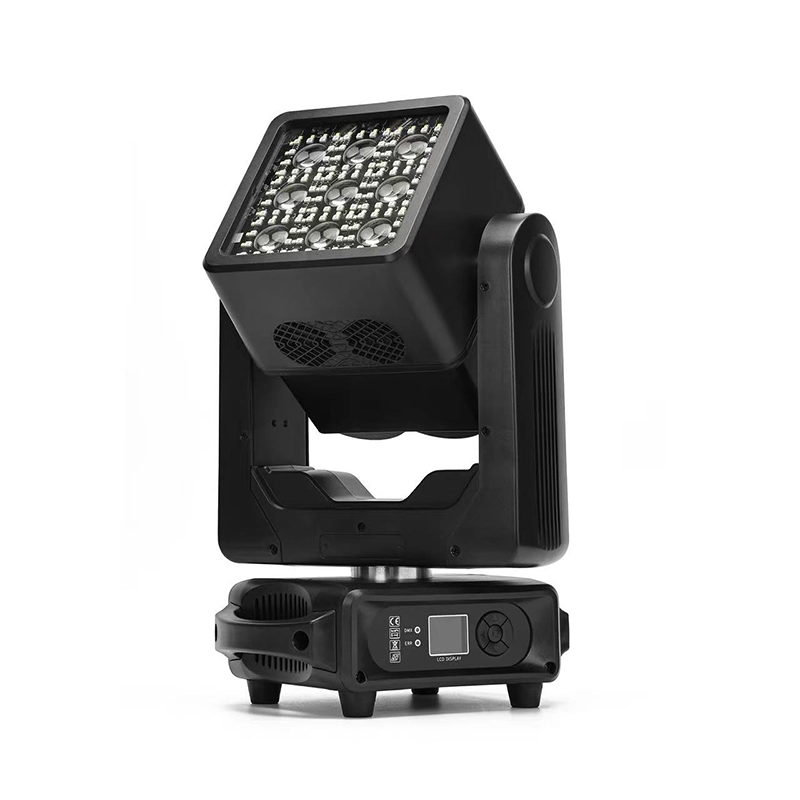

9 × 10W CW + 96 × 3W CW + 108 × 0.3W RGB LED
Zoom range
2.5°–28°
Tilt movement
360° continuous infinite rotation, auto position correction, 16-bit
Dimming
32-bit linear 0–100% dimming (4 selectable curves)
Strobe
Electronic variable-speed strobe
LED control
Individual pixel control, built-in color macro effects
Control protocols
DMX512, RDM
DMX channels
24 / 39 / 97 CH
Power supply
AC 100–240V, 50/60Hz
Power consumption
400W
Dimensions
300 × 200 × 500 mm
Net weight
12 kg
Fixture type
Multi-Effect Infinite LED Moving Head
Pan movement
360° continuous infinite rotation, auto position correction, 16-bit
Motion locking
Mechanical Pan/Tilt Lock
