Concept and Optical Performance
The GML PATT LIGHT IP is an IP65 all-weather multi-layered stage retro blinder designed for music festivals, stadium touring, and high-impact broadcast spectacles. The optical architecture integrates three independent illumination layers: a 600W RGBLAC 6-in-1 main light engine, a circular Patt ring containing 36 × 3W RGB LEDs, and an ambient background array of 90 × 0.5W RGB LEDs. The optical array provides a 55° spot angle with tunable CCT from 1800 to 8500 K.
Chassis and Thermal Engineering

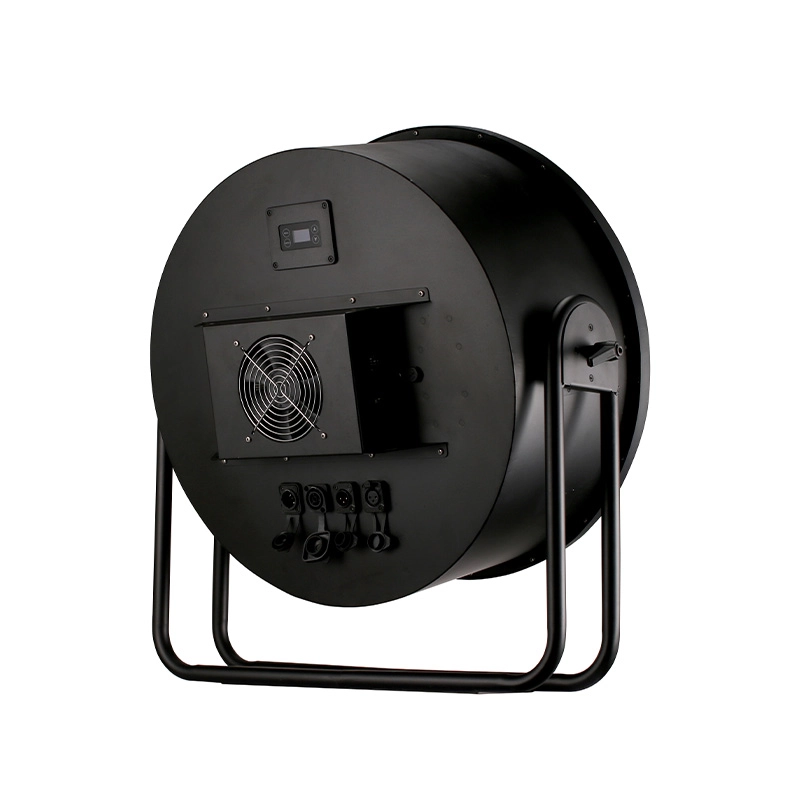

Constructed with a heavy-duty galvanized steel and aluminum alloy body, the luminaire operates reliably across demanding touring environments. Heat dissipation is achieved via a dedicated aluminum alloy heat sink paired with a silent waterproof fan and active thermal safeguarding. Operational temperatures range from -40°C to +45°C with startup down to -20°C.
Control and Connectivity
Control protocols include USITT DMX512 and RDM across 9 operating profiles (1CH / 3CH / 6CH / 10CH / 12CH / 13CH / 15CH / 21CH / 37CH) for layered programming. Firmware maintenance is supported via the standard DMX signal line. Fast strobe capability covers 1 to 25 Hz alongside selectable PWM refresh frequencies from 900 Hz to 25 kHz for camera broadcast setups. Dimensions are 632 × 652 × 325 mm with a net weight of 13.4 kg.
Specifications
DIMENSIONS(MM)
Technical Dossier
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.

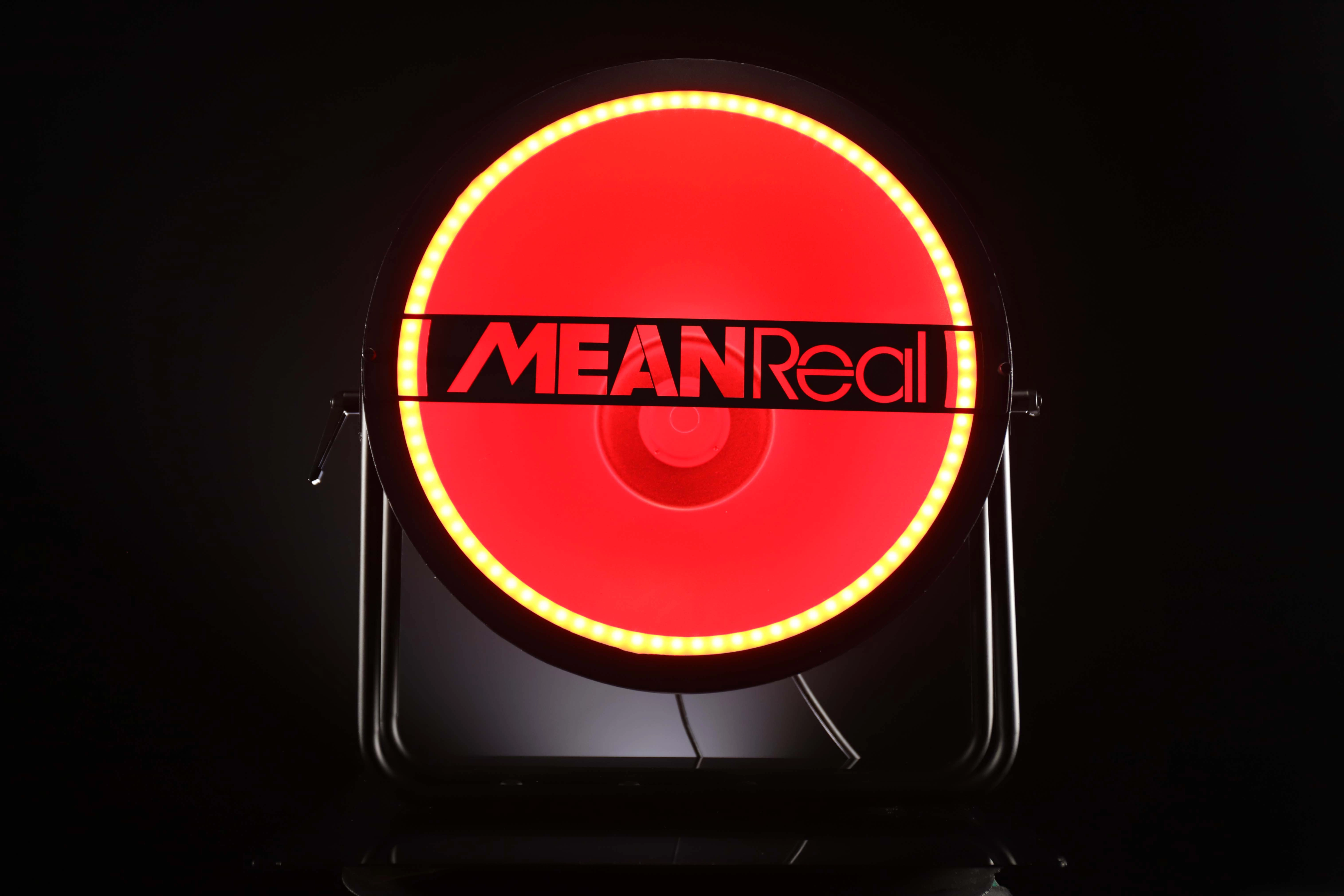

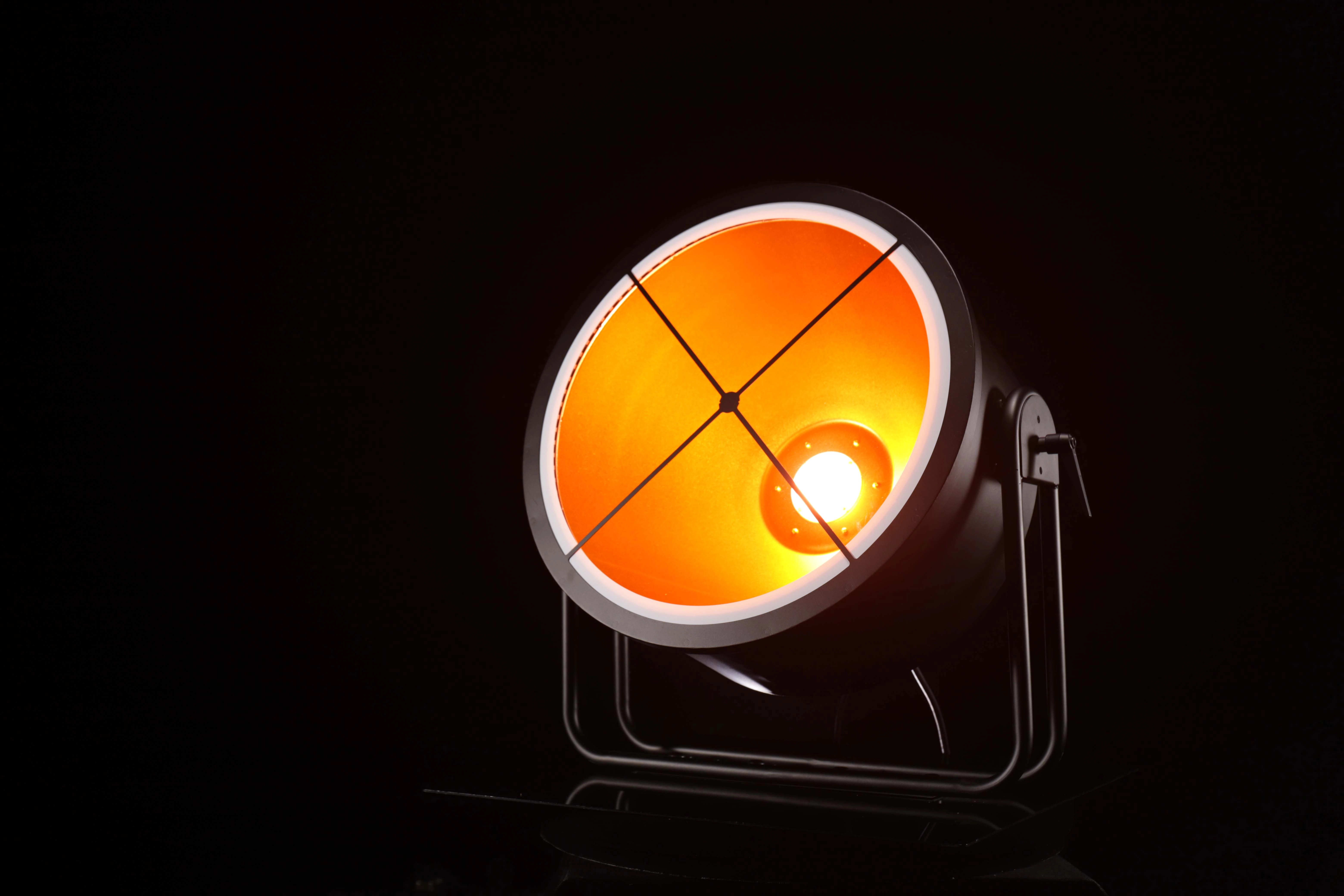

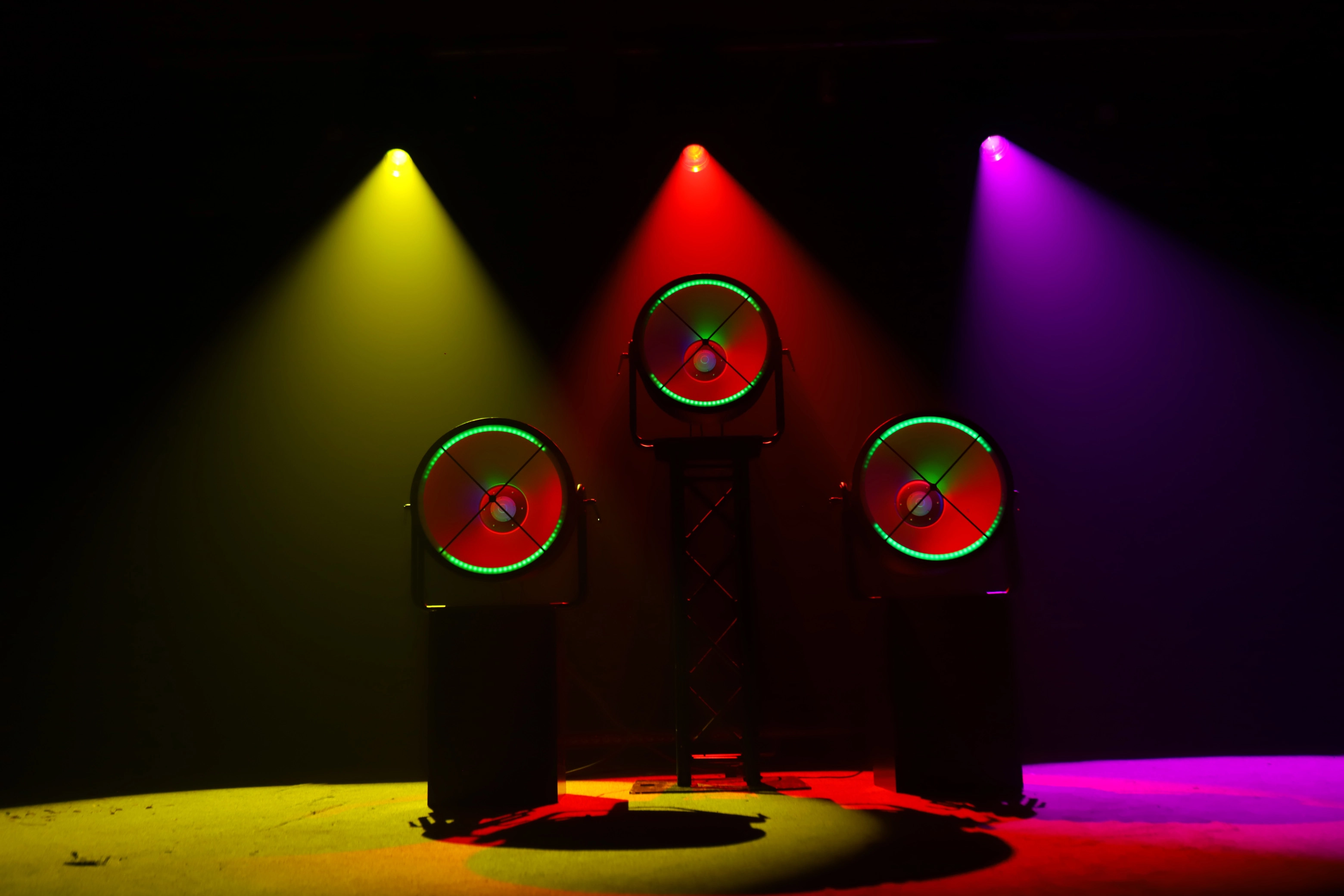

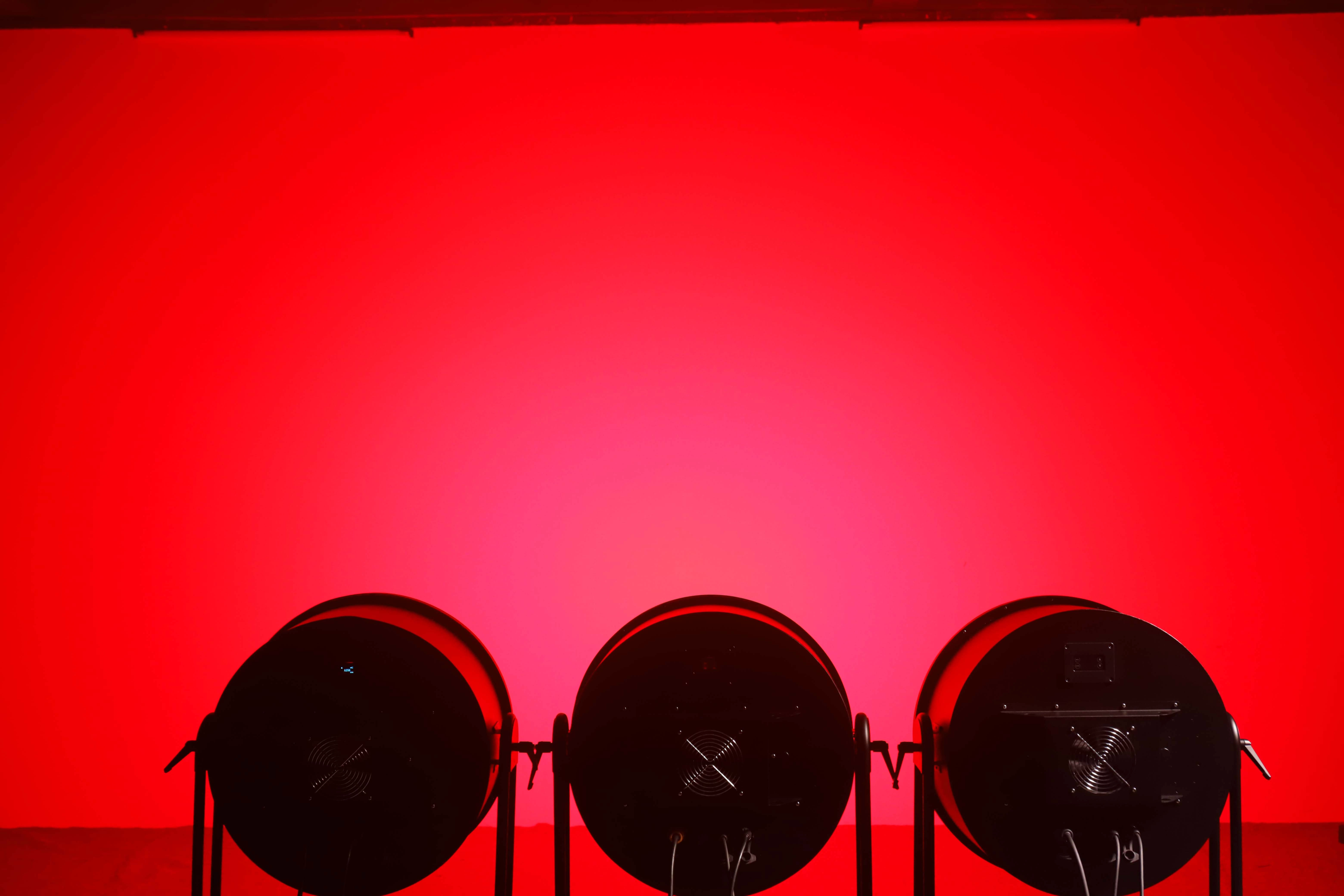

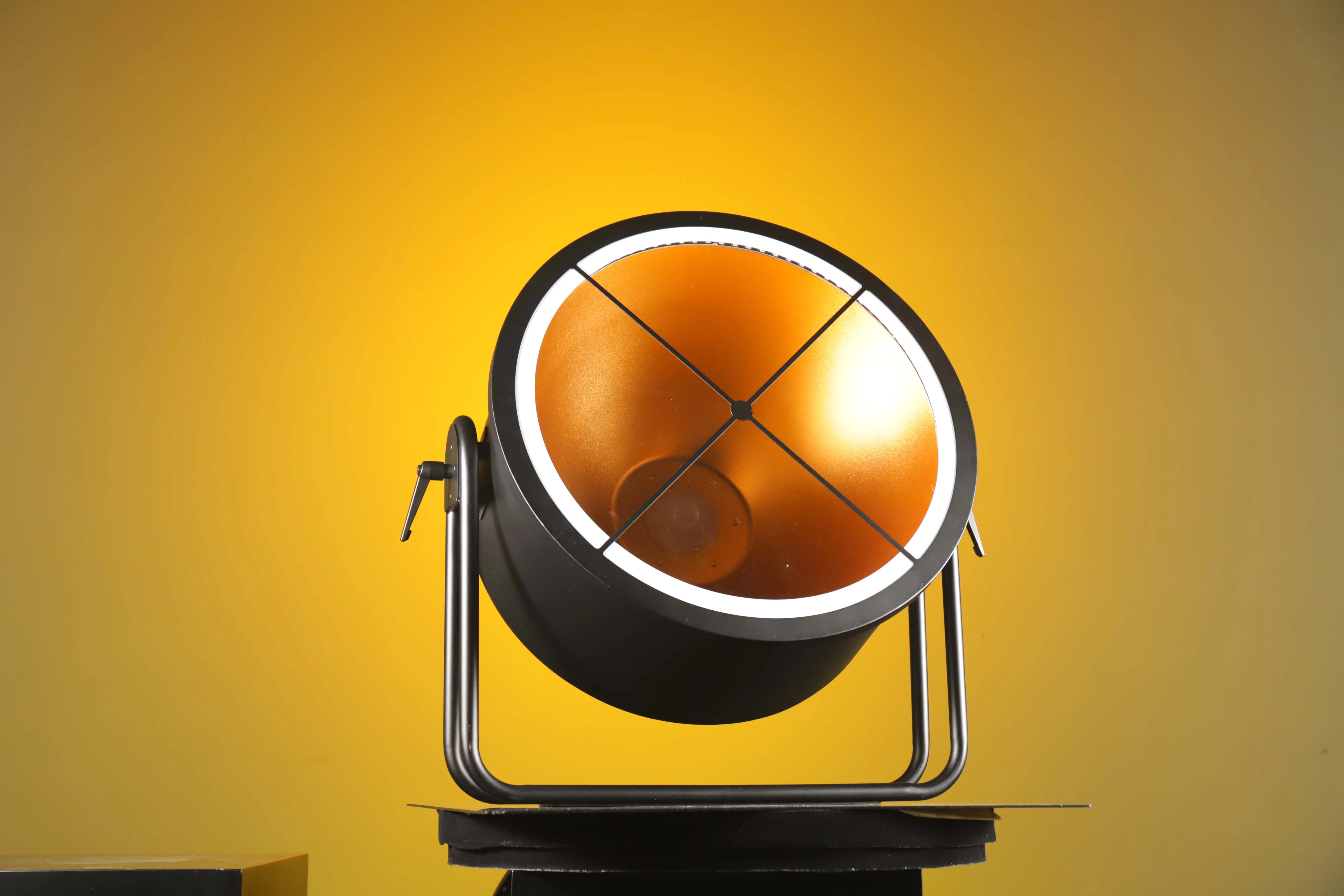

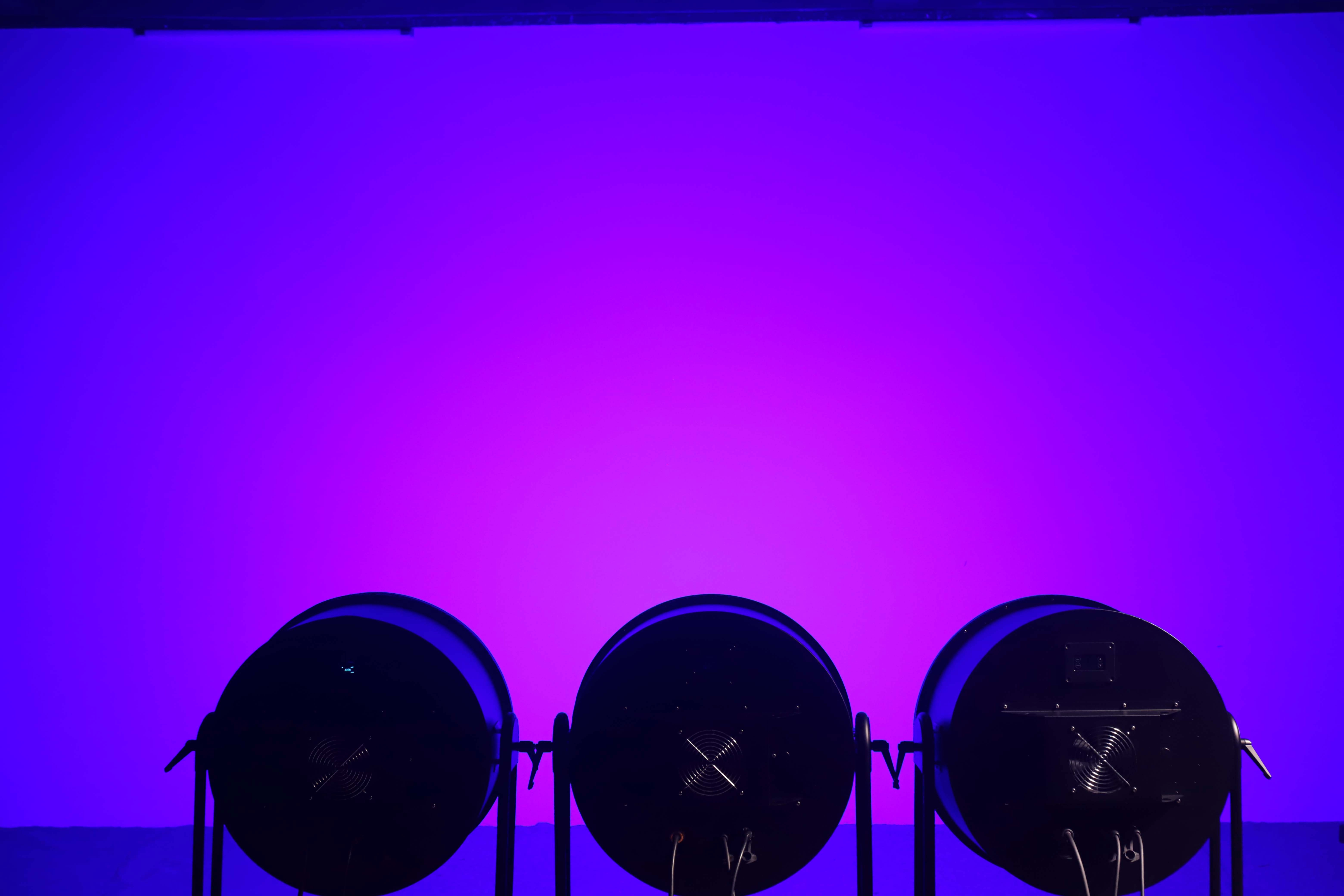

Effect Projections
