GML PAR 2415 Stage LED PAR Spotlight
GML PAR 2415 Stage LED PAR Spotlight
Light Engine and Optics

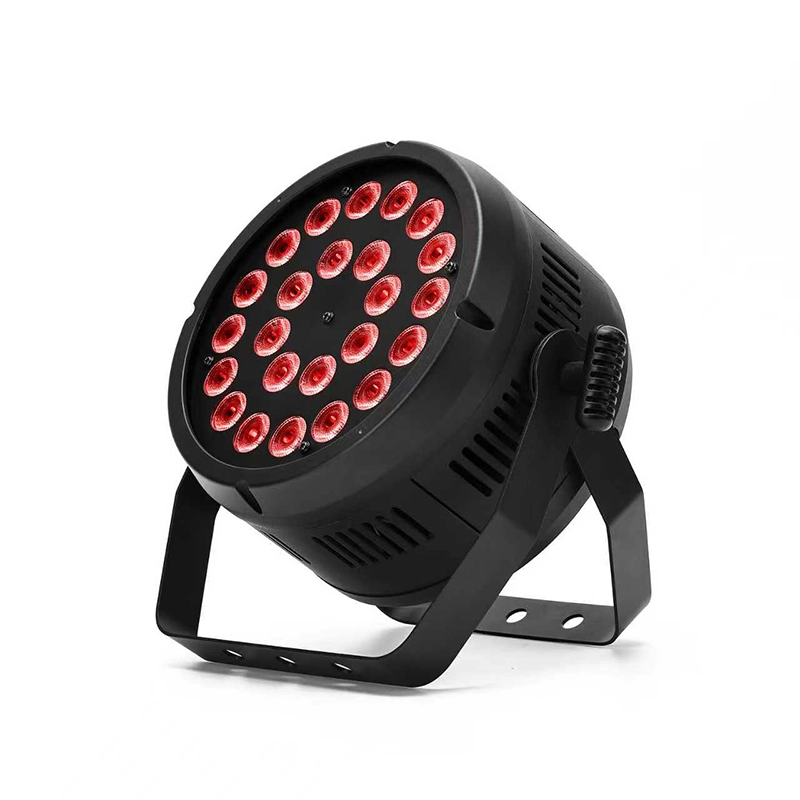

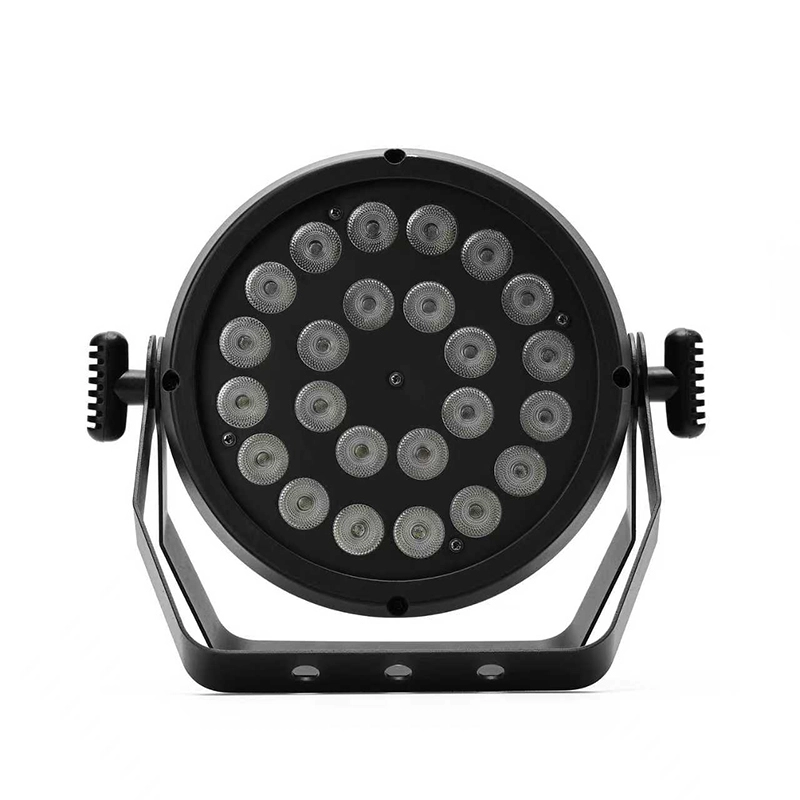

The GML PAR 2415 is a high-output stage LED PAR spotlight built for live stages, auditoriums, club venues, and rental inventories. The emitter array comprises 24 high-efficiency 15W LEDs configured as RGBW 4-in-1 (with optional RGBWA and RGBWA+UV engines). The standard optical group projects a 25° beam angle with interchangeable lens compatibility for versatile wash coverage or tight beam projection.
Control and Dynamic Functions
The fixture features flicker-free 0–100% linear dimming and an electronic strobe running from 0.3 to 20 flashes per second (up to 20 Hz). Supported operating modes include standard DMX512 (4 or 8 channels), standalone auto programs, sound-active mode, and manual color setting. Menu navigation is facilitated by an onboard LED display.
Mechanical and Electrical Specifications

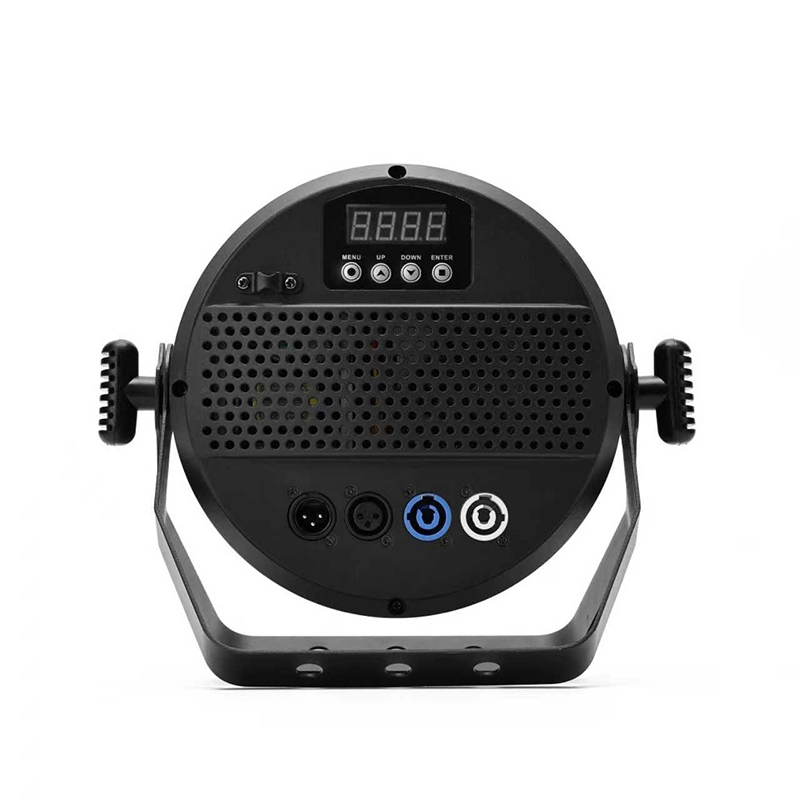

Enclosure dimensions are 350 × 300 × 320 mm with a net weight of 5.0 kg. Signal routing is provided via 3-pin XLR In/Out connectors. Total power consumption is 200W on an auto-ranging AC 110–240V 50/60Hz power supply.
Specifications
Technical Dossier
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.
Effect Projections
