Concept and Optical Performance

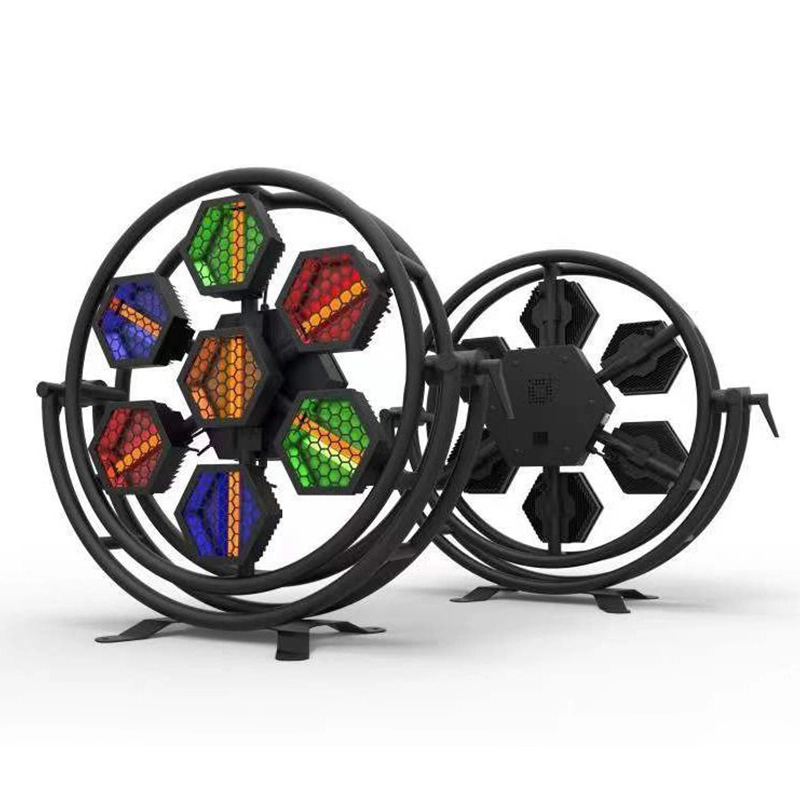

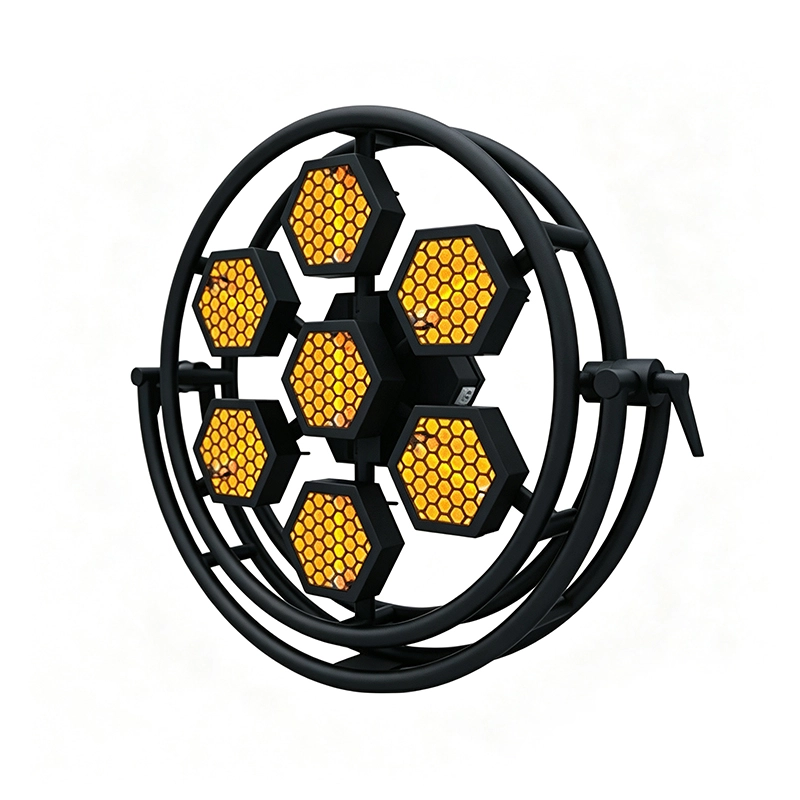

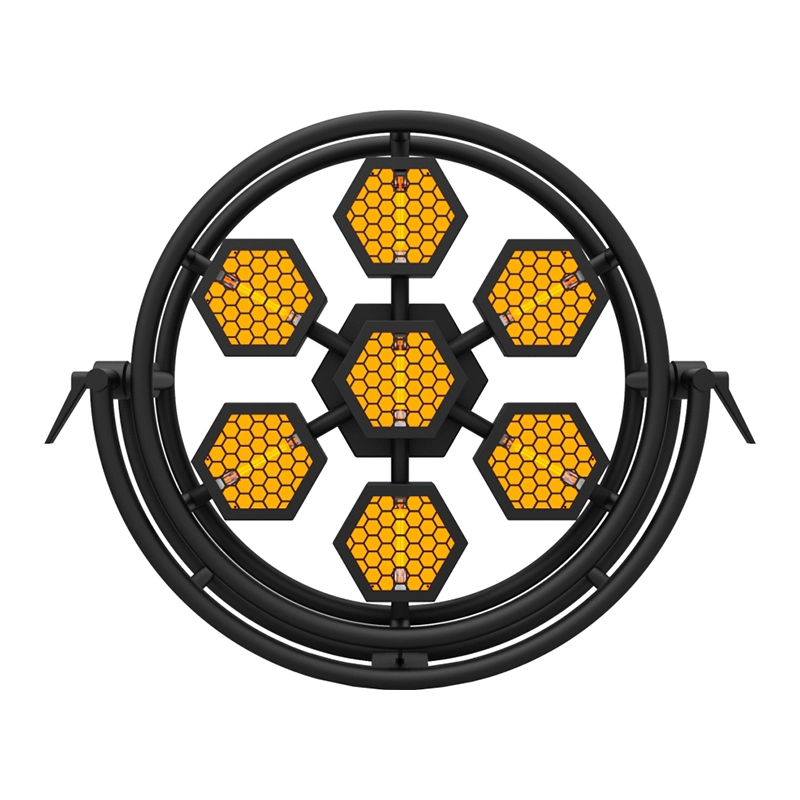

The GML P1 is a signature 7-cell stage retro luminaire designed for touring productions, broadcast studios, live music venues, and theatrical scenography. The optical system incorporates 7 × 60W warm white LED engines operating at 2200K, faithfully reproducing the warmth of classic tungsten lamps. An ambient backlighting matrix of 168 × SMD5050 RGB LEDs wraps around each cell to deliver color halos and kinetic backgrounds.
Mechanical Build and Rigging Options

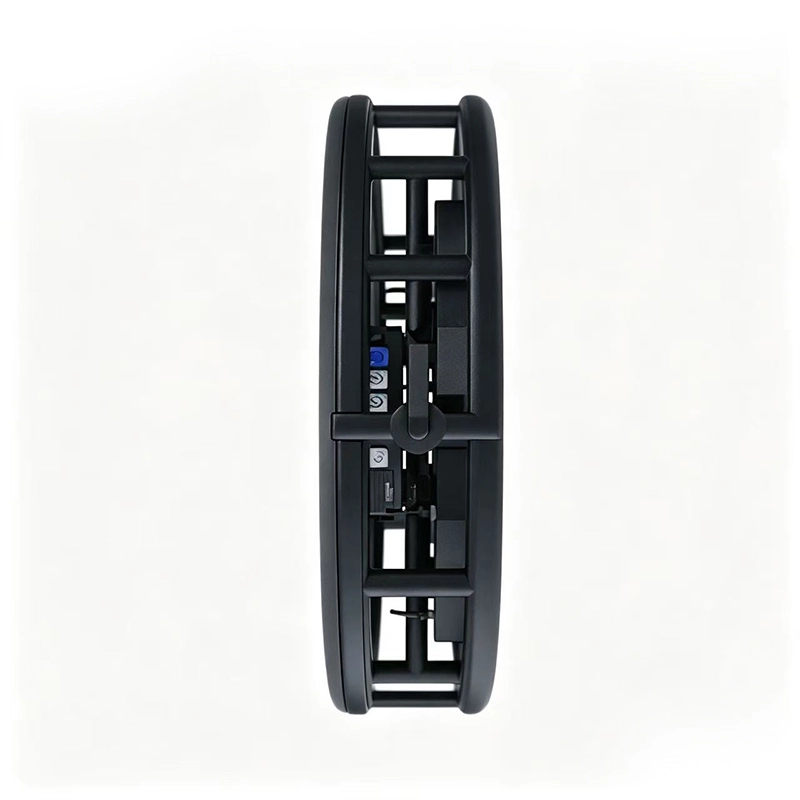

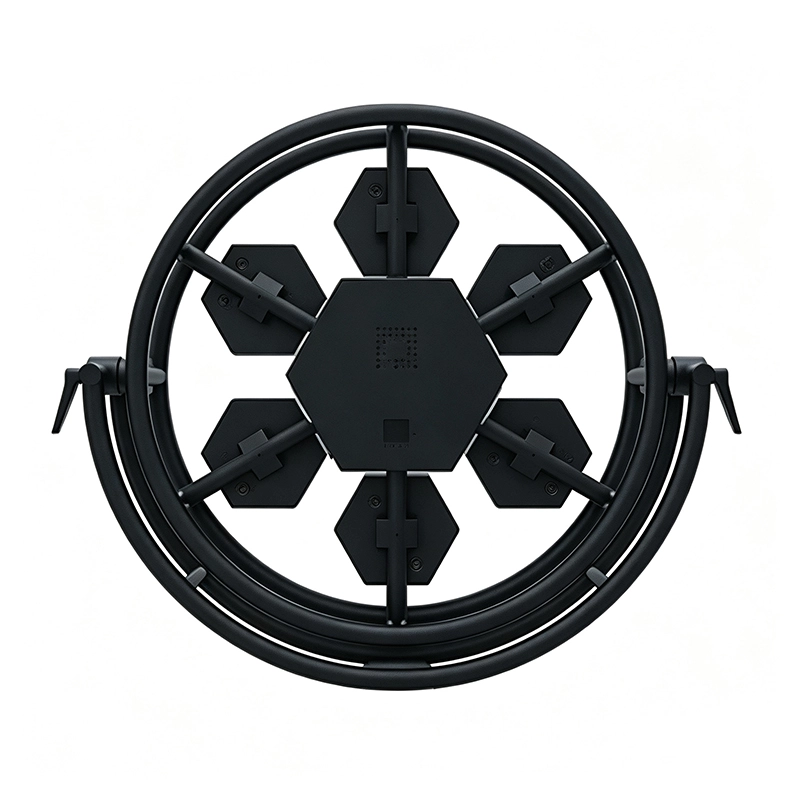

The physical structure accommodates flexible stage deployment including a heavy-duty floor base, tripod stand mounting, or truss suspension via rigging hardware. Fixture dimensions are 860 × 966 × 170 mm with an overall weight of 21.5 kg.
Control and Connectivity
Control integration includes USITT DMX512 across 8-channel and 32-channel personality modes, enabling independent pixel mapping of the central warm white cells and RGB outer rings. Standalone auto-run and Master-Slave modes are also supported. The interface panel features 3-pin and 5-pin XLR In/Out connections alongside an onboard LED display. Total power consumption is 520W.
Product variants
3 variants available
Large 100W:Large-format retro housing with a 100W warm center emitter and decorative RGB backlight glow.
Specifications
Technical Dossier
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.

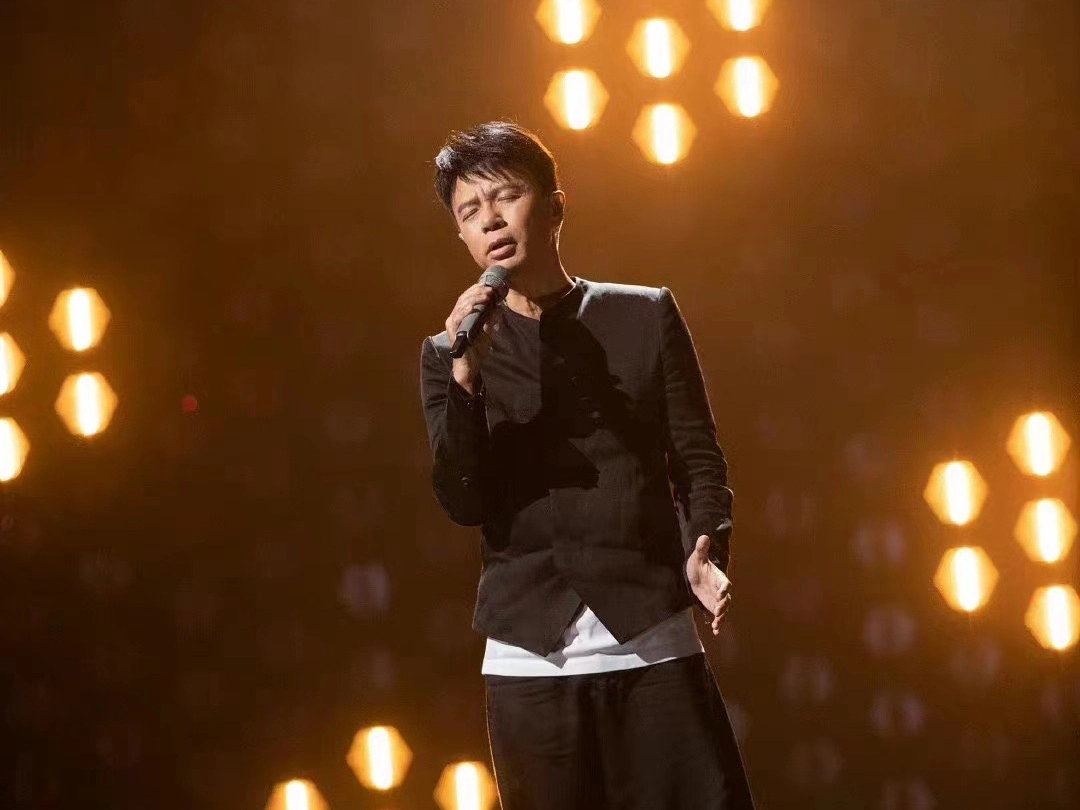

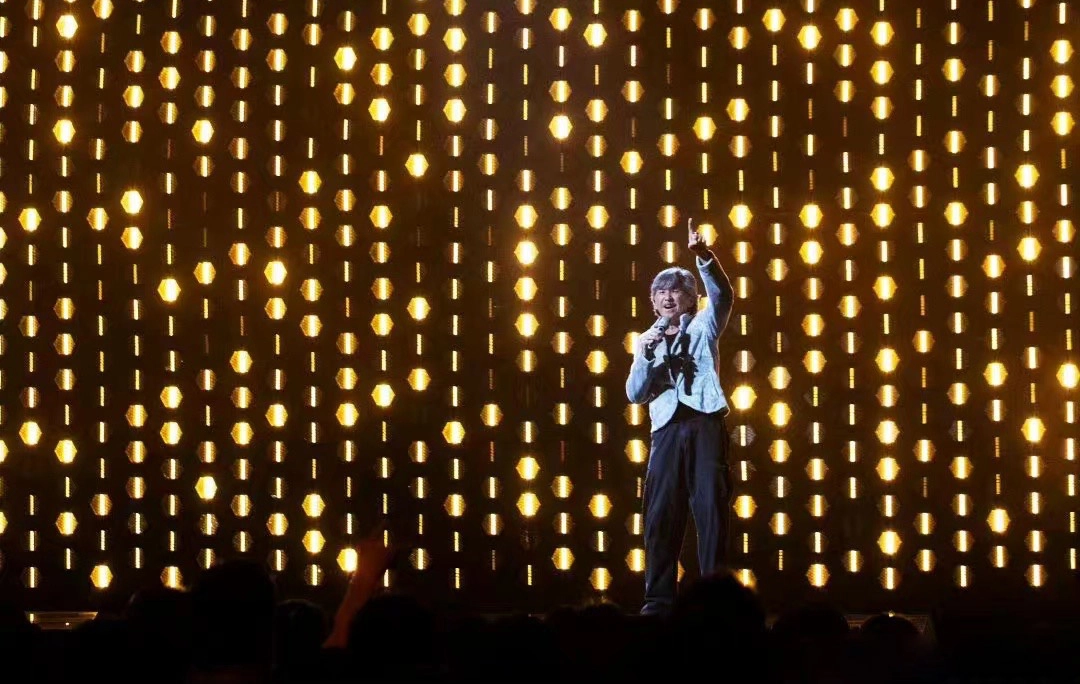

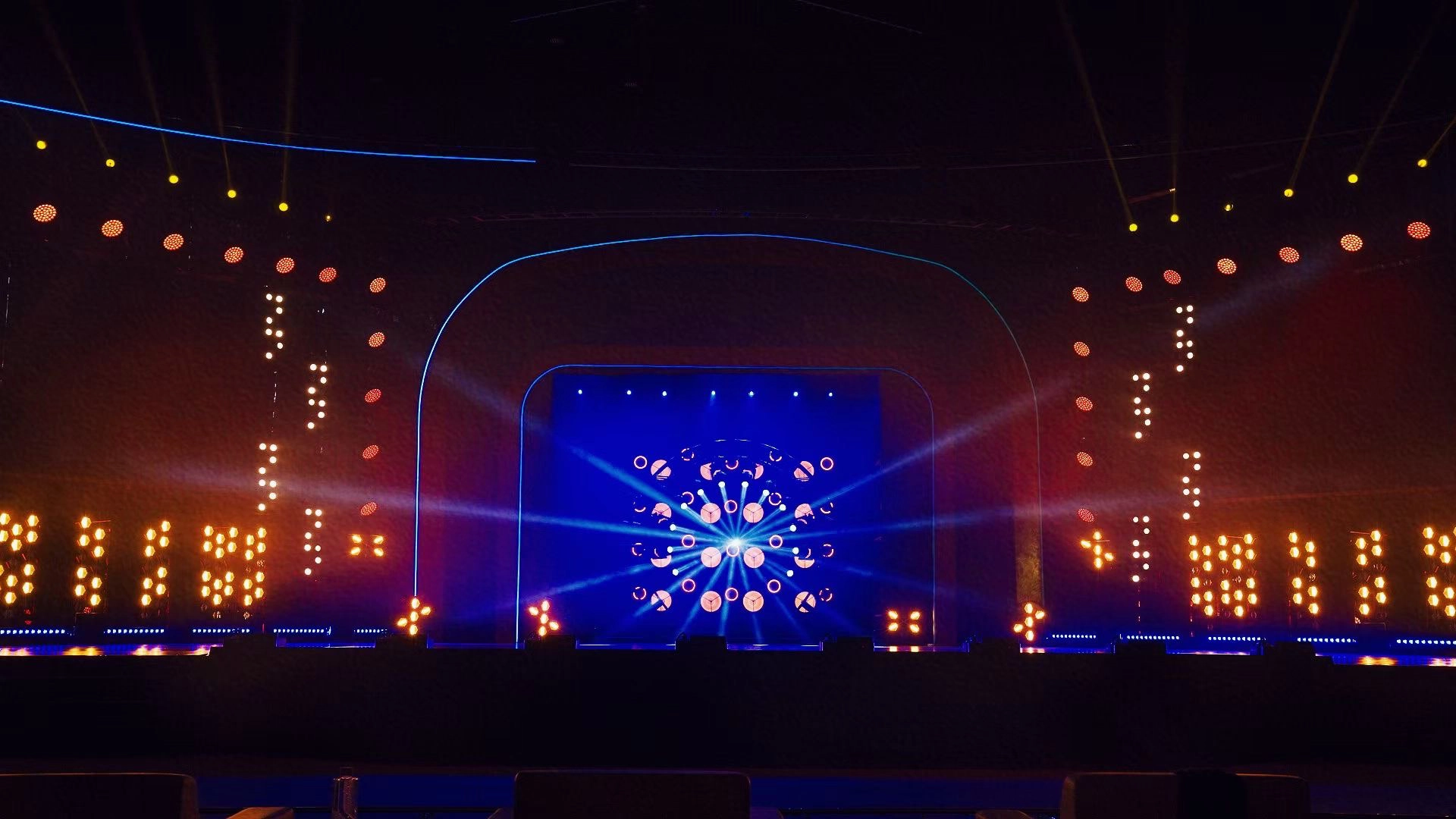

Effect Projections
