GML OMNI PATT IP All-Weather Hybrid Beam-Wash Retro Fixture
GML OMNI PATT IP All-Weather Hybrid Beam-Wash Retro Fixture
Concept and Optical Performance

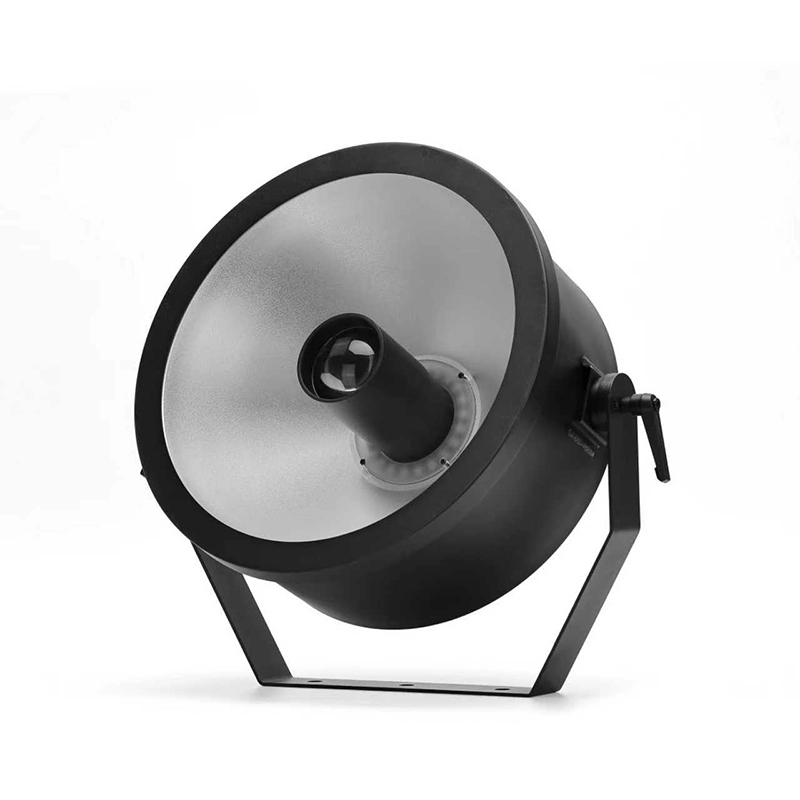

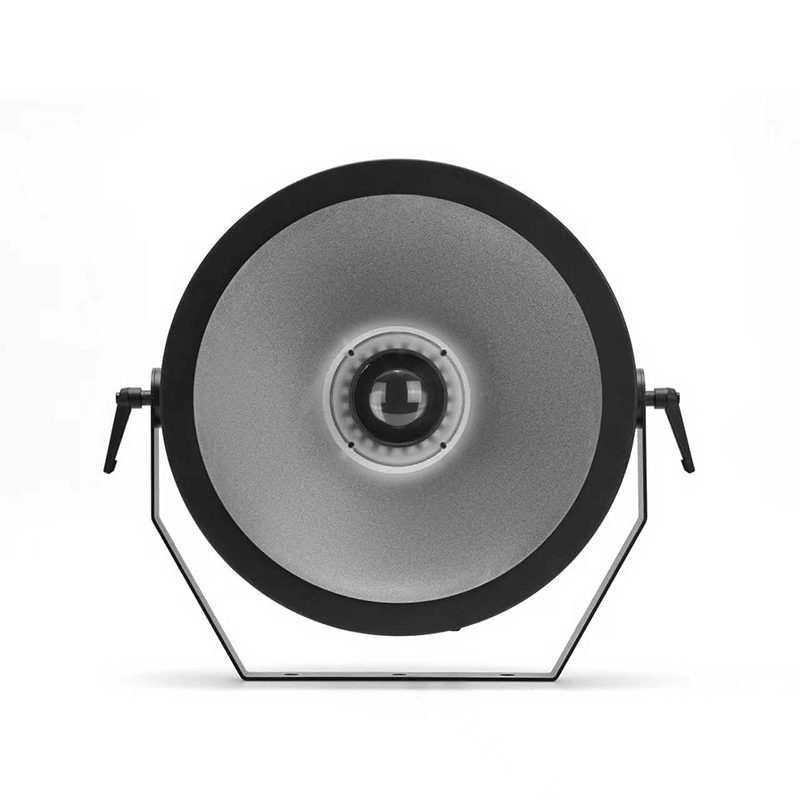

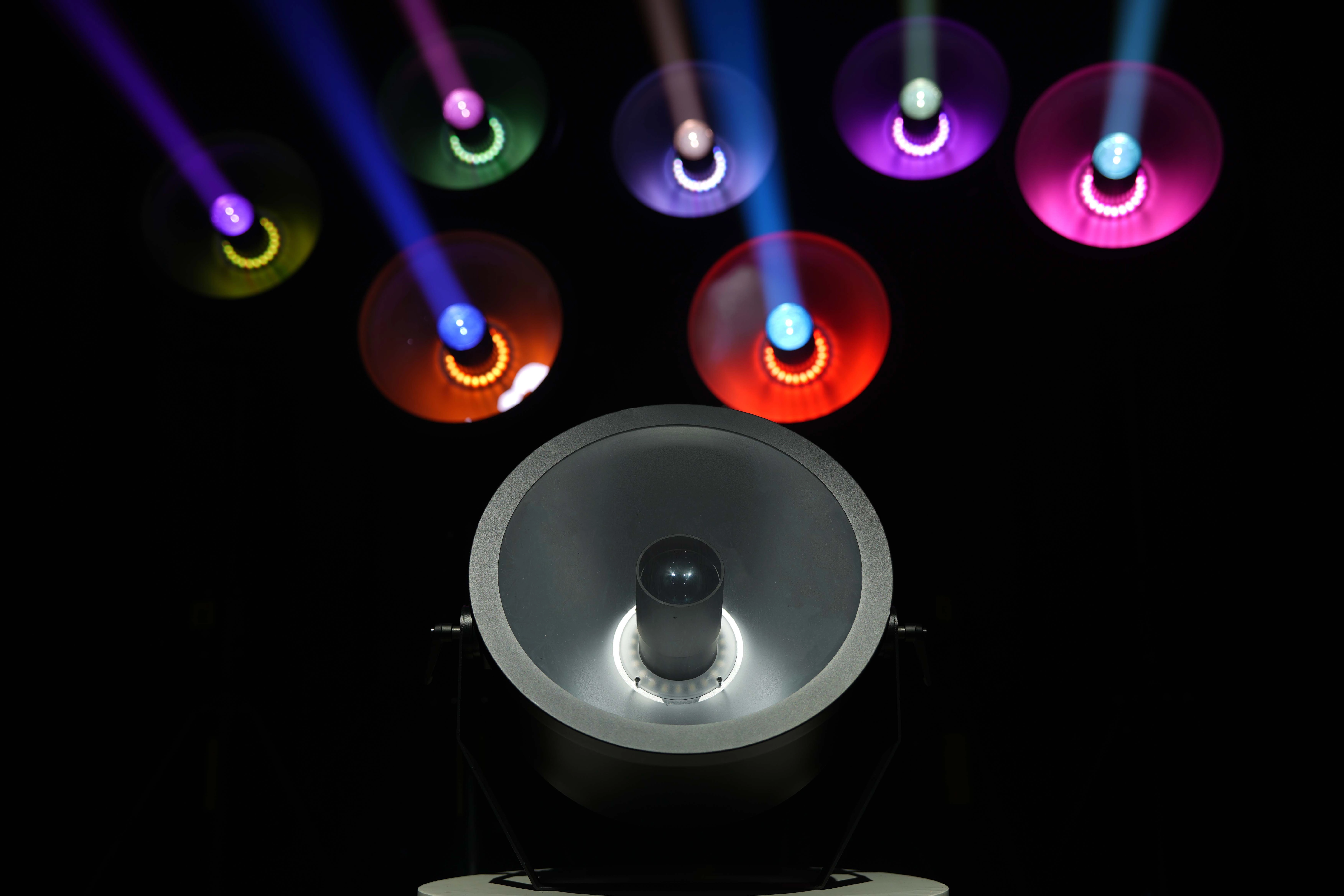

The GML OMNI PATT IP is an IP65 all-weather hybrid retro luminaire combining sharp beam projection with broad multi-color wash illumination. The center optical core features a 60W RGBW LED behind a 75 mm optic producing a concentrated 3° beam. Surrounding the center is a 330 mm diameter array of 22 × 20W RGBWAL LEDs delivering an 85° wash distribution with tunable CCT from 1800 to 8500 K.
Chassis and Thermal Engineering

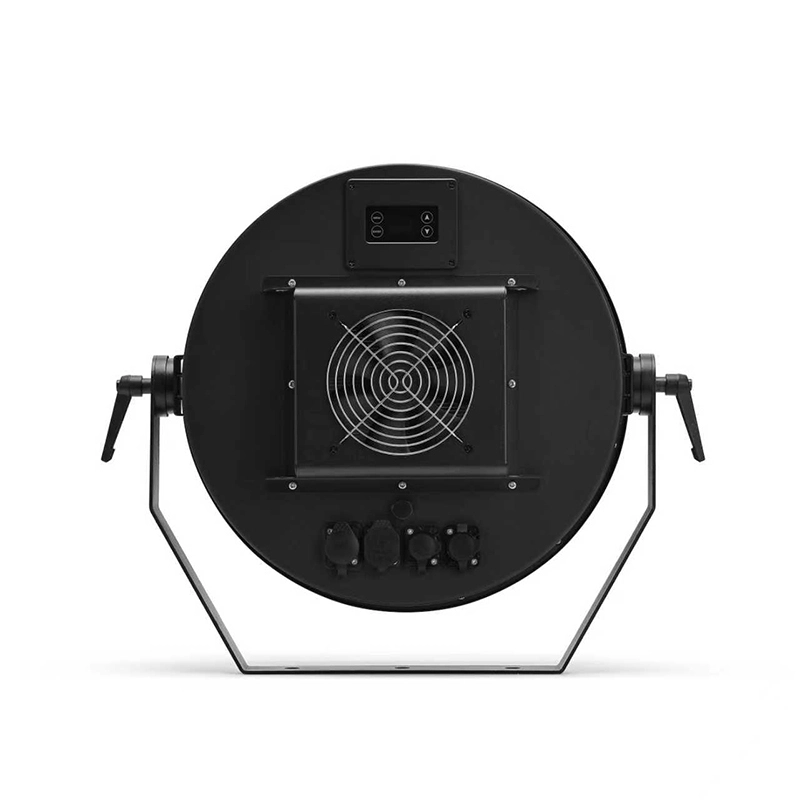

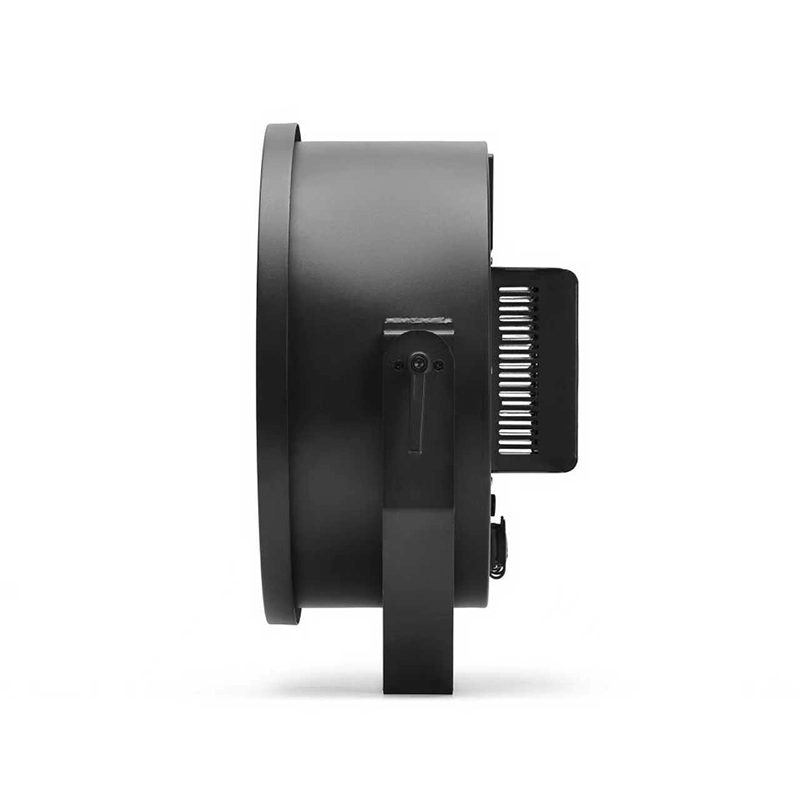

The fixture chassis is built from galvanized steel and aluminum alloy to withstand outdoor weather exposure while maintaining mechanical integrity. Thermal dissipation combines an aluminum alloy heat sink with a silent waterproof fan and intelligent thermal safeguarding. Operating limits span from -40°C to +45°C with cold-start capability down to -20°C.
Control and Connectivity
Operational control is provided via standard USITT DMX512 and RDM across 7 operating modes (8CH / 16CH / 24CH / 16 CCT CH / 21 CCT CH / 16CH). Firmware updates are executed directly over the DMX signal line. Adjustable strobe ranges from 1 to 25 Hz, and LED refresh rates are variable between 1 kHz and 25 kHz for flicker-free camera capture. Dimensions are 488 × 422 × 166 mm with a net weight of 7 kg.
Specifications
DIMENSIONS(MM)
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.

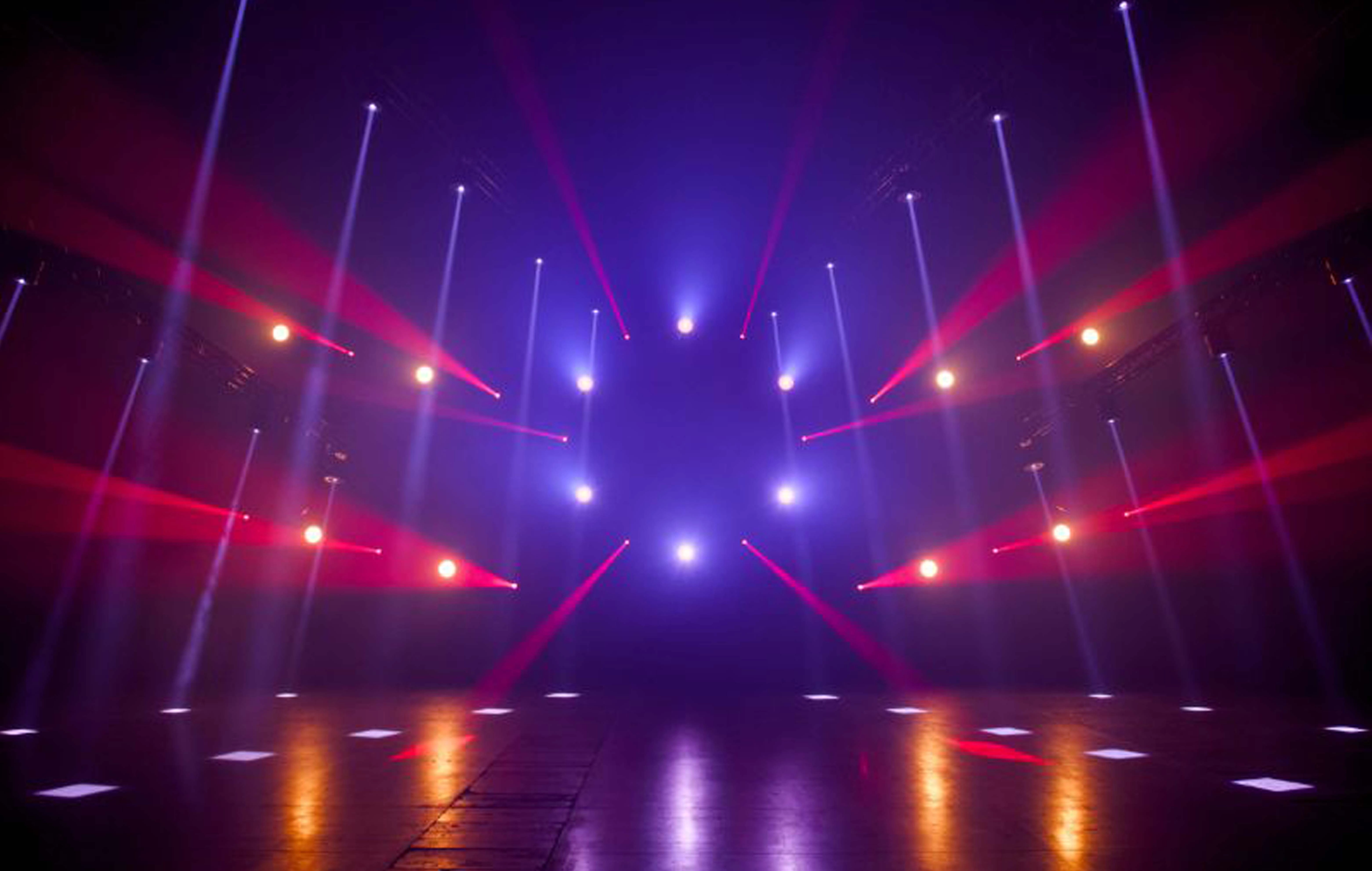

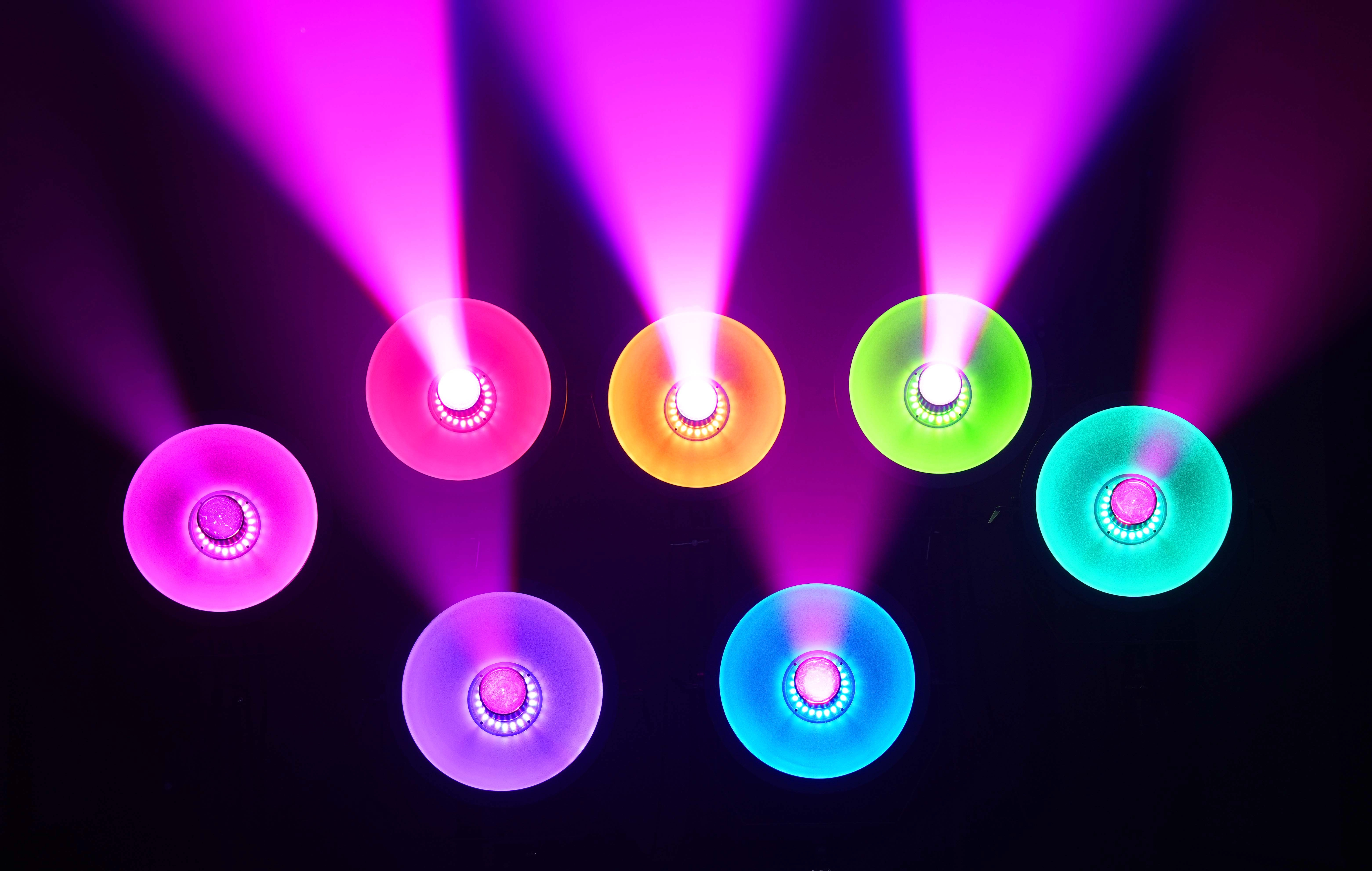

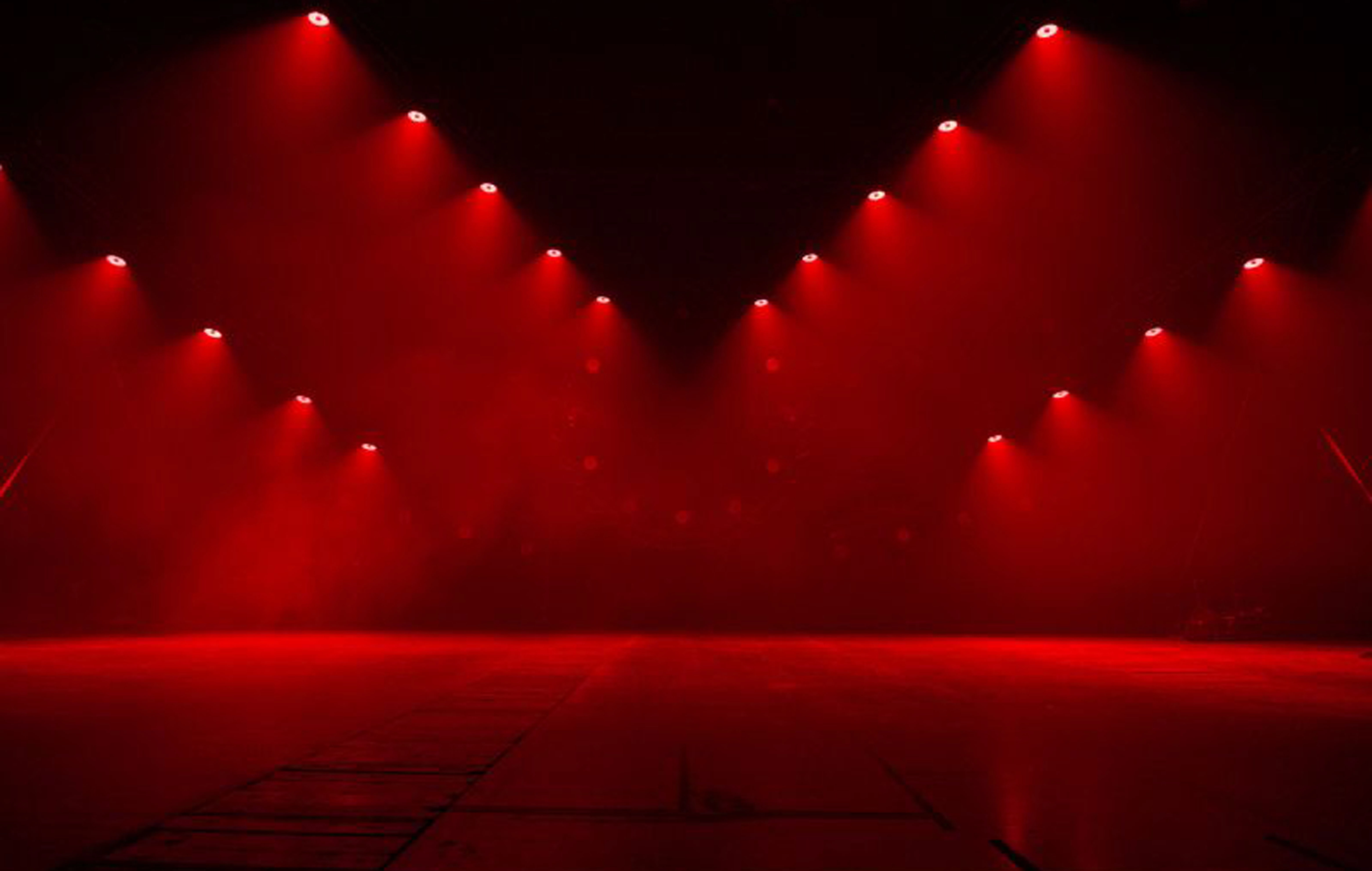

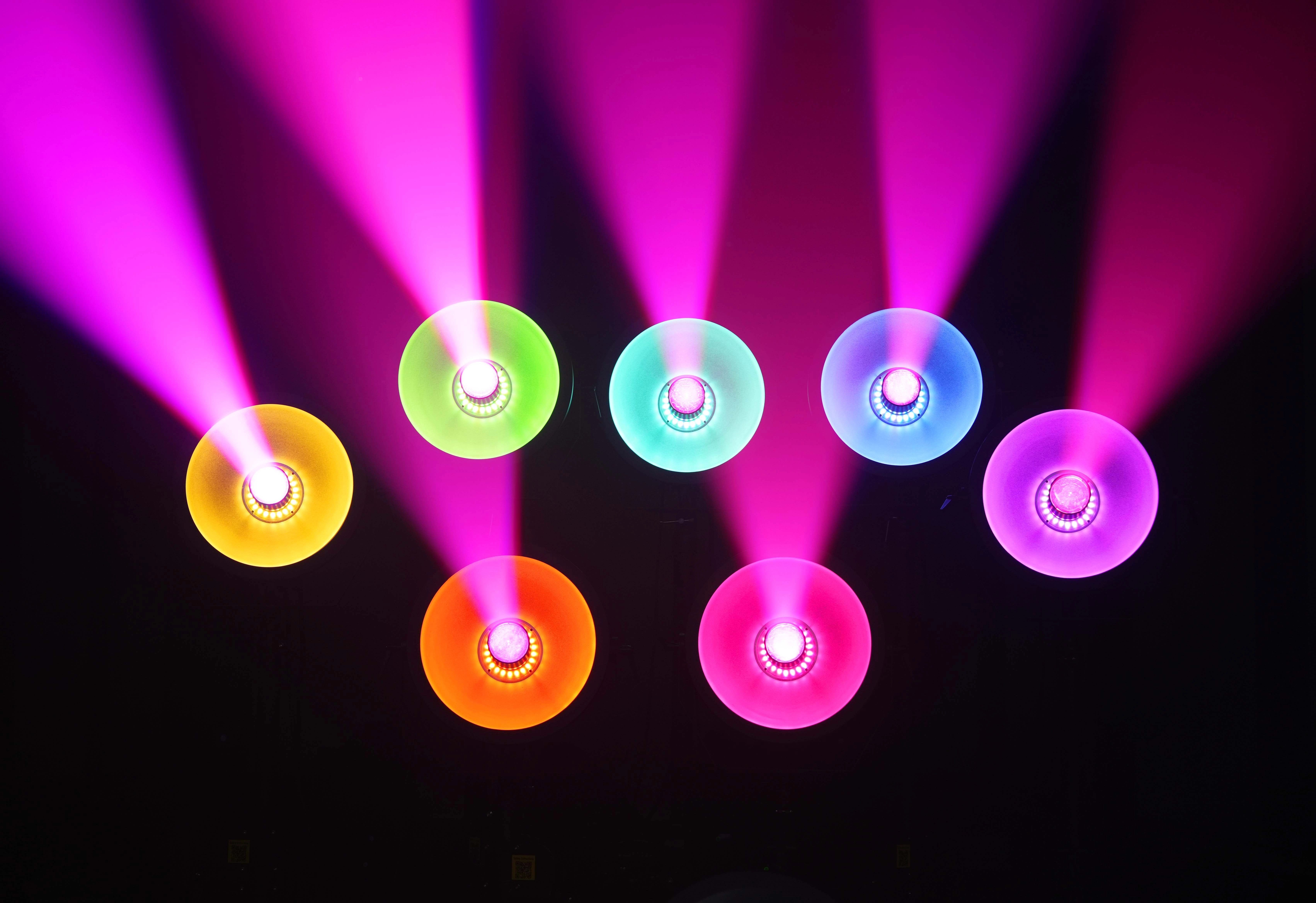

Effect Projections
