GML MRGO 1980 IP
GML MRGO 1980 IP

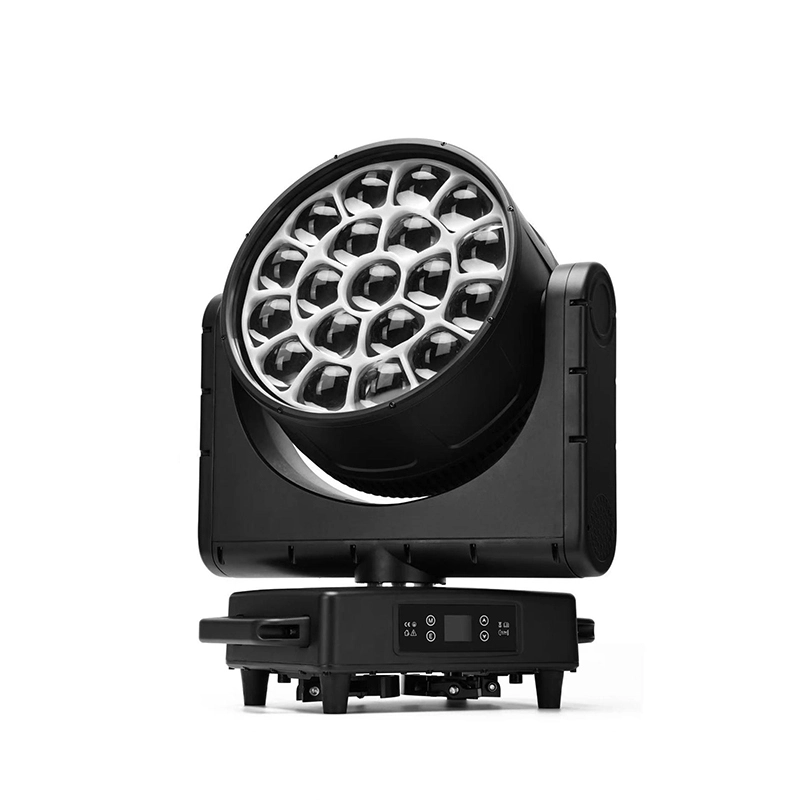

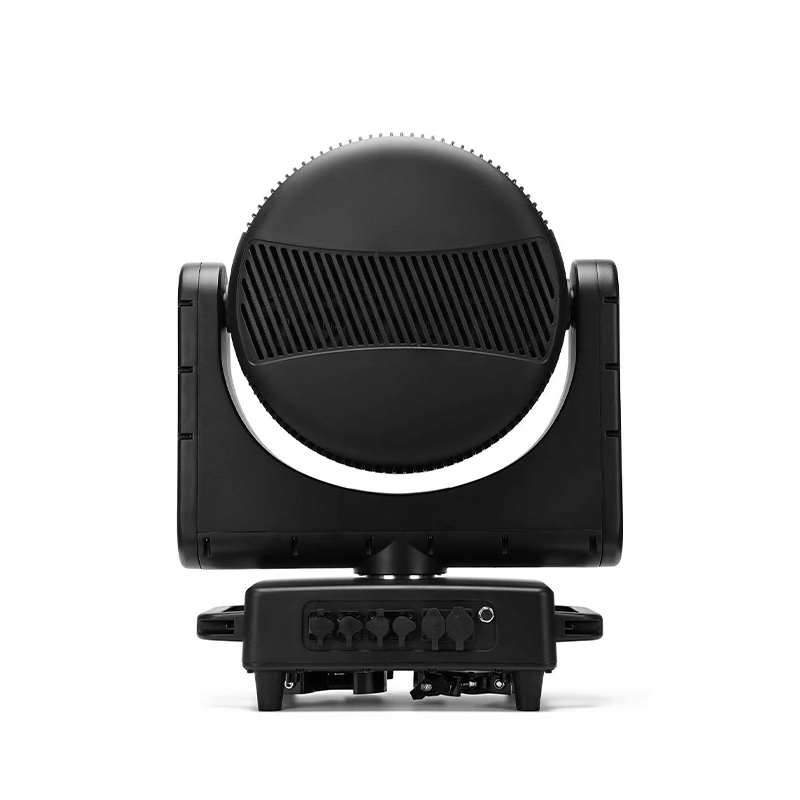

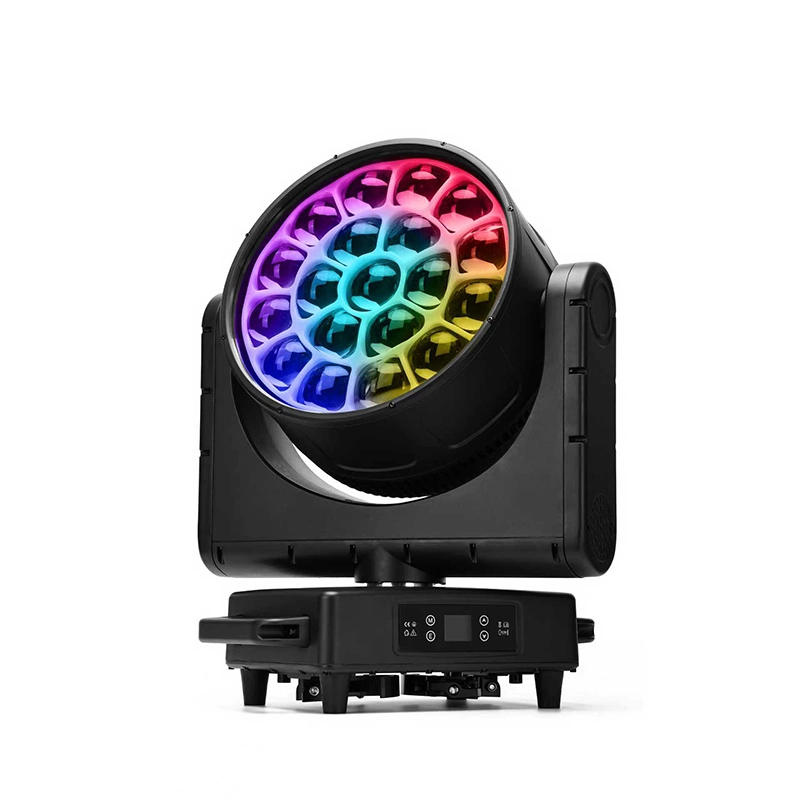

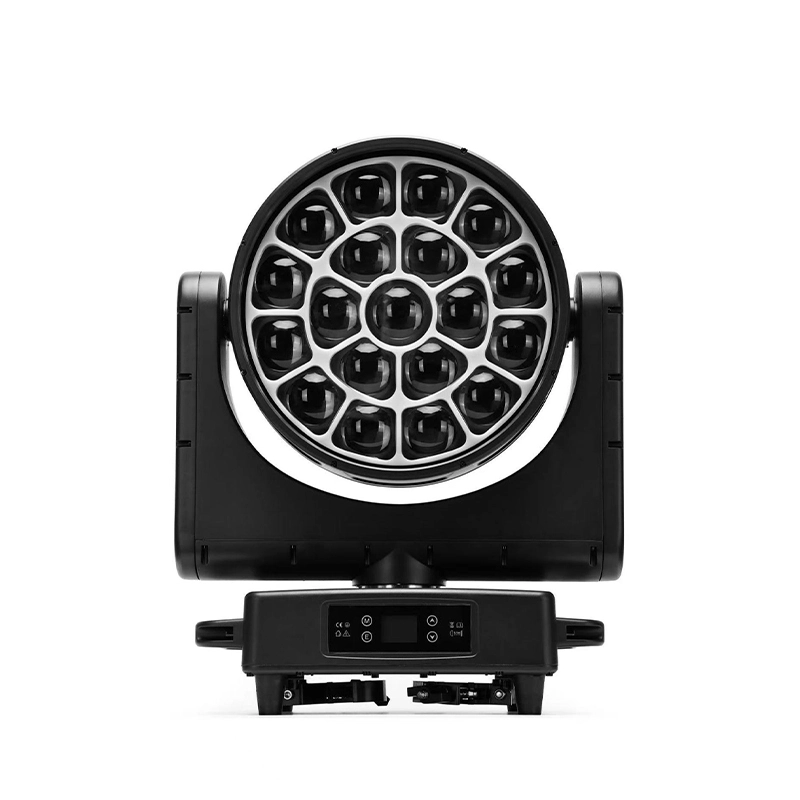

Ultra-High-Power IP65 All-Weather Multi-Source LED Moving Head
The GML MRGO 1980 IP is an IP65 touring luminaire designed for large outdoor events, festivals, stadium productions, and architectural installations. Encased in a magnesium-aluminum alloy enclosure, it provides maximum thermal dissipation and total ingress protection against extreme weather.
Dual-Engine Light Source & Wide Dynamic Zoom
The main light engine features 19 high-output 80W RGBW 4-in-1 LEDs complemented by an integrated 3030×2W RGB backlight array, drawing up to 1950W of power. Its motorized optical system with electronic focus adjusts continuously between a punchy 6° beam and a wide 55° wash.
Liquid Effect & Advanced 2D/3D Graphic Mapping
Featuring full individual pixel control across both the primary emitters and the backlight matrix, the fixture achieves complex layered animations, liquid texture simulations, and 2D/3D spatial effects.
Weatherproof Seetronic Hardware & Network Protocols
Equipped with 16-bit linear dimming (0–100%) and a high-frequency 1–30 Hz strobe, the unit supports DMX512, RDM, sACN, and optional Art-Net across 27, 41, 84, 98, 103, and 117 DMX channels. I/O connections feature IP-rated Seetronic PowerCon True1 and Seetronic 3-pin XLR jacks (5-pin optional). Pan 540° and Tilt 270° kinematics utilize 16-bit scanning with automatic optical repositioning.
Specifications
DIMENSIONS(MM)
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.
Effect Projections
