GML MINI LED Compact Theatre LED Spotlight

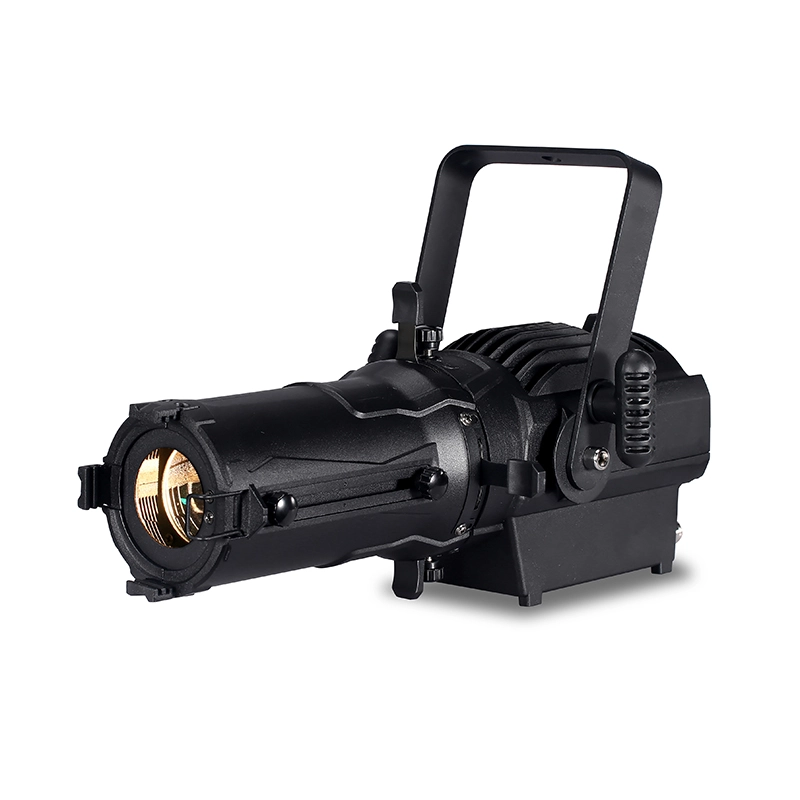

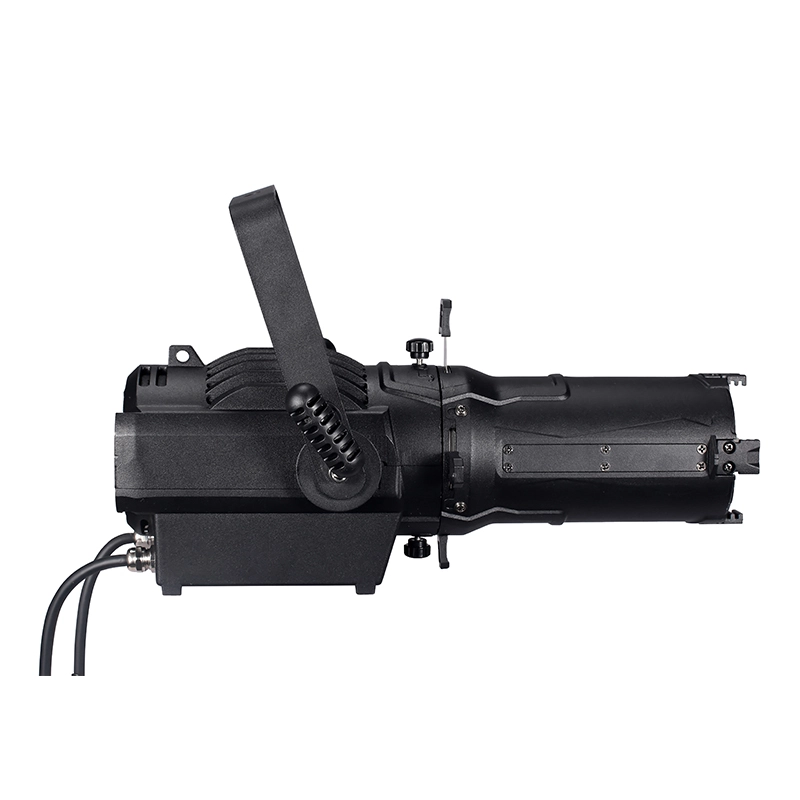

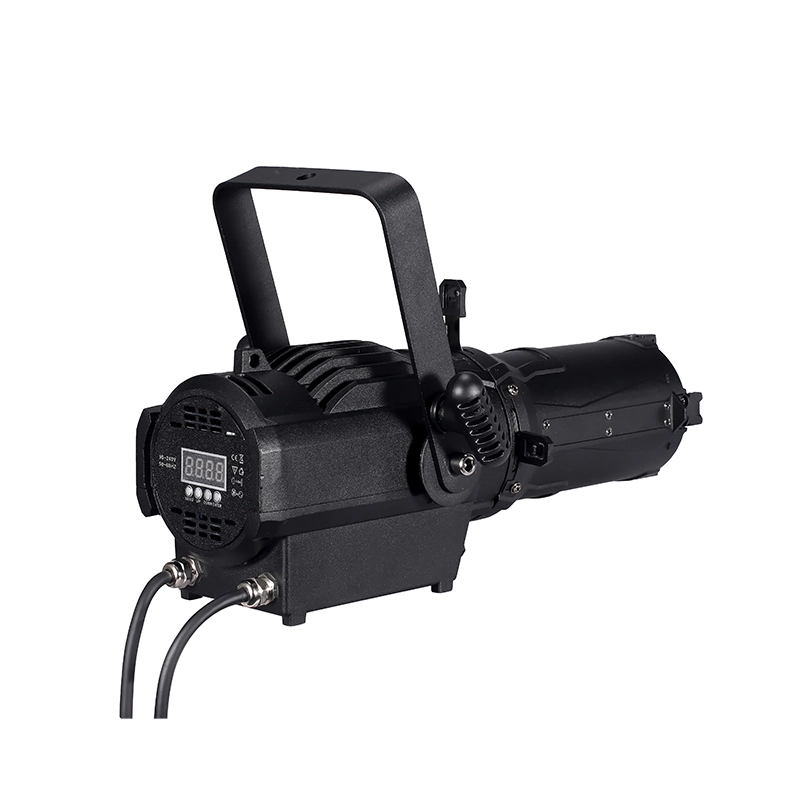

GML MINI LED PROFILE Compact Theatre LED Profile Spotlight
Optical Train and Framing Shutters
The GML MINI LED PROFILE is an ultra-compact ellipsoidal profile spotlight engineered for chamber theatres, exhibition galleries, television studios, and architectural spotlighting. The luminaire features an LED light engine available in 3200K warm white, 5600K daylight, or full RGBW configurations with a high color rendering index (CRI > 90) ensuring authentic skin-tone rendition. The manual optical system delivers an adjustable 15° to 36° beam angle alongside four manual framing shutter blades for sharp beam shaping and edge control.
Thermal Management and Chassis
Internal thermal regulation maintains operating ambient temperatures below 40°C and chassis surface temperatures under 85°C. The chassis measures 390 × 190 × 135 mm with a light net weight of only 2.6 kg, enabling rigging in space-restricted architectural coves and lightweight studio pipes.

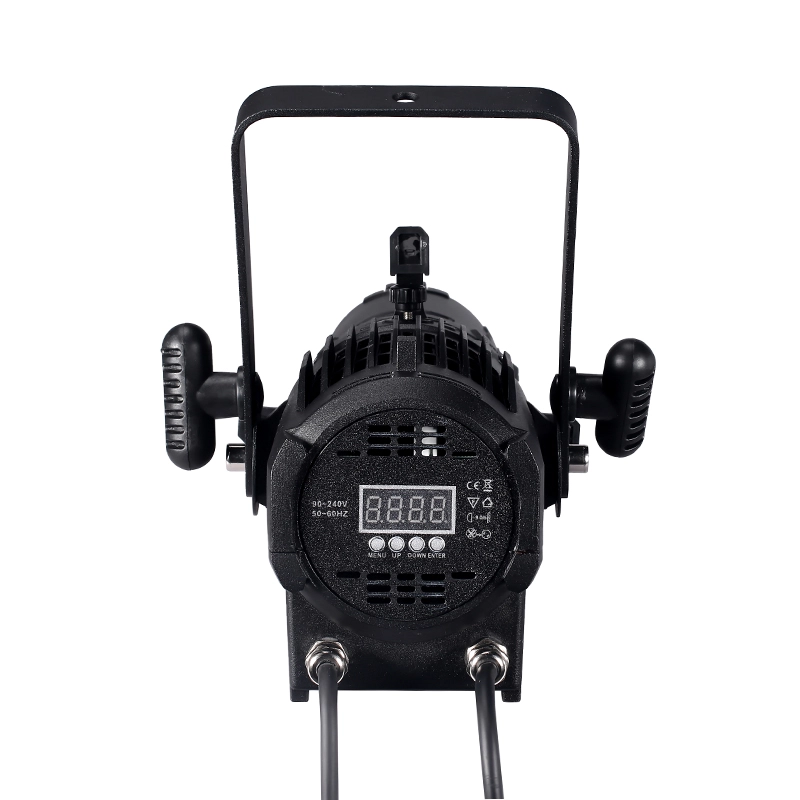

Control and Power
The fixture operates via USITT DMX512 or Master/Slave modes across 2 or 9 (RGBW mode) control channels. Dimming is 0–100% linear. Universal voltage input operates on AC 100–230V 50/60Hz with a maximum power draw of 120W (80W and 100W power versions optional).
Product variants
3 variants available
3200K:Dedicated 3200K Warm White optical engine with high CRI for traditional theatrical key light.
Specifications
DIMENSIONS(MM)
