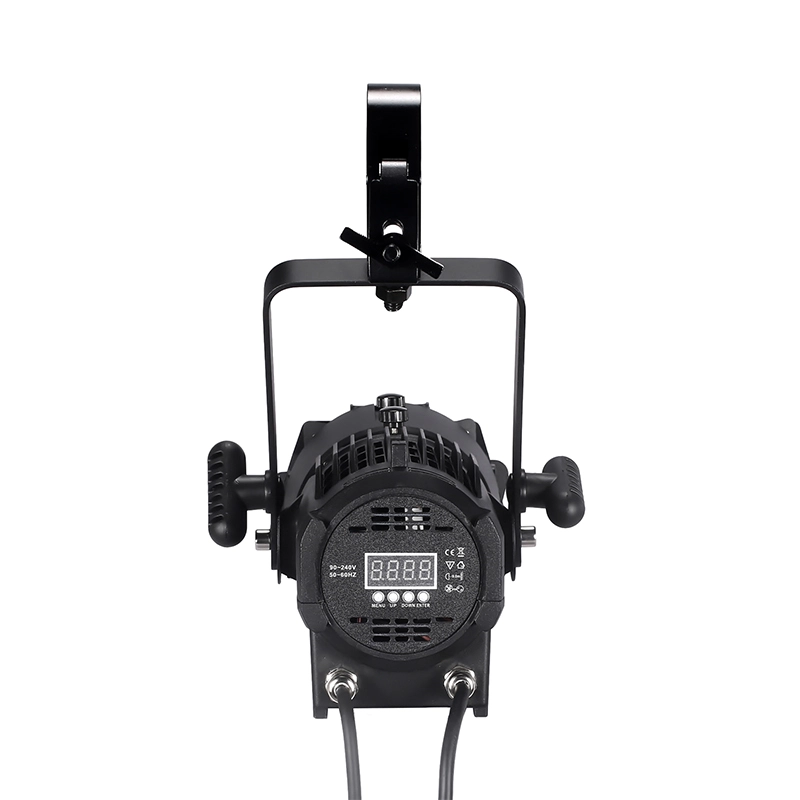

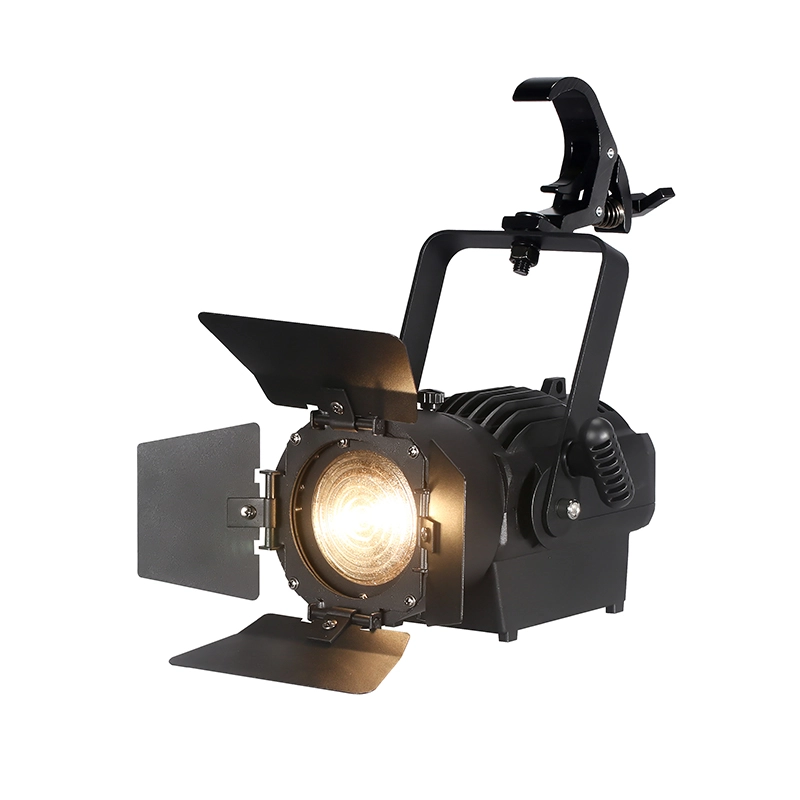

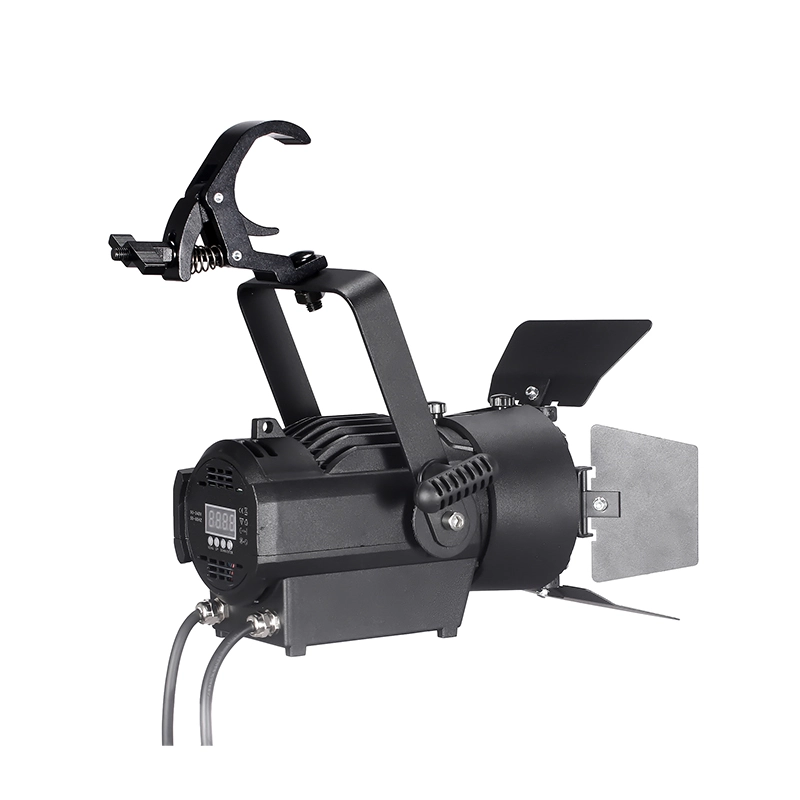

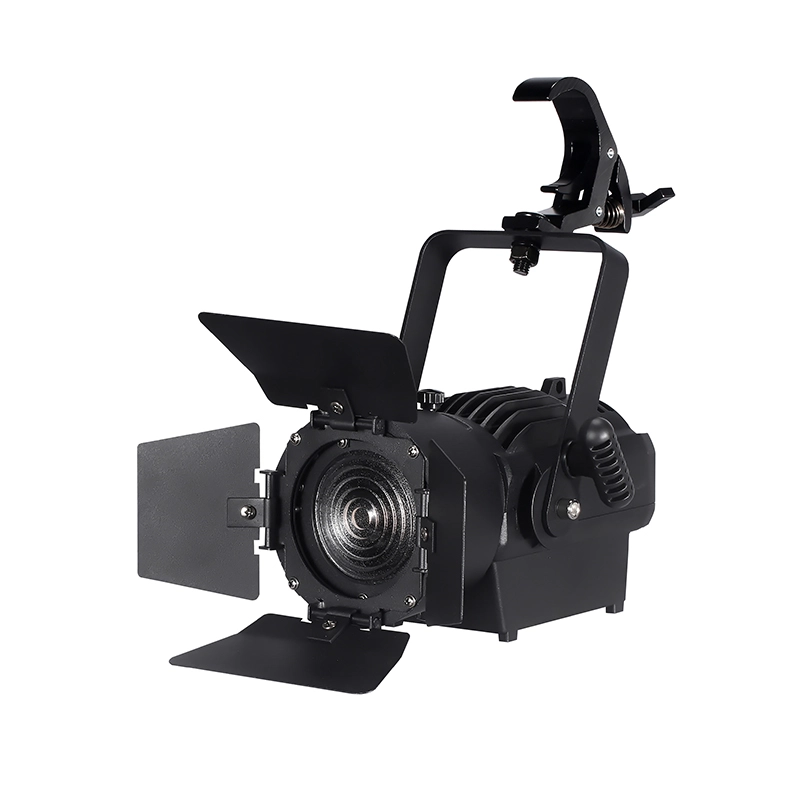

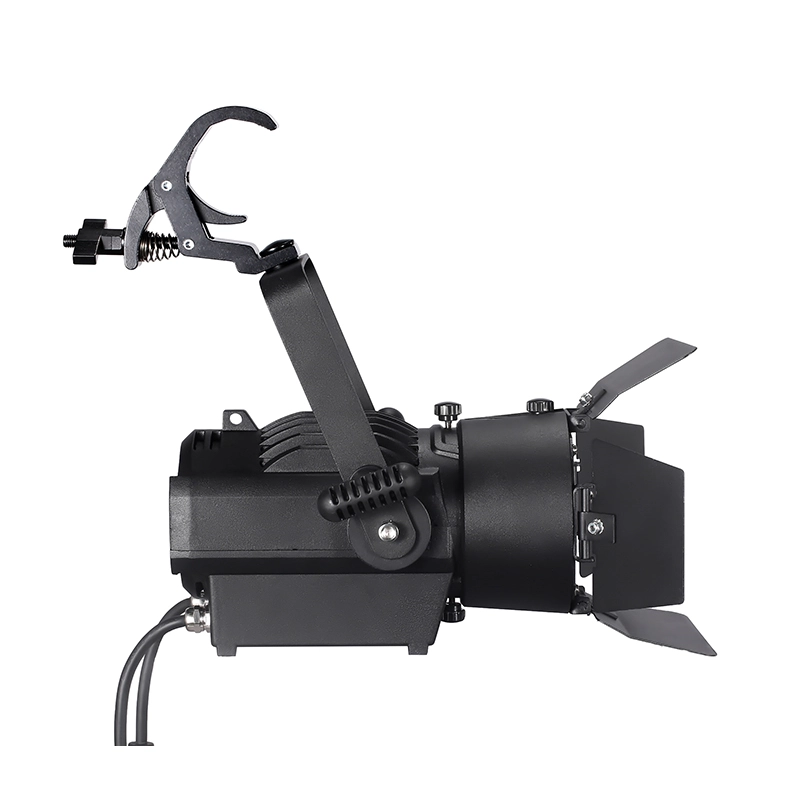

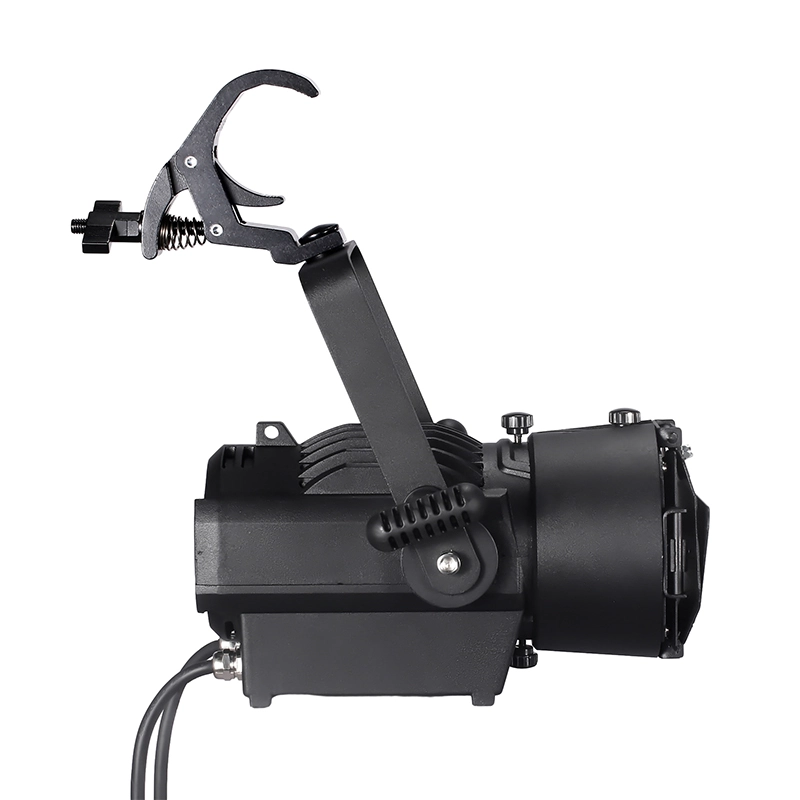

GML MINI LED FRESNEL Compact Studio Fresnel LED Spotlight
GML MINI LED FRESNEL Compact Studio Fresnel LED Spotlight
Fresnel Optical Train and Color Fidelity
The GML MINI LED FRESNEL is a compact studio and theatrical wash fixture producing a soft-edged beam characteristic of true Fresnel optics. The light source comprises a 60W COB LED engine available in 3200K warm white, 5600K daylight, or RGBW color mixing versions. Its standout performance metric is an ultra-high color rendering index of CRI ≥ 95, essential for broadcast video capture, photography studios, and high-end gallery illumination. The manual zoom mechanism smoothly focuses the beam angle between 20° and 35°.
Acoustic Quietness and Form Factor
A dedicated Mute Fan assembly ensures silent thermal regulation suitable for intimate acoustic studios and live theatre recordings. The IP20 enclosure measures 311 × 179 × 130 mm with a lightweight 2.8 kg mass, facilitating installation on studio grids and mobile floor stands.
Control and Performance
Control protocols include USITT DMX512 (1/3 or 2/5 channels for 2-in-1), Auto-run, Sound-active, and Master/Slave modes. Smooth 0–100% dimming is paired with an electronic strobe running from 1 to 25 flashes per second. The universal auto-switching power supply accepts AC 100–240V 50/60Hz with 60W maximum power draw.
Product variants
3 variants available
3200K:Compact Fresnel spotlight with a 3200K warm light source for intimate studio interviews.
Specifications
DIMENSIONS(MM)
Technical Dossier
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.
Effect Projections
