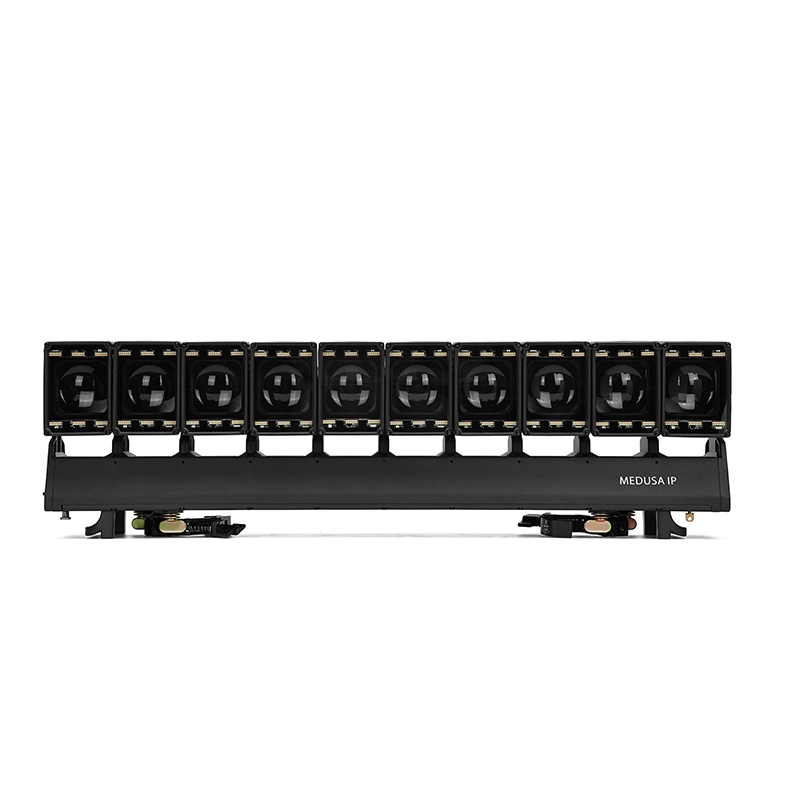

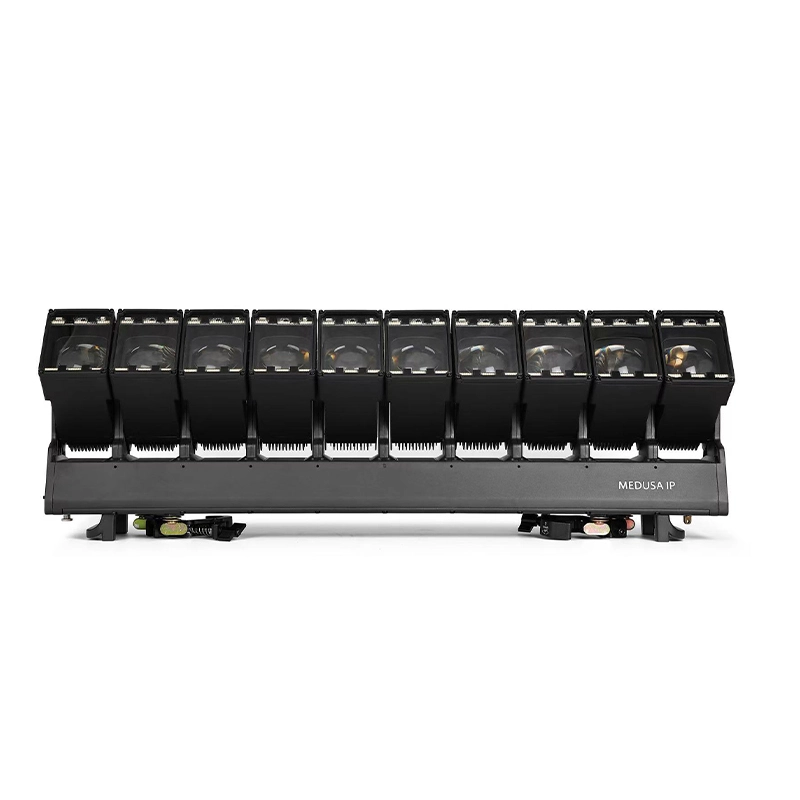

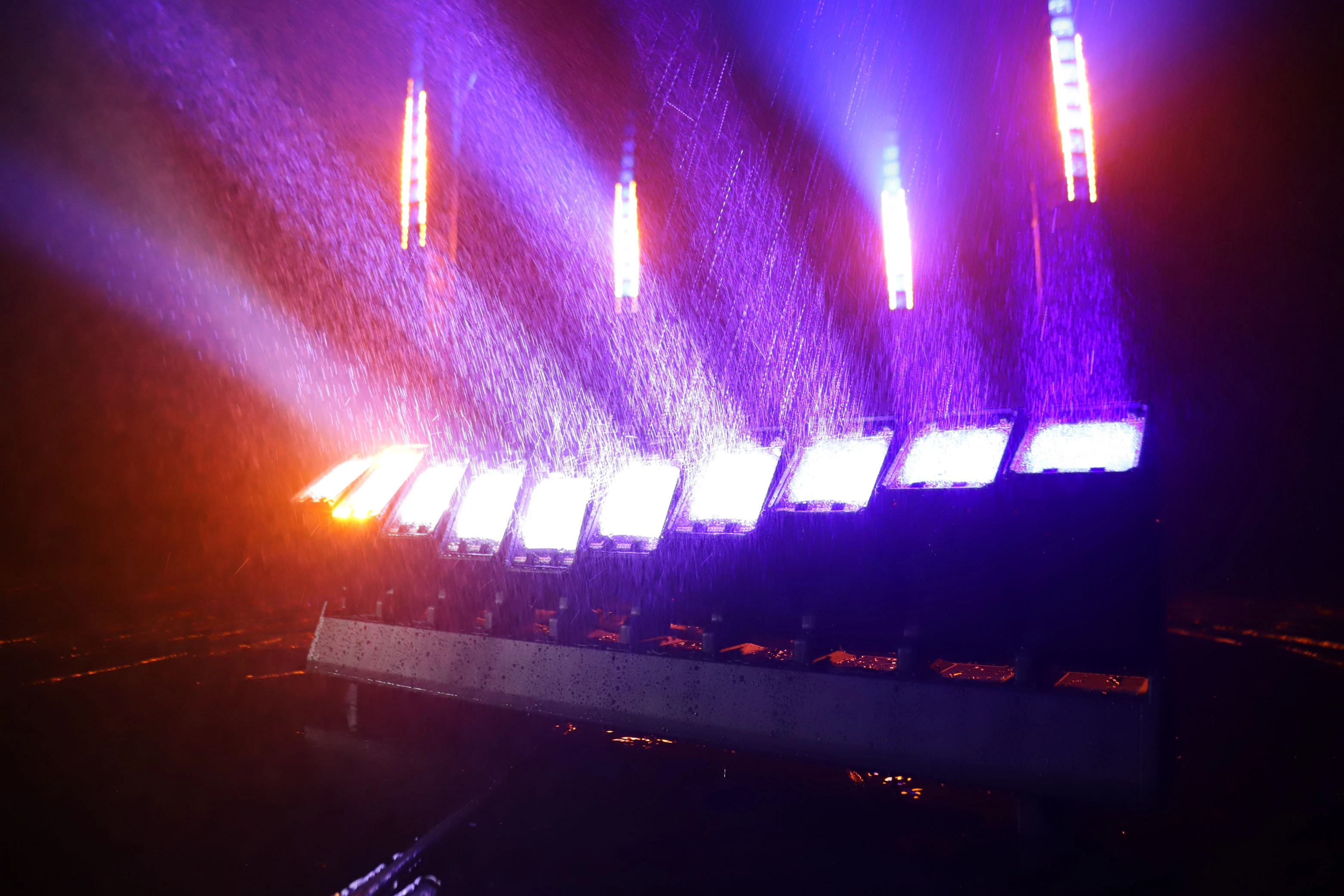

GML MEDUSA 1080 IP is designed for high-output concert touring and festival stages, housed in a robust IP65-rated weatherproof chassis. The primary light engine utilizes 10 × 80W RGBW 4-in-1 LEDs with individual head pixel control. An auxiliary dual-temperature linear strip features 360 golden warm white and 360 cool white LEDs. The fixture offers a 50,000-hour emitter life expectancy with adjustable color temperature from 2700K to 8000K.
Optical System and Tilt Kinematics

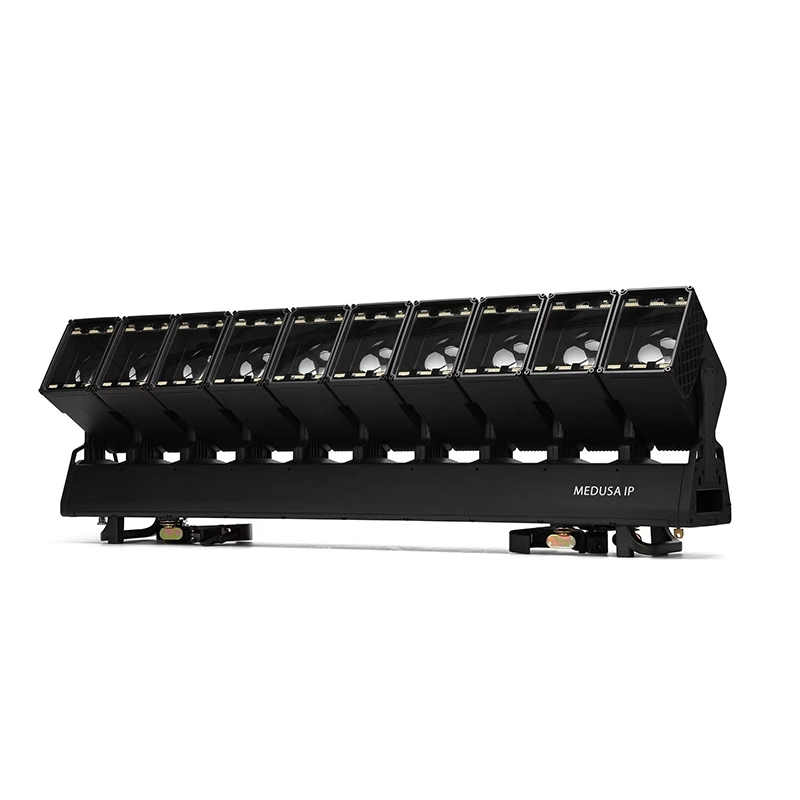

The motorized zoom ranges from 5.7° (Spot) to 36.3° (Flood). At spot zoom, it provides a 5.7° beam angle, 9° field angle, and 9.9° cutoff angle. At flood zoom, beam angle reaches 26.8°, field angle spans 33.9°, and cutoff angle is 36.3°. Motorized Tilt movement delivers 200° rotation with mechanical range presets of 60°, 180°, or 200°.
Control and Rigging Connections

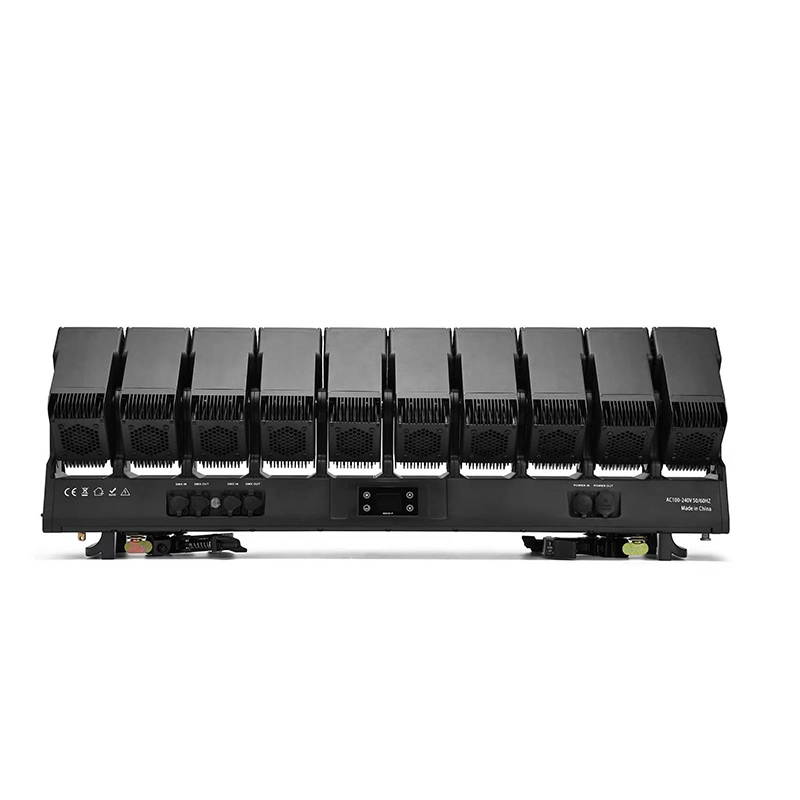

Supported control protocols include DMX512, RDM, and optional Art-Net across 29, 56, 144, 216, 262, or 282 channels. Power routing utilizes rugged Seetronic True1 PowerCON (IN/OUT) connectors, while data connects via 3-pin or 5-pin DMX. Rigging supports vertical and horizontal truss orientation with two Omega brackets.
Specifications

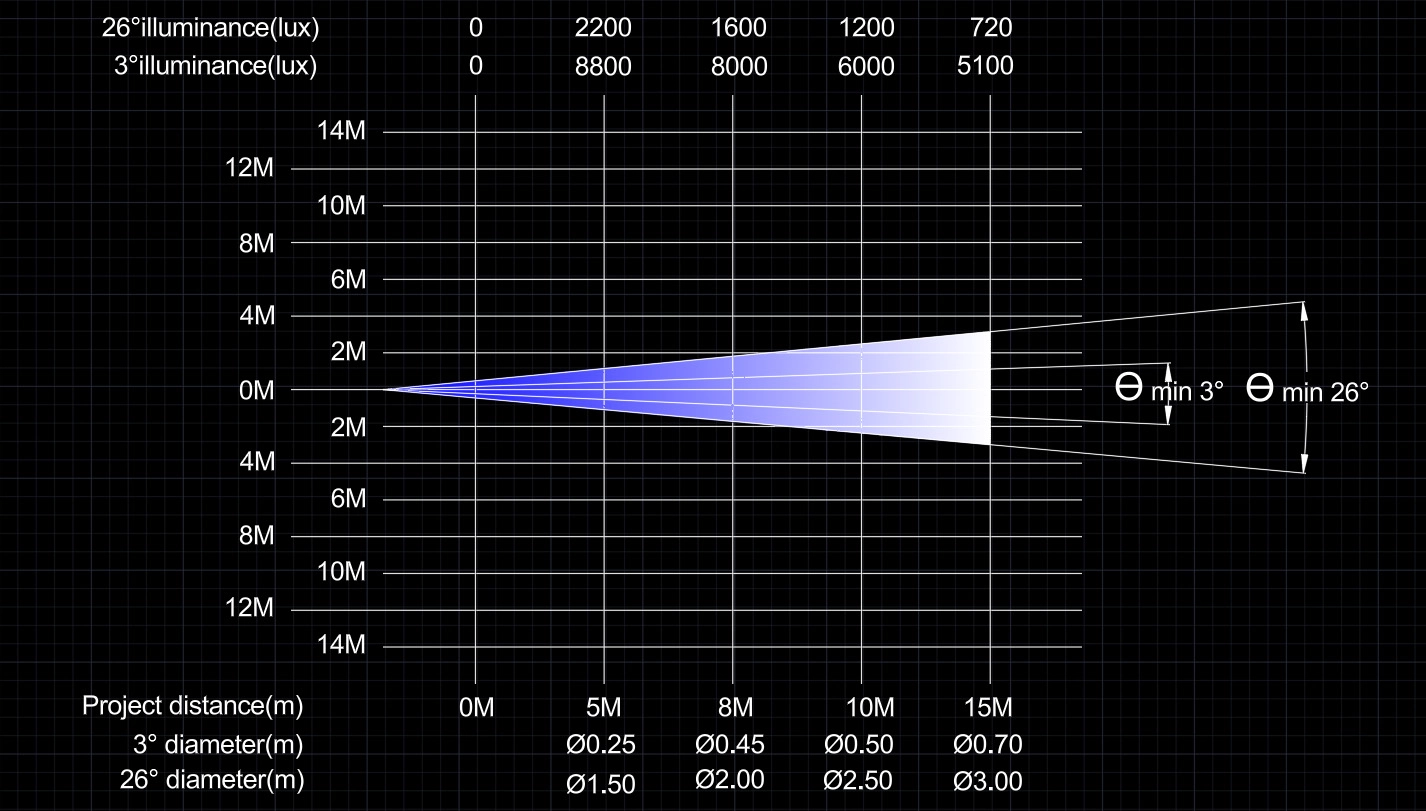

PHOTOMETRICS
DIMENSIONS(MM)
Technical Dossier
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.

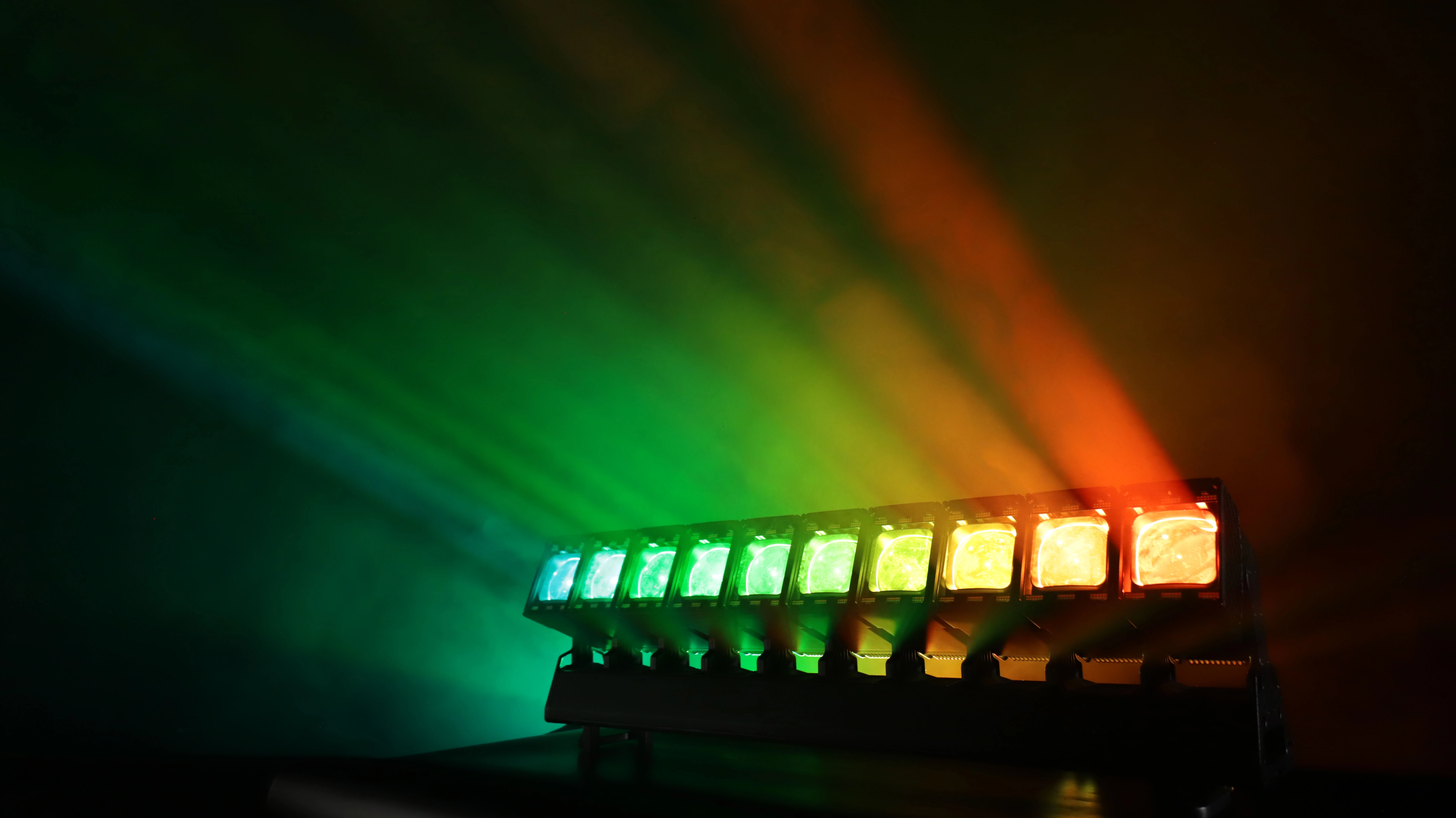

Effect Projections
