GM-L · MULTISOURCE LED

GML MAC ONE

Zoom 4–19° (beam angle) / 6–27° (field angle)1 x 150W RGBL LED (beam) + 24

GML MAC ONE

Product Overview

Concept & Optical Performance

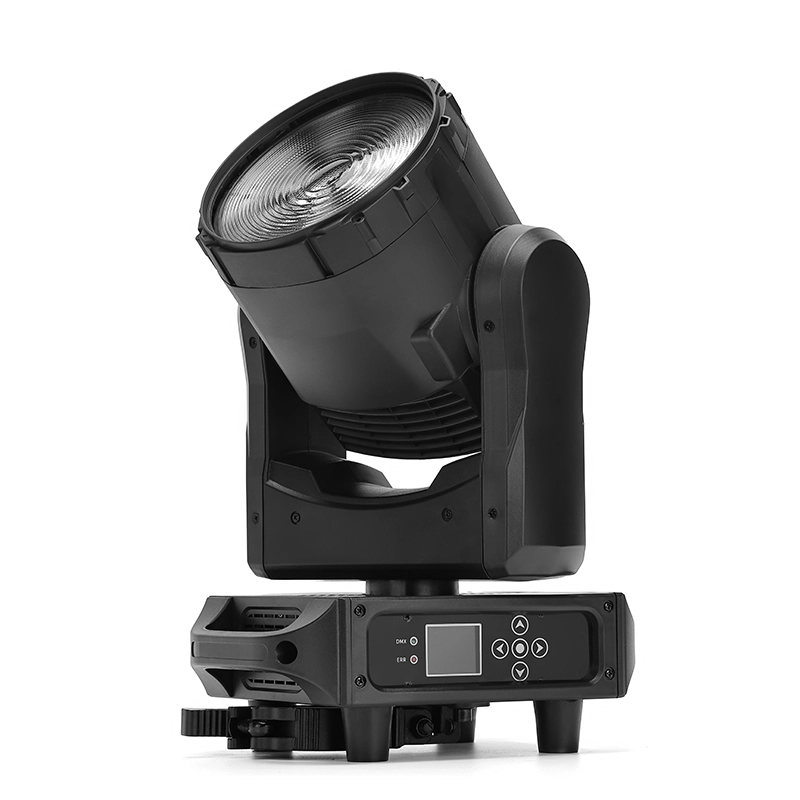

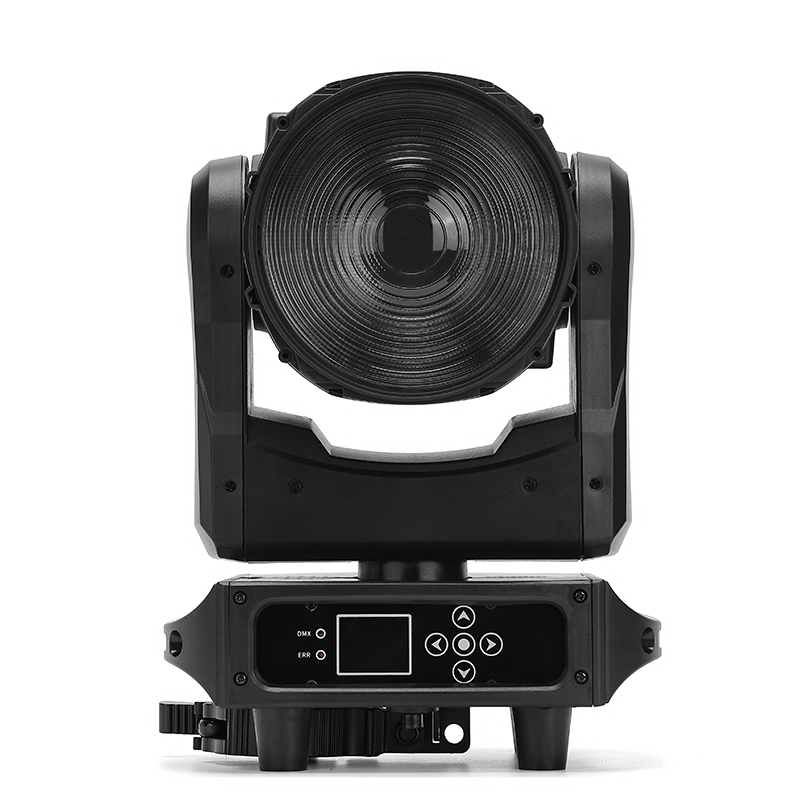

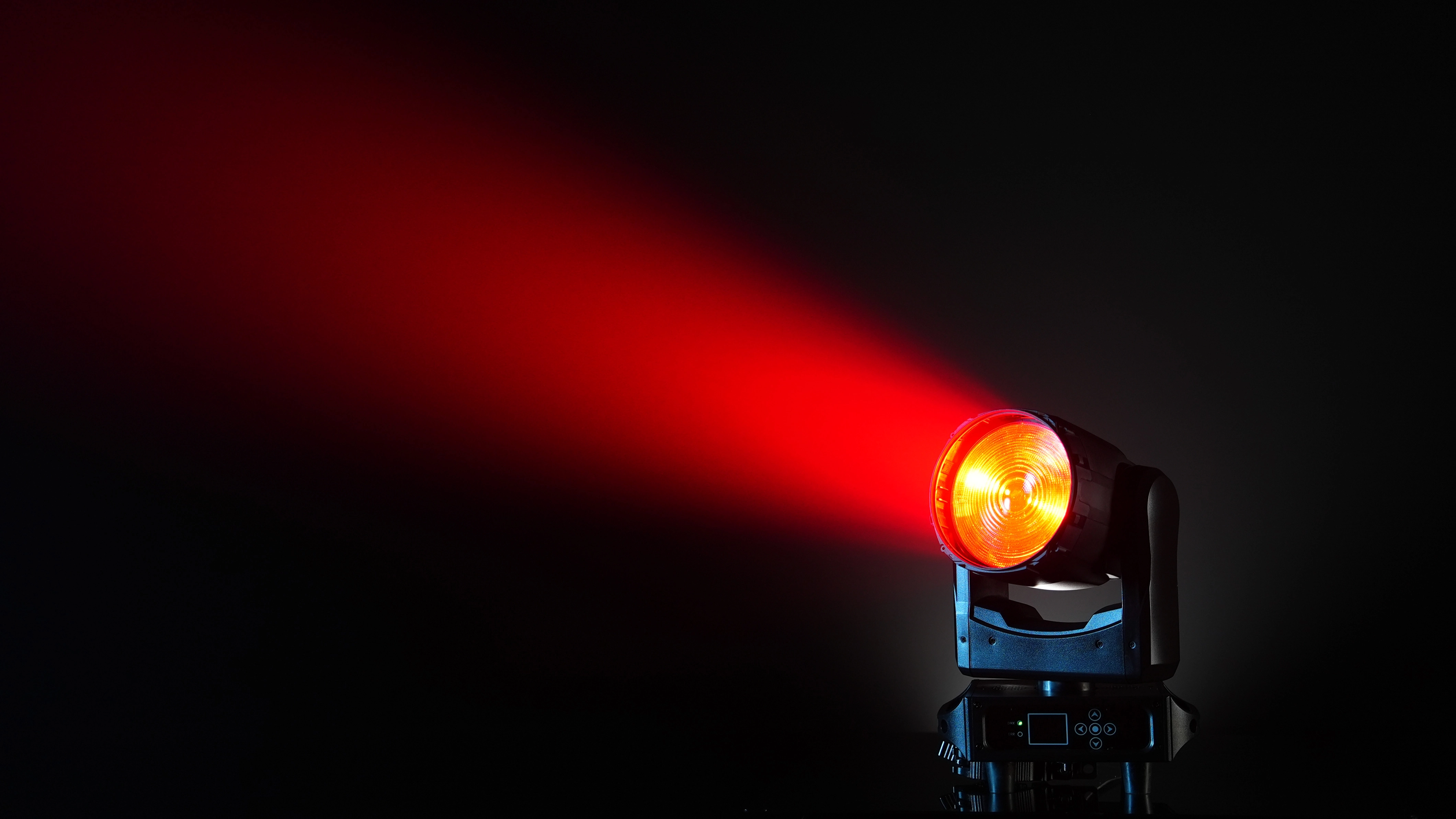

GML MAC ONE is an ultra-compact dual-source LED Beam Wash moving head featuring a 150mm front aperture optic and weighing a mere 4.5 kg. It combines a potent 150W RGBL primary LED engine (2000–12850 K adjustable CCT) for punchy beam and wash tasks, backdropped by a 24 × 0.25W RGB backlight eye-candy ring.

Key Functional Features

Zoom Versatility: 1:5 zoom ratio spanning 4–19° half-peak beam angle and 6–27° tenth-peak field angle.

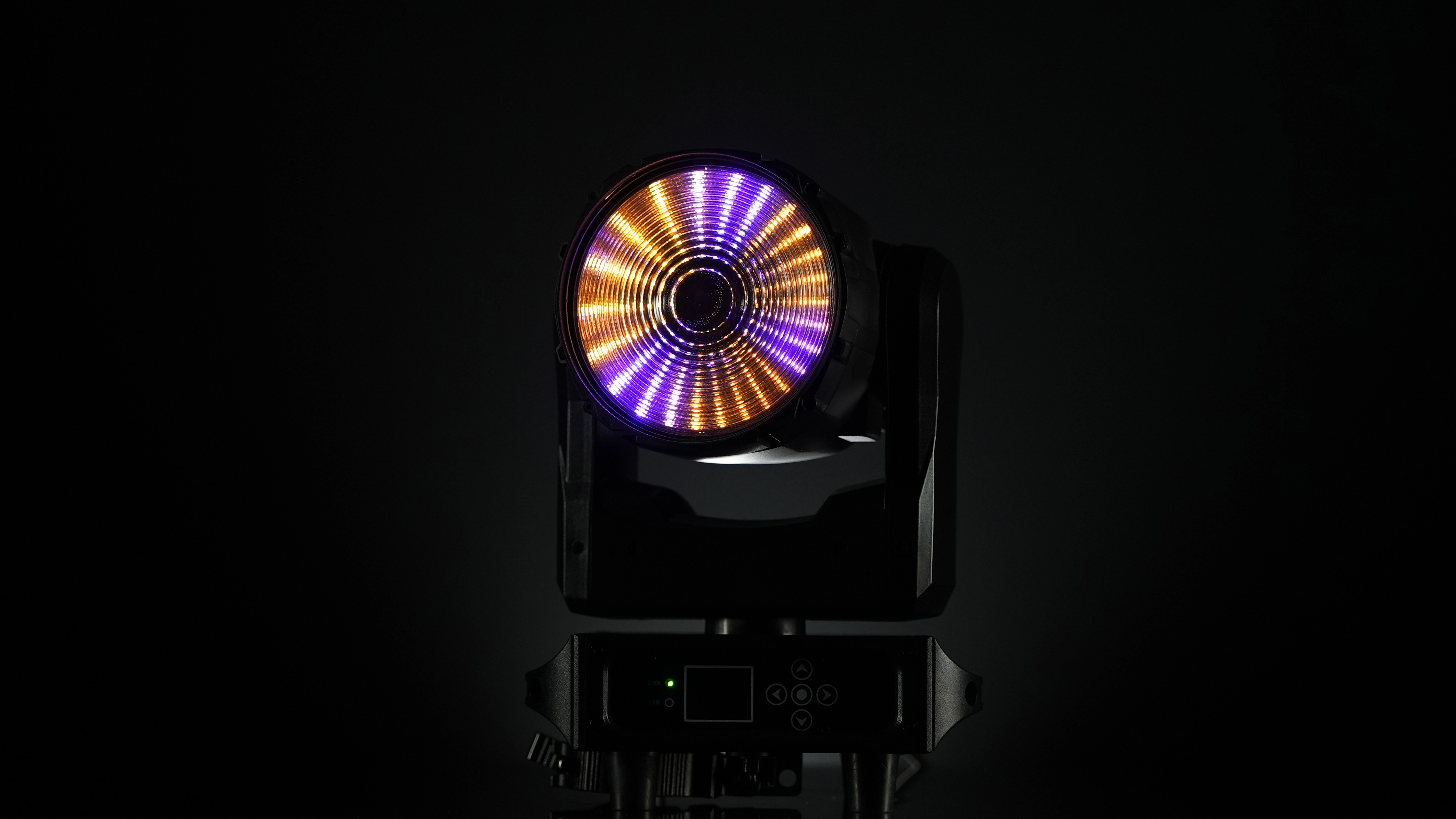

Dual Layer Lighting: independent control of tight central RGBL beam and outer ambient RGB backlight matrix.
Smooth Dimming: 16-bit linear 0–100% dimming response ensuring flicker-free broadcast performance.
Control & Compatibility: fully compatible with Martin Mac One control profiles, DMX512/RDM across 20/36/108/20a/24 channels, Auto, Master/Slave, and Sound modes.
Ultra-Light Frame: 200W total consumption, >50,000h LED lifetime, miniature 252 × 188 × 358 mm footprint, 4.5 kg weight.

Applications

Tailored for broadcast TV studios, high-density touring truss grids, immersive nightclub ceilings, corporate keynotes, and architectural live showcases.

$482

Download File

03 // TECHNICAL SPECIFICATIONS

Specifications

Zoom range

4–19° (beam angle) / 6–27° (field angle)

Light source

1 x 150W RGBL LED (beam) + 24 x 0.25W RGB LED (backlight)

LED power

150W RGBL + 6W RGB

Light source lifetime

>50,000 hours

Color temperature

2000–12850 K adjustable

Color mixing

RGBL (central beam) + RGB (backlight ring)

DMX channels

20/36/108/20a/24 CH

Control protocols

DMX512, RDM, Auto, Master/Slave, Sound Active (Martin Mac One compatible)

Input voltage

AC 100–240V, 50/60Hz

Power consumption

200 W

Fixture dimensions

252 × 188 × 358 mm

Net weight

4.5 kg

Fixture type

Compact LED Beam Wash Moving Head

Front lens diameter

150 mm

Dimmer

16-bit linear 0–100%

DIMENSIONS(MM)

Technical Dossier

1 DOCUMENTS

TYPEDOCUMENTVERSION

PDF

GML MAC ONE User Manual

v1.0
