GML LED IP All-Weather LED Spotlight

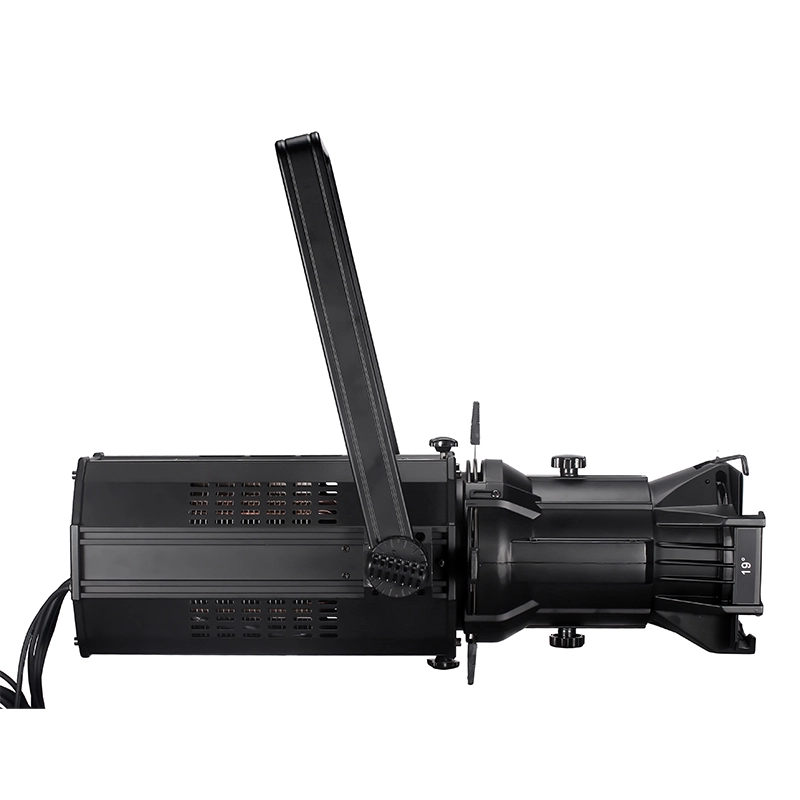

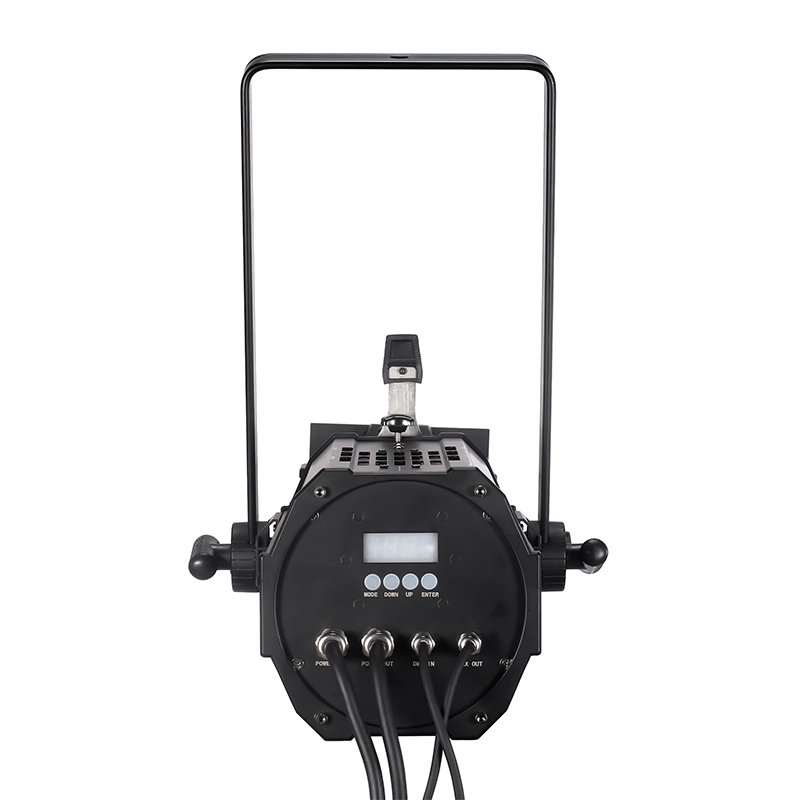

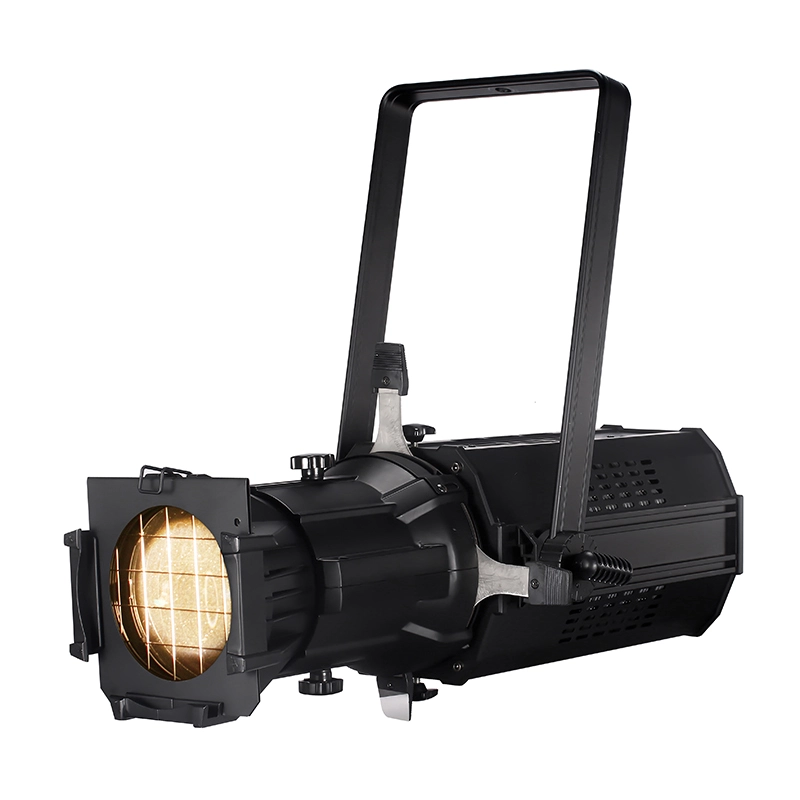

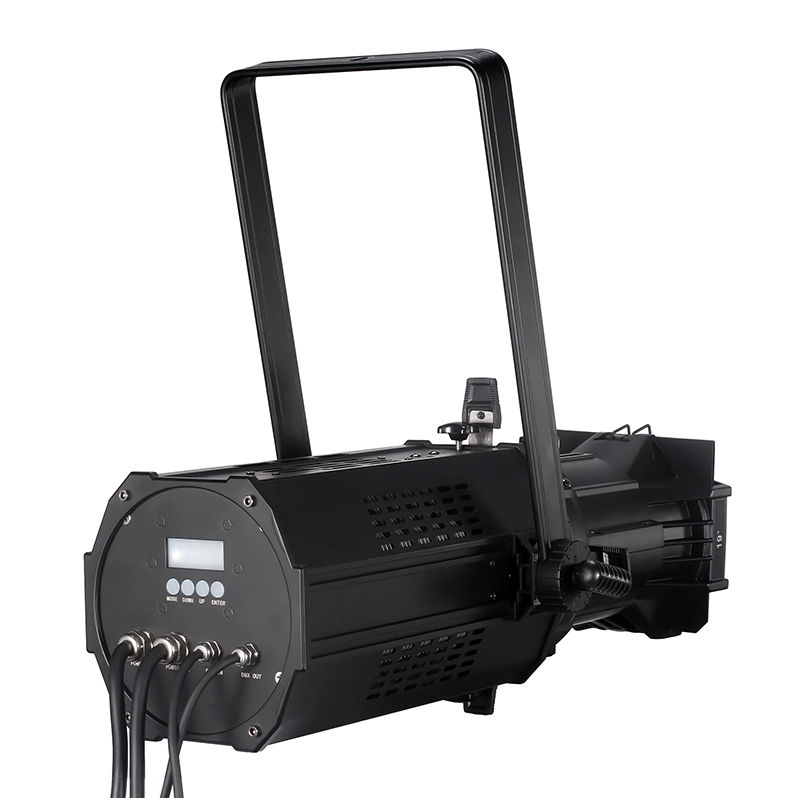

GML LED PROFILE IP All-Weather LED Profile Spotlight
K9 Optical Train and Outdoor Performance
The GML LED PROFILE IP is engineered for large-scale outdoor festival stages, architectural facade mapping, and humid exterior environments. The 300W LED engine is available in 3200K warm white, 5600K daylight, or full RGBAL color configurations with CRI ≥ 90. Premium K9 optical glass lenses maintain edge-to-edge sharpness and high contrast. The system supports six interchangeable lens barrels (5°, 10°, 19°, 26°, 36°, and 50°). Four manual framing shutters allow lighting designers to carve precise geometric patterns onto structures and outdoor staging.
Chassis and Environmental Protection
The housing incorporates weatherproof seals protecting internal optics and driver electronics during humid and outdoor conditions. Dimensions are 310 × 270 × 700 mm with an operating weight of 10.8 kg. Thermal dissipation is engineered for extended outdoor duty cycles.
Control and Power
Control integration includes DMX512 across 2, 4 (2-in-1), or 10 (RGBAL) channels, alongside standalone Auto-run and Master/Slave modes. Linear 0–100% dimming provides smooth transitions. Universal voltage spans AC 100–240V 50/60Hz with 300W total power consumption.
Product variants
3 variants available
3200K:IP65 all-weather framing spotlight with a 3200K warm white engine for outdoor architectural mapping.
Specifications

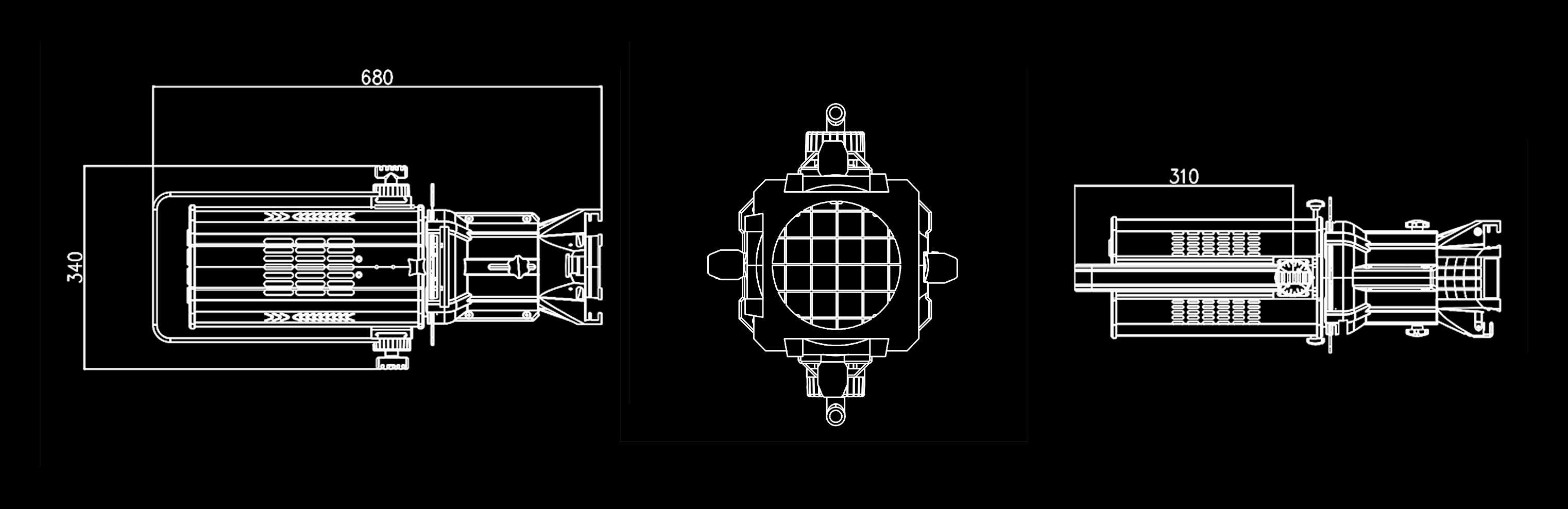

DIMENSIONS(MM)
