GM-L · WHITE SOURCE LED
GML LED BEAM WASH 150
Zoom 7–45°7 × 40W RGBW 4-in-1 LED
GML LED BEAM WASH 150
Product Overview
Concept and Optical Capabilities

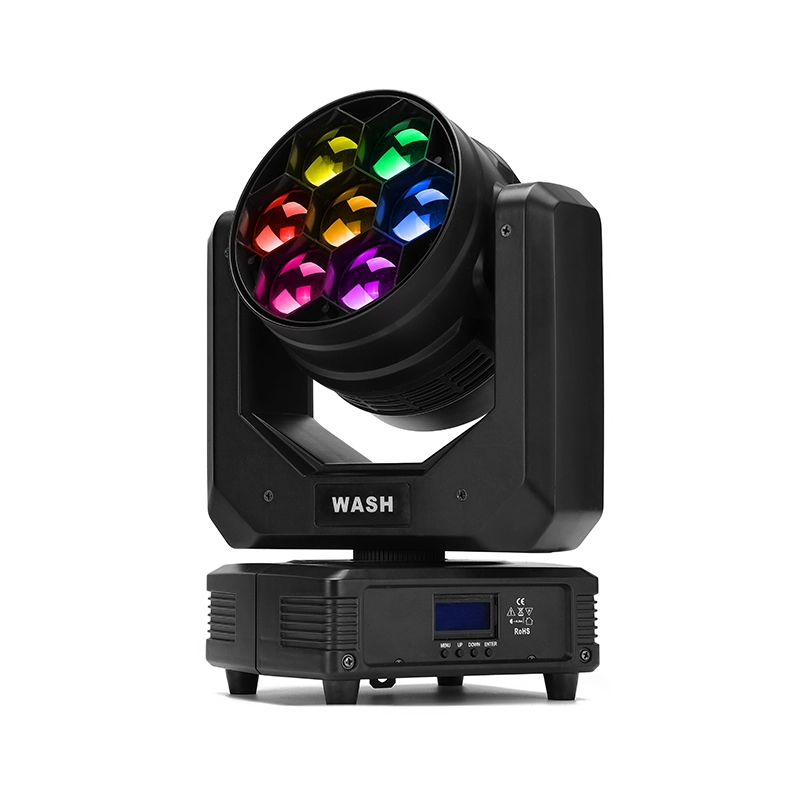

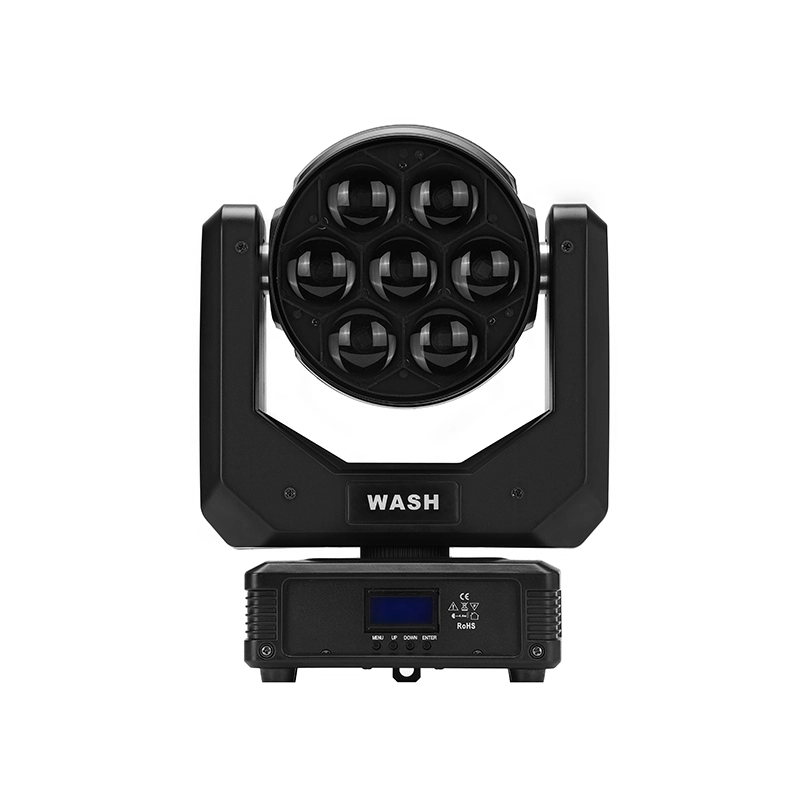

The GML LED BEAM WASH 150 is a lightweight, agile hybrid Beam/Wash LED moving head tailored for nightclubs, live music stages, corporate events, and mobile rental setups. It is powered by 7 × 40W RGBW 4-in-1 emitters drawing only 250 W.
Key Functional Features
- Optical Assembly and Agile Zoom: A 7–45° motorized zoom delivers versatility, moving seamlessly from a crisp narrow beam to a soft ambient wash.
- Color Mixing and Macro Presets: Linear RGBW color synthesis across a 2800–8000 K calibrated white spectrum, paired with built-in instant color macros.
- Dimming Precision and Strobe: Electronic 0–100% linear dimming, complemented by a 1–25 Hz strobe offering random and pulse flash modes.
- Ultra-Lightweight Ergonomics: Weighing only 6 kg with a footprint of 195 × 166 × 334 mm, the unit ensures effortless rigging on small trusses, managed via DMX512/RDM (17 channels) with PowerCON connectivity.
Application Scope
Rapid 16-bit Pan/Tilt mechanics (540/270°) and compact dimensions make the luminaire an ideal solution for low-ceiling venues, touring roadcases, and energetic live lighting programs.
03 // TECHNICAL SPECIFICATIONS
Specifications
Zoom range
7–45°
Strobe
1–25 Hz, random and pulse flash
Tilt movement
270°
Light source
7 × 40W RGBW 4-in-1 LED
Light source lifetime
50,000 h
Color temperature
2800–8000 K
Color mixing
RGBW linear color mixing
Color macro mode
Prominent color macro mode
Control protocols
DMX512, RDM
DMX channels
17 channels

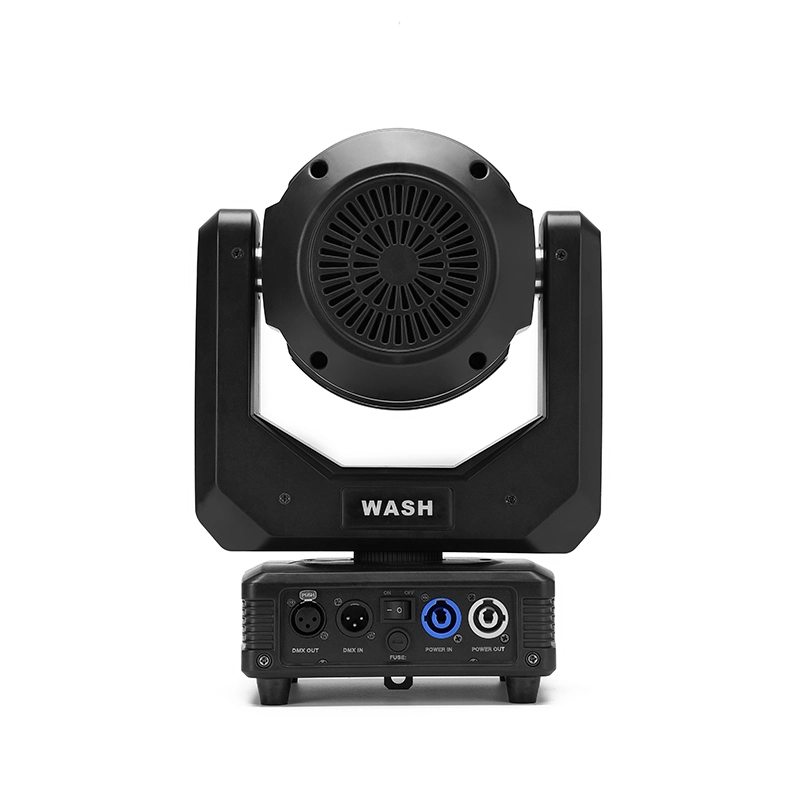

Control connectors
3-pin XLR IN / OUT
Input voltage
AC 90–240V, 50/60 Hz
Power consumption
250 W (@ 220 V)
Power connectors
PowerCON IN / OUT
Fixture dimensions
195 × 166 × 334 mm
Net weight
6 kg
Fixture type
LED Moving Head Beam / Wash Luminaire
Dimmer
Electronic 0–100%
Pan movement
540°
Display
LCD display with display flip
IP rating
IP20
