GML KINETIC BALL Kinetic LED Winch Sphere System
GML KINETIC BALL Kinetic LED Winch Sphere System
Concept and Optical Performance

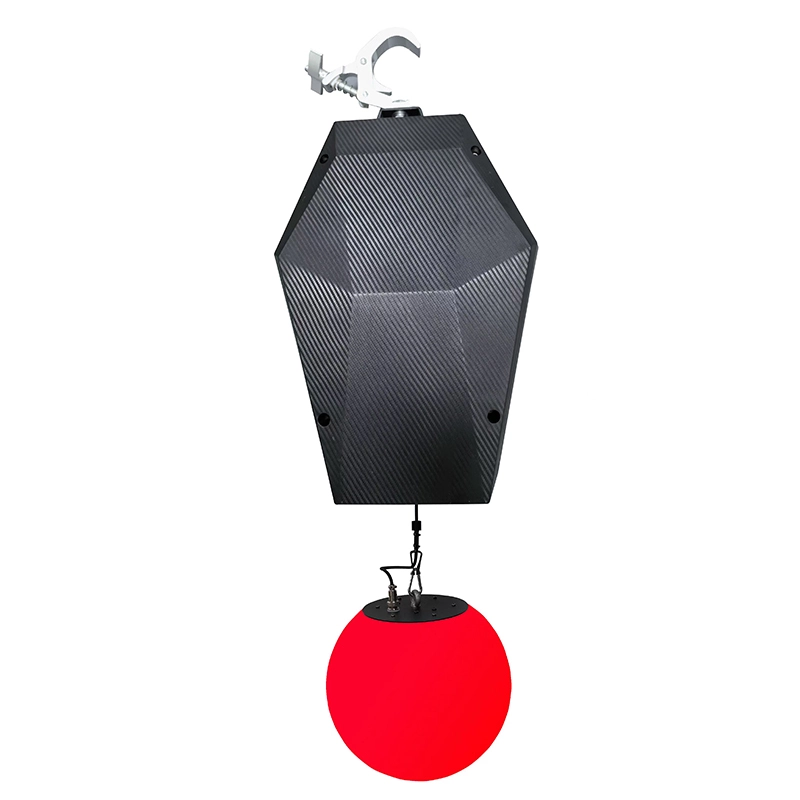

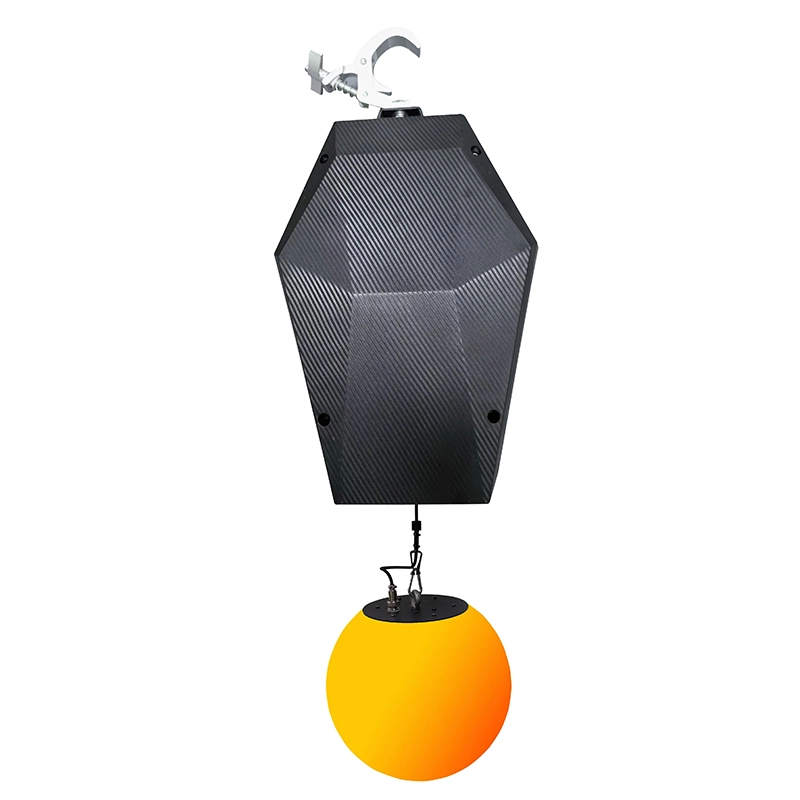

The GML KINETIC BALL is an aerial kinetic lighting system combining an illuminated RGB sphere with an automated high-precision vertical winch mechanism. The 25 cm diameter light sphere (30 cm option available) houses 42 × SMD5050 RGB 3-in-1 LEDs drawing 15W, delivering smooth omnidirectional color rendering across the entire globe.
Kinematics and Mechanical Safety
The winch motor delivers smooth vertical displacement with a stroke range between 1 and 10 meters at variable speeds up to 0.5 m/s, supporting payloads up to 1.5 kg. Operational safety is engineered through mechanical braking coupled with active electronic anti-fall protection. Winch chassis dimensions are 260 × 140 × 440 mm with a total unit weight of 7.5 kg.
Network Integration and Control
Motion positioning and lighting parameters are addressed via USITT DMX512 and Art-Net across 10-channel and 25-channel modes, enabling large arrays of winches to form synchronized volumetric sculptural motions controlled from lighting consoles and media servers. Winch power rating is 150W across universal AC 100–240V 50/60Hz supplies.
Specifications
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.

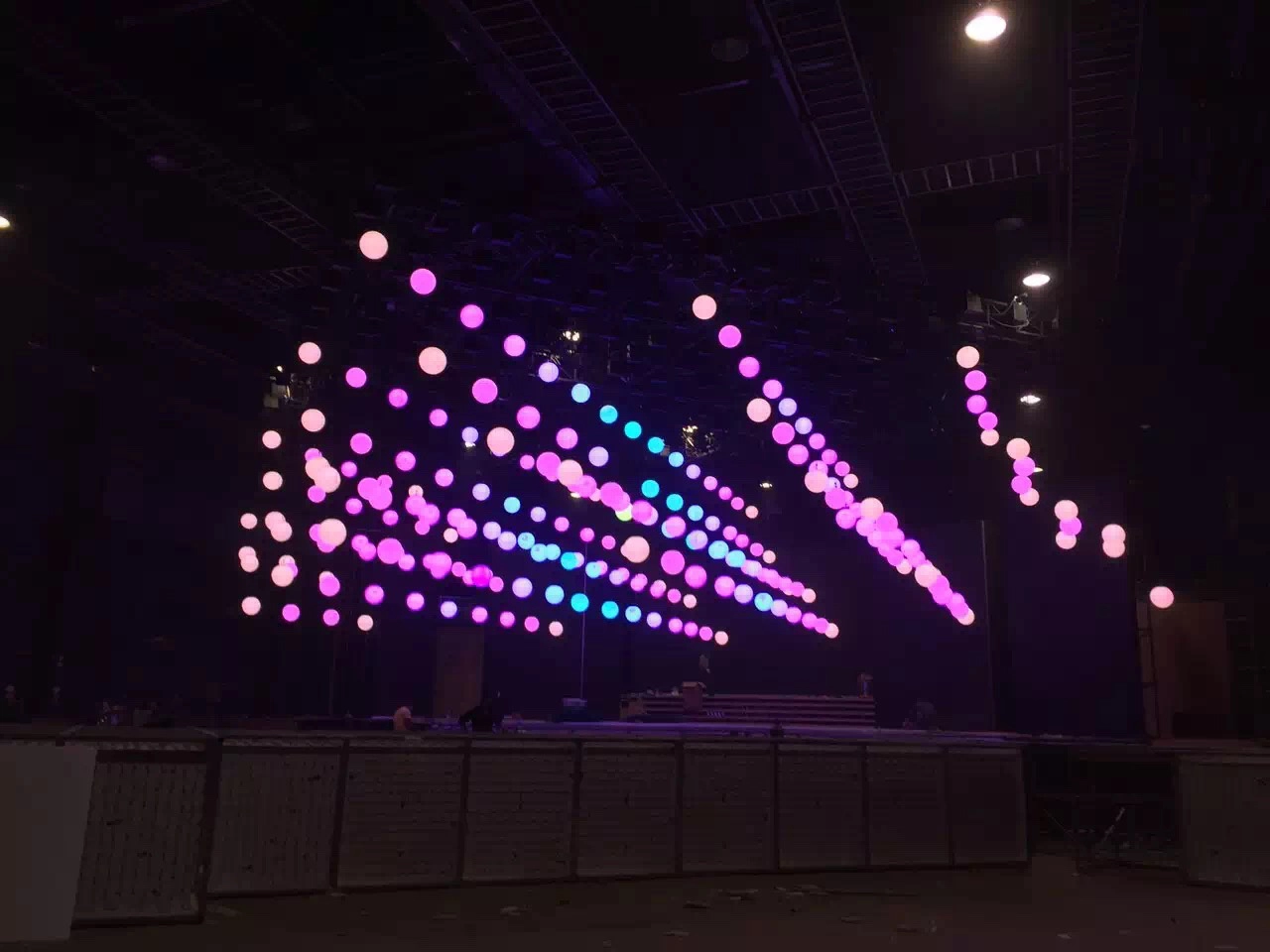

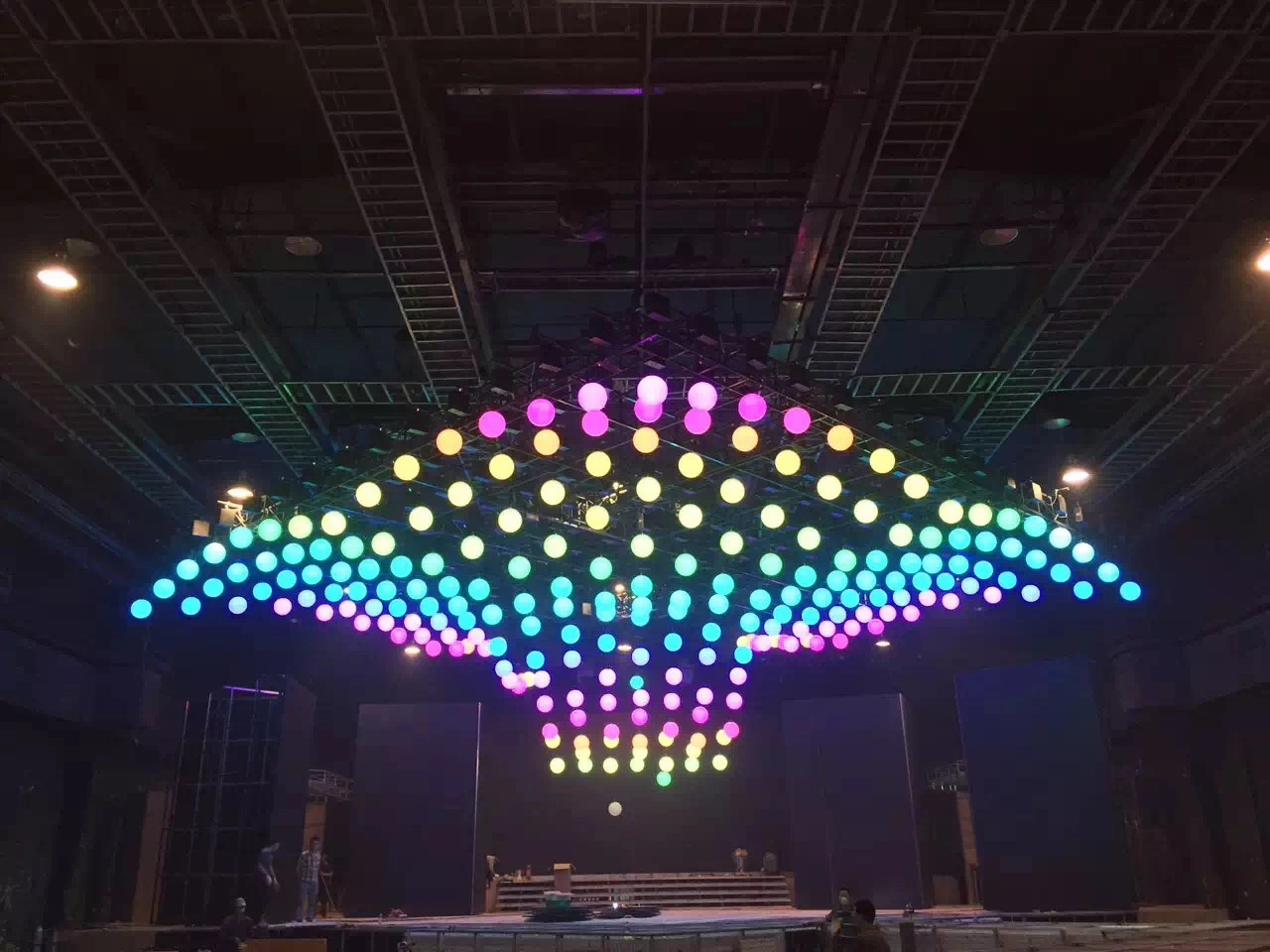

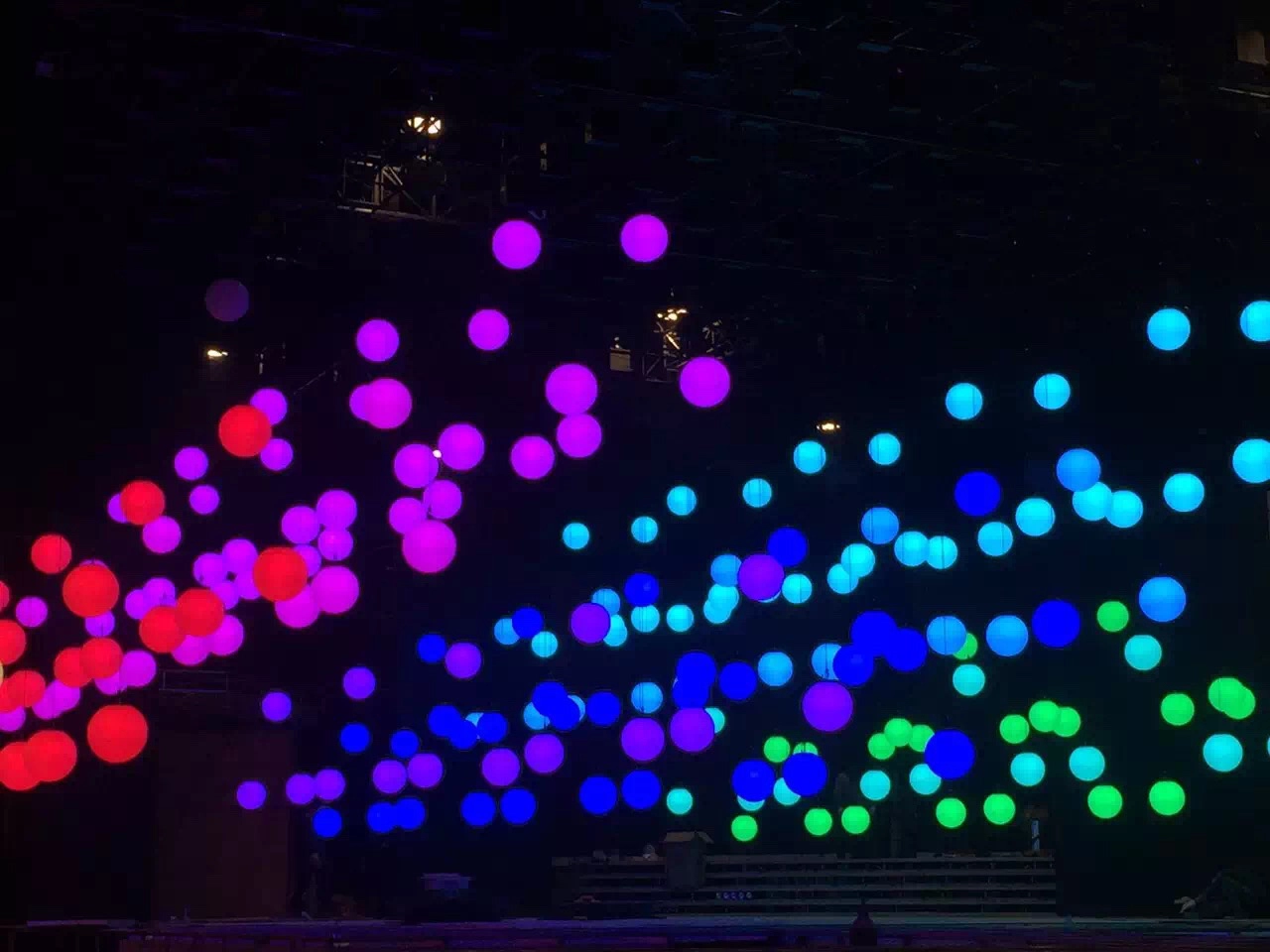

Effect Projections
