GML JOLT PANEL LED Strobe Floodlight
GML JOLT PANEL LED Strobe Floodlight
GML JOLT PANEL LED Strobe Floodlight

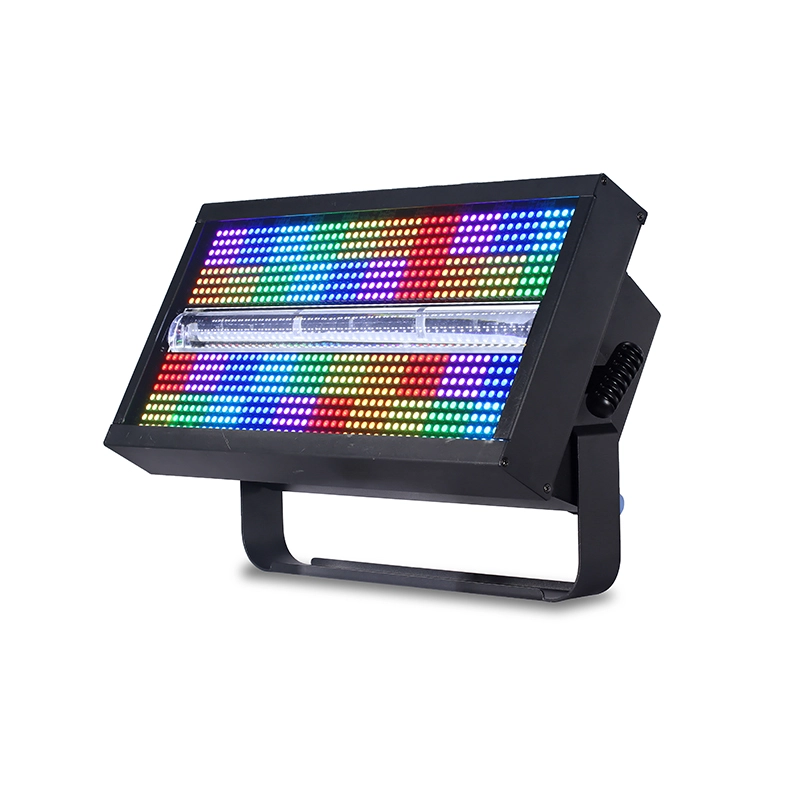

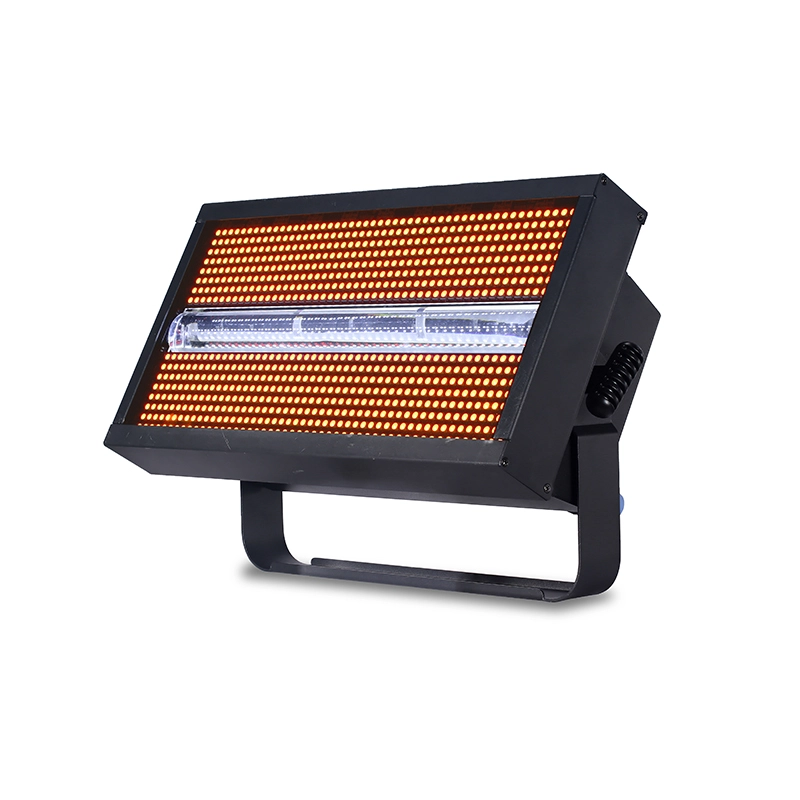

GML JOLT PANEL merges the dynamics of a high-output stage strobe with dense multi-zone pixel flood capabilities. The optical layout incorporates 800 × 0.3W RGB SMD LEDs with a 121° beam angle and a central strobe section of 48 × 5W Cool White SMD LEDs (89° beam angle, 6500K–7000K).
Pixel Segmentation and Program Macros
The fixture provides 40 individual RGB pixel zones and 6 Cool White zones. Preprogrammed macros include 25 RGB pattern sequences and 9 white strobe macros. Variable strobe rate covers 0.35 Hz to 25 Hz with shutter and pulse width controls alongside 0–100% smooth linear dimming.
Control Flexibility and Form Factor

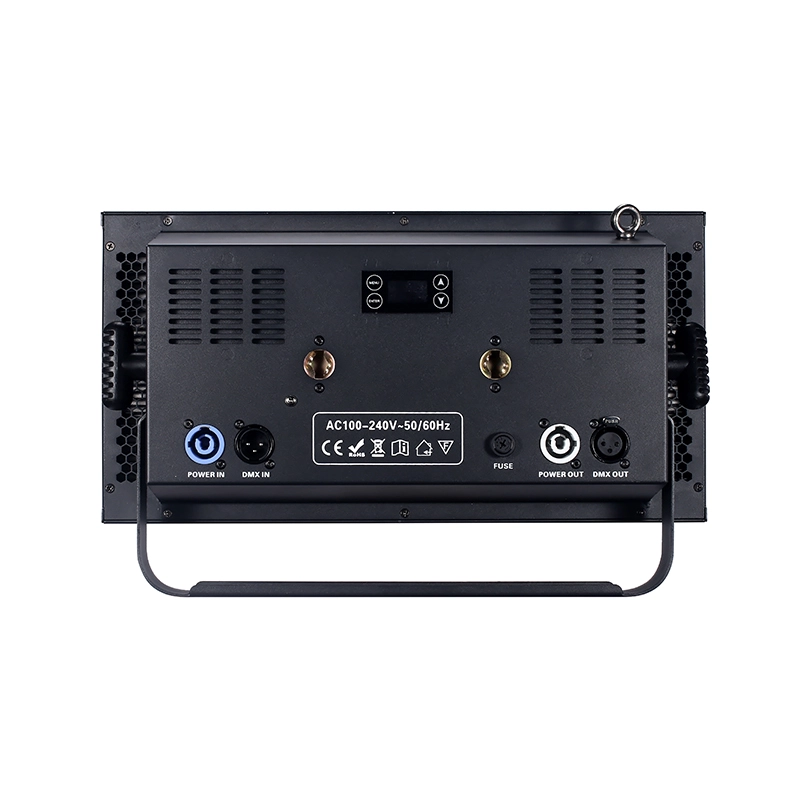

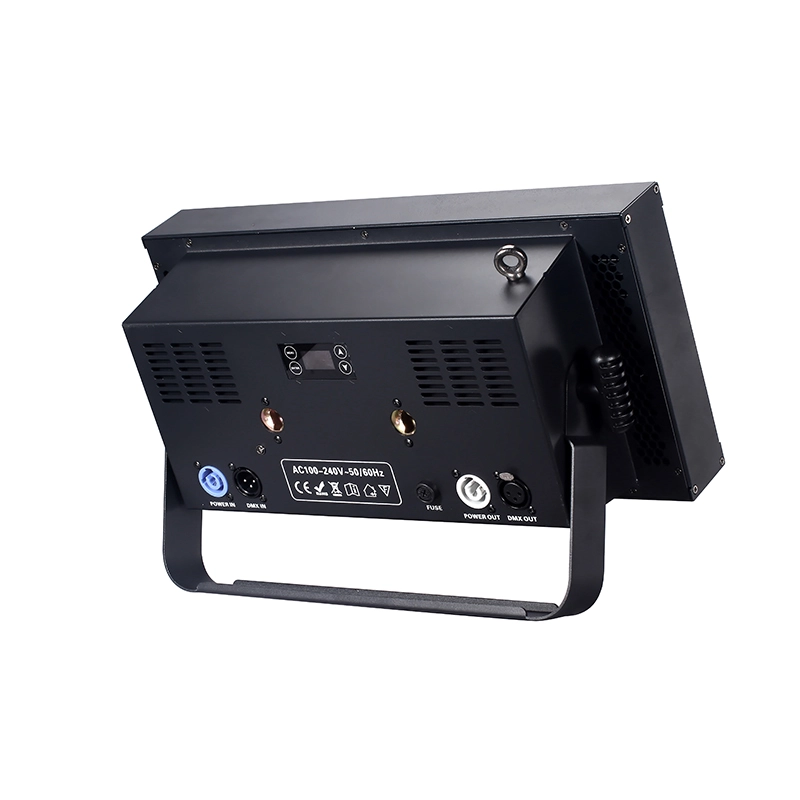

The control engine offers 8 DMX personalities (6, 9, 13, 18, 36, 41, 126, and 141 channels), accommodating simple wash programming as well as detailed pixel-mapping workflows. The unit features an LCD interface with a 4-button touch menu. Dimensions are 560 × 340 × 430 mm with a net weight of 16 kg.
Specifications
DIMENSIONS(MM)
Technical Dossier
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.
Effect Projections
