GML JOLT BAR IP All-Weather Linear LED Strobe Bar
GML JOLT BAR IP All-Weather Linear LED Strobe Bar
GML JOLT BAR IP All-Weather Linear LED Strobe Bar

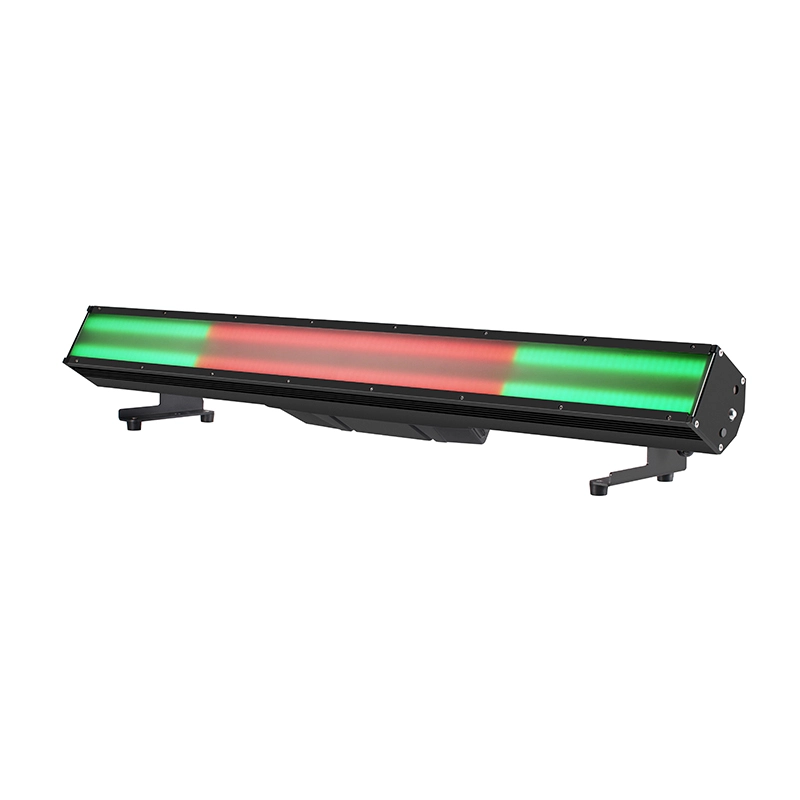

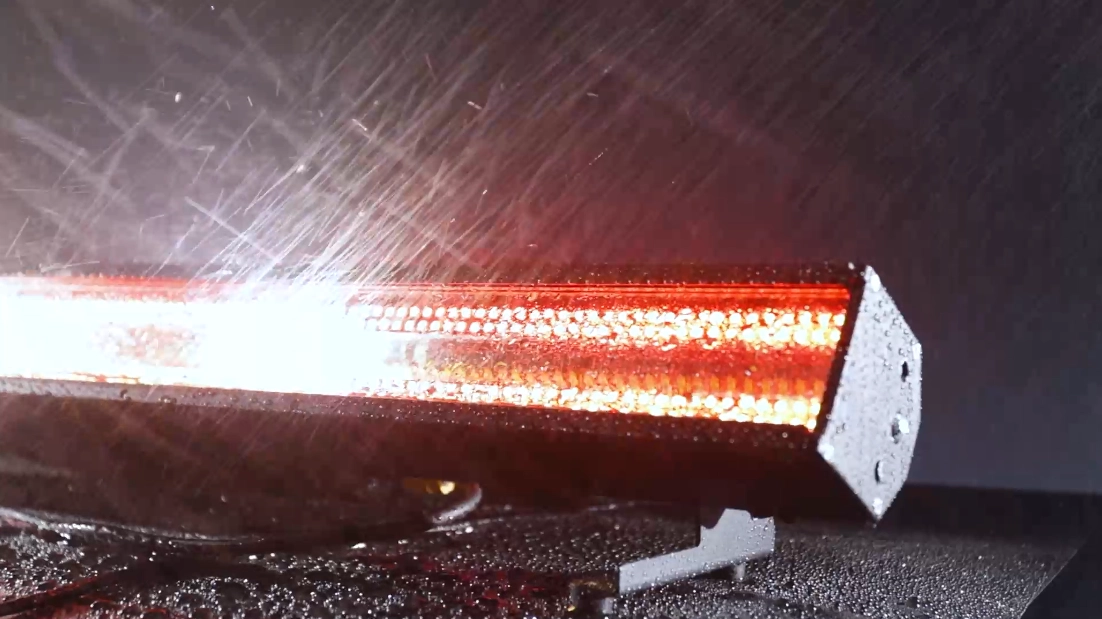

The GML JOLT BAR IP is built for stadium touring, outdoor music festivals, and all-weather stage design (IP66). The fixture incorporates a dual-source layout: a central white strobe line consisting of 112 × 3W Cool White LEDs (116° beam angle) flanked by 448 × 0.5W RGB LEDs (101° beam angle) for background color washes and segmented chases.
Optical System and Power Profile
Featuring a high-exposure light-guiding optical assembly, the bar delivers consistent wide-angle diffusion. The electrical engine operates at 600W nominal full lamp power (500W continuous constant output, 700W peak burst output). Operating temperature is rated from -10°C to +40°C with maximum surface temperature maintained below 65°C.
Network Control and Modular Rigging

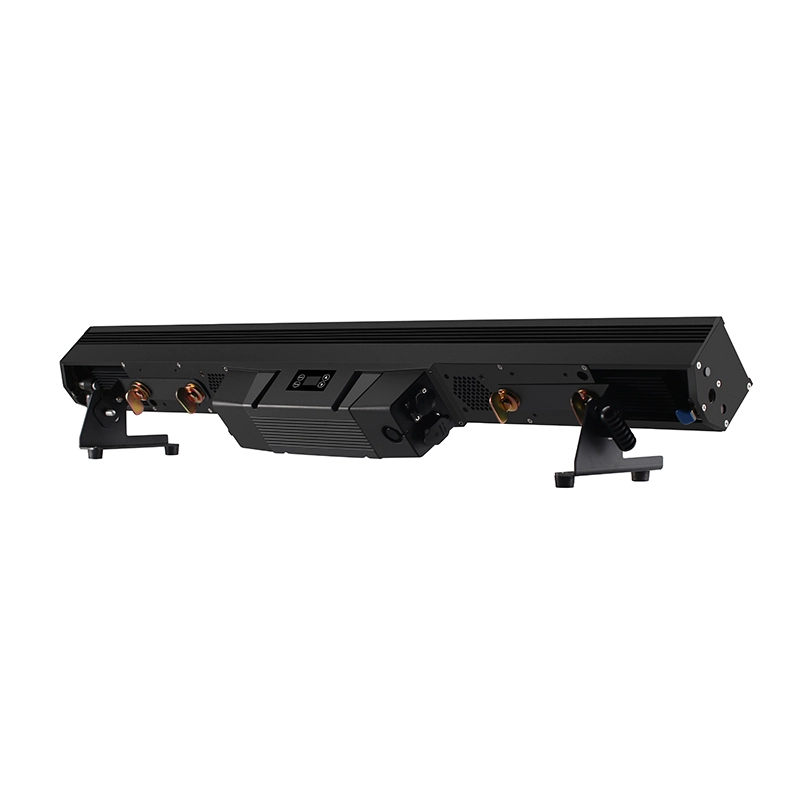

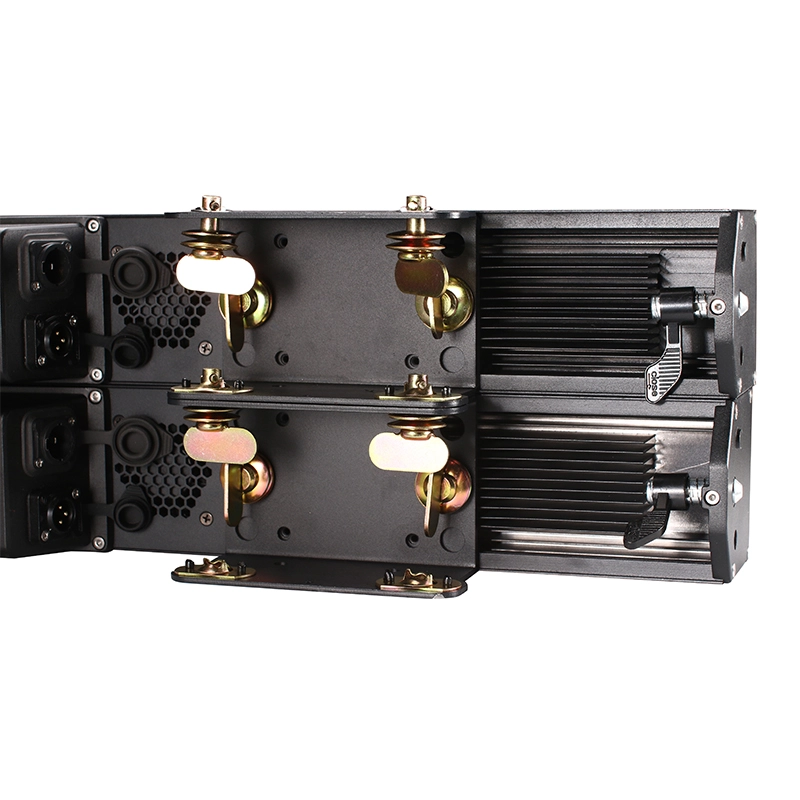

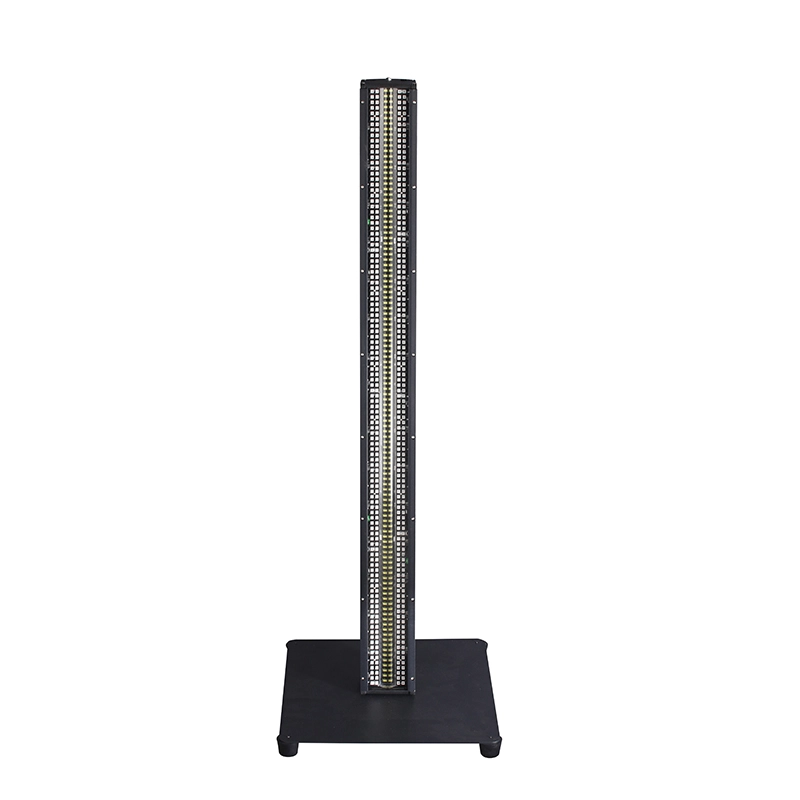

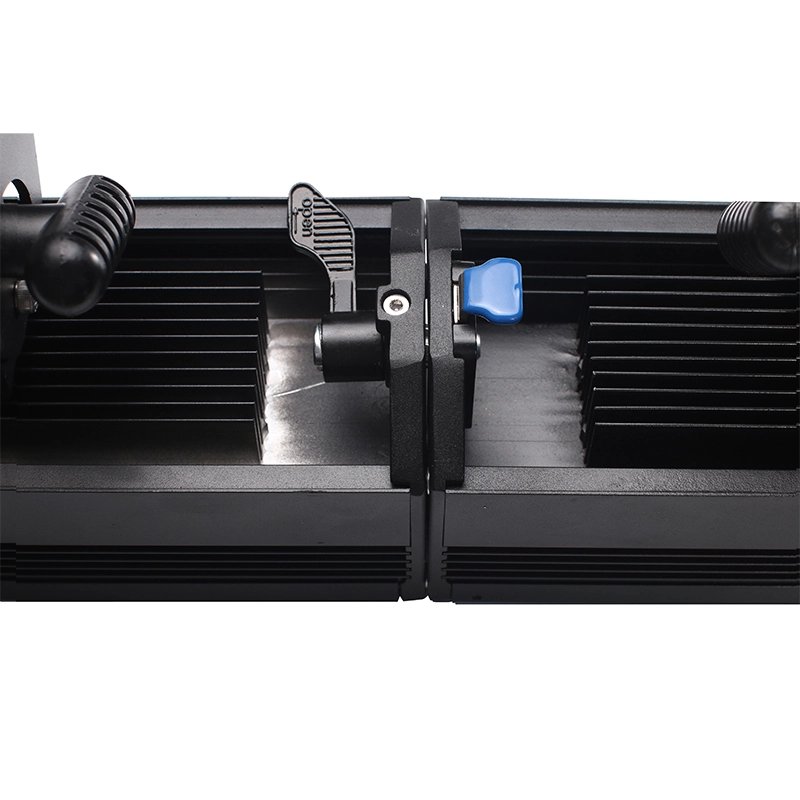

Network capabilities encompass Art-Net and sACN Ethernet protocols alongside USITT DMX512 and RDM addressing across 4 channel modes (9, 18, 112, and 127 channels). Physical features include an OLED display with 4 touch buttons, firmware updating over DMX, horizontal and vertical orientation rigging, and interlocking structural hardware for left/right/up/down modular arrays. Dimensions measure 1002 × 142 × 90 mm with a total weight of 8 kg.
Specifications
DIMENSIONS(MM)
Technical Dossier
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.

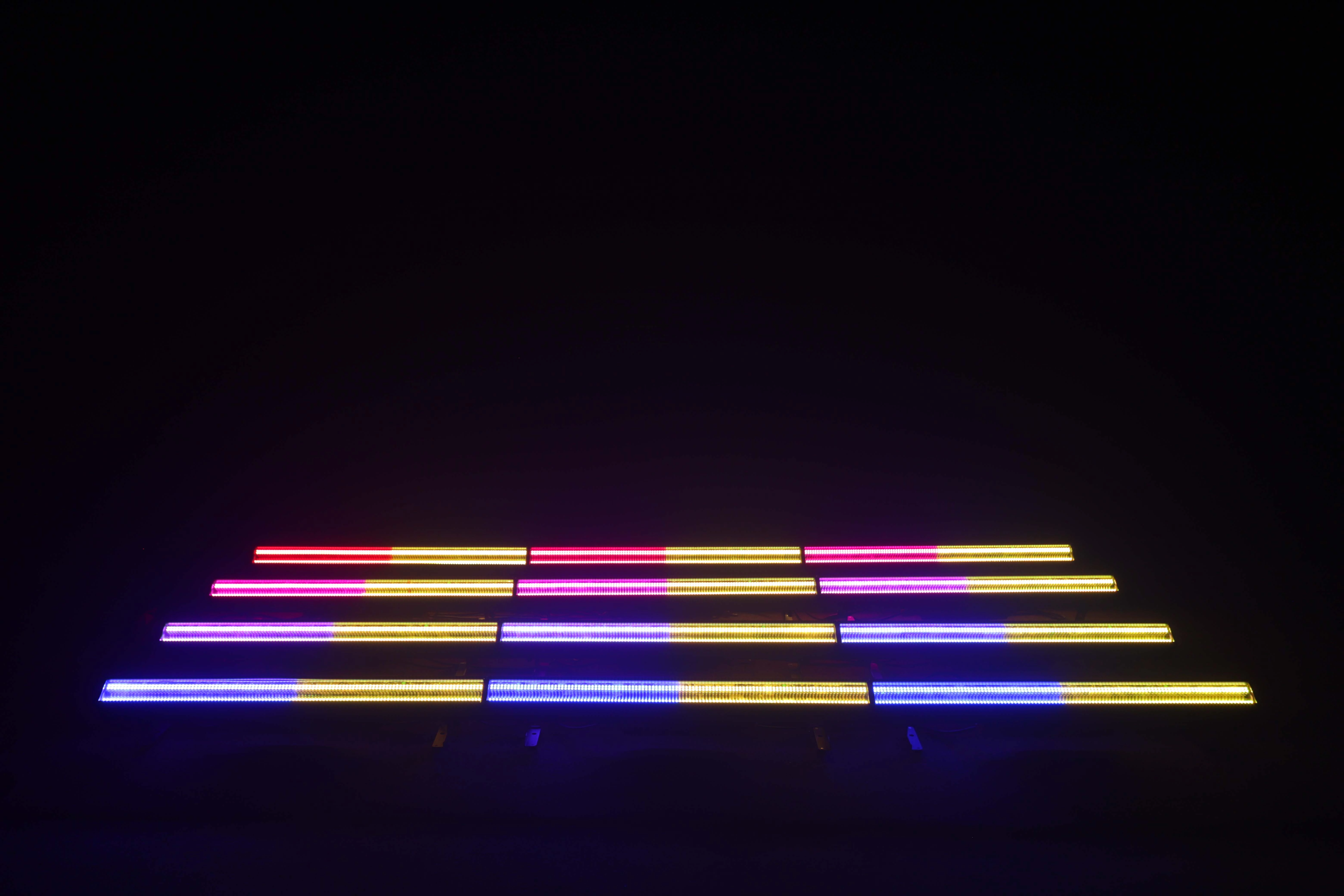

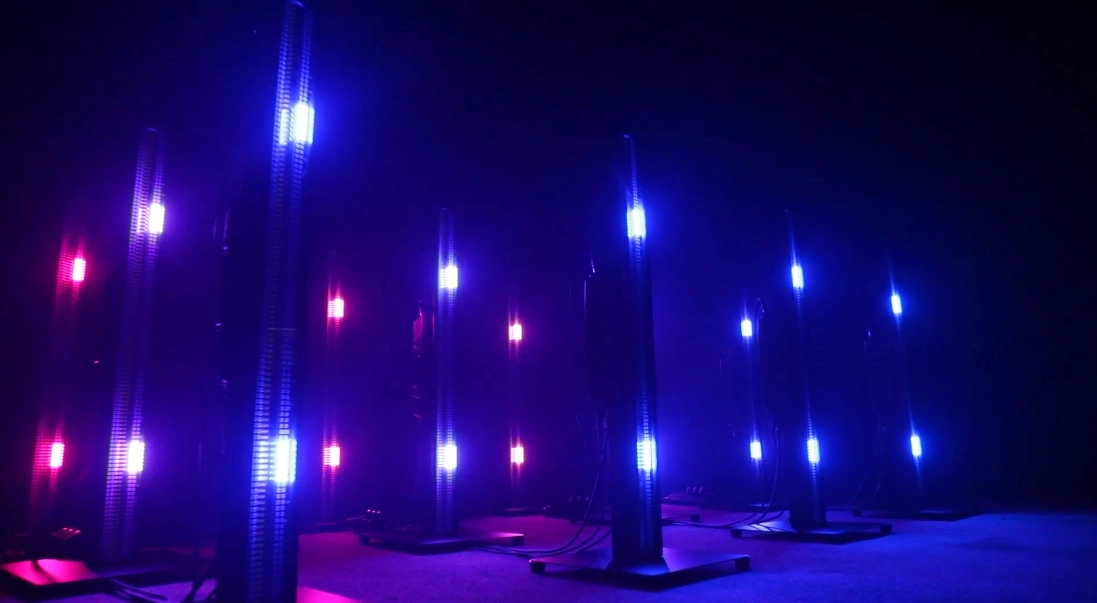

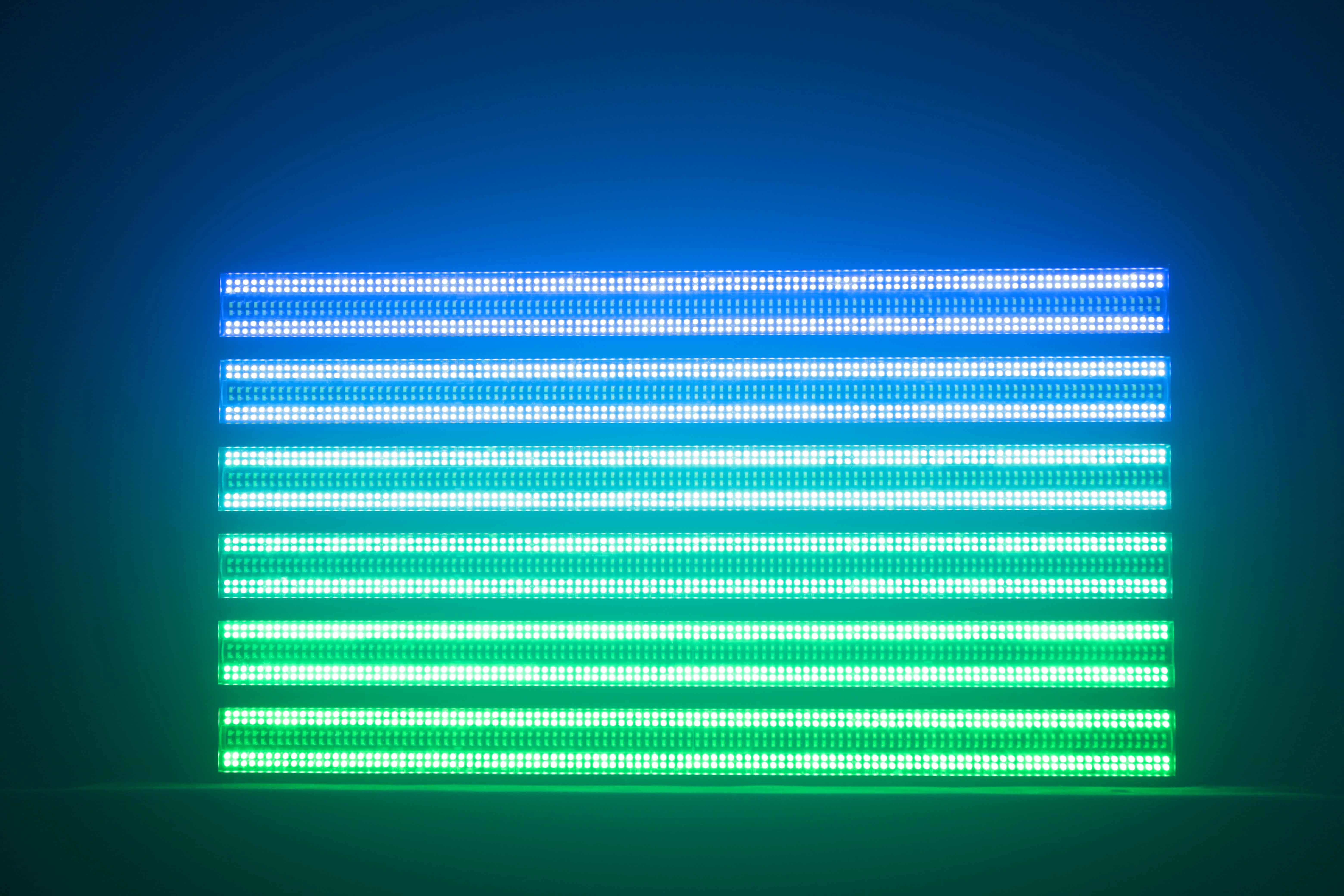

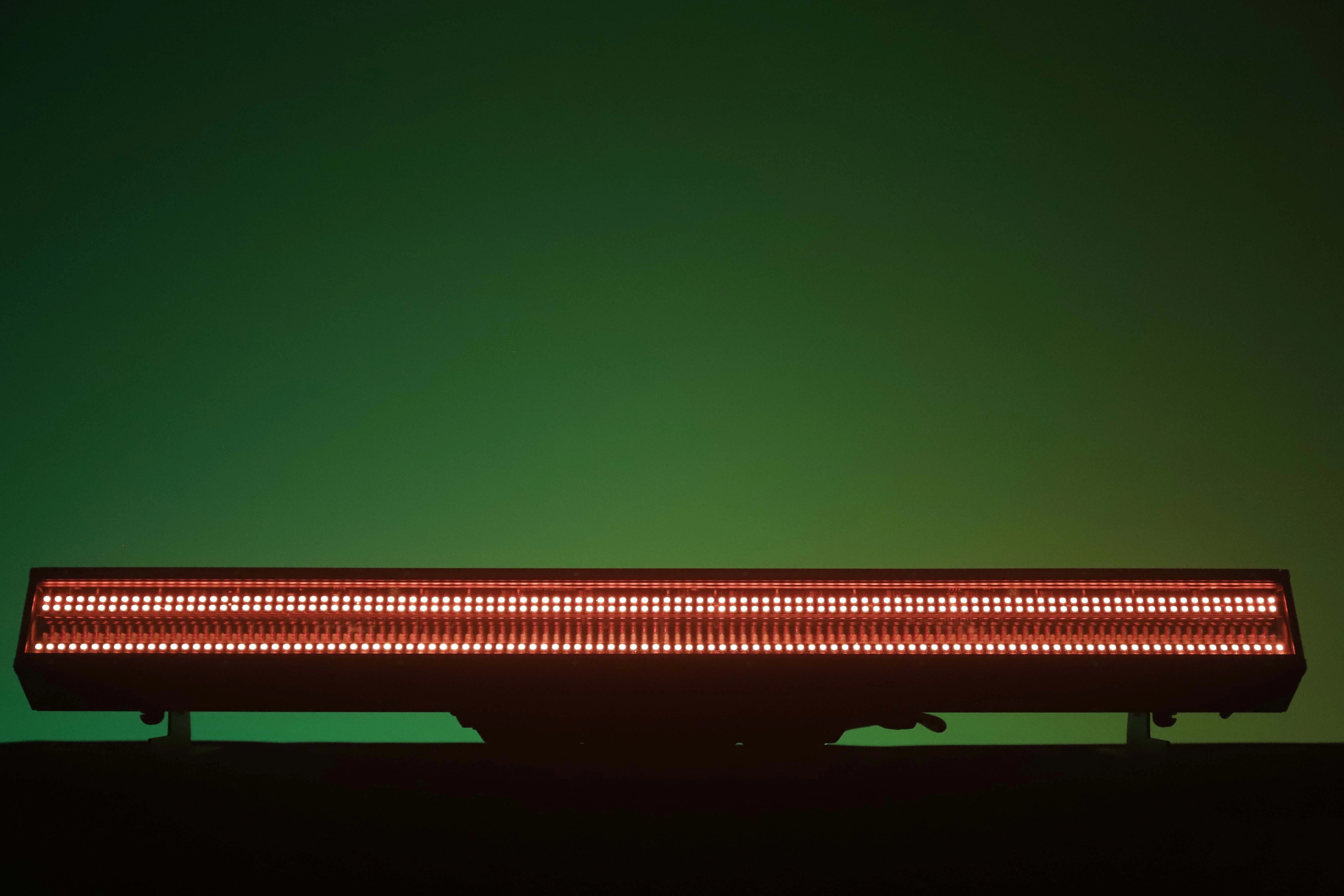

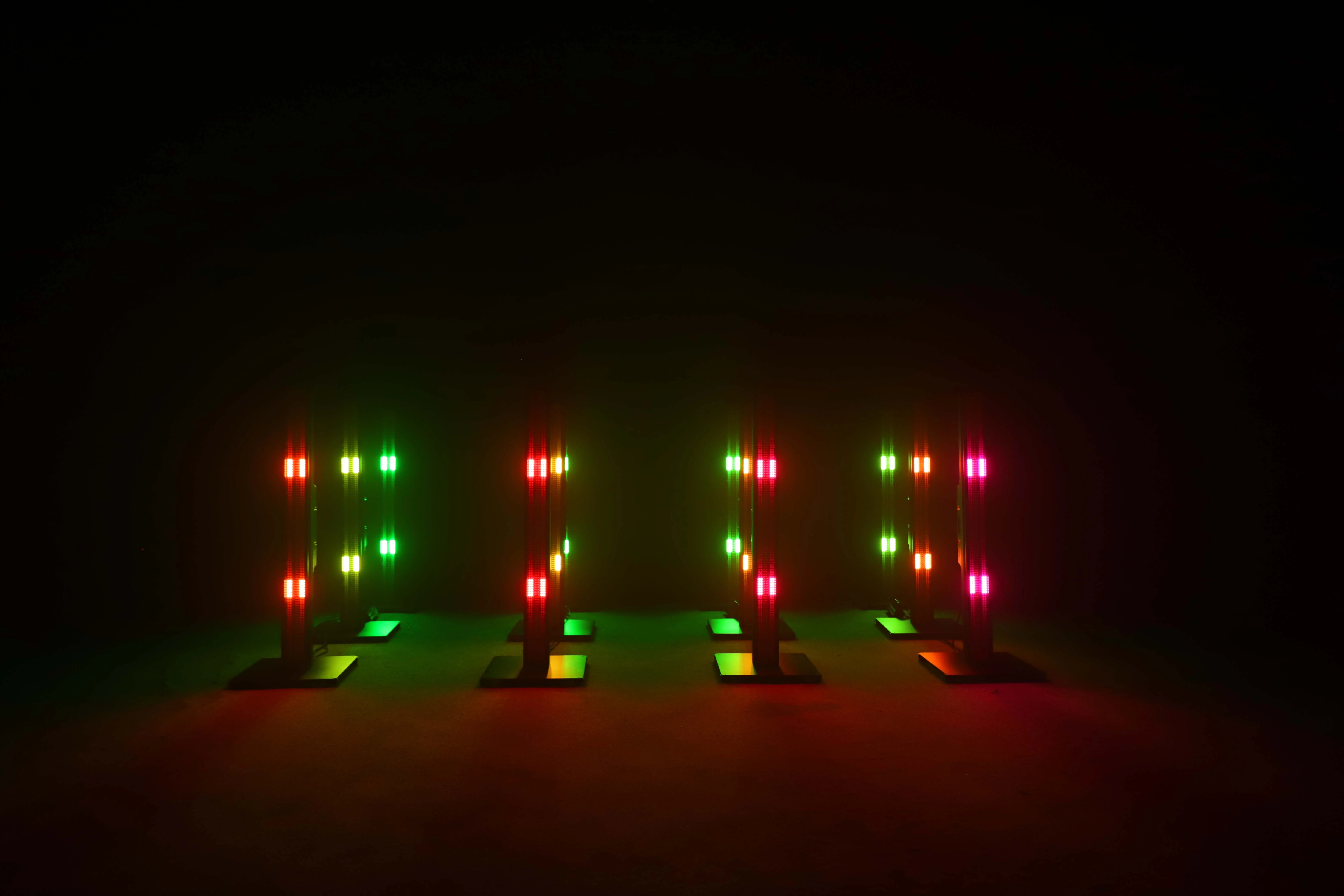

Effect Projections
