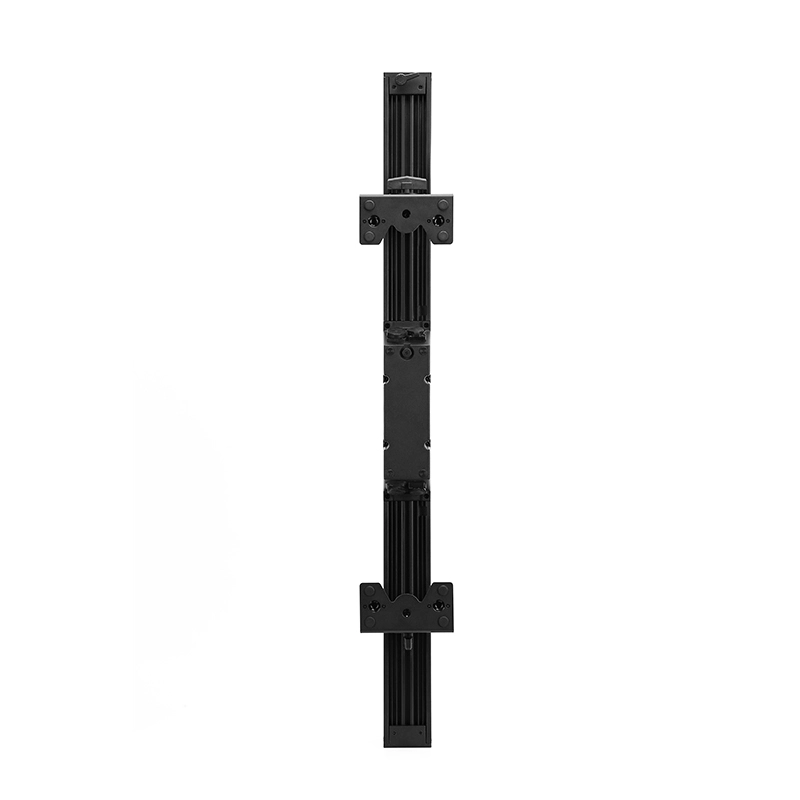

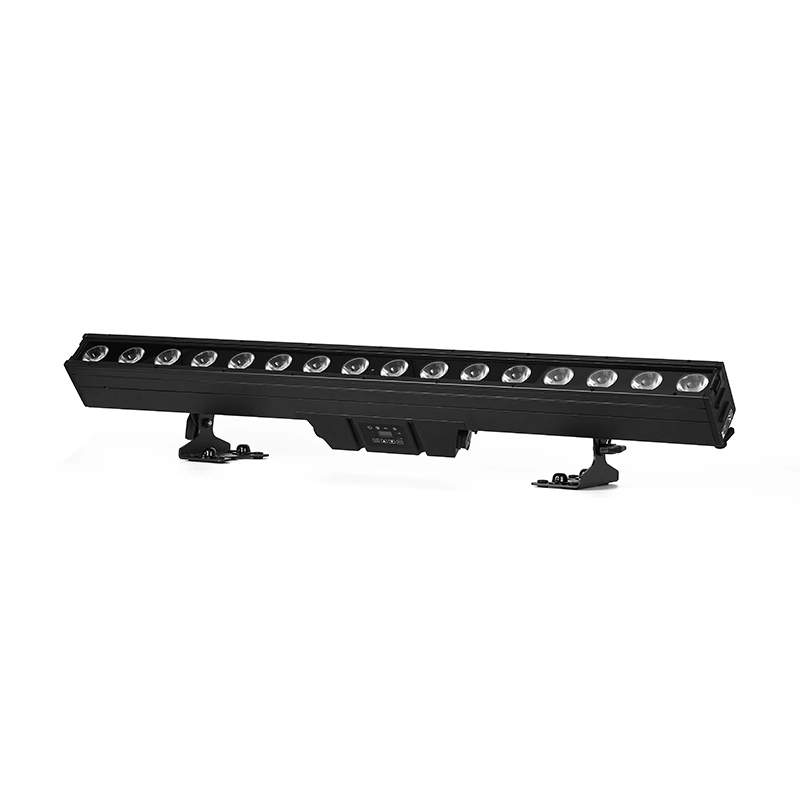

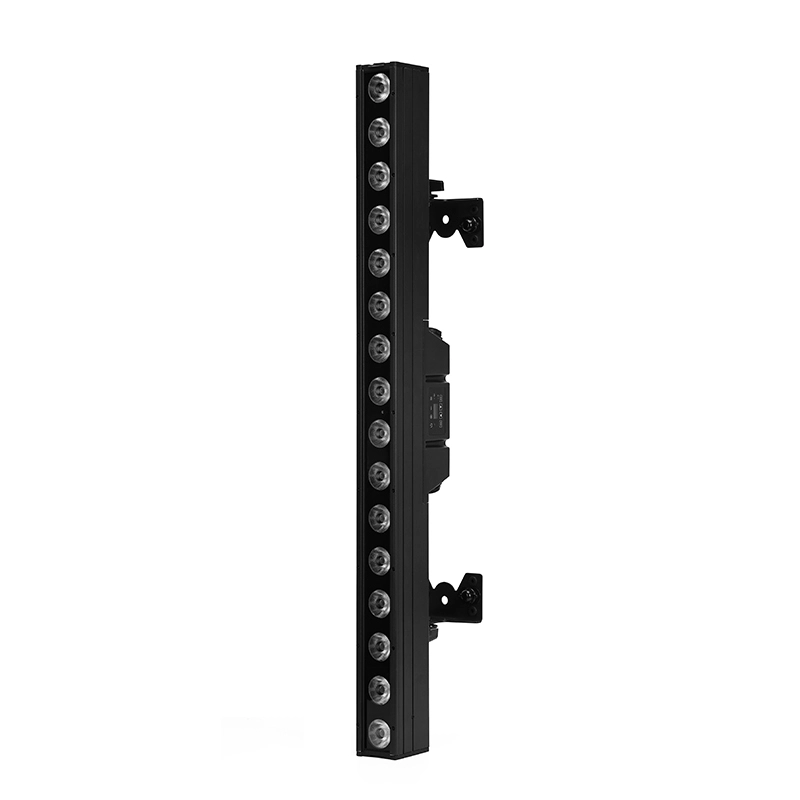

The GML Hybrid Power Bar 100 IP is a 1-meter outdoor battery LED fixture with IP65 weather resistance. Built with 16 × 20W RGBA 4-in-1 emitters, it offers individual pixel management across the entire bar length. The stock optical array utilizes 20° lenses, supporting interchangeable 10° and 40° field options.
Lithium Power Core and Runtime Selection
Internal power is supplied by an imported 13200mAh 18650 lithium battery array supporting over 500 recharge cycles, reaching full capacity in 5 to 6 hours. An integrated runtime limiter provides user-selectable operation windows of Max, 3, 4, 5, 6, 7, or 8 hours, automatically calibrating LED current draw to match event schedules.
Control Flexibility and Camera Performance

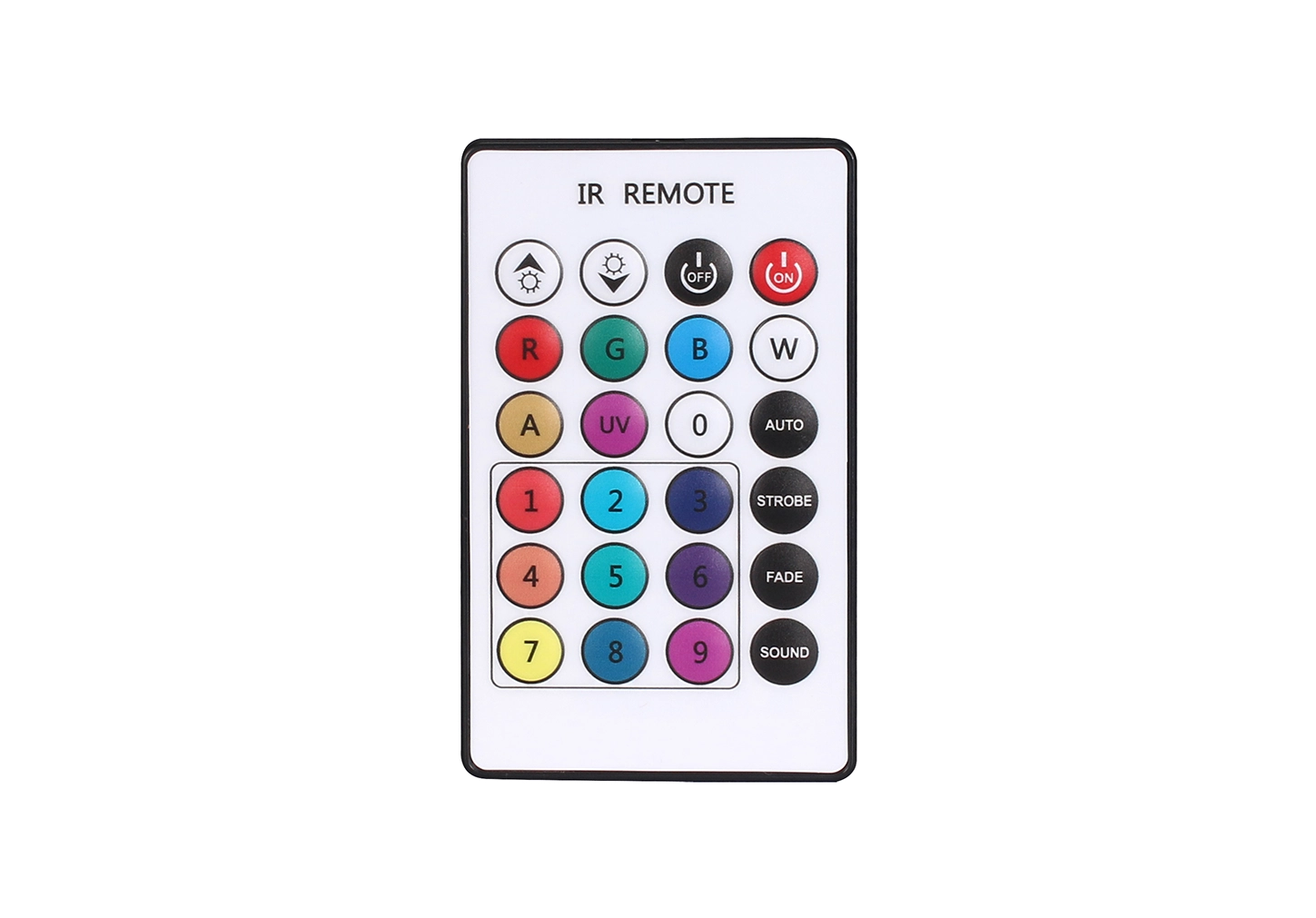

Connectivity options include 2.4GHz wireless WDMX supporting G3, G4, and G4s protocols, RDM compliance, infrared remote control, and dedicated mobile application access. Six user-selectable PWM frequencies (800 Hz to 25000 Hz) prevent flicker in high-speed broadcast environments. Enclosed in die-cast aluminum with Truecon and 3-pin XLR hardware. Fixture dimensions are 1078.3 × 300 × 300 mm with a weight of 9.8 kg.
Specifications
