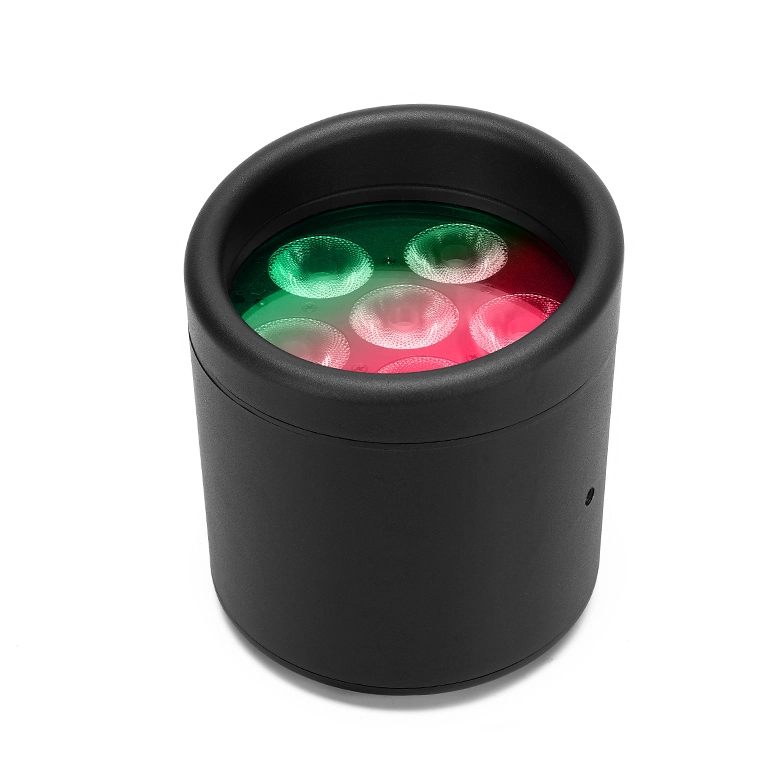

GML HELIOS IP Wireless Battery LED PAR Spotlight
GML HELIOS IP Wireless Battery LED PAR Spotlight
Optical System and Extended Spectrum Output

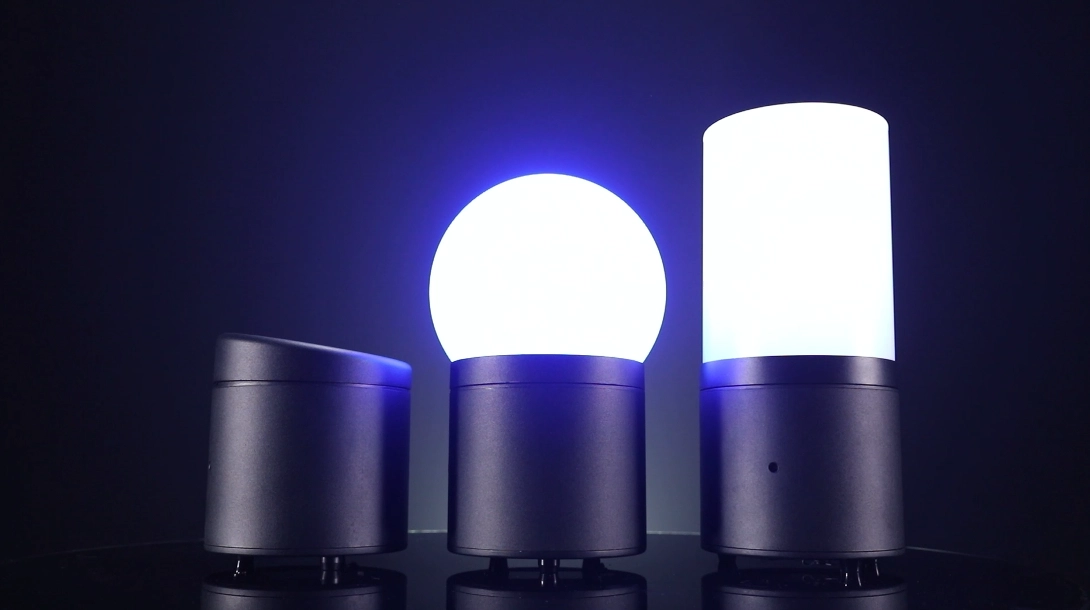

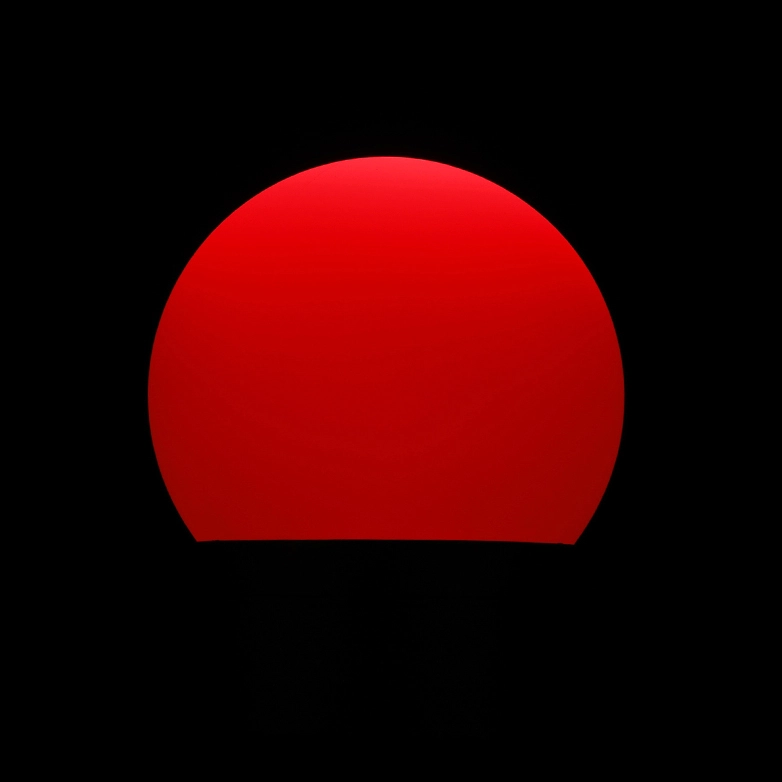

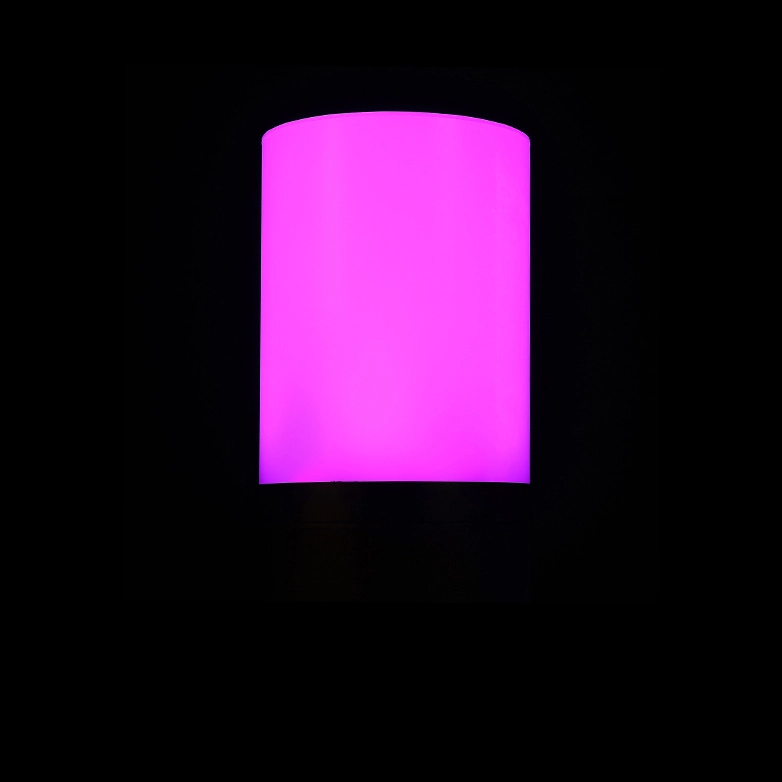

The GML HELIOS IP is an all-weather wireless battery LED spotlight designed for swift deployment across wedding receptions, gala banquets, and outdoor architectural accent lighting. The luminaire incorporates 6 × 18W RGBWA+UV 6-in-1 LEDs. Correlated color temperature is continuously adjustable from 2700K to 10000K in 300K increments. Dual 10° and 20° optical lenses are offered, with optional clip-on sphere and cylinder diffusers for ambient room glowing. Silent 64 kHz PWM frequency prevents image banding during camera recording.
Battery Power and Fast Charging
An internal 24,000 mAh 18650 lithium battery pack provides complete cable independence. Operational autonomy ranges from 3 hours at maximum RGBWAUV output, 7 hours in automatic color-change cycles, to 15 hours on a single static tint. Rapid charge takes only 3 hours, achieving full capacity in 8 hours. Universal AC 100–250V input enables simultaneous operation and charging.
IP65 Enclosure and Control Versatility

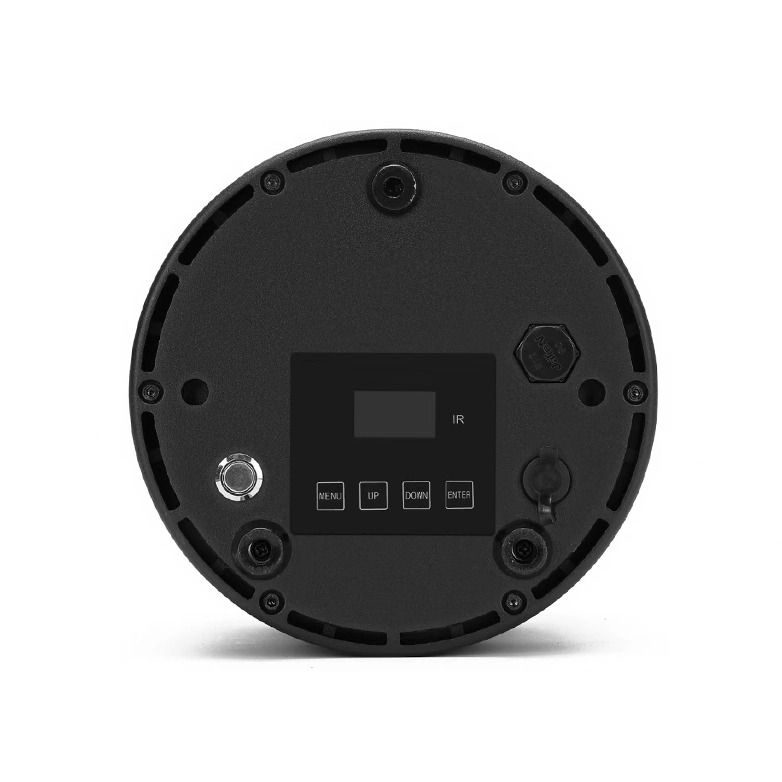

The die-cast aluminum chassis carries an IP65 ingress rating for all-weather outdoor operation. Control connectivity spans standard wired DMX512, 2.4 GHz Wireless W-DMX, handheld IR remote control, and a dedicated mobile smartphone application. The onboard Touch OLED display provides direct access to CCT parameters and operational run-time timers.
Specifications
DIMENSIONS(MM)
Technical Dossier
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.

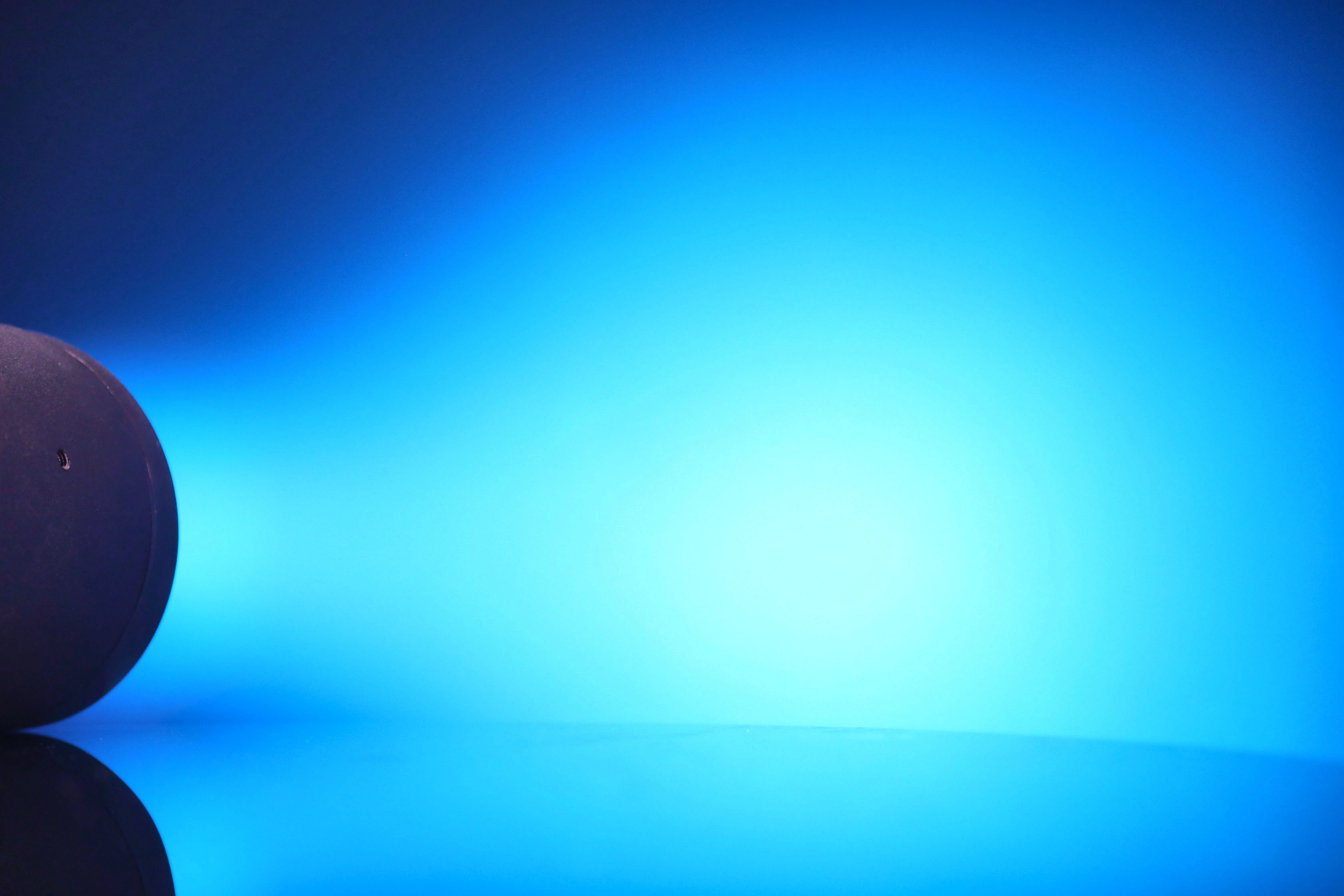

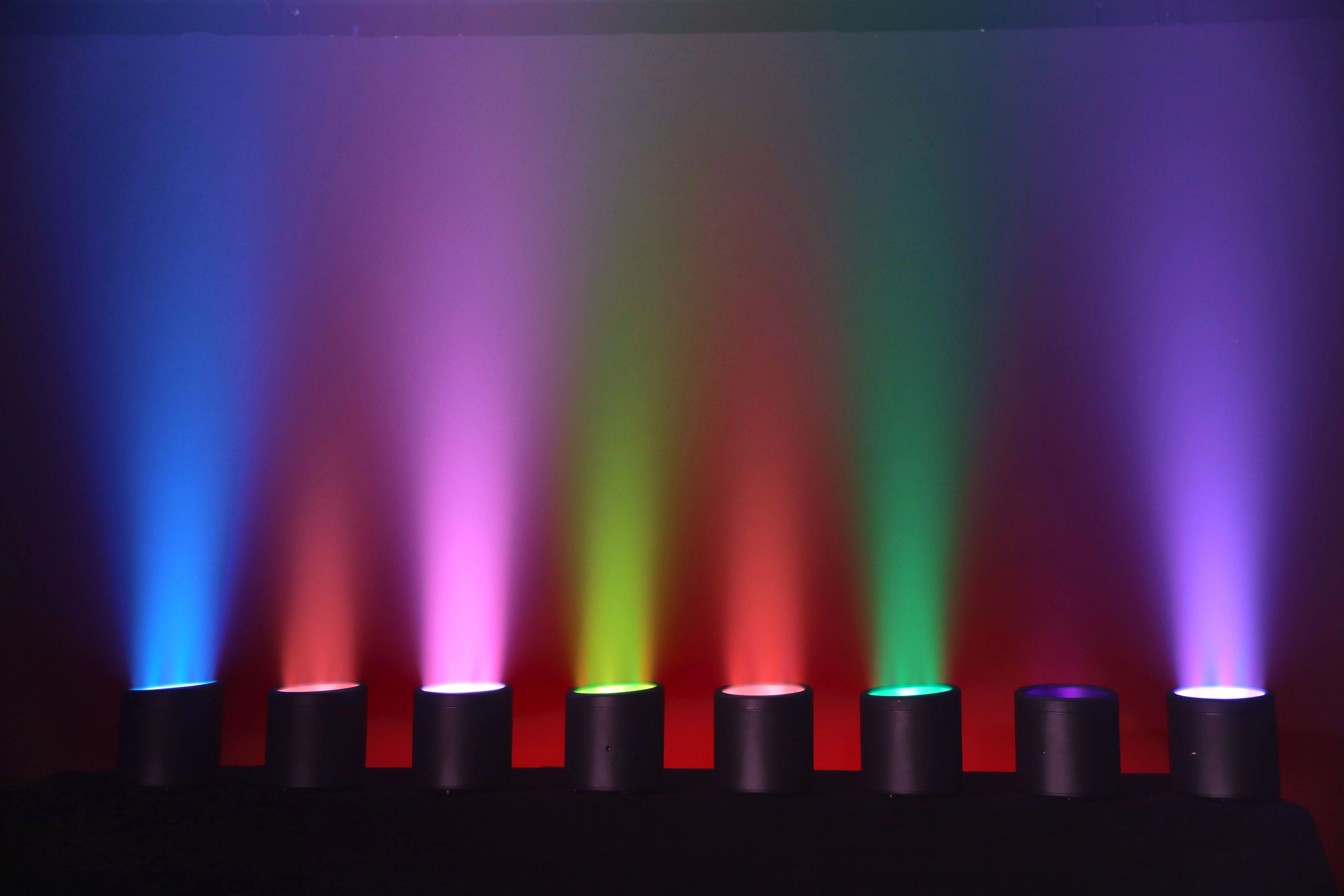

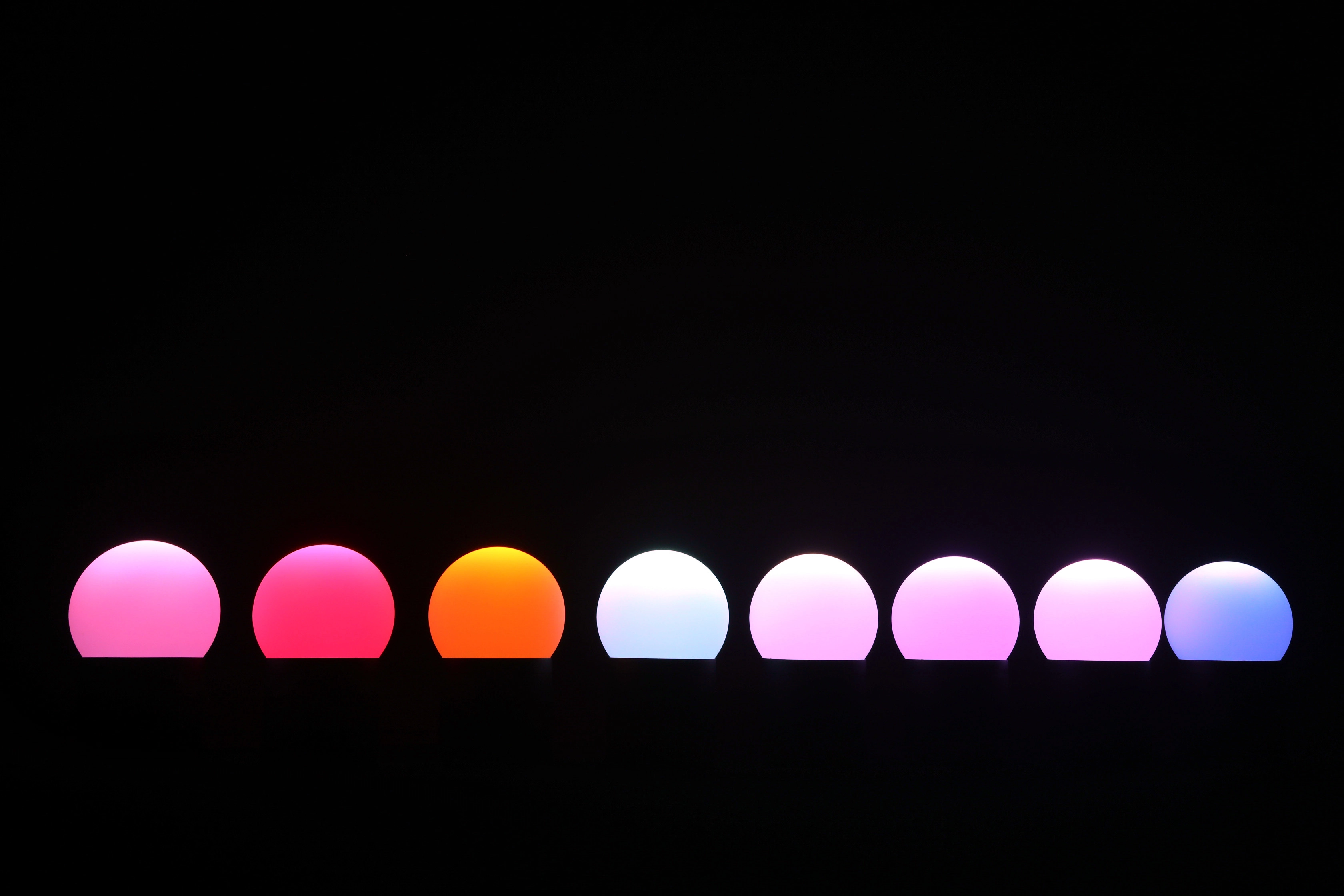

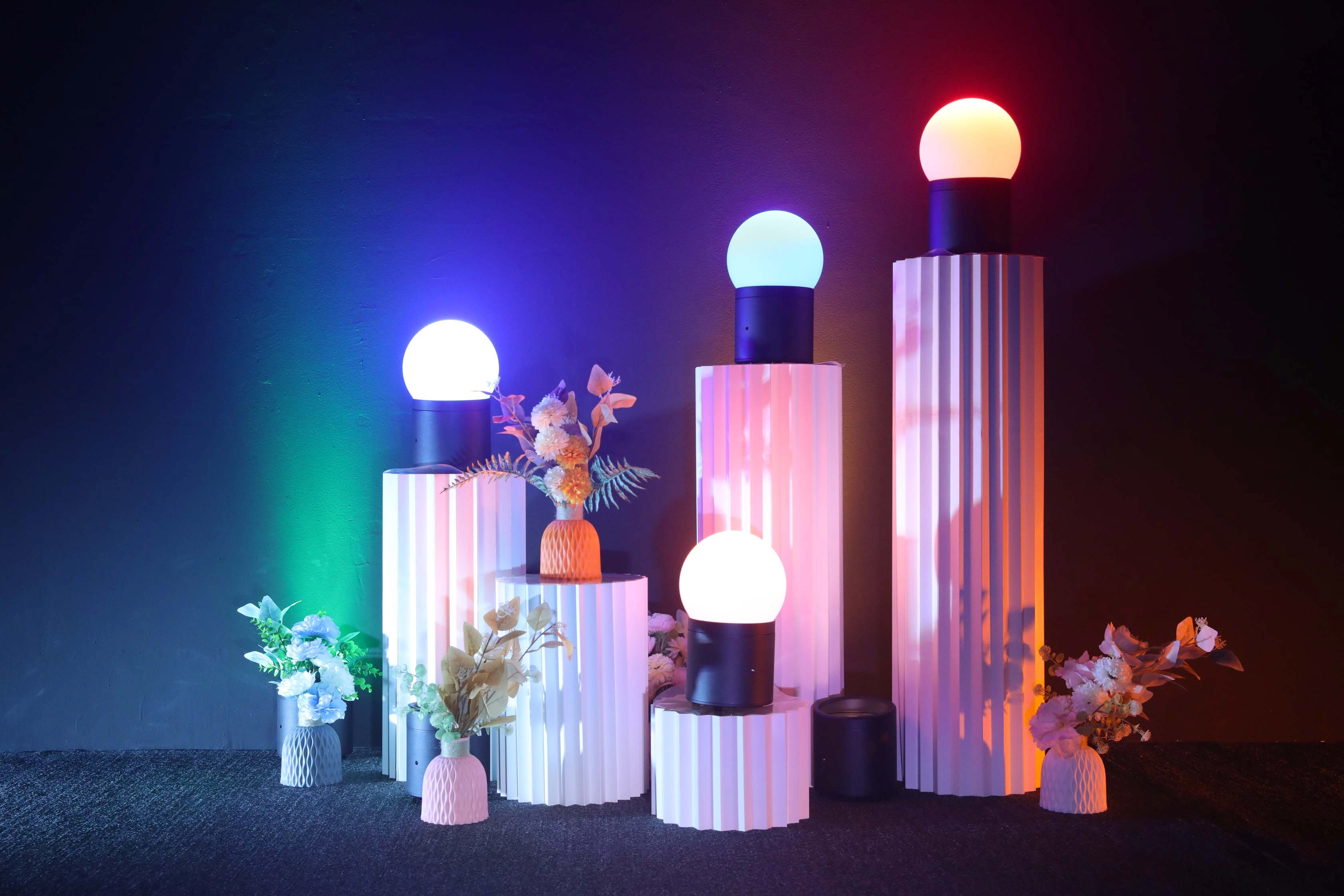

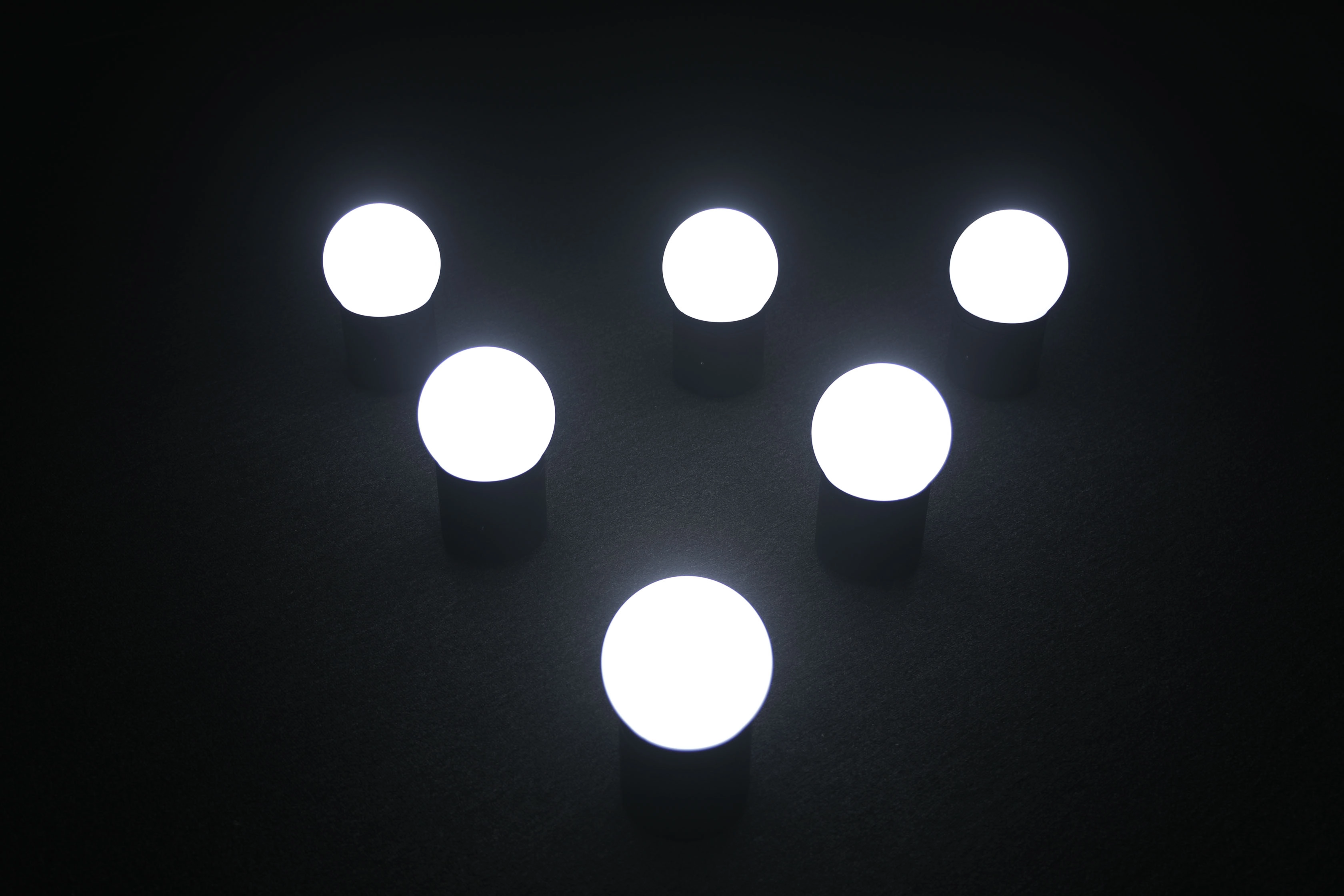

Effect Projections
