GM-L · MULTISOURCE LED
GML GYRO IP
Zoom 4–55°Main light: 200W RGBL 4-in-1 LIP65
IP65
GML GYRO IP
Product Overview
Concept & Optical Performance

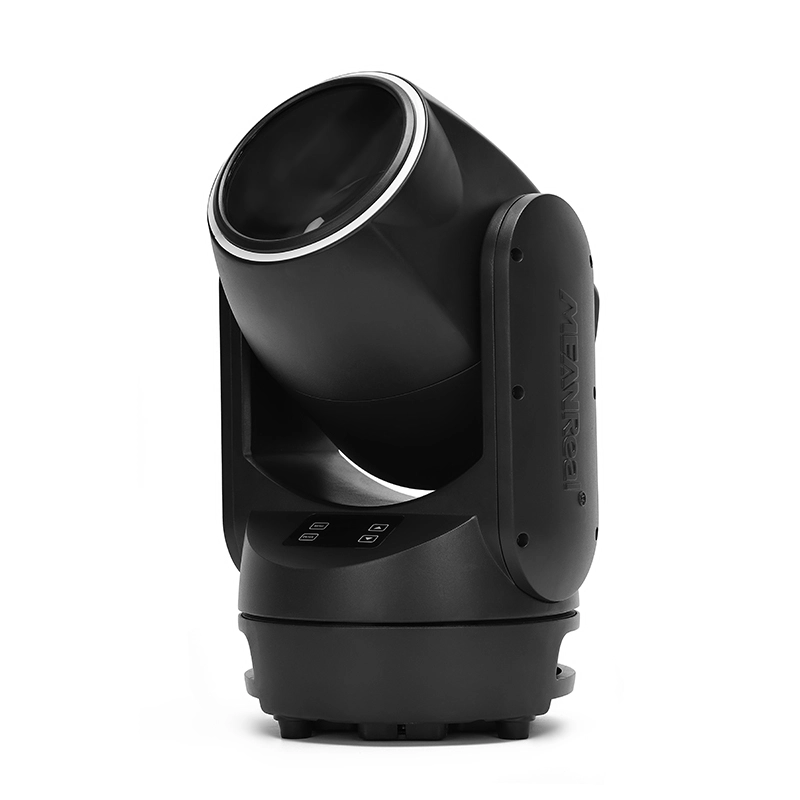

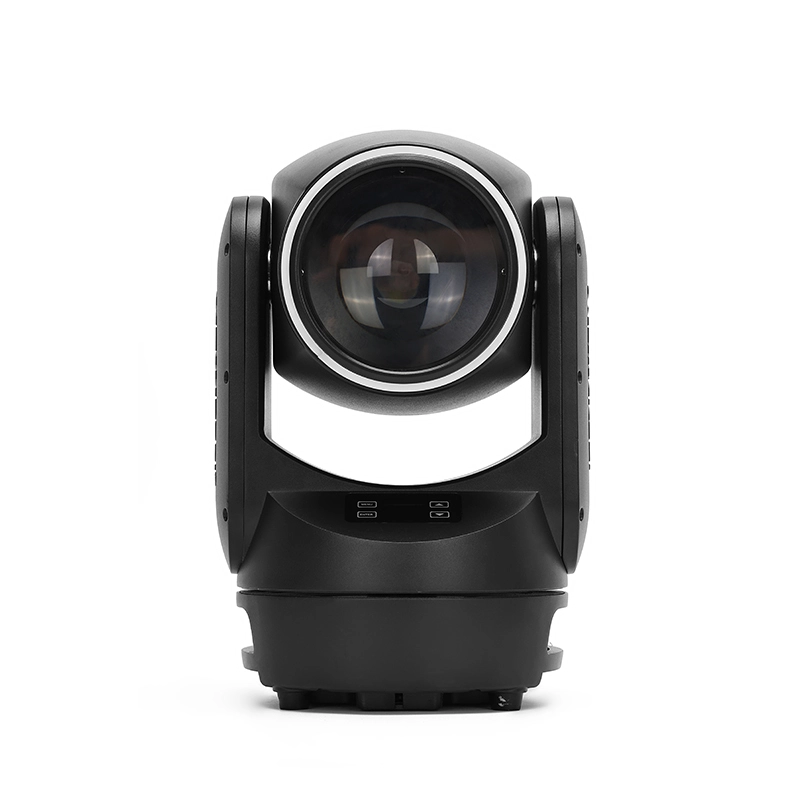

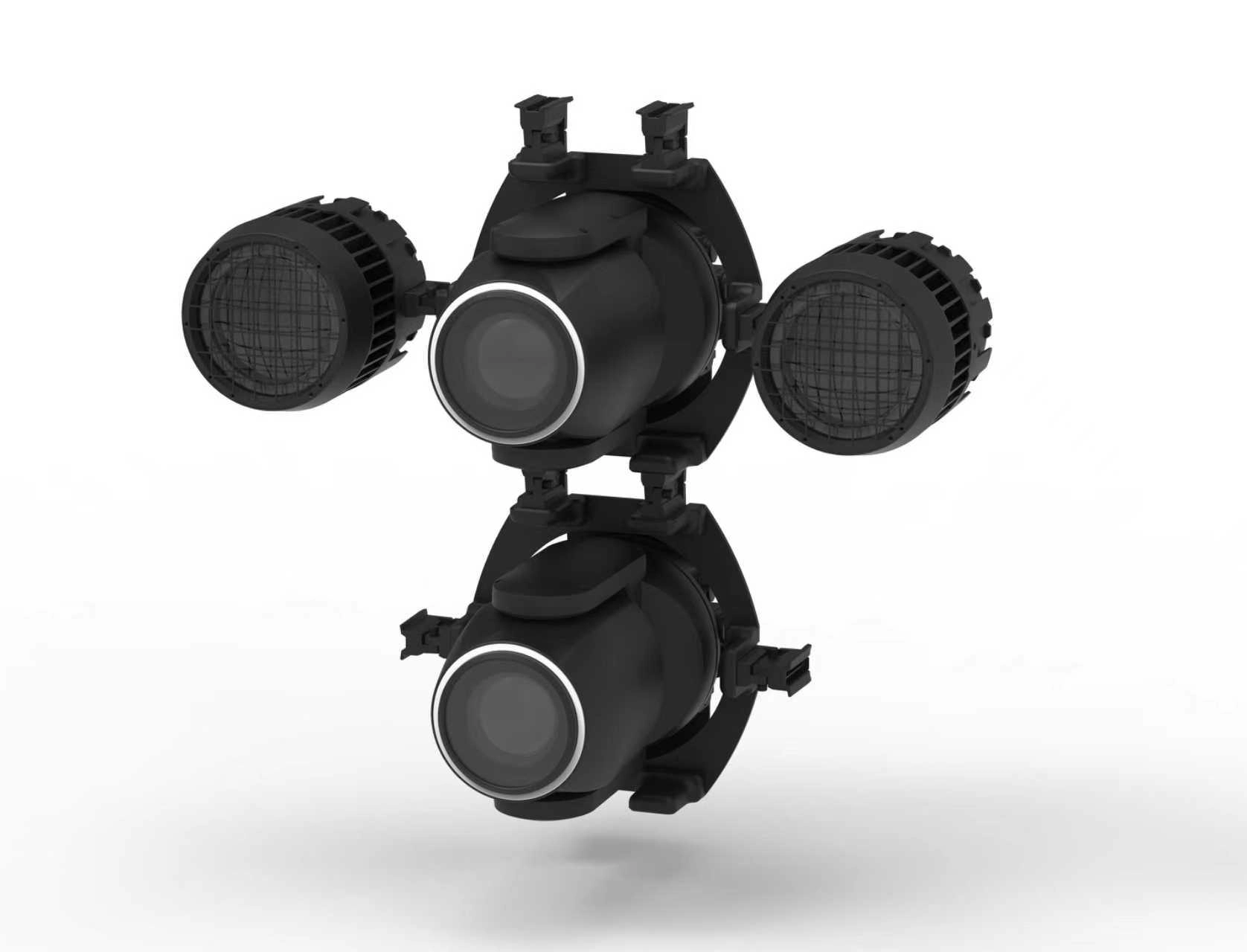

GML GYRO IP is an ultra-compact IP66 all-weather Beam Wash moving head engineered in a magnesium-aluminum alloy enclosure weighing only 5.5 kg and featuring continuous infinite Pan and Tilt rotation. Its optical train pairs a primary 200W RGBL 4-in-1 LED emitter coupled through a PMMA lens and glass light guide with an ambient outer halo ring of 48 × 0.5W RGB LEDs.
Key Functional Features
- Zoom & Focus: linear motorized zoom spanning 4° to 55° with integrated electronic focus.
- Kaleidoscope Engine: bi-directional rotating 5-facet prism creating swirling kaleidoscopic beam patterns, complemented by an independent frost filter.
- Color Precision: seamless RGBL color blending, 2500–8000 K linear CTO correction (CRI up to 82), and dynamic color macros.
- Infinite Movement: continuous 360° infinite Pan/Tilt rotation with 16-bit resolution and automatic position correction.

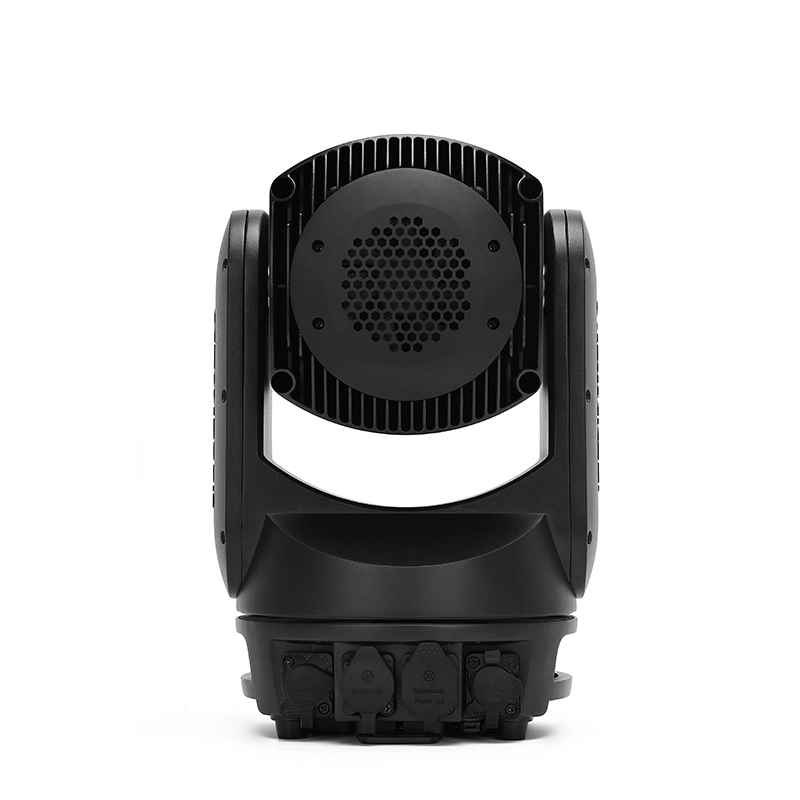

- IP66 Mechanics & IO: IP66 weatherproof enclosure, Seetronic PowerCON True1 and Seetronic 3-pin XLR in/out, DMX512/RDM across 25/34 channels.
Applications
With its compact 341 × 214 × 190 mm footprint, 5.5 kg weight, and robust weatherproofing, GML GYRO IP is built for outdoor festivals, architectural installations, high-density nightclub rigs, and dynamic touring trusses.
Accessories & Options
Select additional accessories to pack with your fixture
Optional Fly case 6in1
Protective flight case for 6 fixtures
+$250 (w/o VAT)
Optional Folding Clamp (1 pc)
Professional folding quick-release aluminum clamp
+$17 (w/o VAT)
03 // TECHNICAL SPECIFICATIONS
Specifications
Zoom range
4–55°
Strobe
Variable speed strobe
Pan / Tilt movement
Infinite continuous movement
Pan/Tilt resolution
16-bit scanning with auto correction
Light source
Main light: 200W RGBL 4-in-1 LED / Outer circle: 48 x 0.5W RGB LED
LED power
200W RGBL + 24W RGB
Light source lifetime
50,000 hours
Color temperature
8000 K (linear CTO 2500–8000 K)
Color rendering index (CRI)
up to 82
DMX channels
25/34 CH
Control protocols
DMX512, RDM (optional Art-Net, CRMX)
Control connectors
Seetronic XLR 3-pin in/out (optional 5-pin)
Input voltage
AC 100–240V, 50/60Hz
Power consumption
265 W
Power connectors
Seetronic PowerCON True1 in/out
Fixture dimensions
341 × 214 × 190 mm
Net weight
5.5 kg
Fixture type
All-weather LED Beam Wash Moving Head IP66
Optical system
PMMA optical lens with glass light guide rod
Focus
Linear focus system
Prism
Bi-directional rotating 5-facet prism (kaleidoscope effect)
Frost filter
Independent frost filter
Dimmer
0–100% smooth dimming (4 selectable curves)
IP rating
IP66
Housing material
Magnesium aluminum alloy
