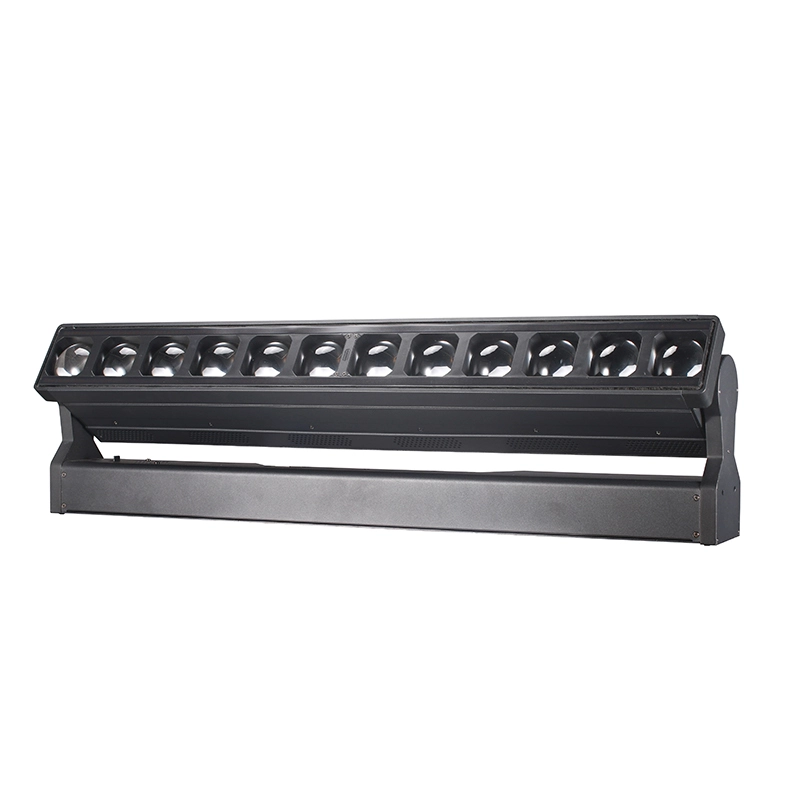

GML DIAMOND LINE 1240 Motorized Linear LED Fixture

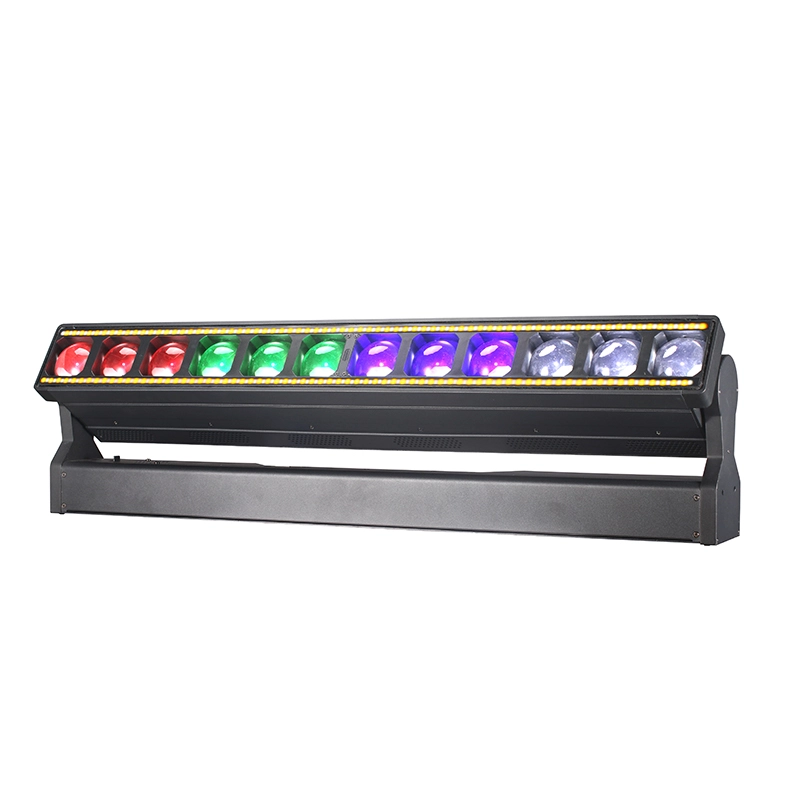

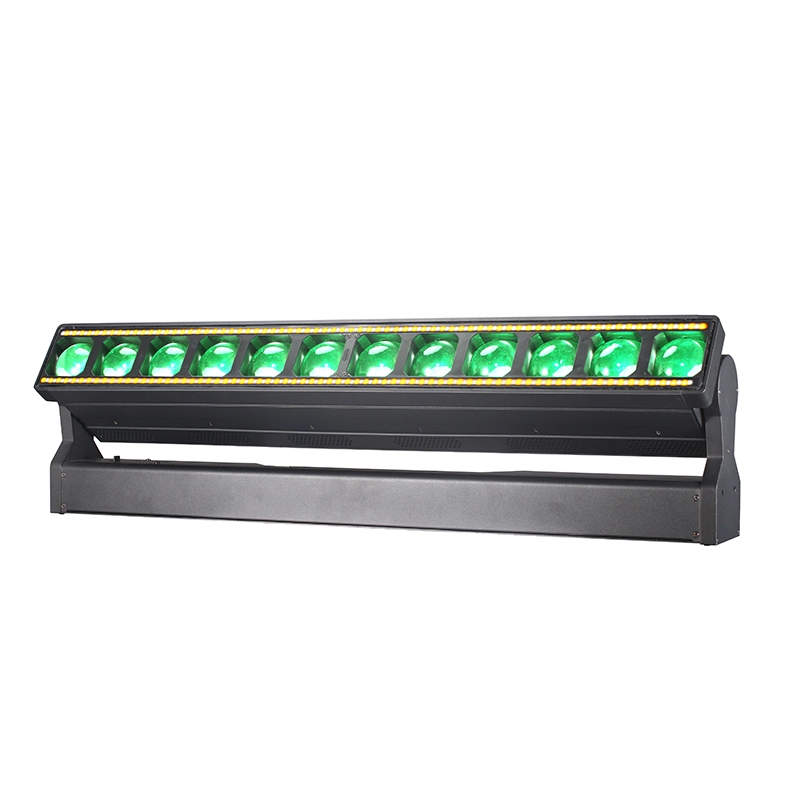

GML DIAMOND LINE 1240 integrates 12 × 40W RGBW 4-in-1 LEDs with individual pixel mapping alongside a secondary backlight strip of 144 × 0.3W LEDs (72 golden warm white and 72 cool white). Emitter operational lifespan reaches 50,000 hours with adjustable linear color temperature spanning 2500K to 9000K.
Optical System and Motion Mechanics
The motorized optical zoom spans 3° to 34°, facilitating sharp aerial beams and broad wash fields. Motorized Tilt provides 205° total motion with 16-bit fine movement resolution. The architecture supports 12+24 pixel-mappable zones.
Control Integration and Rigging

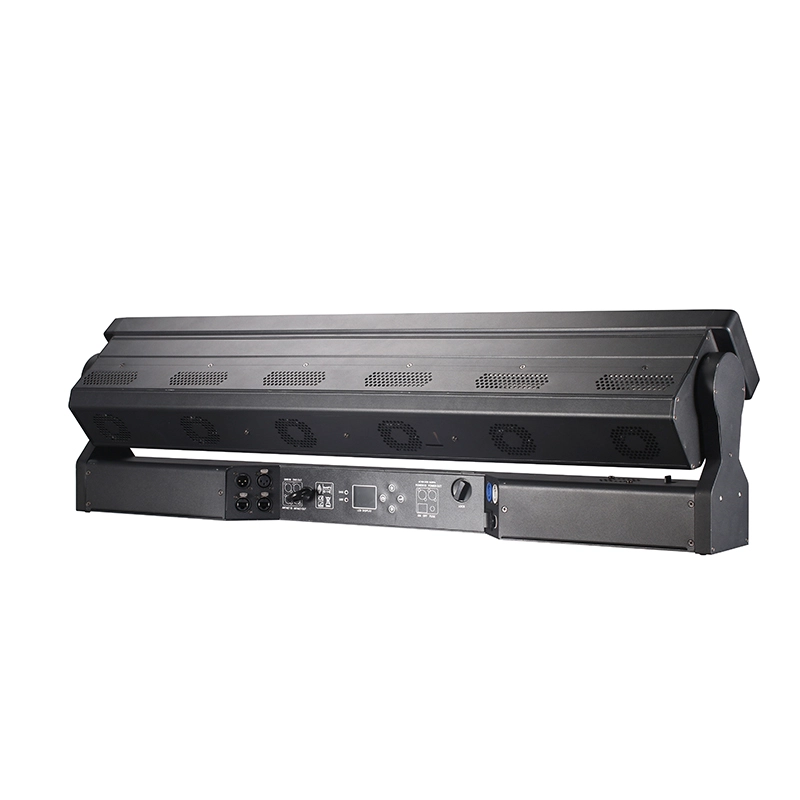

Control protocols include DMX512, RDM, and Art-Net across 23, 28, 35, 57, 71, and 117 channels (compatible with EL Proteus Rayzor Blade L). Power is connected via PowerCON (IN/OUT), and data is routed via 3-pin or 5-pin DMX. The chassis is rated IP20 for indoor stage venues.
Specifications

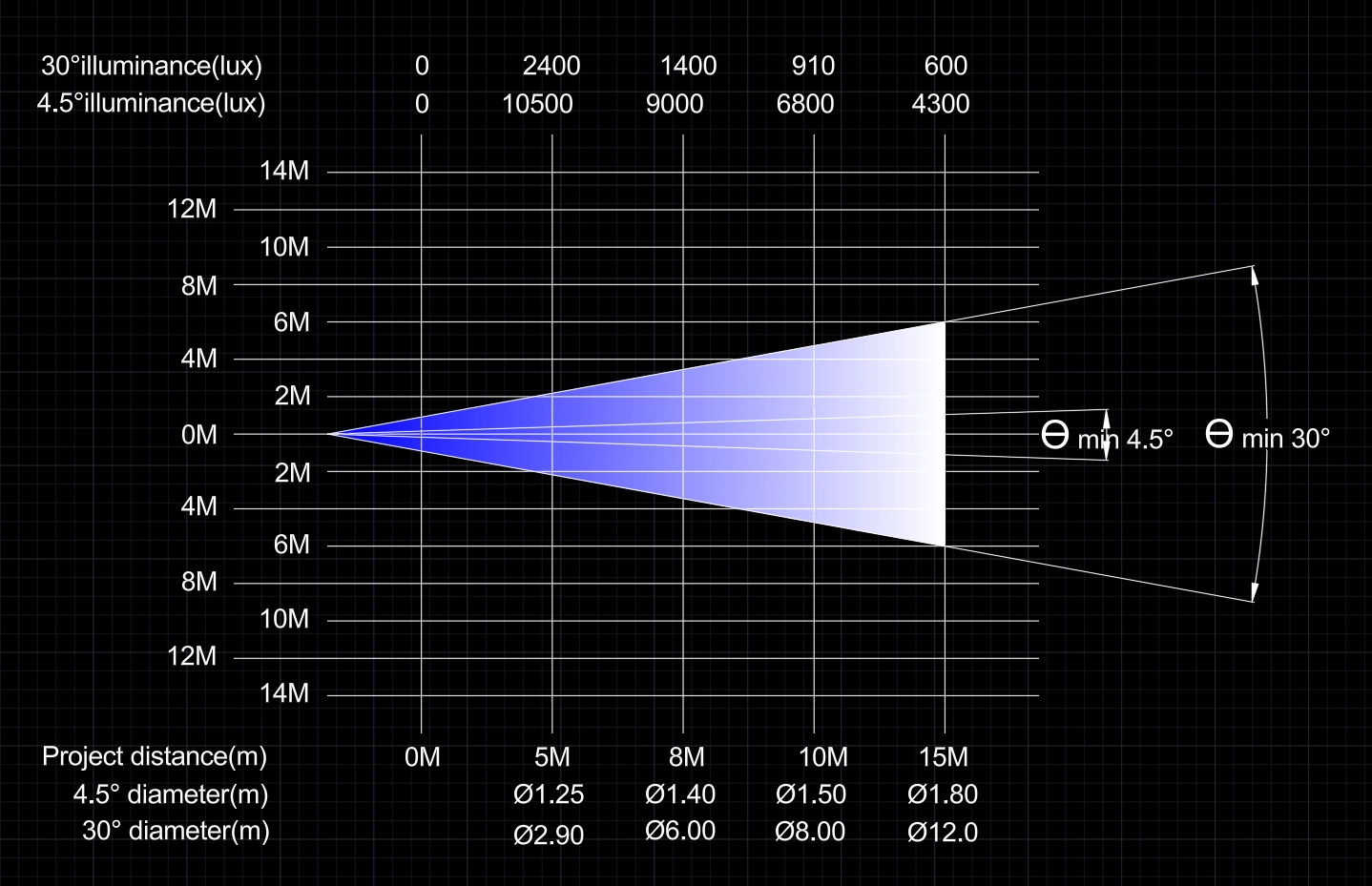

PHOTOMETRICS
DIMENSIONS(MM)
Technical Dossier
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.

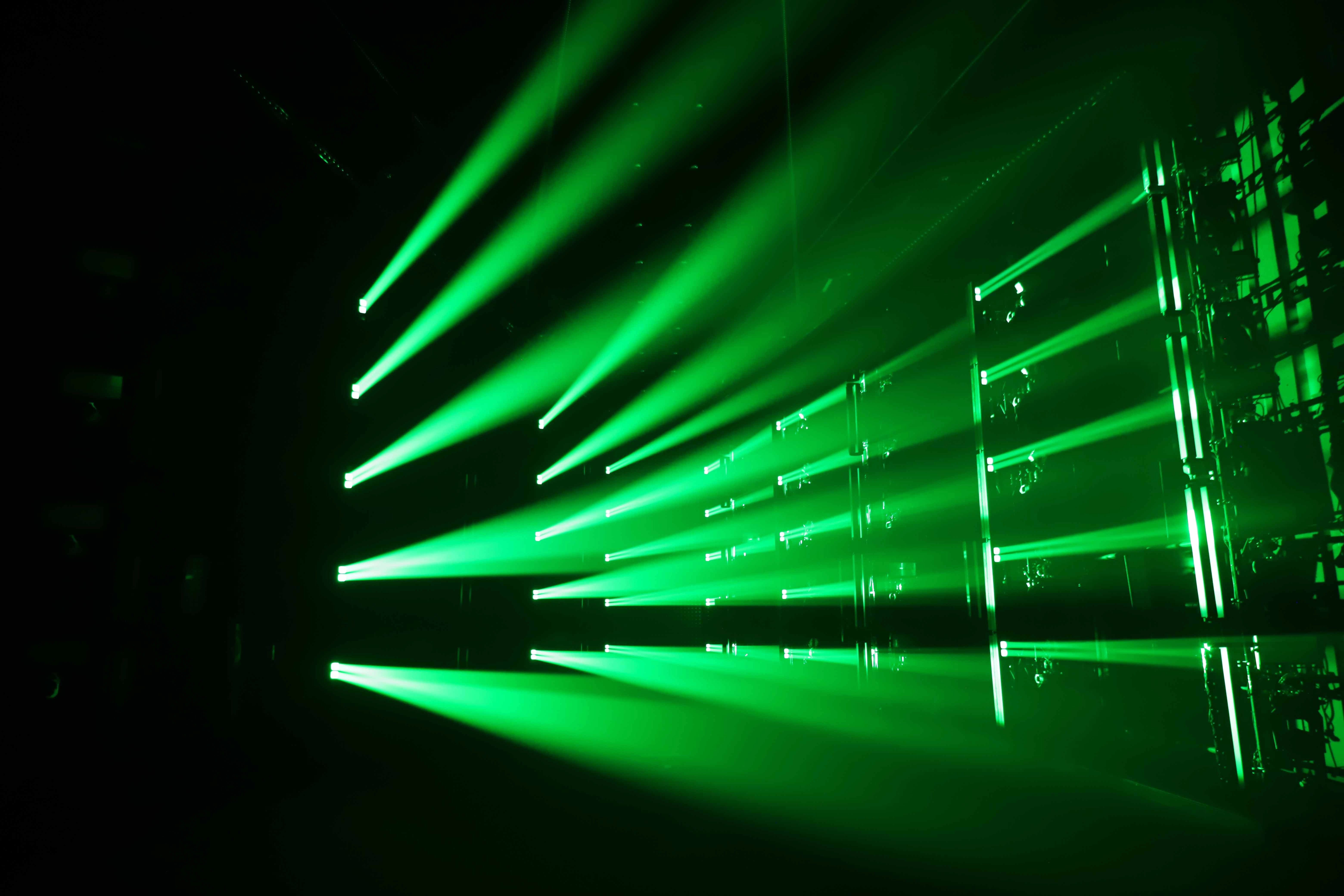

Effect Projections
