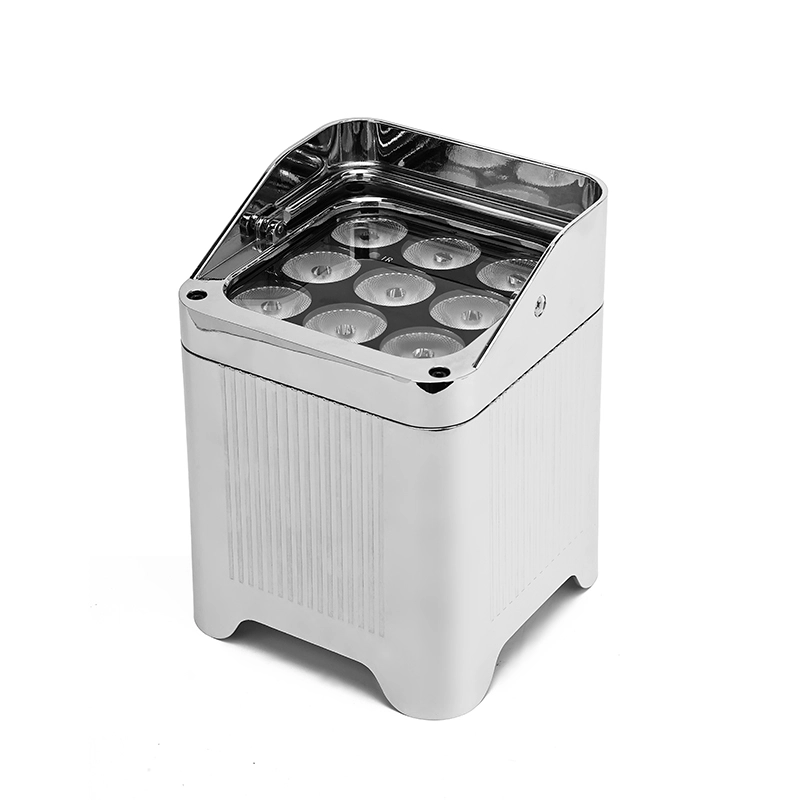

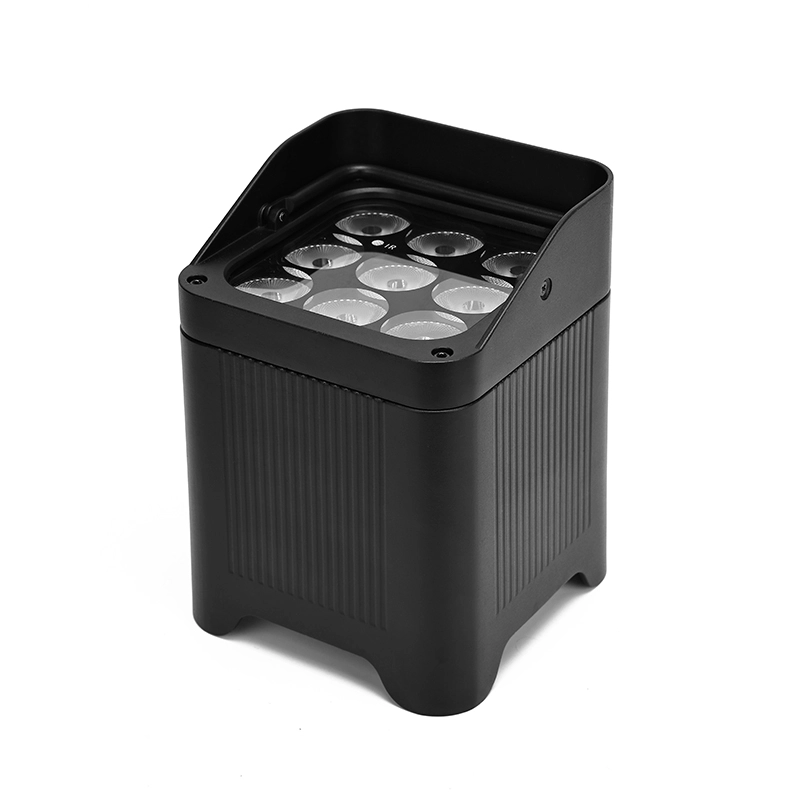

GML CORE B9S IP Wireless Charging Battery LED PAR Light

RGBWALC Six-Color Light Engine

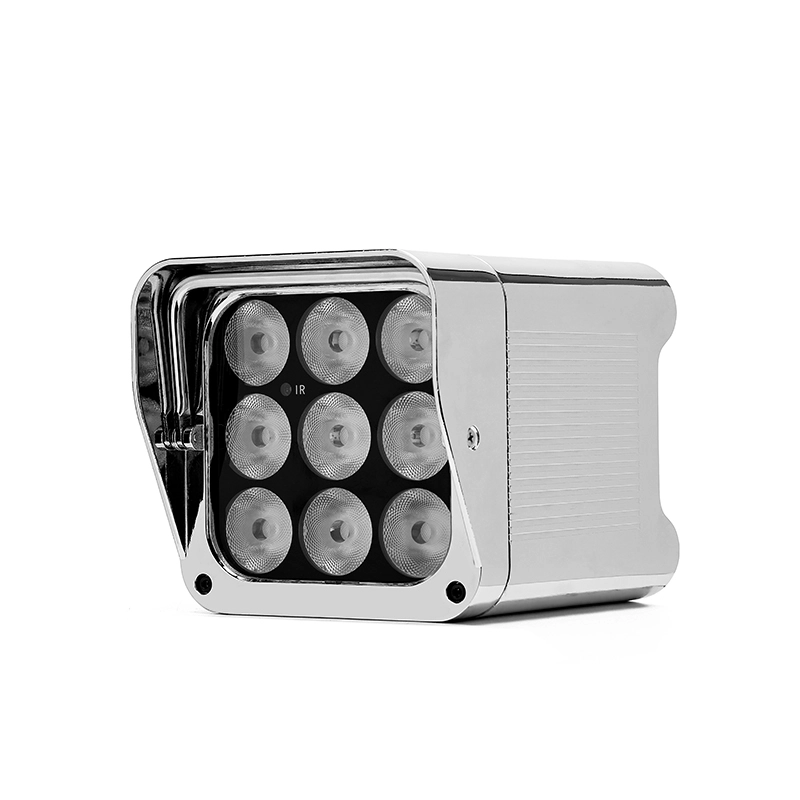

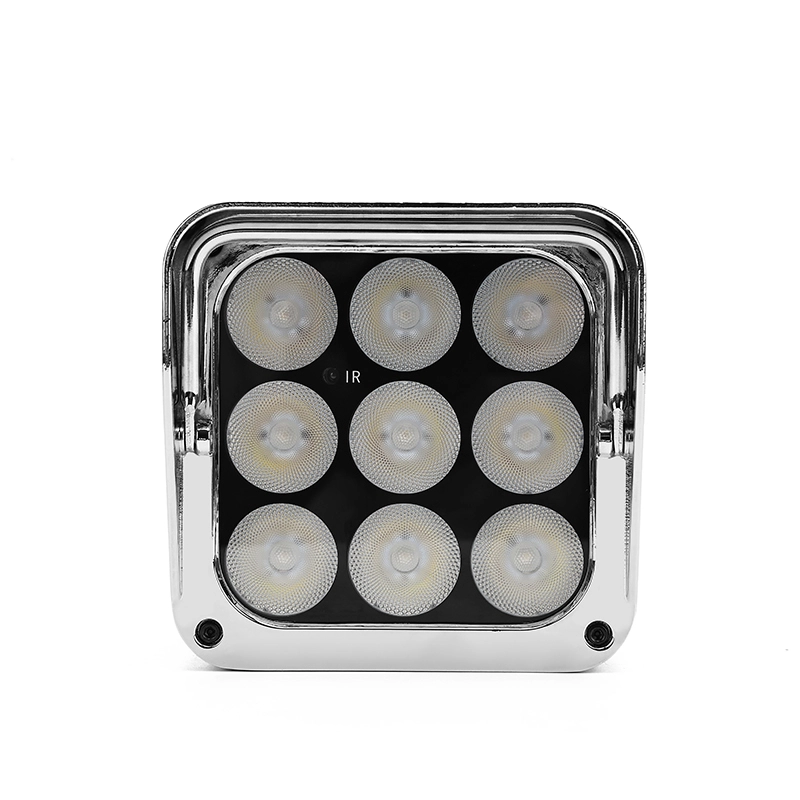

The GML CORE B9S IP is built upon a 9×20W RGBWALC (Red, Green, Blue, White, Amber, Lime/Cyan 6-in-1) LED platform. Incorporating dedicated amber and lime/cyan wavelengths expands color gamut saturation and delivers smooth daylight-to-tungsten white balance. Color temperature adjusts linearly from 2000K to 10000K in precise 200K steps. Standard beam divergence is 25°, with optional optical variants available in 10°, 15°, or 45°. Emitter lifespan is rated at 50,000 operational hours.

IP65 Aluminum Housing and Dual Charging System

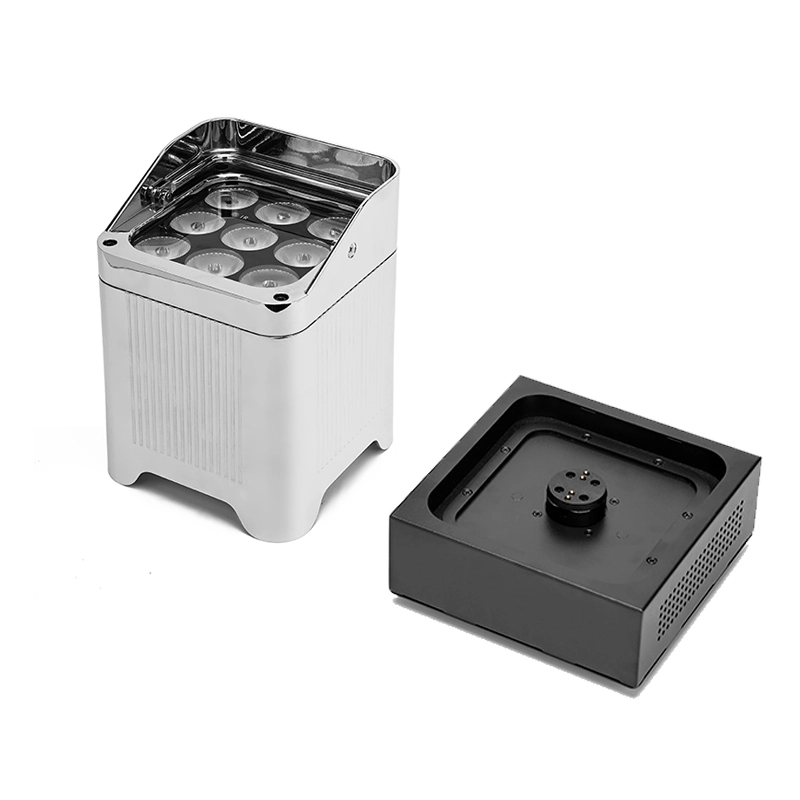

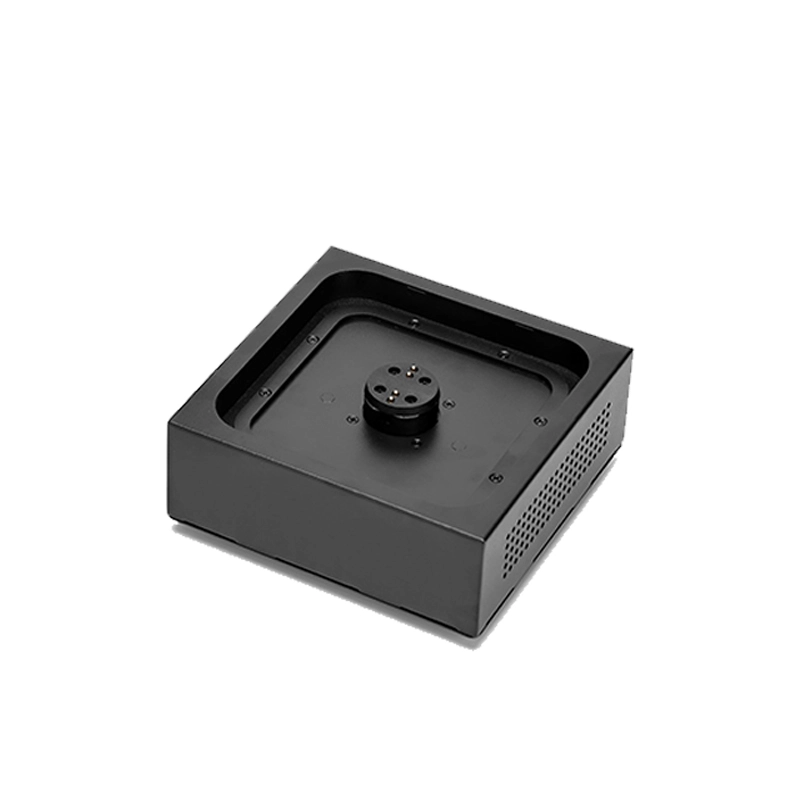

A full-aluminum chassis ensures passive convection thermal transfer and structural ruggedness rated IP65 against dust and weather elements. The integrated 12,000 mAh lithium battery assembly (18650 cells, 500+ cycle life) features dual-mode recharging: drop-in wireless base charging via a Teapot-style docking system or direct DC socket connection. Recharge is completed within 5 hours. Operational duration delivers 3 hours with all RGBALC channels fully driven, extending up to 12 hours in single-color static operation.

BMS Battery Architecture and Wireless Control

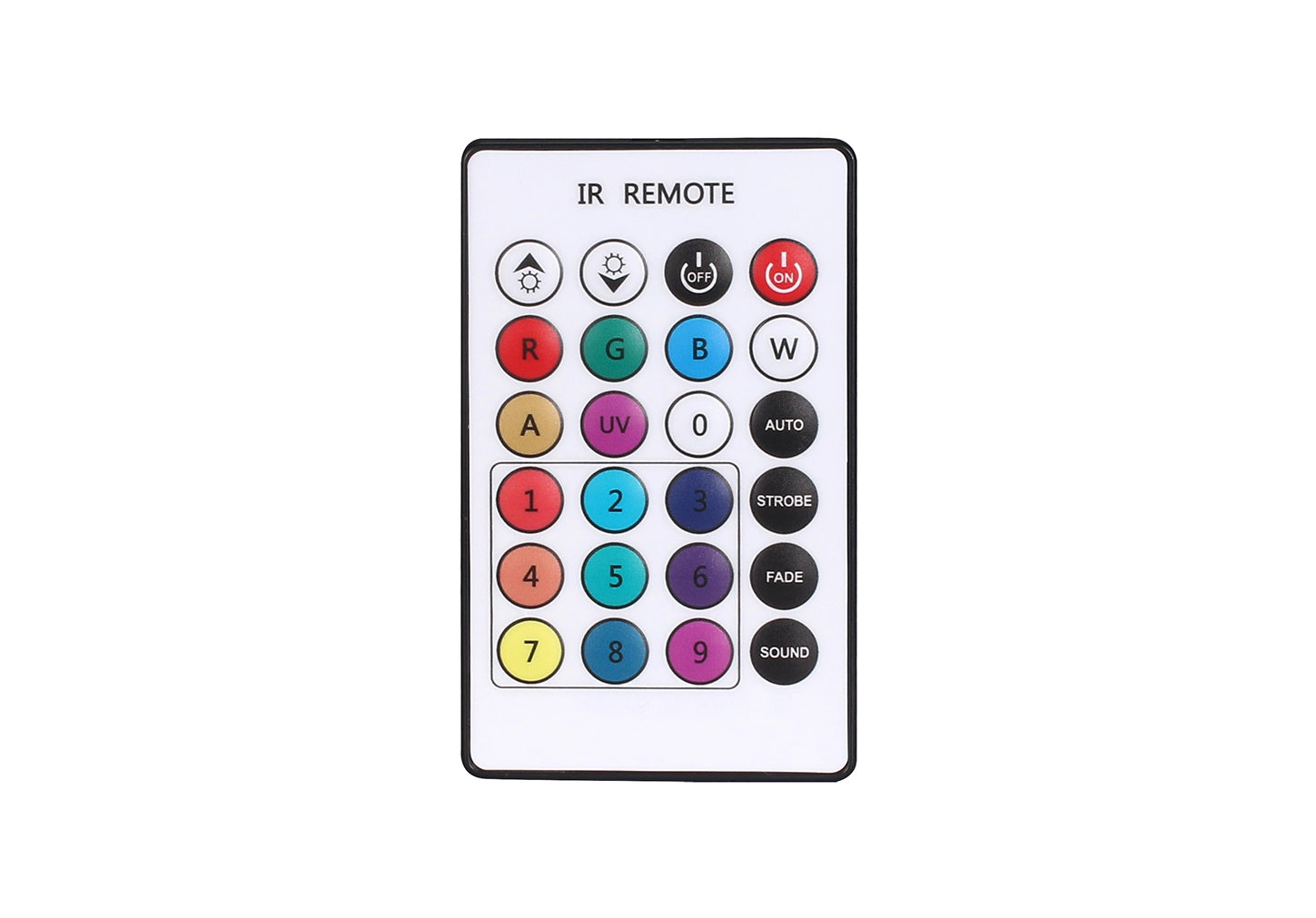

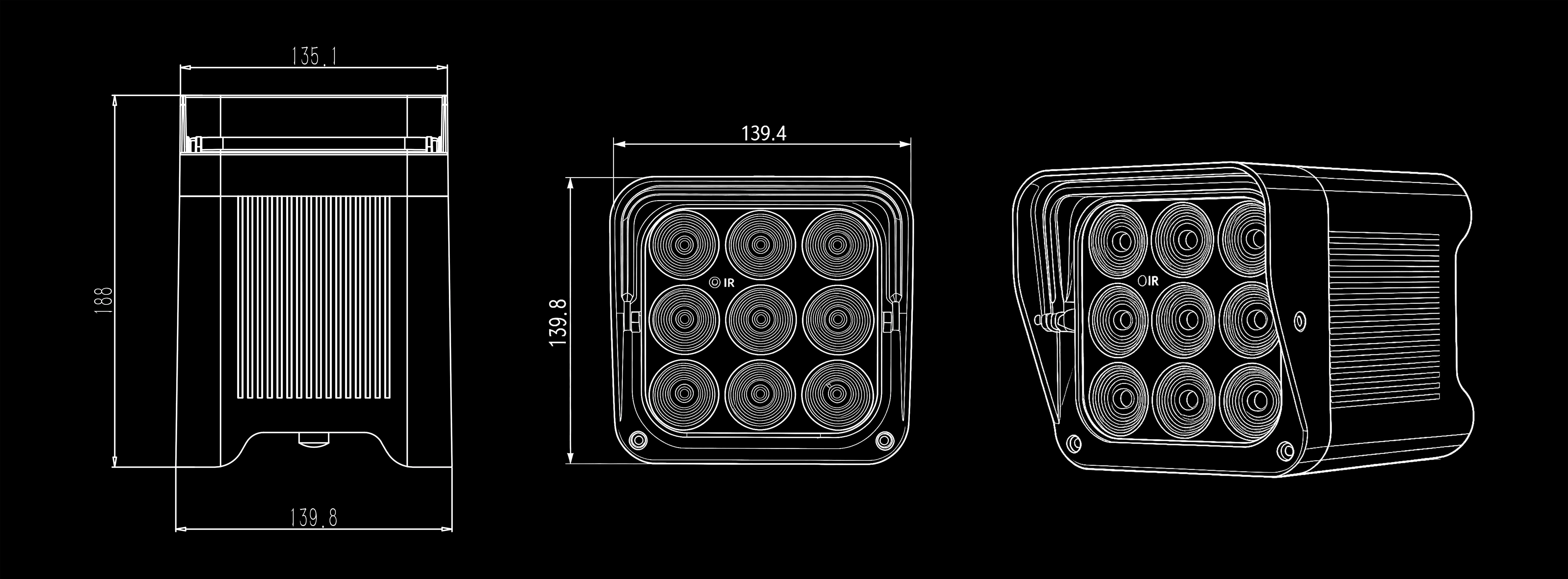

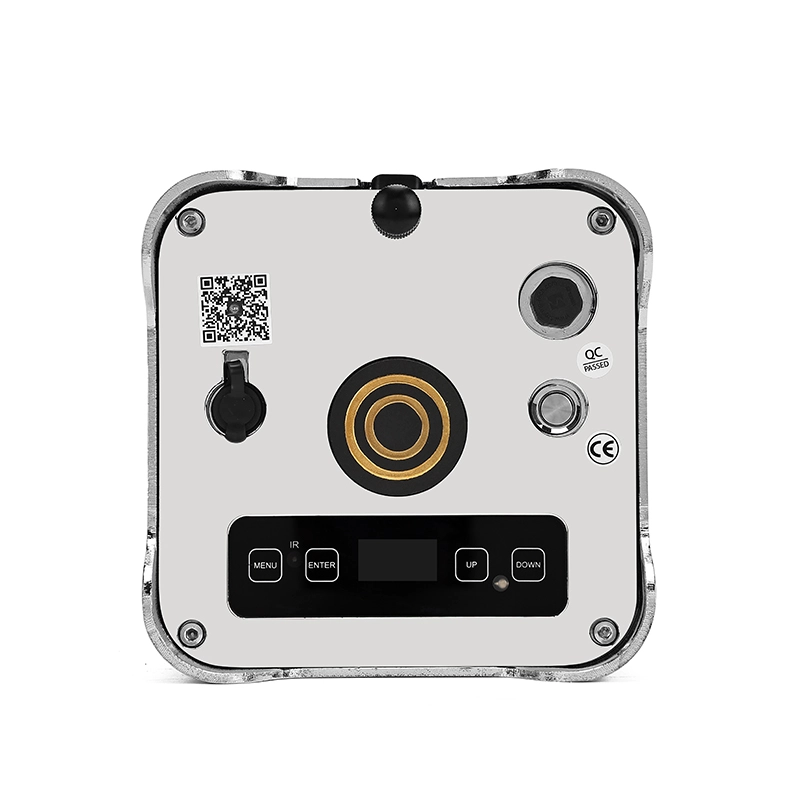

An updated Battery Management System (BMS) provides real-time remaining operating time calculation displayed directly on the OLED touch interface. Configurable runtime profiles include MAX, 4, 6, or 8-hour limiting modes. Control protocols feature integrated 2.4G Wireless DMX512, hardwired DMX512 (3CH/6CH/8CH/12CH), infrared remote, autonomous master/slave routines, and an iOS/Android control app. Fixture dimensions are 135 × 139 × 188 mm with a net weight of 3.2 kg.
