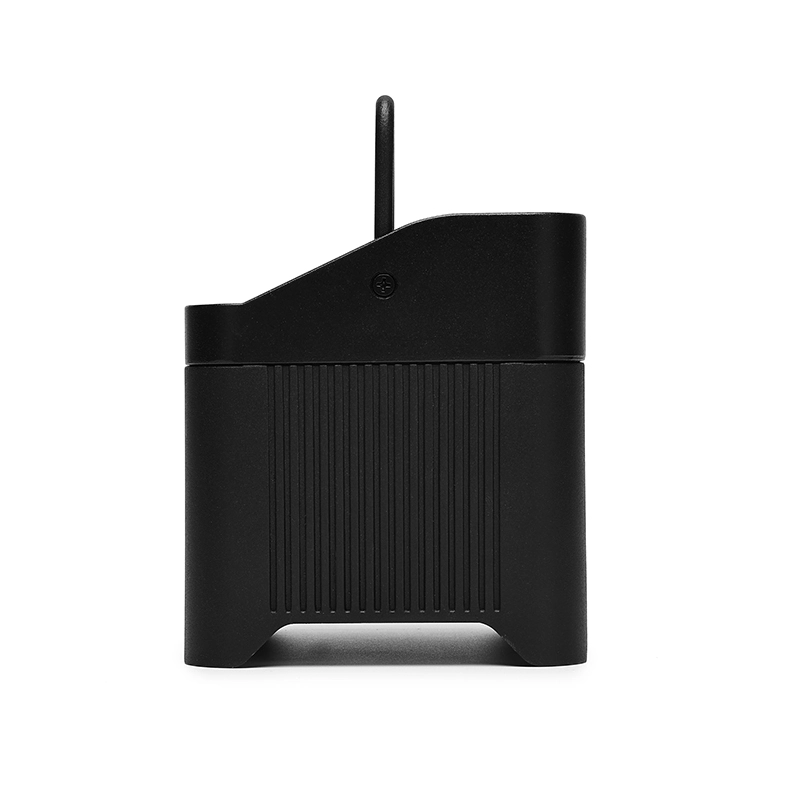

GML CORE B4/B6 IP Wireless Battery Outdoor PAR Light
GML CORE B4/B6 IP Wireless Battery Outdoor PAR Light
Optical Engine and Variant Flexibility

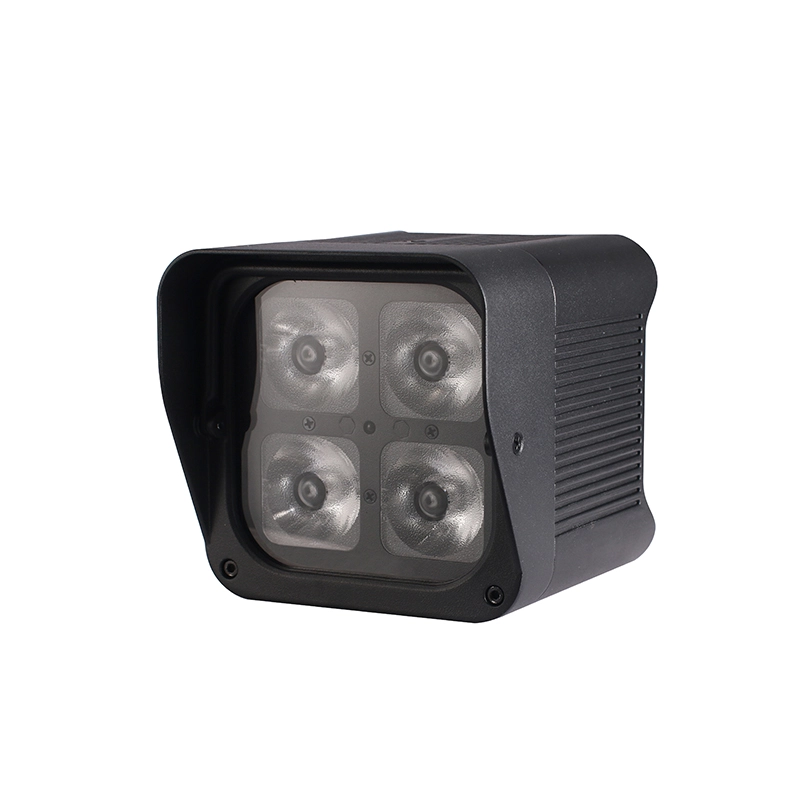

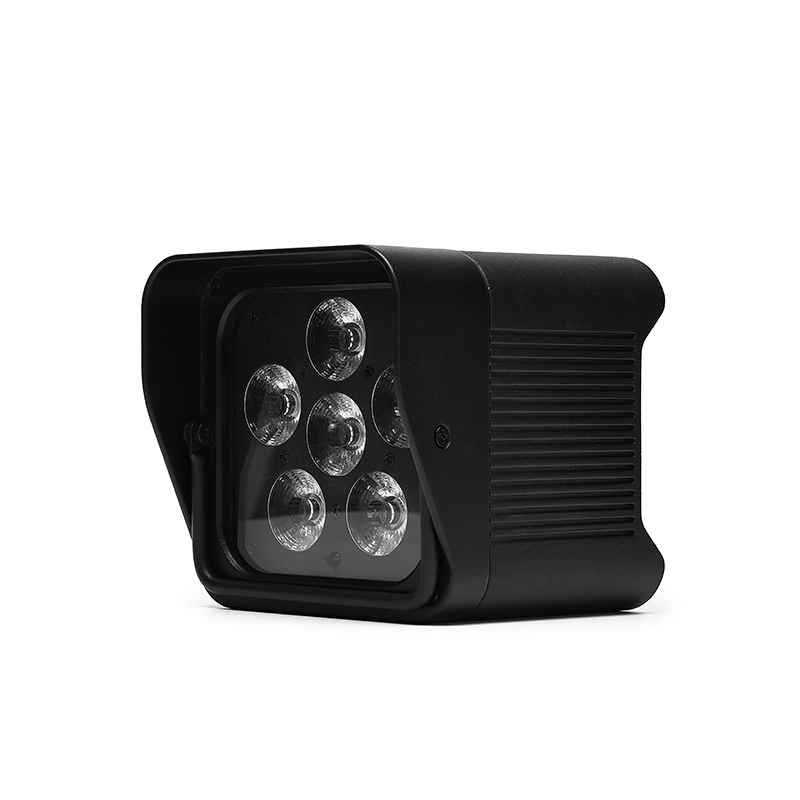

The GML CORE B4/B6 IP is a wireless outdoor uplight available in 4-LED (B4) and 6-LED (B6) configurations powered by 18W RGBWA+UV 6-in-1 emitters. Dual 10° or 20° optical lenses deliver uniform beam projection, compatible with optional rotatable barn doors and diffusion filters. Correlated color temperature spans 2700K to 10000K in 300K calibration increments. A high 64 kHz dimming frequency ensures flicker-free television broadcasts.
Battery Autonomy and Rapid Charging
The integrated 24,000 mAh 18650 lithium battery pack provides 3 hours of continuous full RGBWAUV intensity, 7 hours in automated cycle mode, and up to 15 hours of single-color static wash. Rapid recharge completes in 3 hours, achieving full charge in 8 hours on universal AC 100–250V mains.

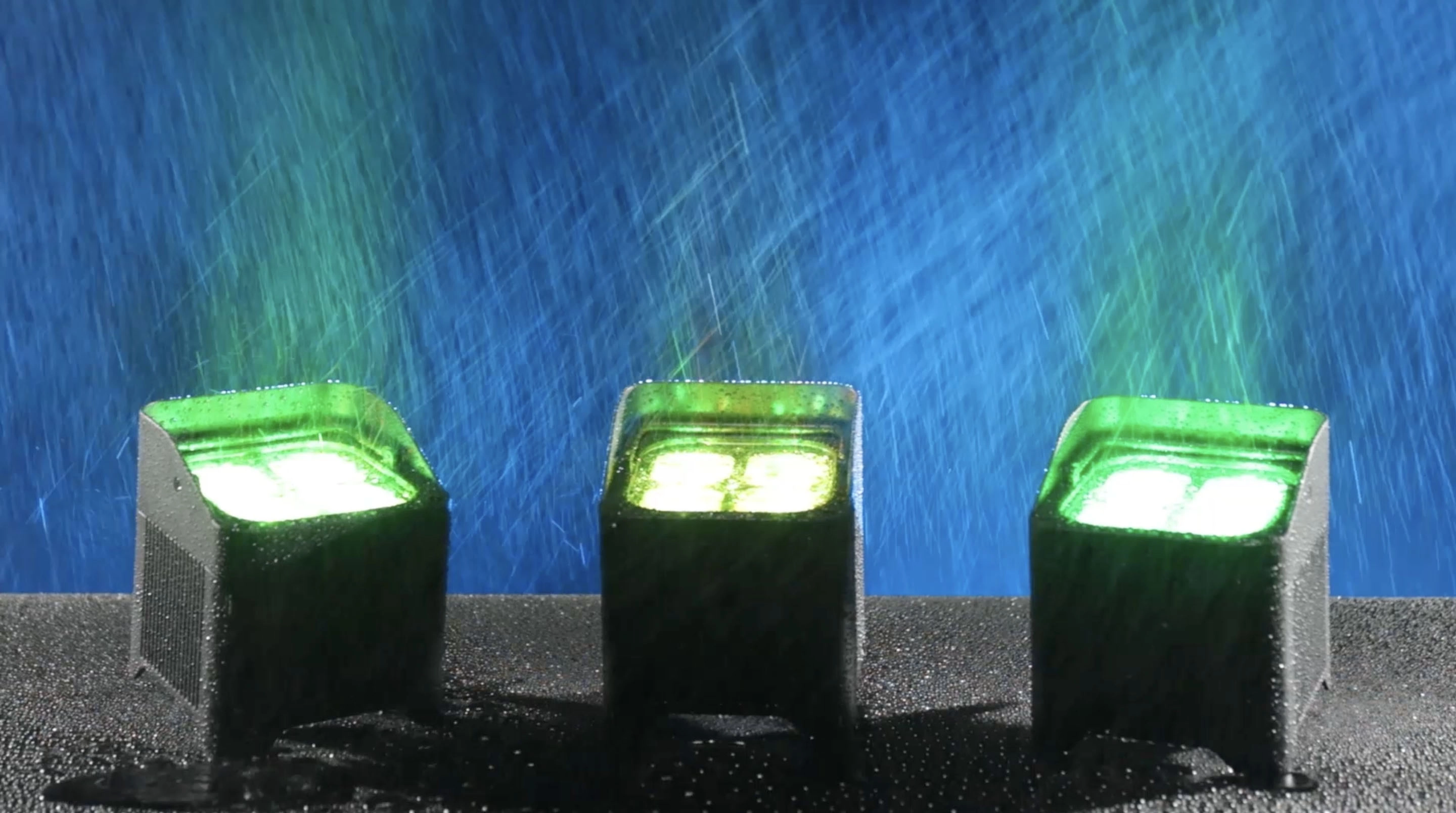

Rugged IP65 Chassis and Connectivity

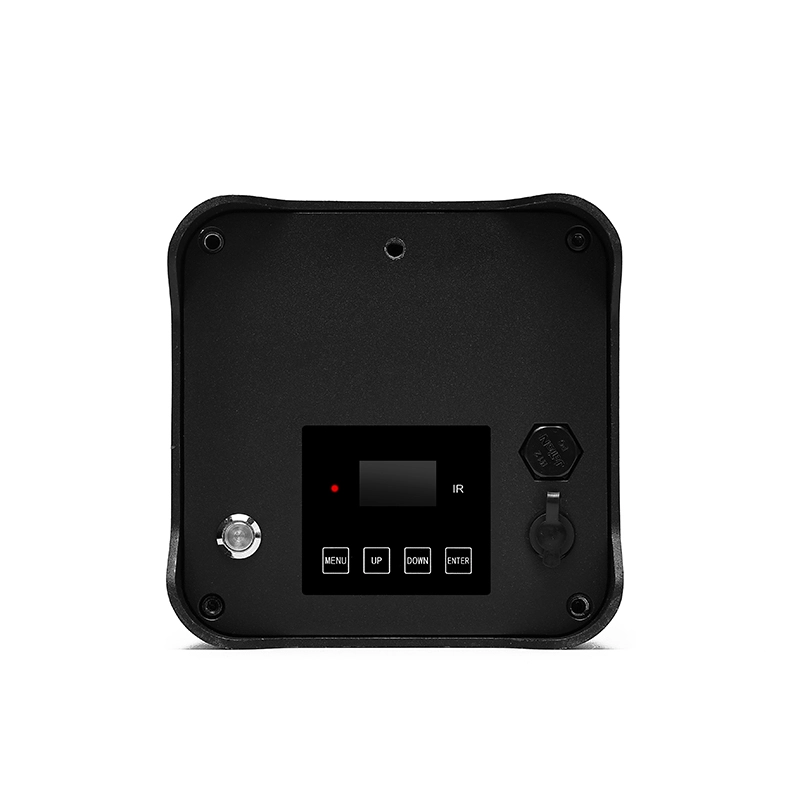

The all-aluminum chassis features an IP65 ingress rating for outdoor weather resistance. Control flexibility includes wired USITT DMX512, onboard 2.4 GHz Wireless-DMX, handheld IR remote, and Bluetooth/Wi-Fi mobile app control. The Touch OLED interface allows quick CCT adjustments and operational countdown timer selection (2/4/6/8 hours).
Specifications
DIMENSIONS(MM)
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.

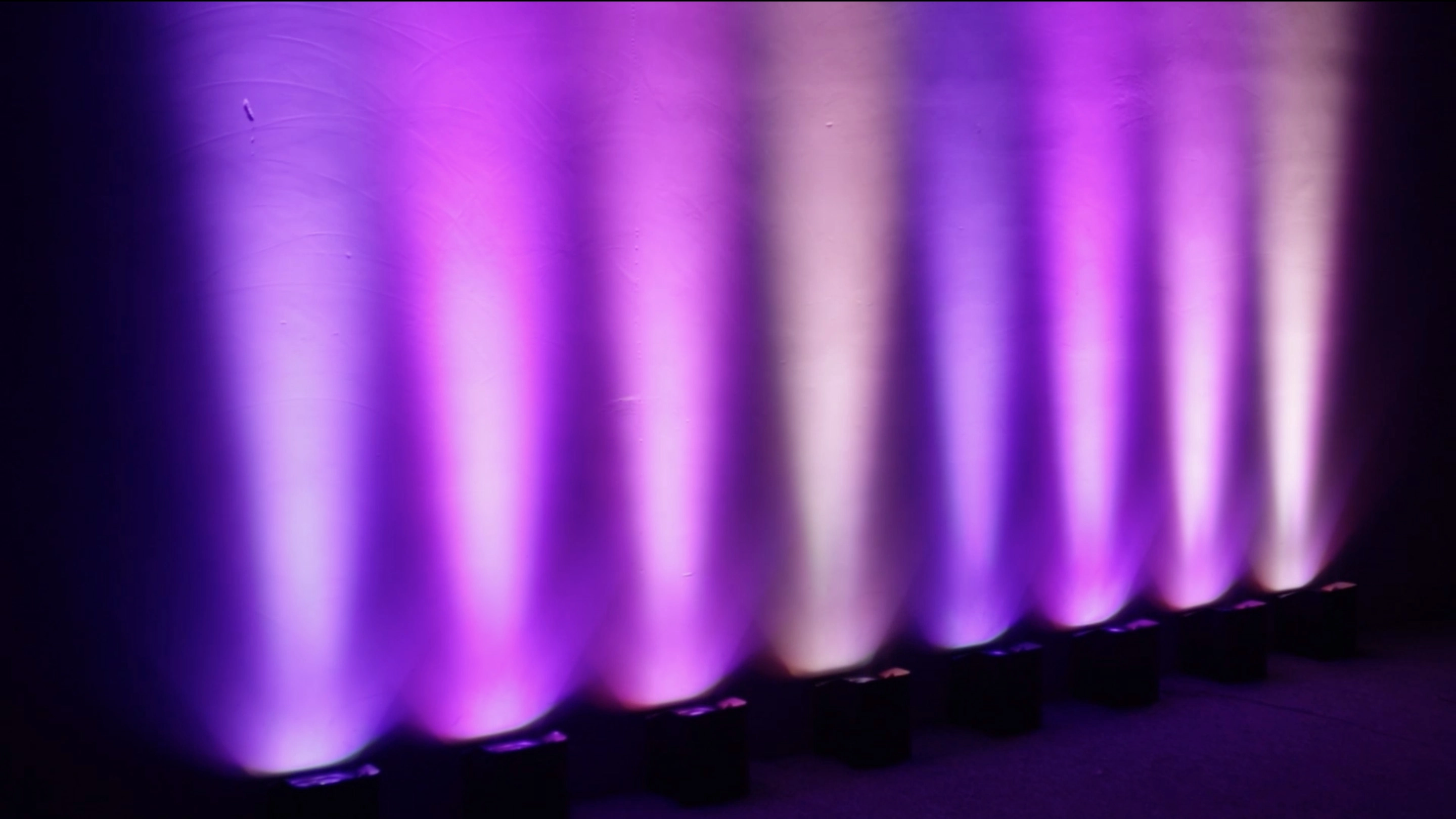

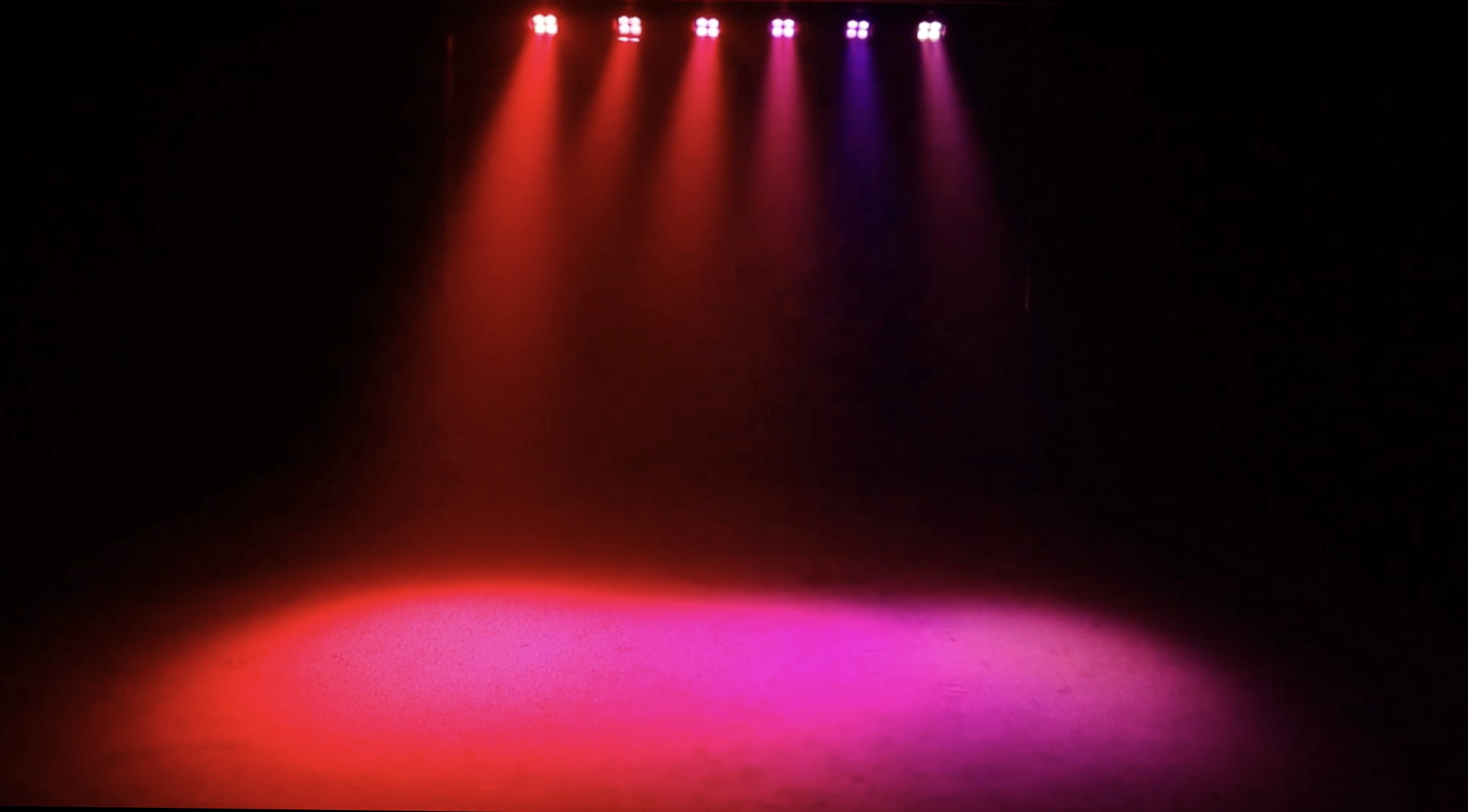

Effect Projections
