BSWF 600

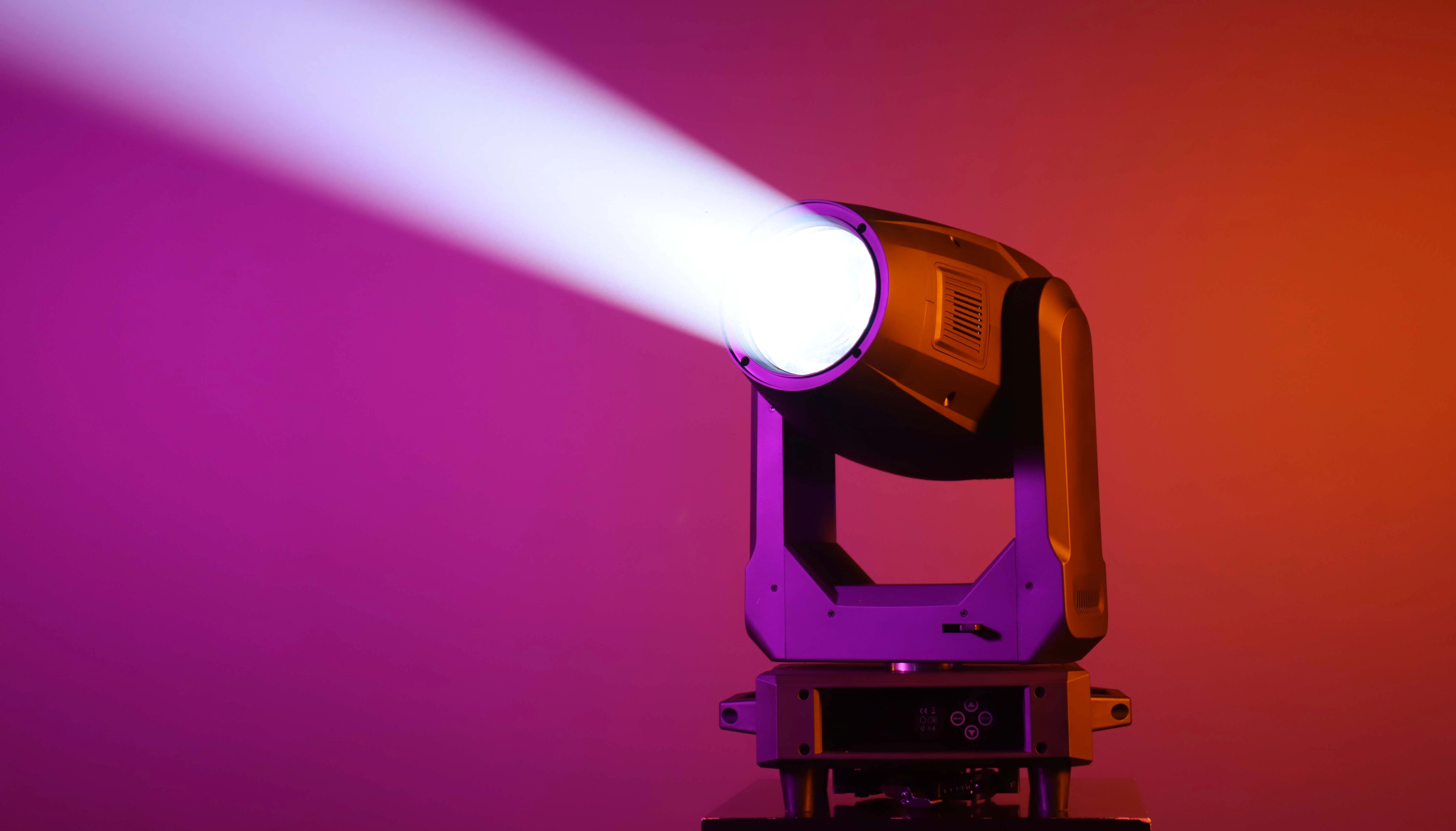

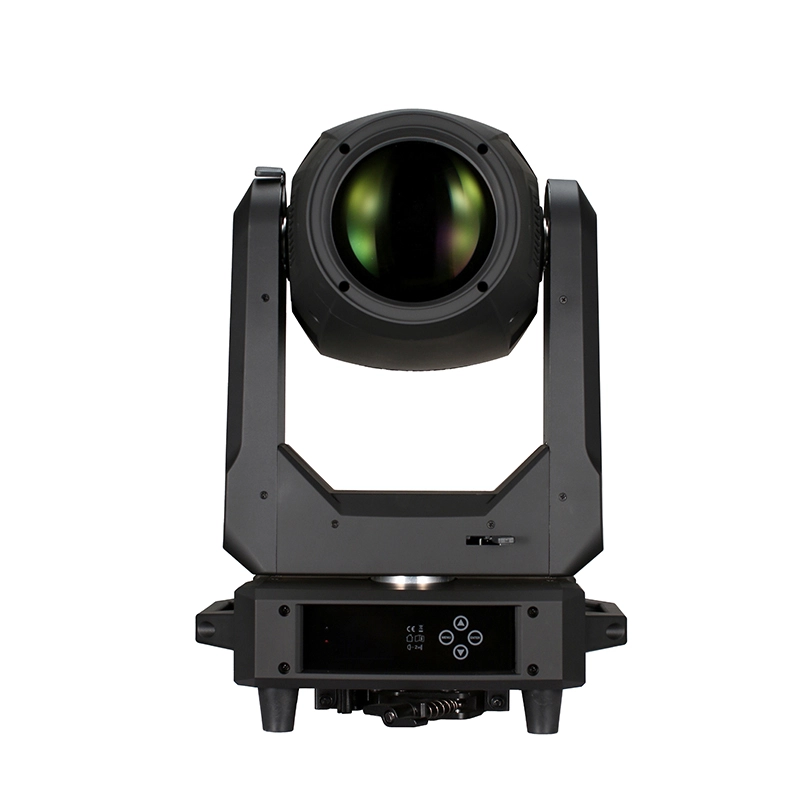

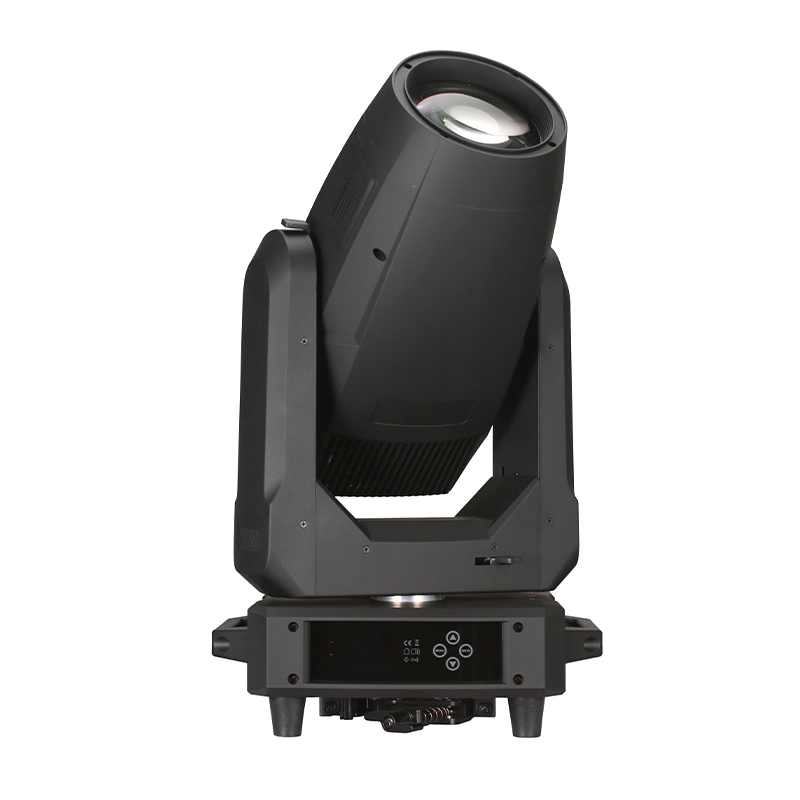

GM-L BSWF 600 Profile is a high-performance all-in-one automated luminaire combining Beam, Spot, Wash, and Framing capabilities, engineered for touring concert productions, theatrical venues, corporate events, and broadcast environments.

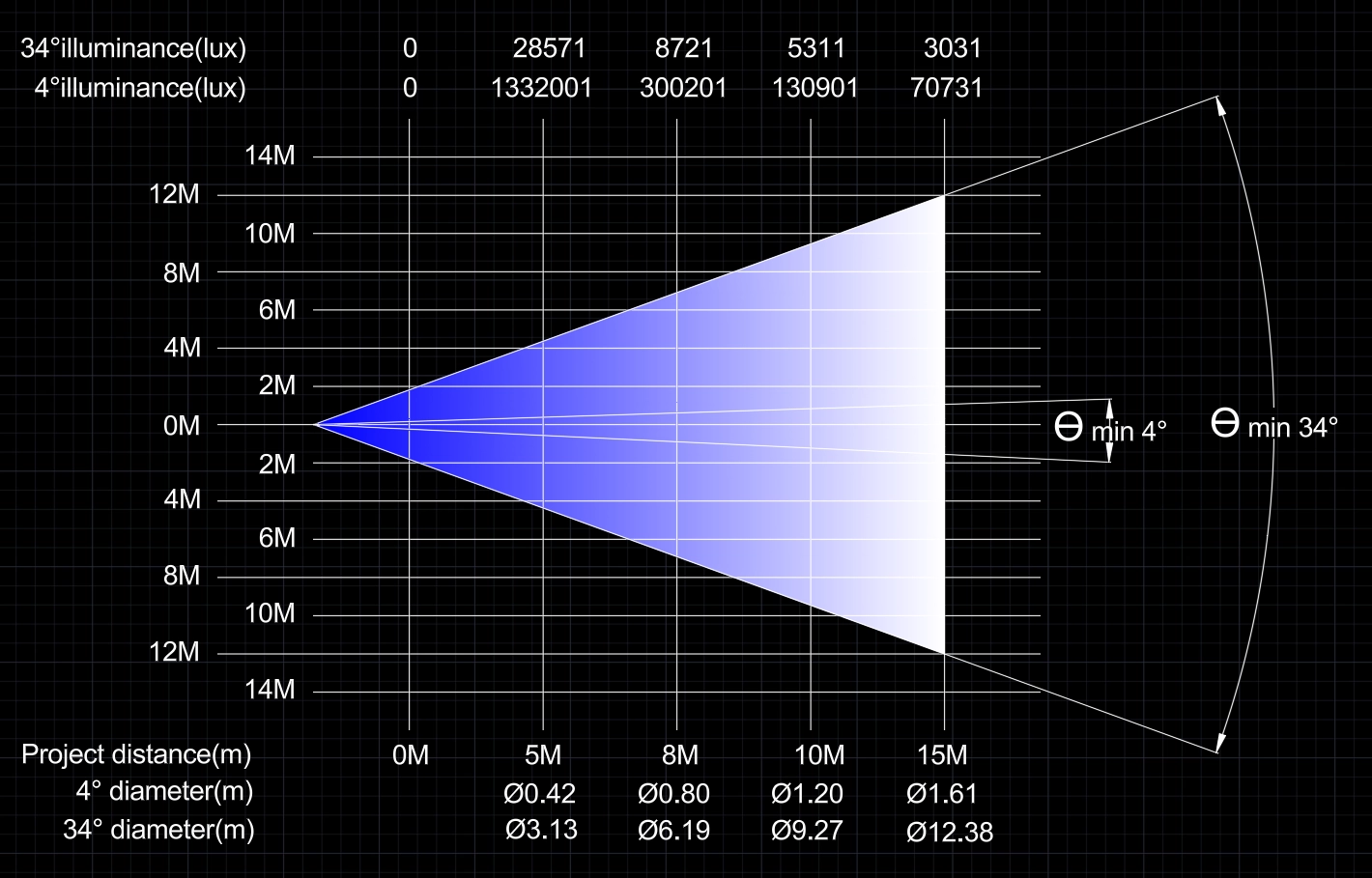

Powered by an energy-efficient 600W white LED engine with a 20,000-hour lifespan, the fixture delivers high luminous output through a precision optical assembly. The linear motorized zoom spans from an ultra-narrow 3° beam to a broad 40° spot/wash coverage, complemented by ultra-smooth motorized focus and a motorized linear iris. For broadcast and theatrical color fidelity, a remote-selectable High CRI filter raises the color rendering index to Ra ≥90 (standard Ra ≥70).

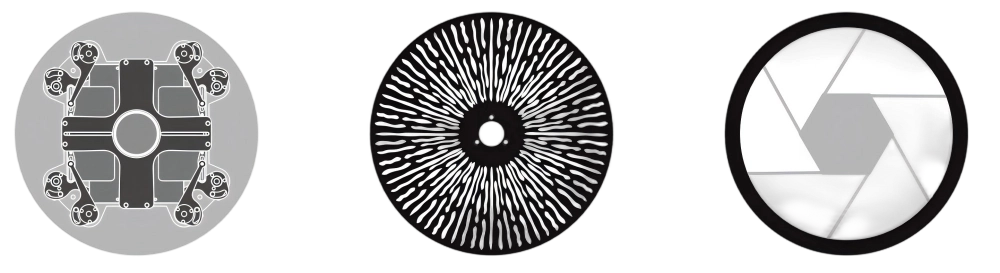

The precision four-blade framing system features independently motorized blades, each capable of complete optical blackout across the beam aperture. The entire framing mechanism rotates up to 120°, allowing lighting designers to sculpt beam boundaries precisely against projection surfaces, sets, and proscenium arches.

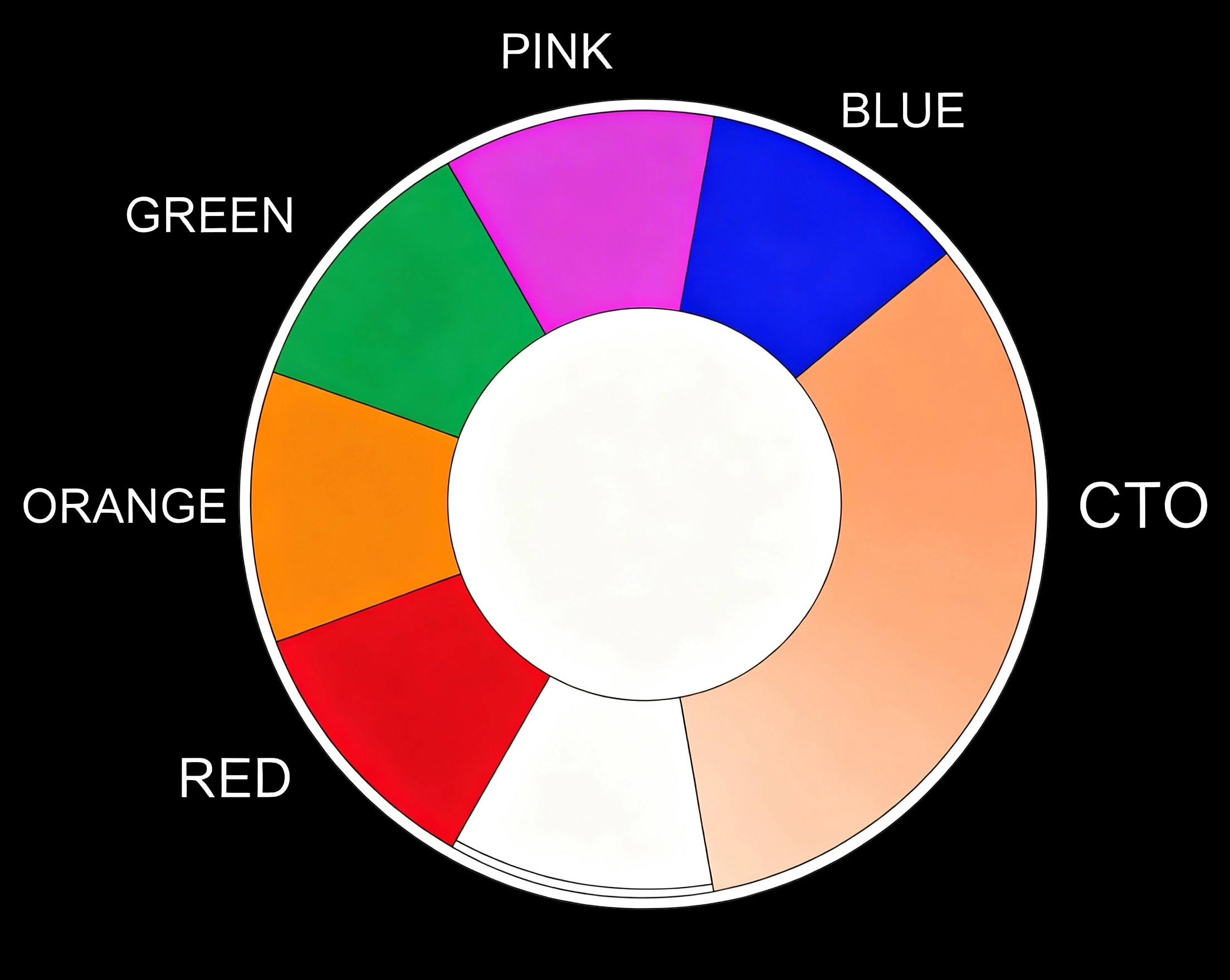

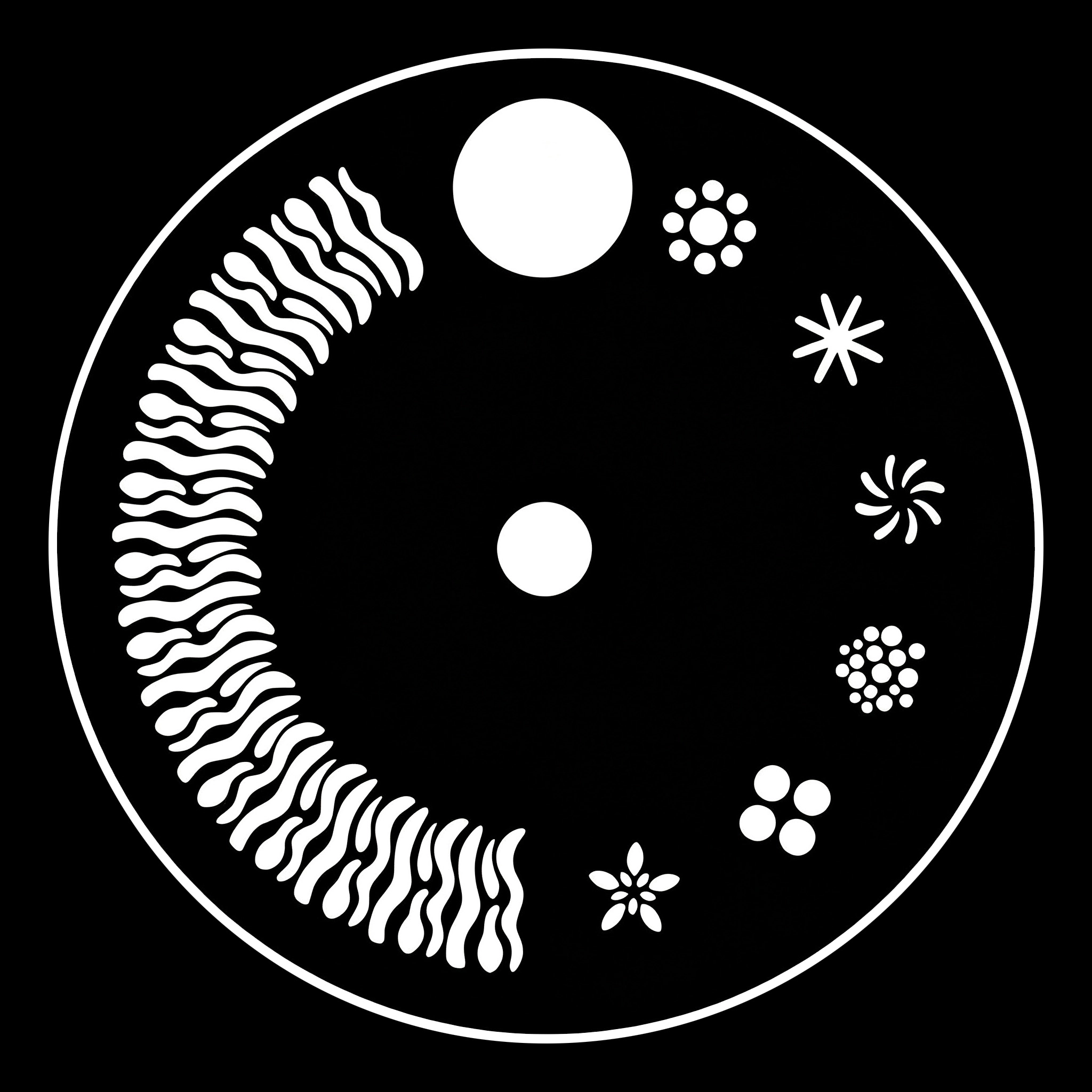

Color reproduction relies on a continuous CMY subtractive mixing system and an independent linear CTO filter adjustable from 2500K to 6500K, alongside a dedicated 5-color dichroic wheel plus open white. Projection possibilities include a 7-slot interchangeable rotating glass gobo wheel, a fixed gobo disc with 6 graphic patterns plus a dynamic flowing water animation effect, dual prisms (4-facet circular and 4-facet linear row), and a smooth 0–100% linear frost filter for wide wash blending.

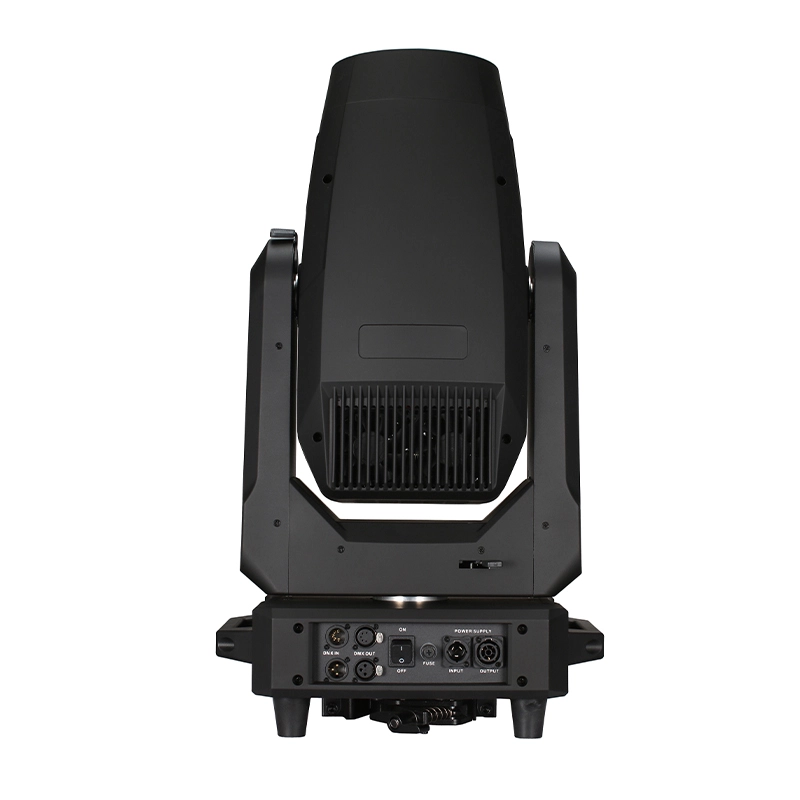

Motion control covers 540° Pan and 270° Tilt with 16-bit precision. Protocol support includes 37-channel DMX512, RDM bidirectional feedback, stand-alone automatic modes, and optional Art-Net network integration via rugged PowerCON in/out and 3-pin / 5-pin XLR connectors.
