Concept & Optical Performance

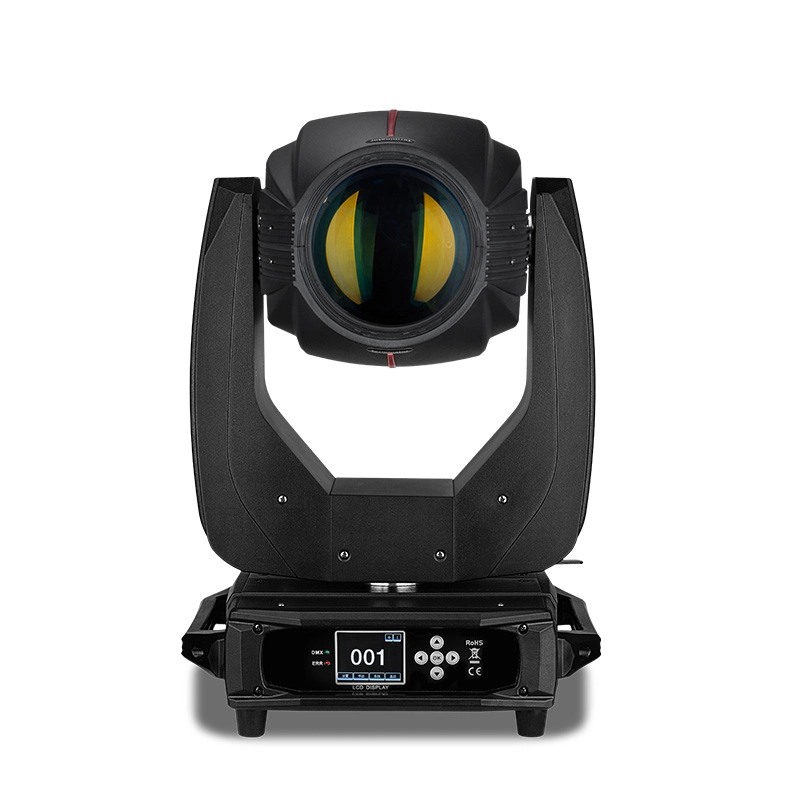

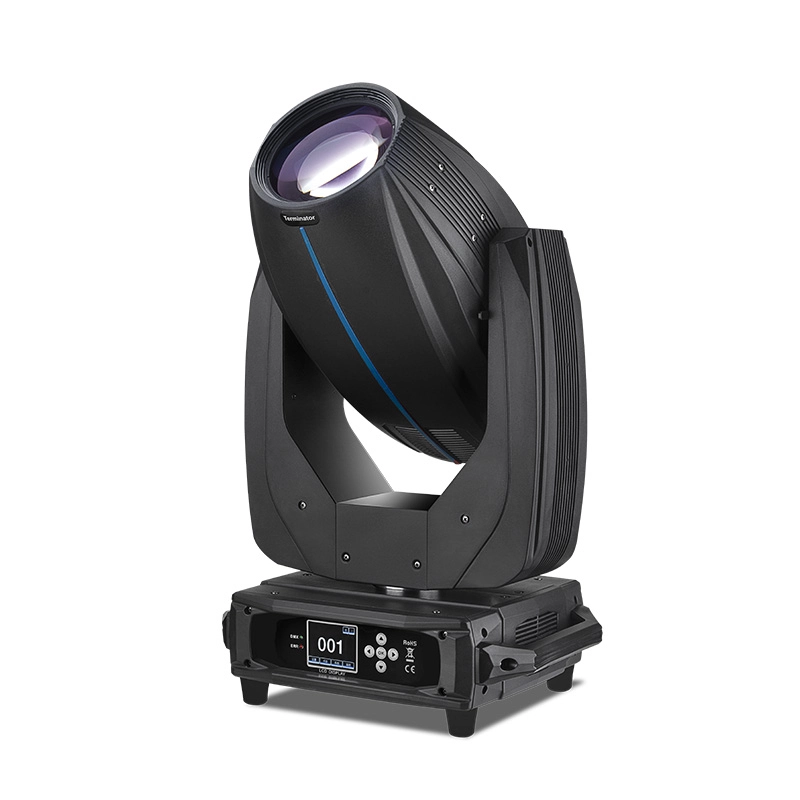

GML BSW 480 CMY is a full-featured hybrid Beam Spot Wash moving head built around a Philips MSD Silver 420 LL discharge lamp at 6800 K with an extended life up to 4,000 hours. The optical train provides three specialized zoom profiles: Beam mode (2.1–29°), Spot mode (2.2–41.5°), and Wash mode (2.5–31.6°).
Key Functional Features
- Triple Zoom Profile: distinct motorized ranges for Beam, Spot, and Wash, linear focus, and an independent frost filter.
- Color Engine CMY + CTO: continuous linear CMY color mixing, 2700–7800 K linear CTO control, and dual fixed color discs (each with 5 colors plus open).
- Gobos & Animation: static wheel with 8 gobos and 4 white positions, dedicated animation disk with 3 patterns, and a rotating wheel with 7 glass gobos.
- Stackable Prisms: independent 8-facet and 16-facet prisms with mutual stacking capability producing a 24-facet aerial array.

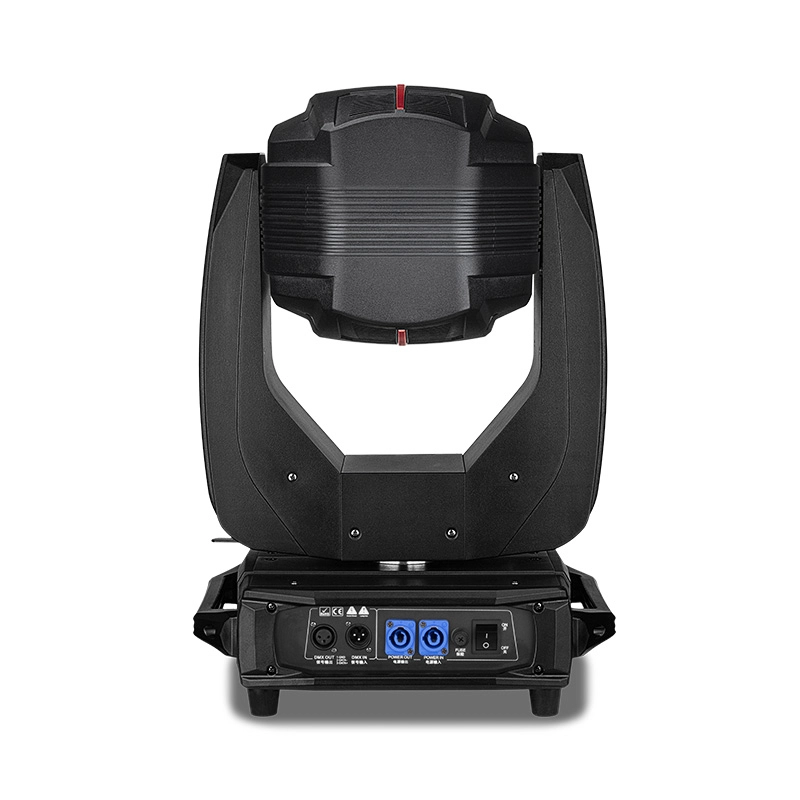

- Movement & IO: 540° Pan and 270° Tilt (16-bit), 24 DMX512 control channels, PowerCON True1 and 3-pin XLR in/out, 20.8 kg net weight.
Applications
With its high-output discharge lamp, rugged 395 × 293 × 675 mm housing, and 20.8 kg net weight, the fixture is tailored for concert touring, festival stages, large entertainment clubs, and live broadcasts.
Specifications
Linear CMY + CTO Color System
Cyan, Magenta, and Yellow dichroic filters adjust color balance across the full visible spectrum. The linear CTO filter corrects color temperature for studio broadcast and camera recording.

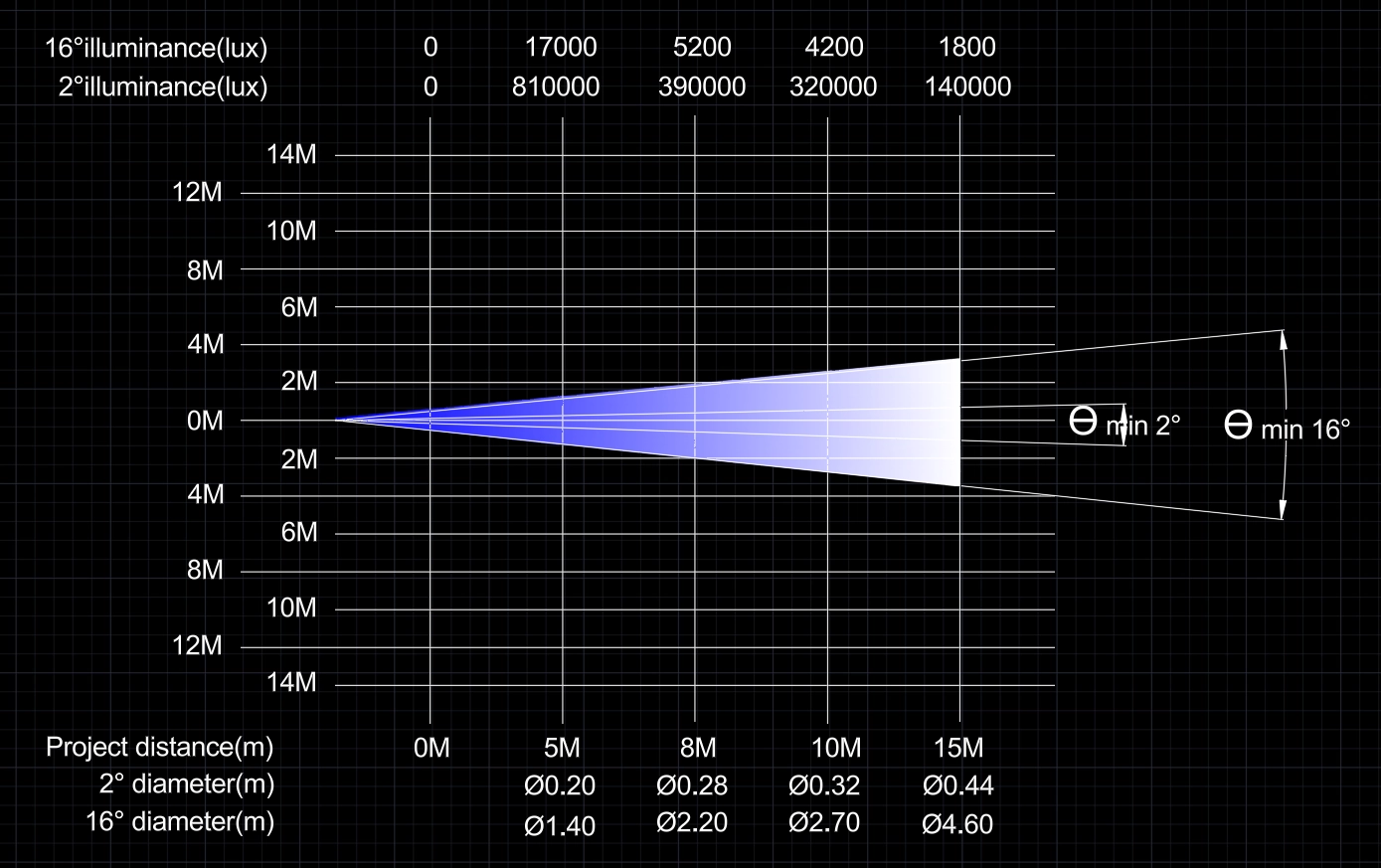

PHOTOMETRICS
DIMENSIONS(MM)
Technical Dossier
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.
Effect Projections
