GML BSW 420M IP
GML BSW 420M IP
Concept & Optical Performance

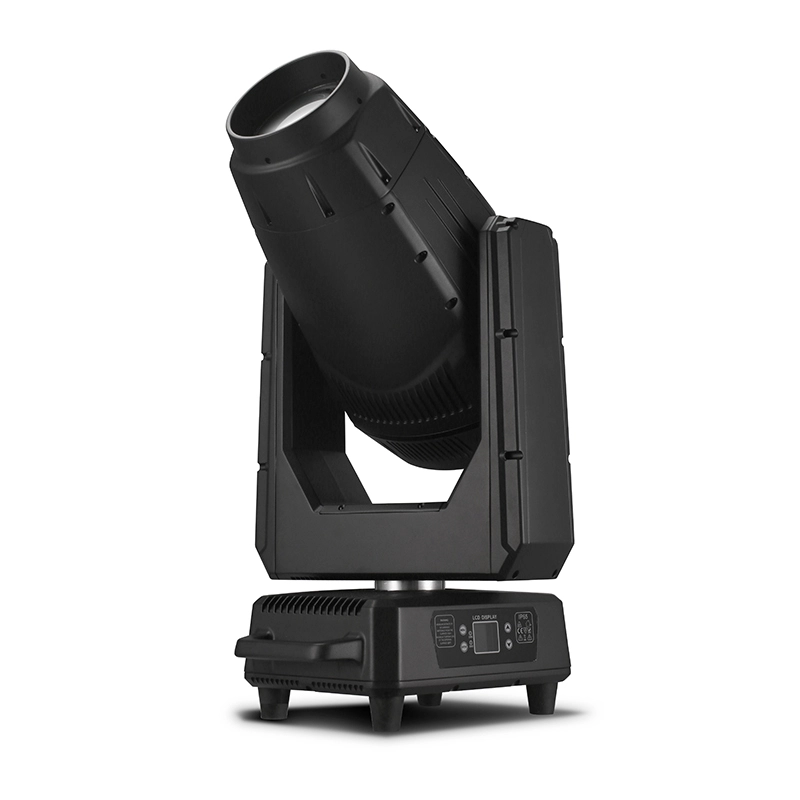

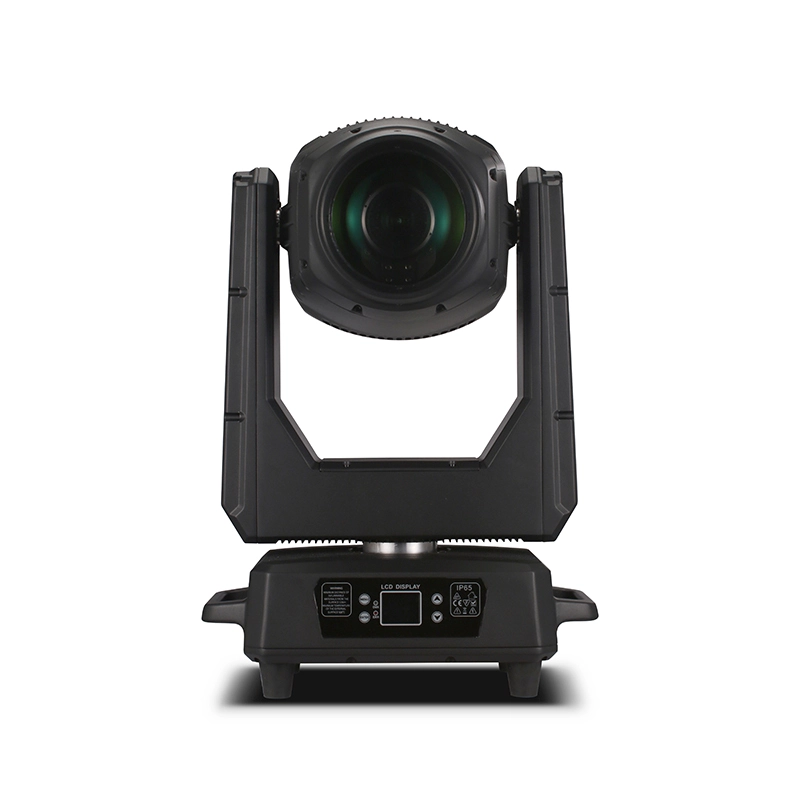

GML BSW 420M IP is an all-weather IP66 Beam Spot Wash hybrid moving head built into a lightweight, rugged magnesium-aluminum alloy (Magnalium) housing. Powered by an Ushio 420W discharge lamp through a 138mm front optic, it delivers 190,000 lx at 15m in 2° beam configuration with a versatile 2–40° motorized zoom range.
Key Functional Features
- Optics & Zoom: 138mm front lens, 2–40° linear motorized zoom, linear focus, and independent frost filter for wash transitions.
- Color Engine CMY + CTO: linear CMY color mixing, 3200–7500 K CTO correction, and dual color wheels supporting split colors.
- Gobos & Animation: 11 static metal patterns plus open, 8 rotating glass gobos, and dedicated dynamic animation effects.
- Prism Package: 8-facet and 6-facet prisms with independent bi-directional rotation.

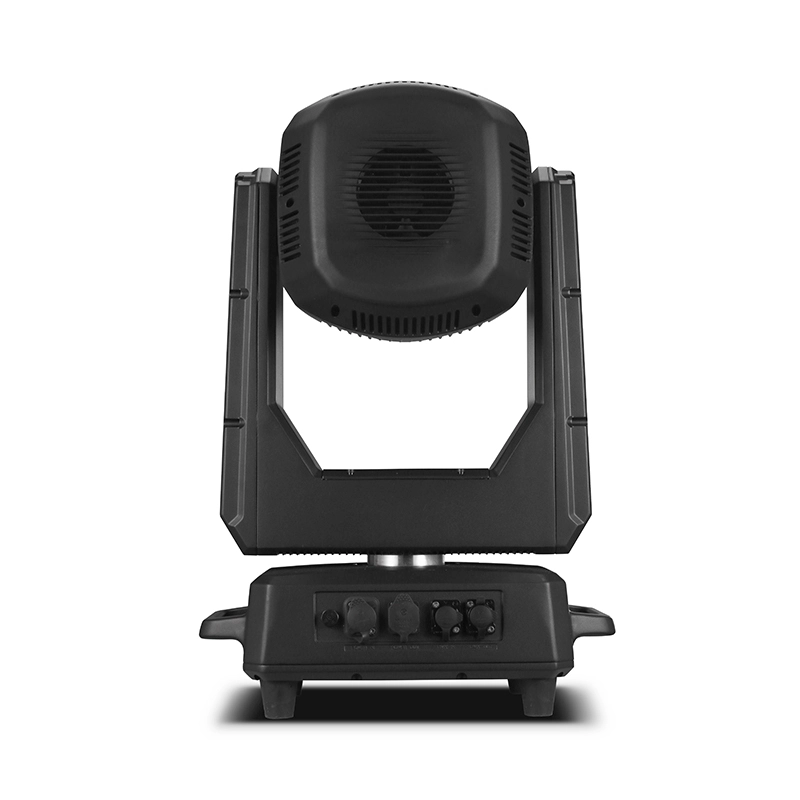

- IP66 Mechanics & IO: IP66 ingress rating, 540° Pan and 270° Tilt (16-bit), Seetronic PowerCON True1 and 3-pin XLR connections, 24 kg net weight.
Applications
Designed for open-air festival stages, stadium arenas, architectural lighting, and demanding outdoor touring, the fixture withstands harsh weather conditions without performance compromises.
Product variants
2 variants available
Standard:Hybrid Beam/Spot/Wash IP66 moving head with a standard color wheel.
Specifications

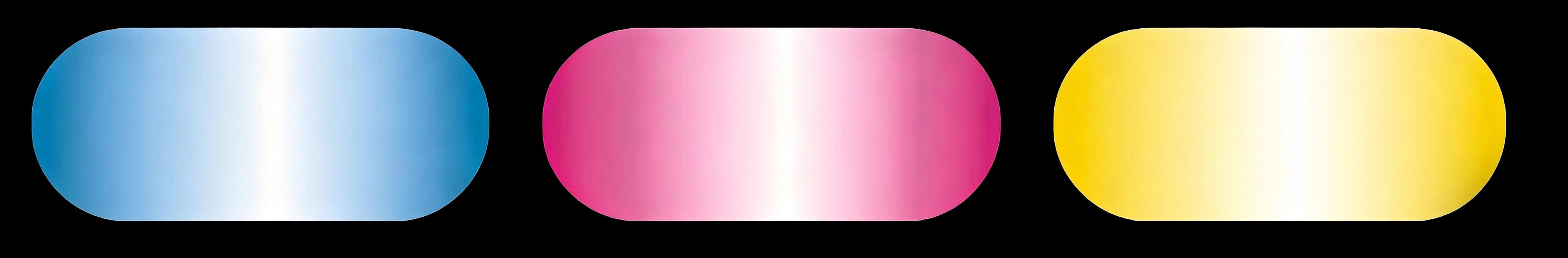

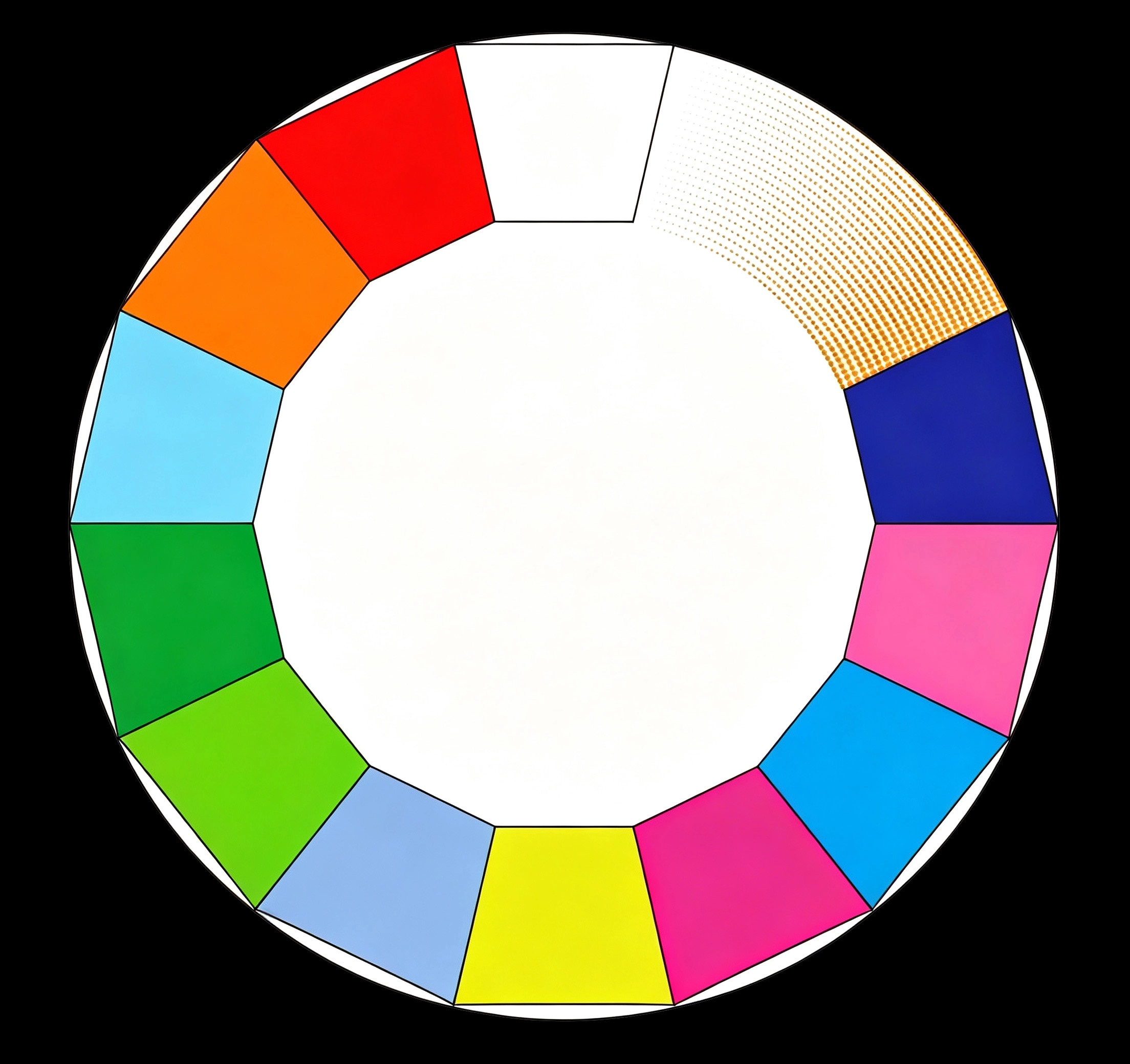

Linear CMY + CTO Color System
Cyan, Magenta, and Yellow dichroic filters adjust color balance across the full visible spectrum. The linear CTO filter corrects color temperature for studio broadcast and camera recording.

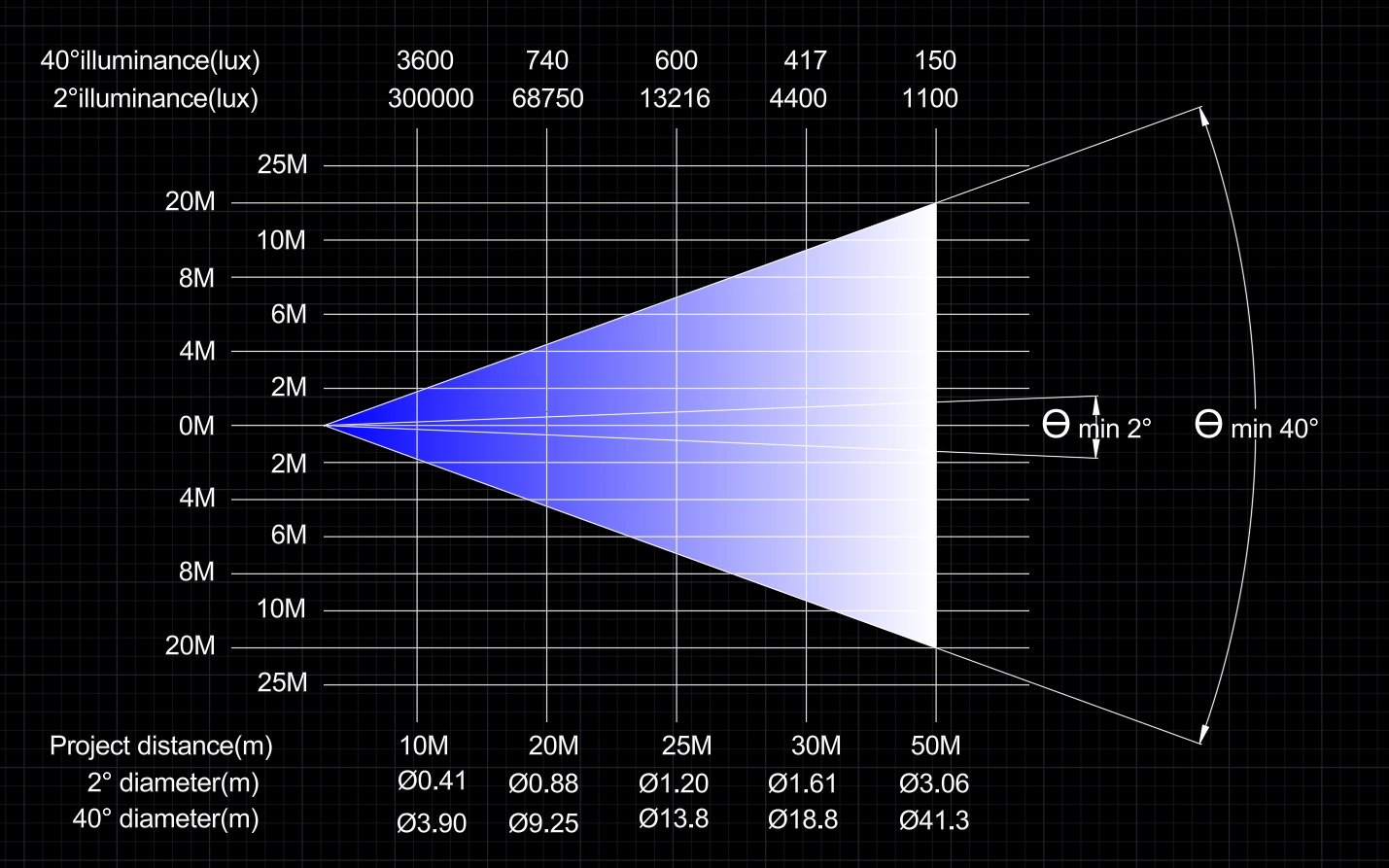

PHOTOMETRICS
DIMENSIONS(MM)
Technical Dossier
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.

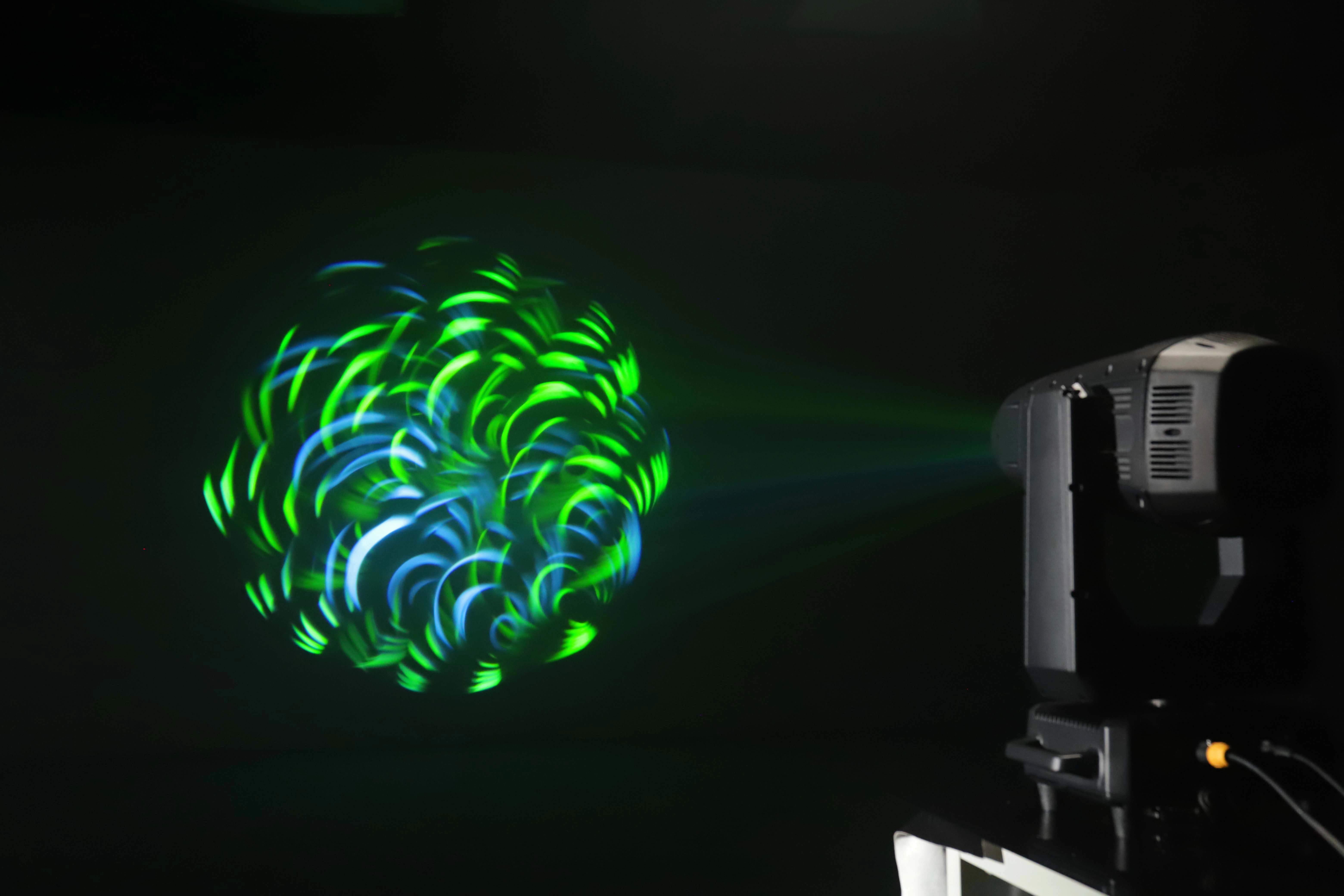

Effect Projections
