Concept and Optical Performance

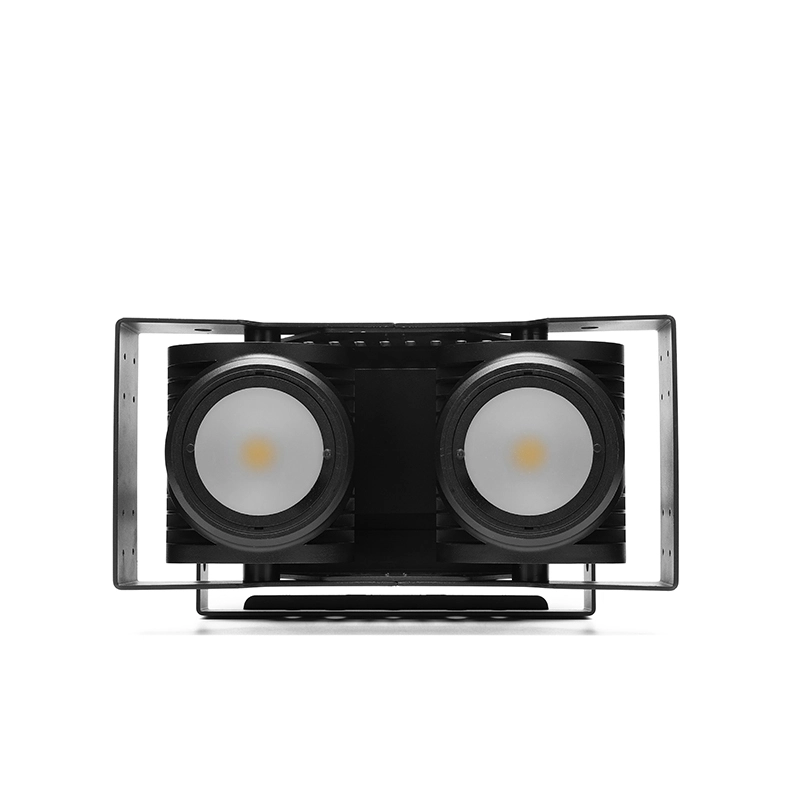

The GML BLINDER 400 IP is an IP65 all-weather 2-cell stage LED blinder engineered for audience illumination, dynamic strobe bursts, and broad stage wash on open-air festival rigs and touring productions. The optical system incorporates two 200W LED engines available in WW, tunable CW+WW, or RGBW configurations. A 15° optical lens array delivers a 50° beam angle with a 93° field angle.
Thermal Engineering and Housing
Constructed with a heavy-duty die-cast aluminum chassis, the fixture withstands harsh weather conditions while providing structural rigidity. Heat dissipation is managed via a static waterproof cooling fan with intelligent speed regulation and active thermal protection. Operating limits span from -40°C to +45°C with cold-start capability down to -20°C.
Control and Connectivity

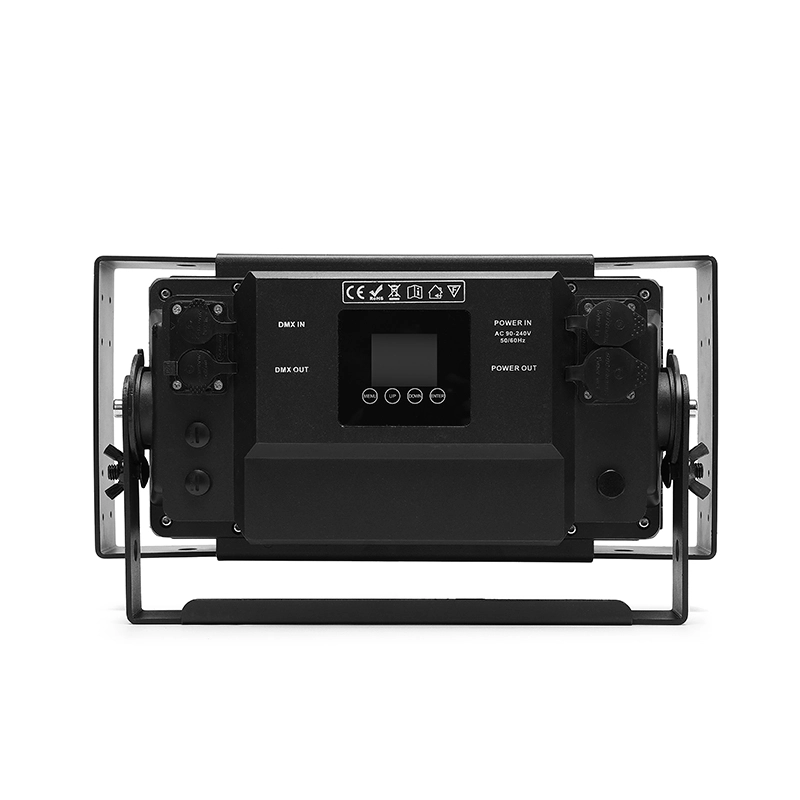

Integrated control protocols include USITT DMX512 and RDM, supporting firmware updates directly over DMX signal lines. Channel modes provide 4/8 channels for RGBW, 1/5 channels for WW, and 2/6 channels for WW+CW. Configuration is handled through an onboard OLED display. Hardware connections feature weatherproof 3-pin XLR data sockets. Dimensions are 403 × 195 × 298 mm with a net weight of 6 kg.
Product variants
2 variants available
CW/CW+WW:4-cell audience blinder with high-output white COB emitters for stage punch.
Specifications
DIMENSIONS(MM)
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.

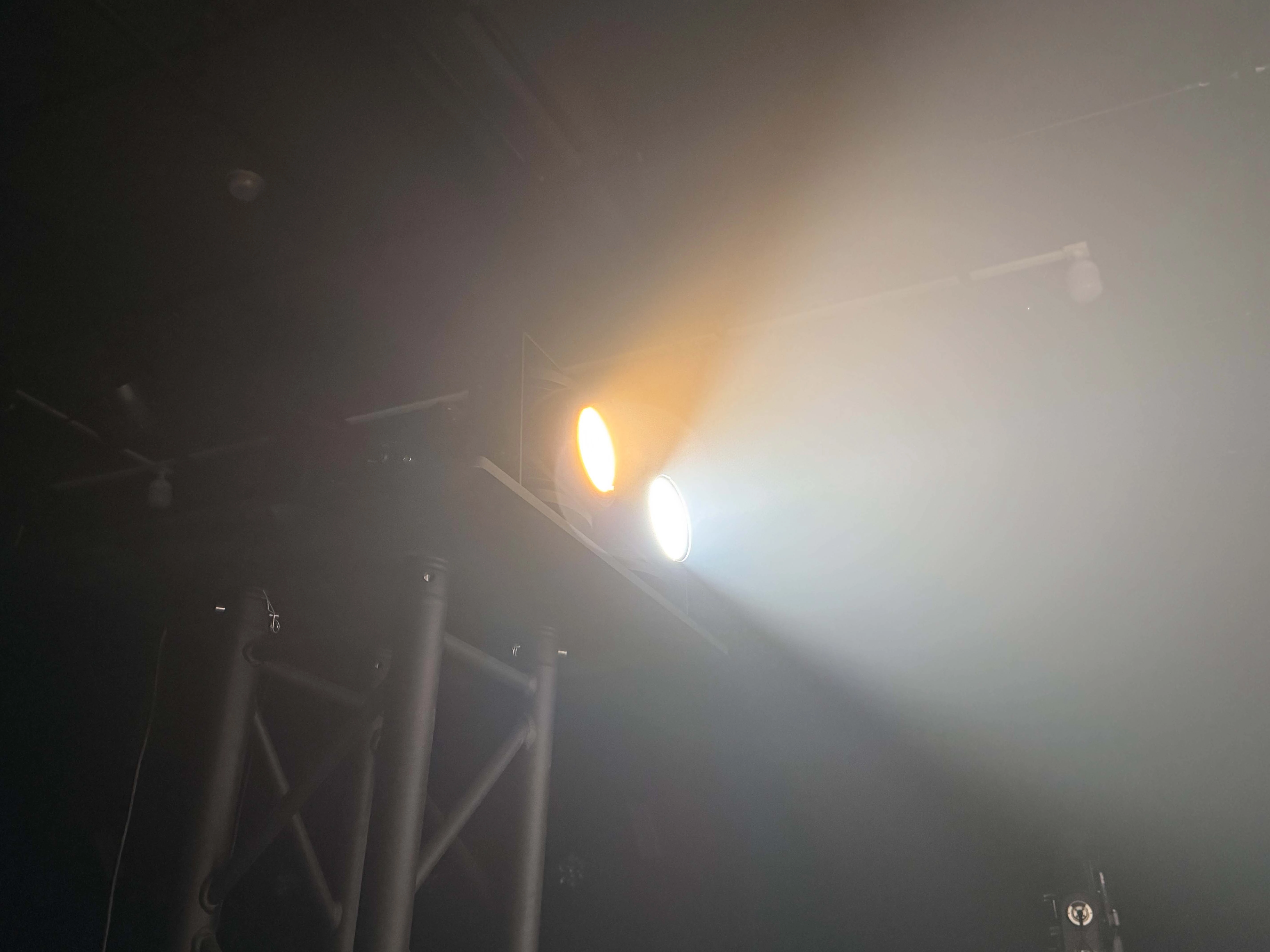

Effect Projections
