GML BEAM BAR LED Motorized Linear Fixture

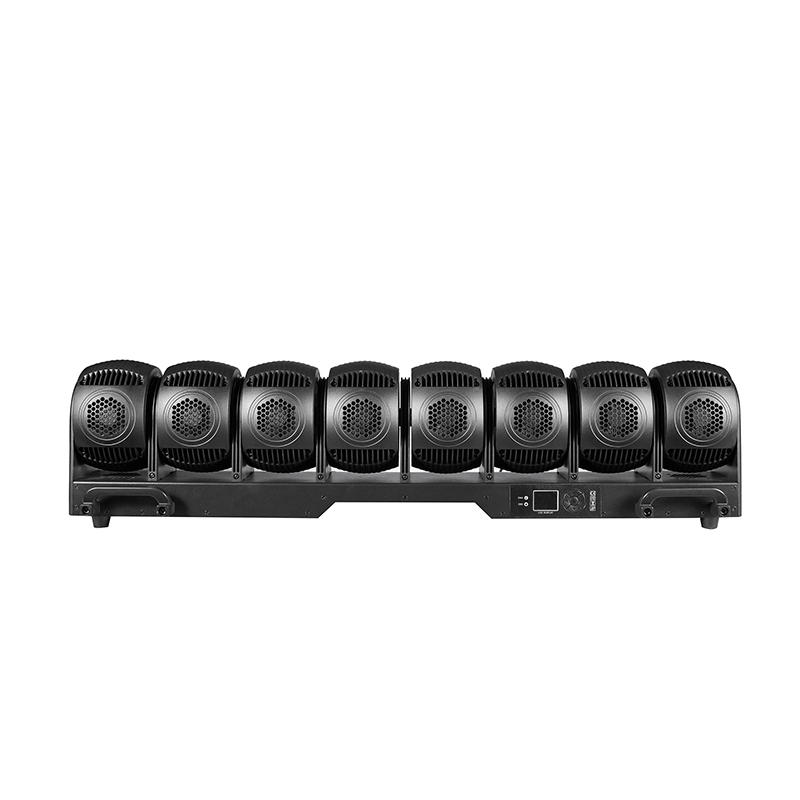

GML BEAM BAR Motorized Linear LED Fixture

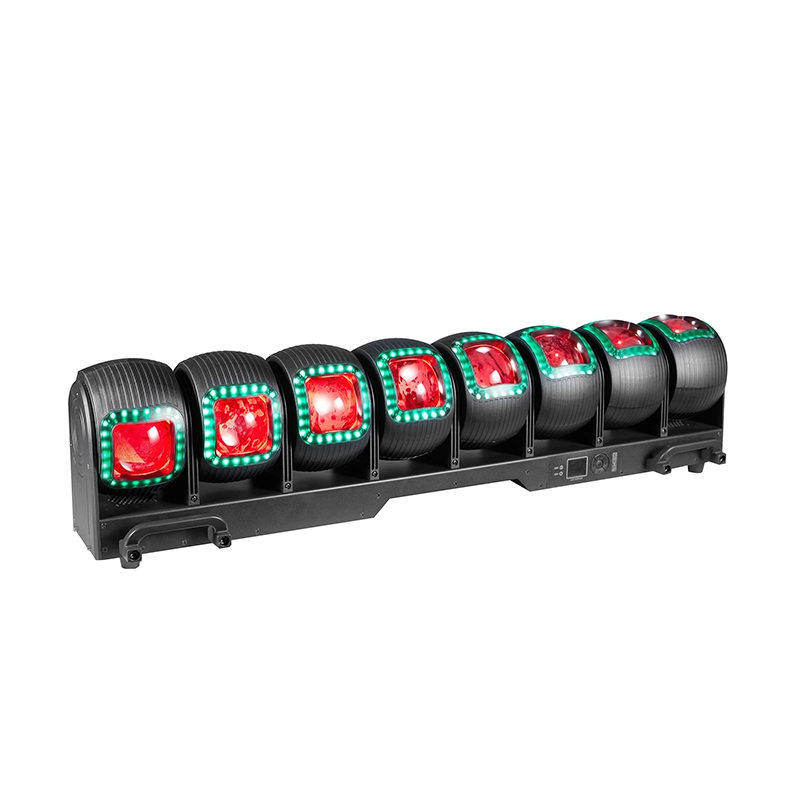

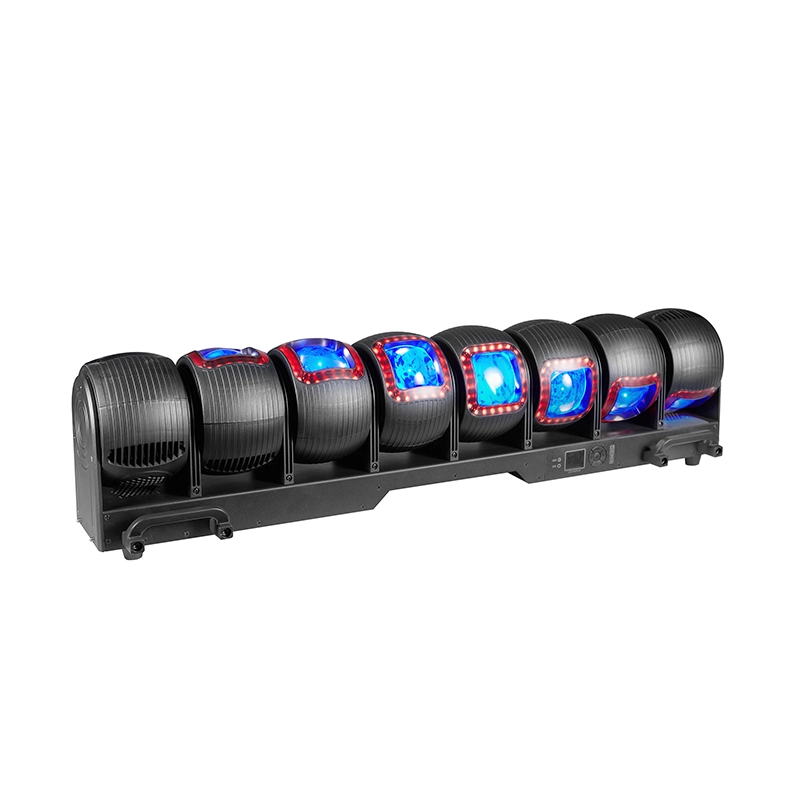

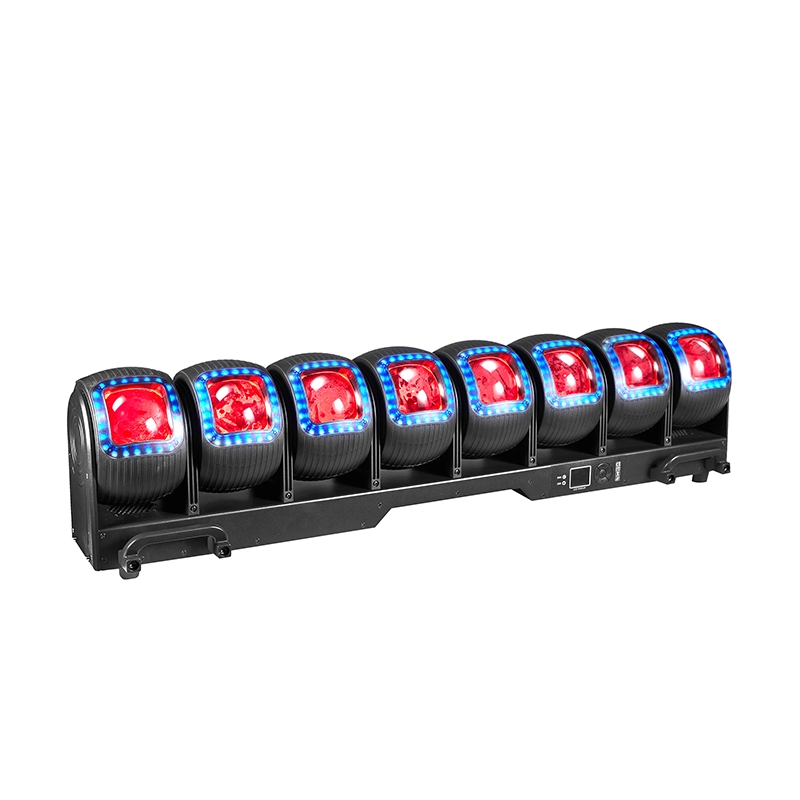

GML BEAM BAR features 8 × 80W RGBW 4-in-1 LED emitters complemented by a perimeter ring array of 192 tri-color RGB LEDs (8 × 24 × 0.5W). Total power consumption is rated at 600W across a 50,000-hour LED emitter lifetime. Color temperature is adjustable from 2800K to 8000K.

Continuous Infinite Tilt Kinematics

The core mechanical feature is continuous 360° infinite Tilt rotation with 16-bit fine movement positioning. The fixture supports individual pixel-level control, 0–100% linear electronic dimming, and a variable-speed strobe flashing at 1–25 Hz with random and pulse modes.

Control and Setup Interface

Control integration is handled via DMX512 and RDM across 5 channel modes (27, 41, 97, 127, and 154 CH). The setup menu uses a 1.8-inch color LCD screen with 5 tactile buttons. The IP20-rated housing measures 1040 × 230 × 250 mm with a net weight of 22.5 kg.
