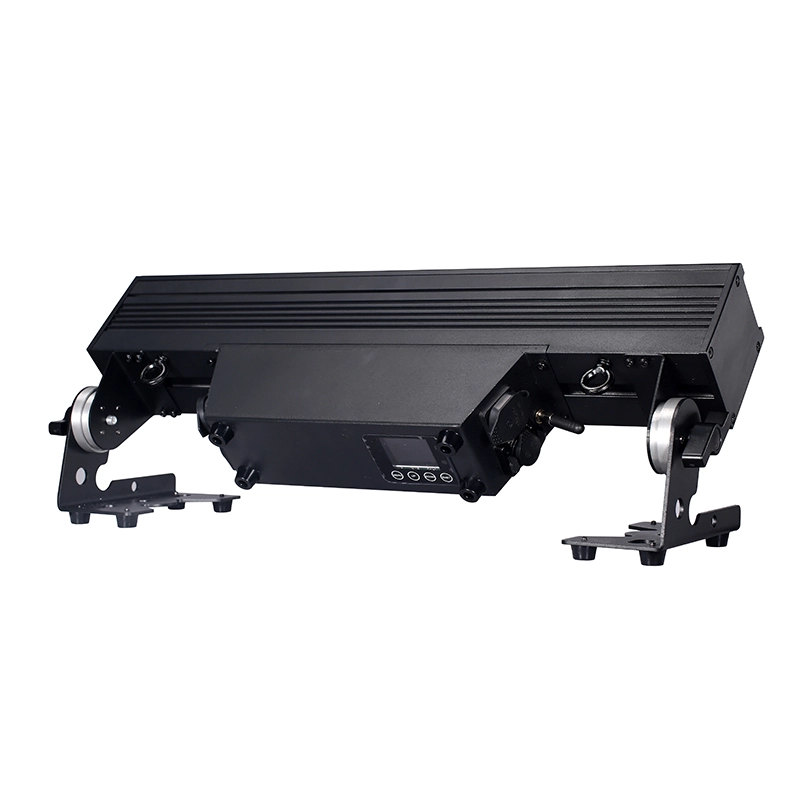

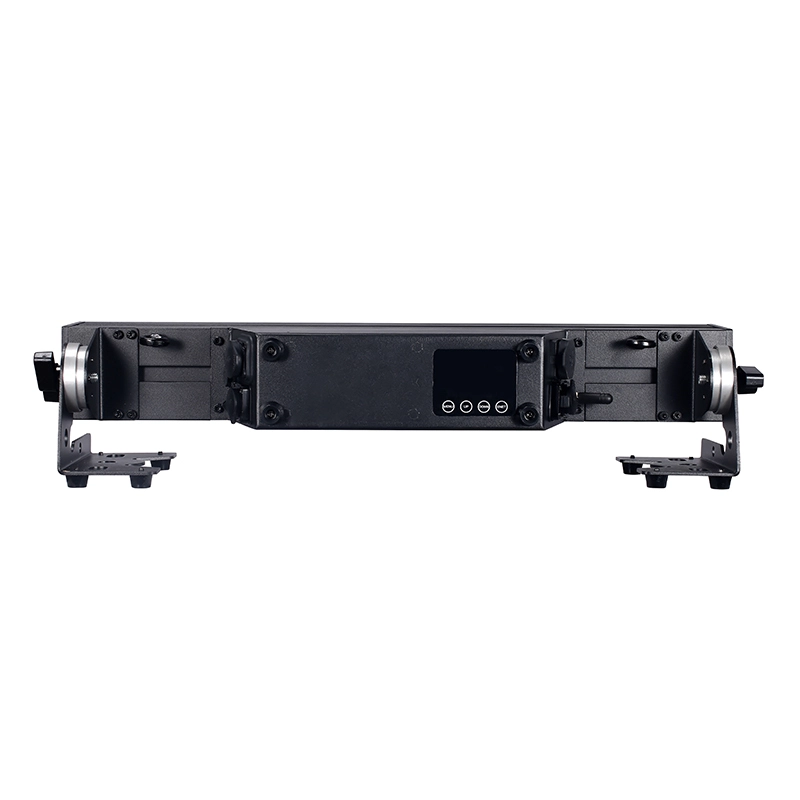

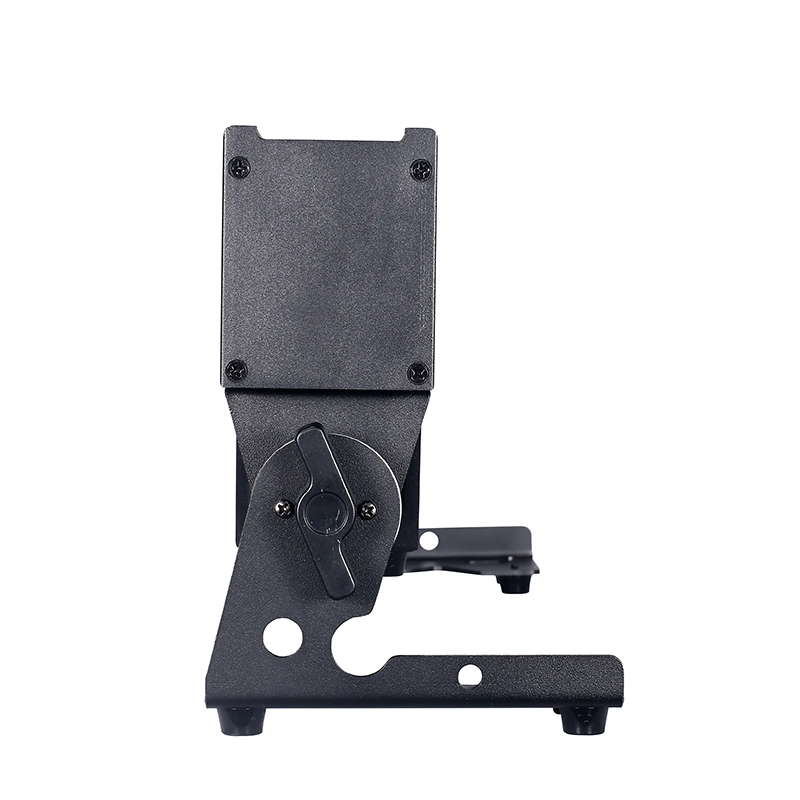

GML BATTERY BAR 9 IP Wireless Battery Outdoor LED Bar
GML BATTERY BAR 9 IP Wireless Battery Outdoor LED Bar

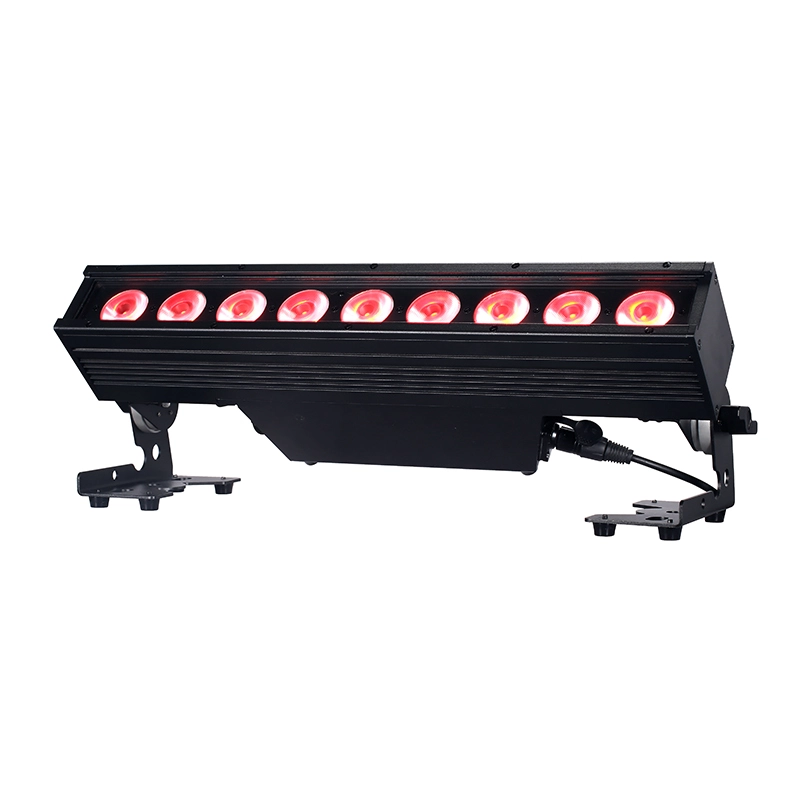

Linear Optical Array and Spectral Performance

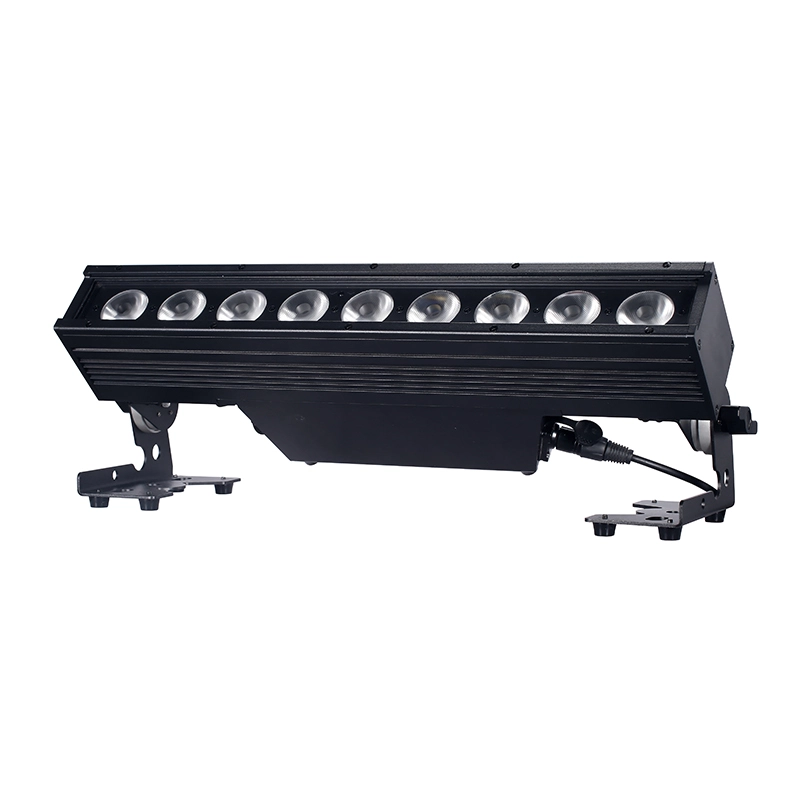

The GML BATTERY BAR 9 IP is a wireless battery-powered outdoor linear wash luminaire fitted with 9 high-output 18W RGBWA+UV (6-in-1) LEDs. It delivers full-gamut chromatic saturation with calibrated color temperature adjustment from 2700K to 10000K in 300K intervals. Lens angle options include 15°, 25°, or 40° dispersion patterns. Driven by a 64kHz ultra-high PWM refresh rate, the unit guarantees silent, flicker-free dimming across all shutter angles on digital video cameras. Emitter lifetime is rated at 50,000 hours.
Autonomous Battery Core and IP65 Enclosure
Constructed within an IP65 ingress-protected housing, the fixture operates reliably across humid and wet outdoor environments. The onboard 24,000 mAh battery bank incorporates premium 18650 lithium cells engineered for 500+ charge/discharge cycles. Fast recharging delivers significant recovery in 3 hours, achieving complete charge in 8 hours. Operating runtimes are rated at 3 hours under full-white RGBWA+UV, 15 hours under single-color static wash, and 7 hours under automated self-run transitions.
Control Interfaces and Network Integration

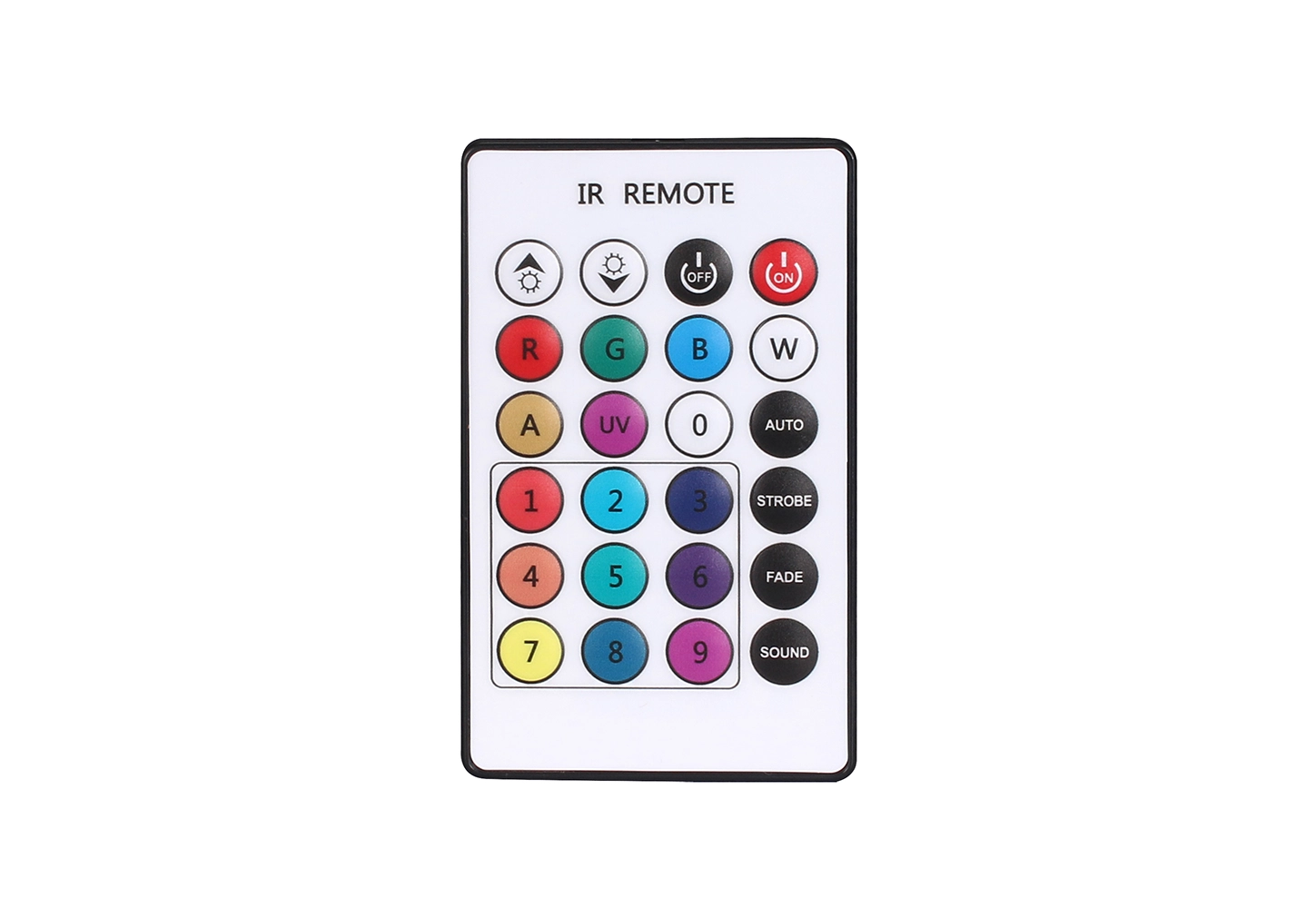

Operational control is facilitated through integrated 2.4GHz wireless DMX, hardwired DMX512, handheld infrared remote, and an iOS/Android mobile control app. Onboard setup is configured via an OLED touch screen interface. Mains input spans AC 100–250V 50/60Hz with a rated electrical power draw of 120W.
Specifications
DIMENSIONS(MM)
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.

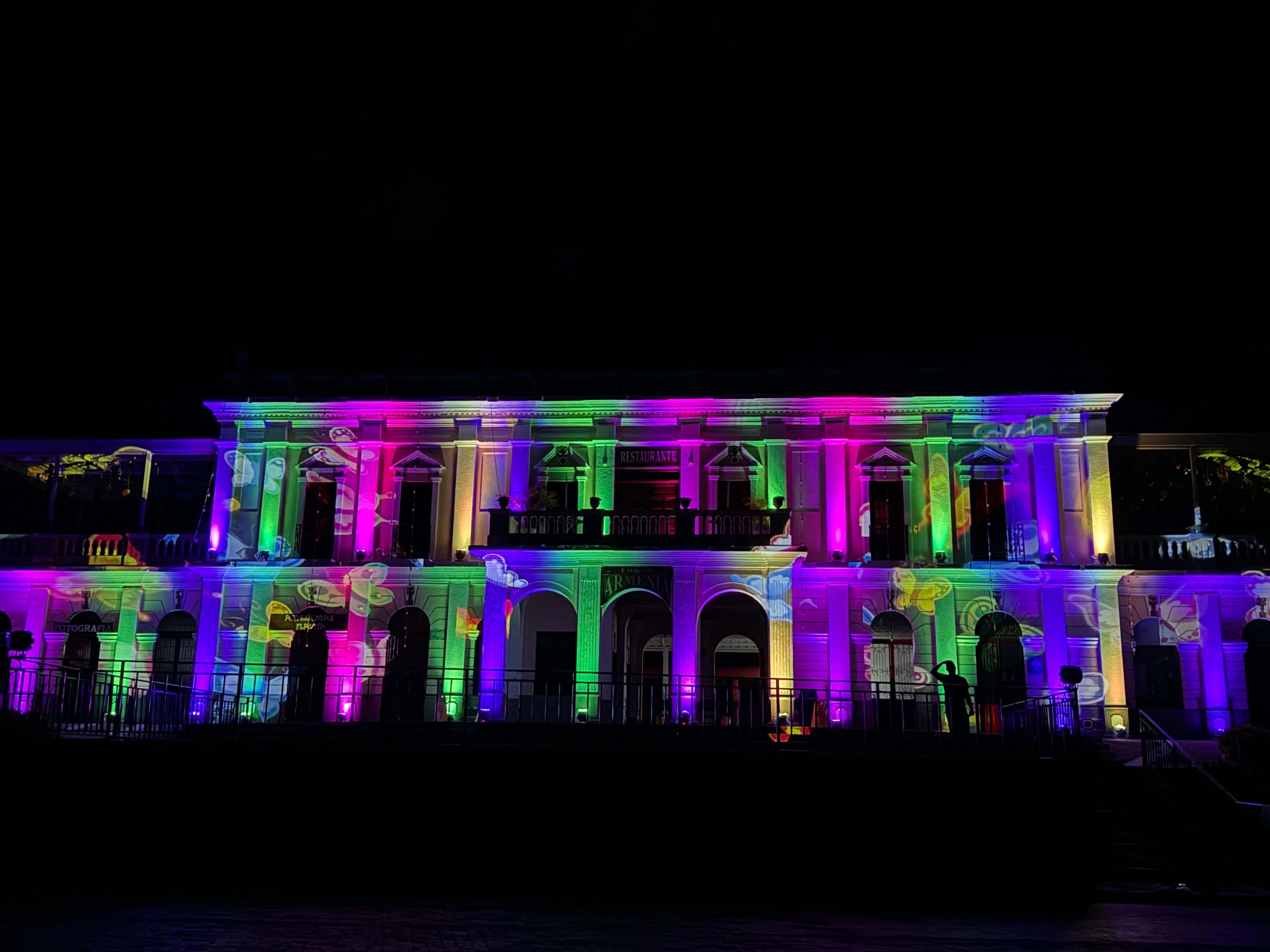

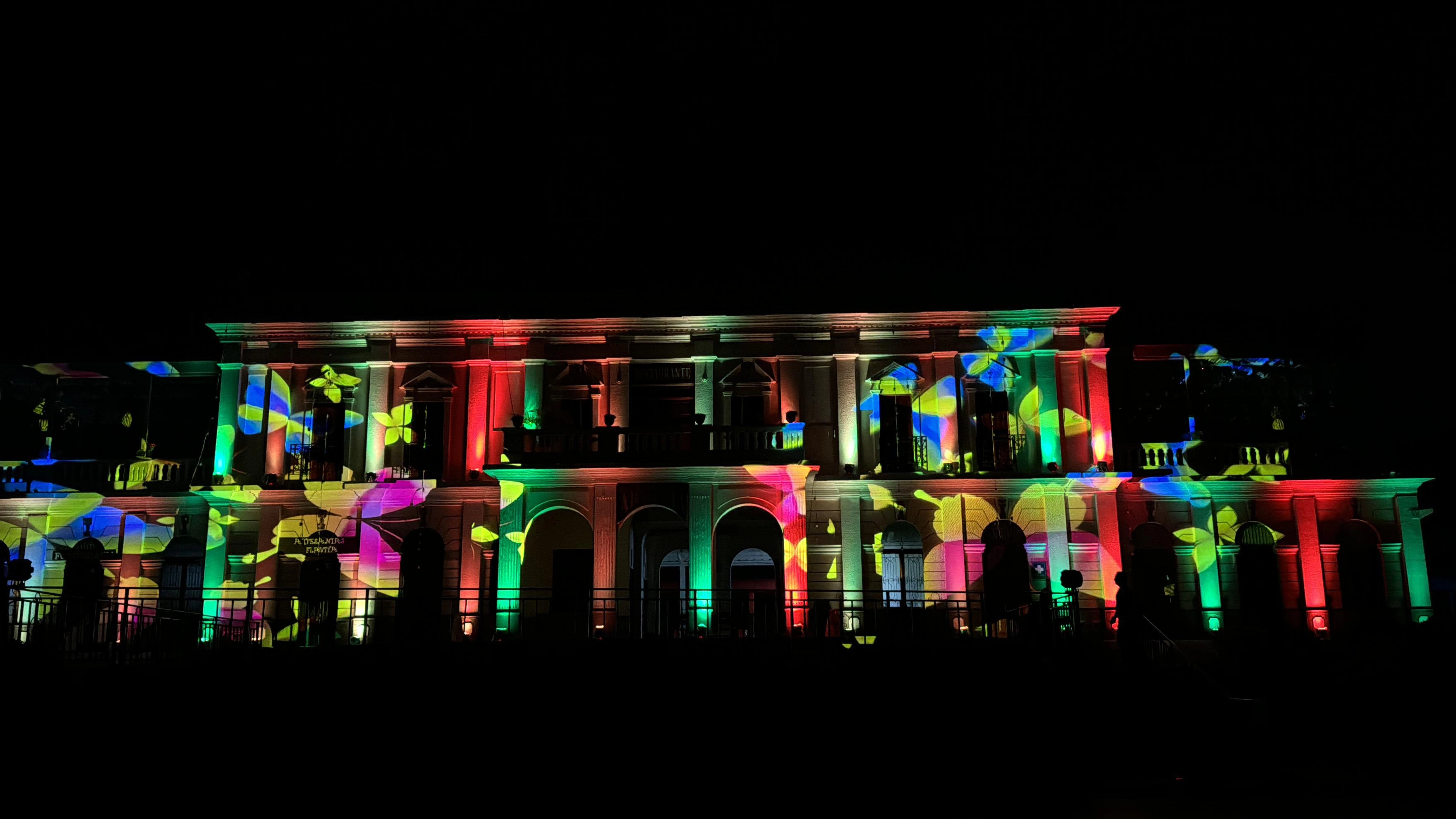

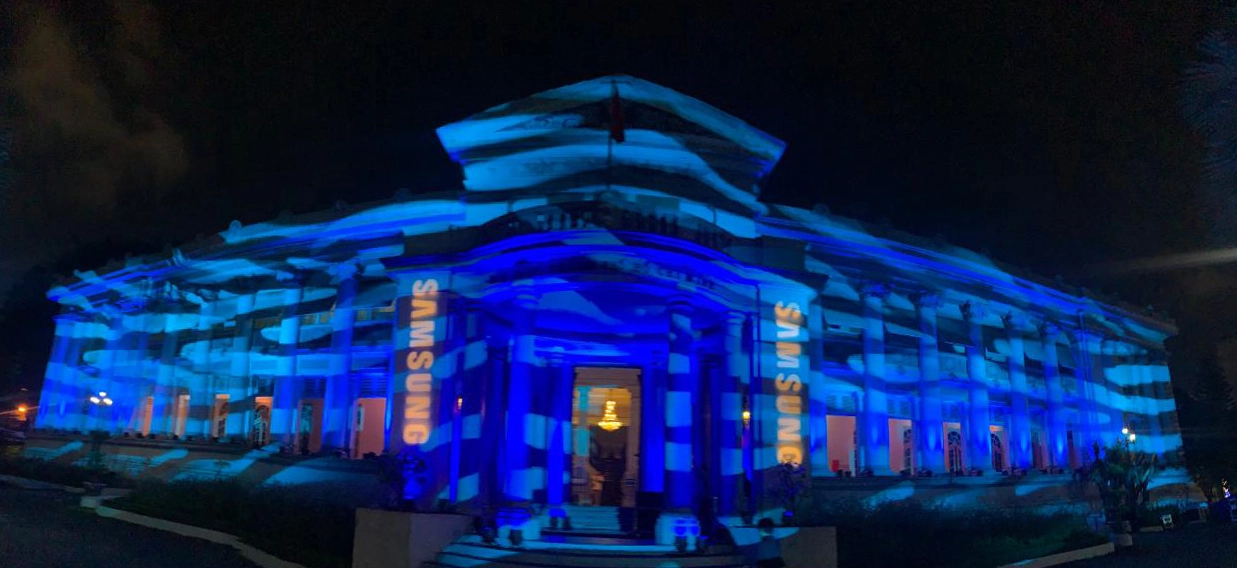

Effect Projections
