GML B-EYE 1940 RING IP
GML B-EYE 1940 RING IP
Concept & Optical Performance

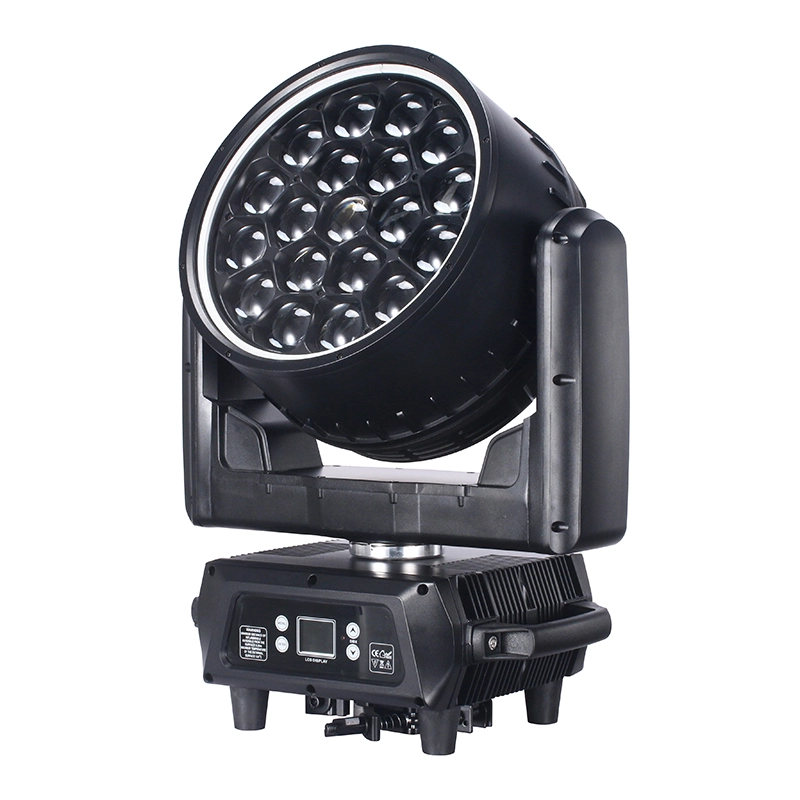

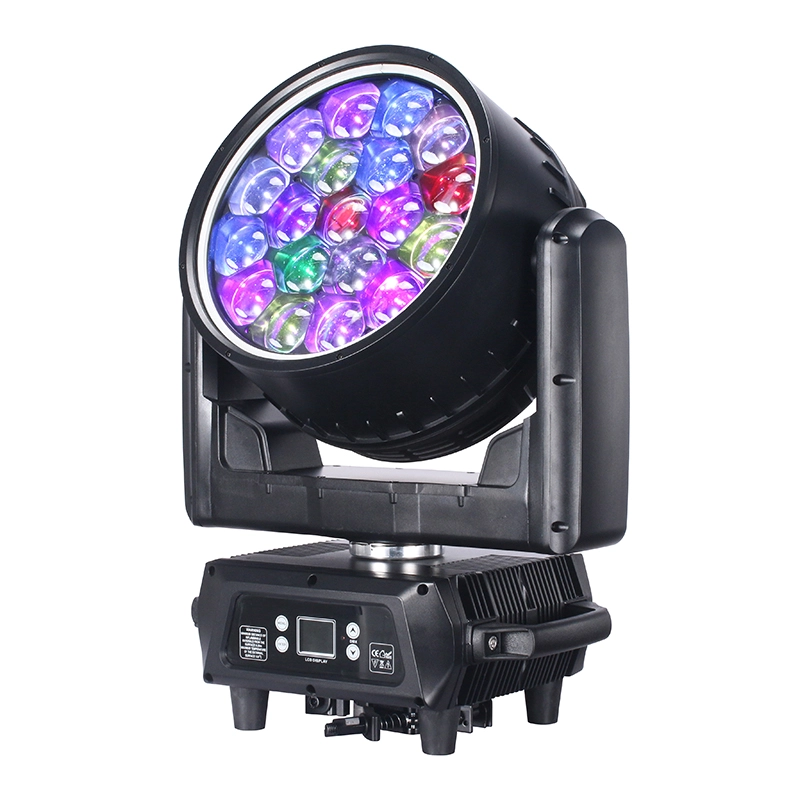

GML B-EYE 1940 RING IP is an all-weather IP65 multi-optical LED moving head engineered in a die-cast aluminum housing for high-impact outdoor festival stages. Its primary cluster integrates 19 × 40W Osram RGBW 4-in-1 LEDs with per-pixel addressability, surrounded by an independently controlled RGB LED halo ring delivering continuous rainbow eye-candy animations.
Key Functional Features
- Zoom & Vortex Mechanics: 4–45° motorized zoom through PMMA optics and glass light pipes, paired with continuous infinite bi-directional rotation of the front lens array (Vortex & Kaleidoscope effects).
- Quad Operational Profiles: seamless execution of Wash, tight Beam, Graphic pixel-mapping, and dynamic spatial Effect modes.
- Aura Halo Ring: autonomous outer perimeter LED ring running fluid multi-color chases and rainbow macros.
- Magnetic Encoder Precision: magnetic position sensors driving 540° Pan and 216° Tilt (16-bit) with flawless reset repeatability, 1.77-inch flip OLED display.

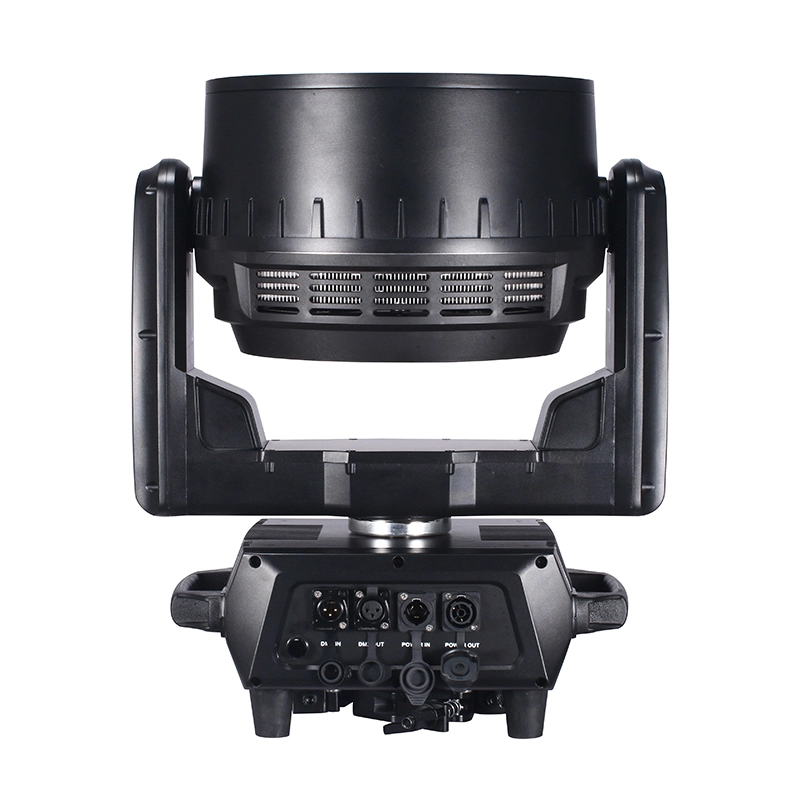

- IP65 Tour Construction: IP65 ingress protection, Seetronic PowerCON True1 IP65 connectors, DMX512/RDM across 22/26/36/97 channels, 850W total power, 22 kg net weight.
Applications
Engineered for open-air festival mainstages, stadium tours, architectural events, and high-profile broadcast productions exposed to rain, humidity, and dust.
Specifications

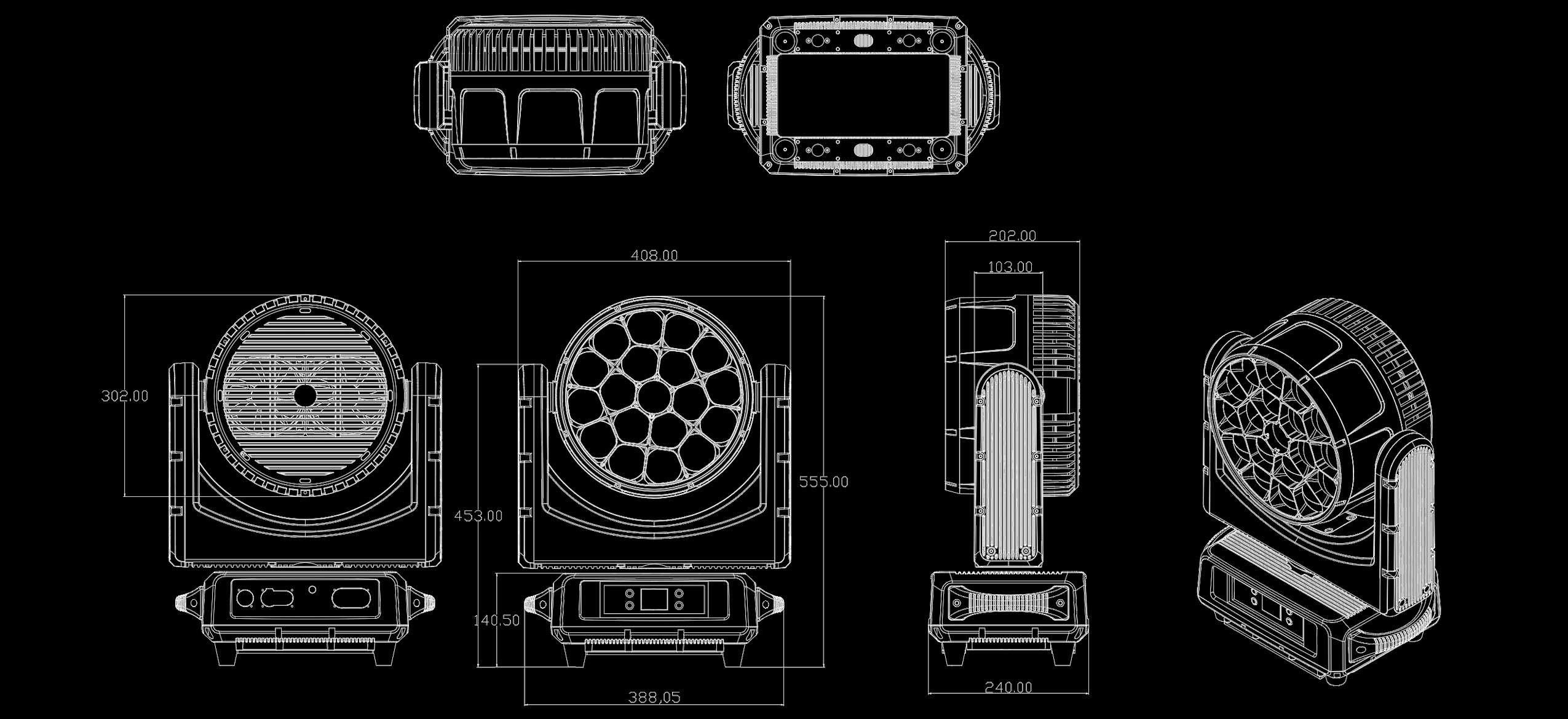

DIMENSIONS(MM)
Technical Dossier
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.

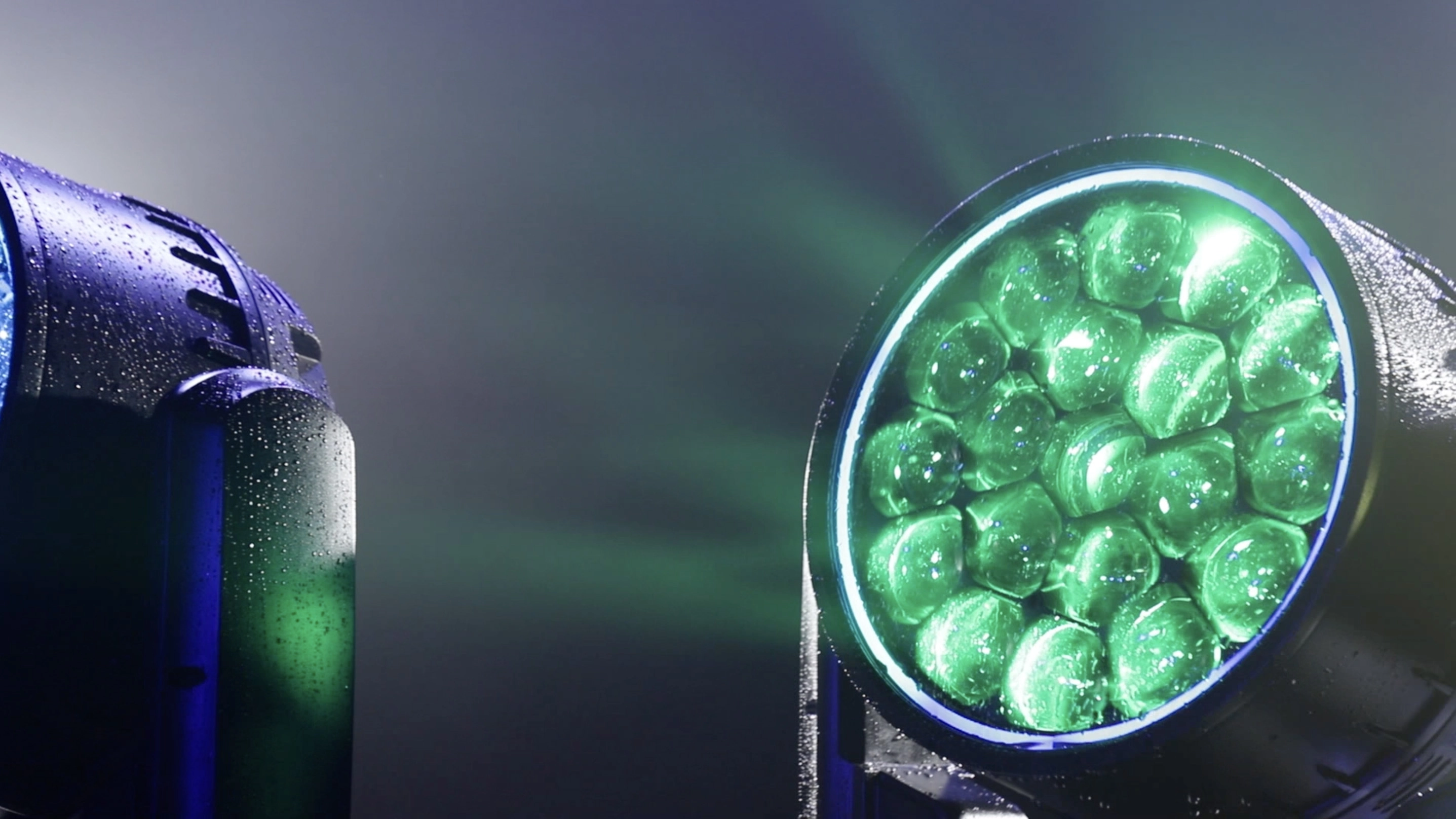

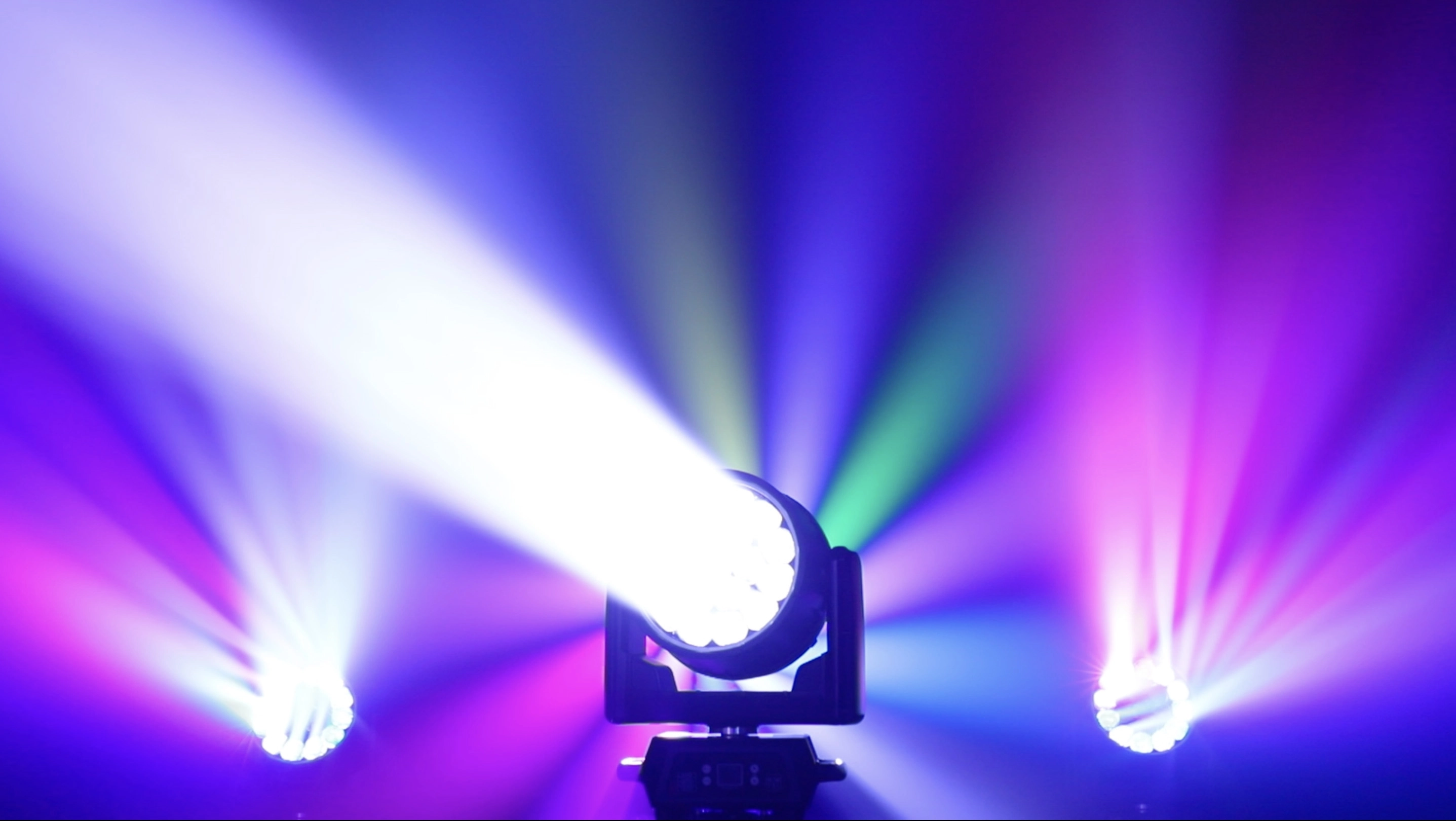

Effect Projections
