GML AURA 1930 IP
GML AURA 1930 IP
Concept and Optical Capabilities

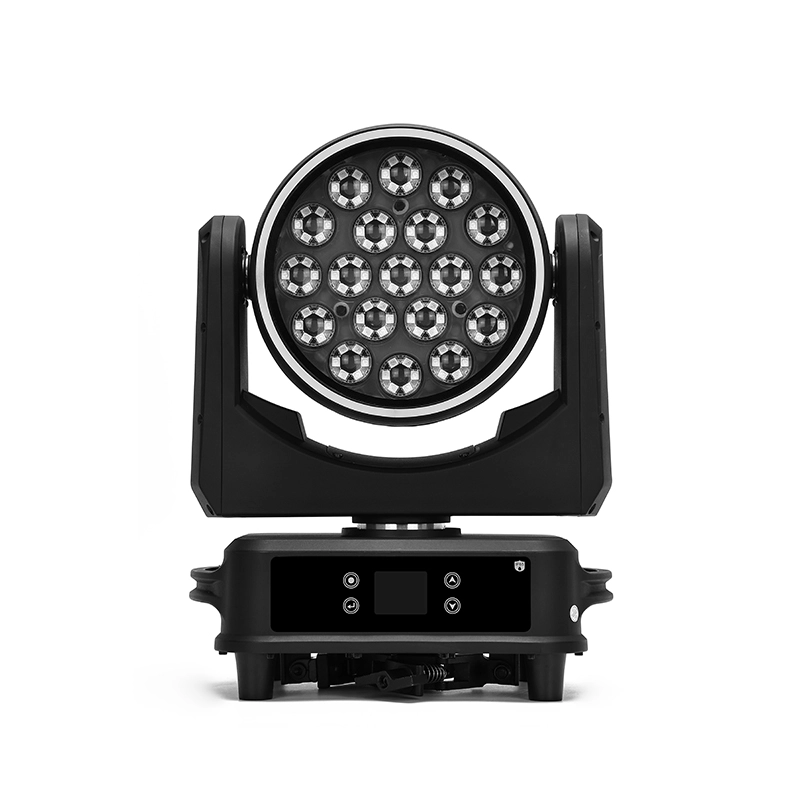

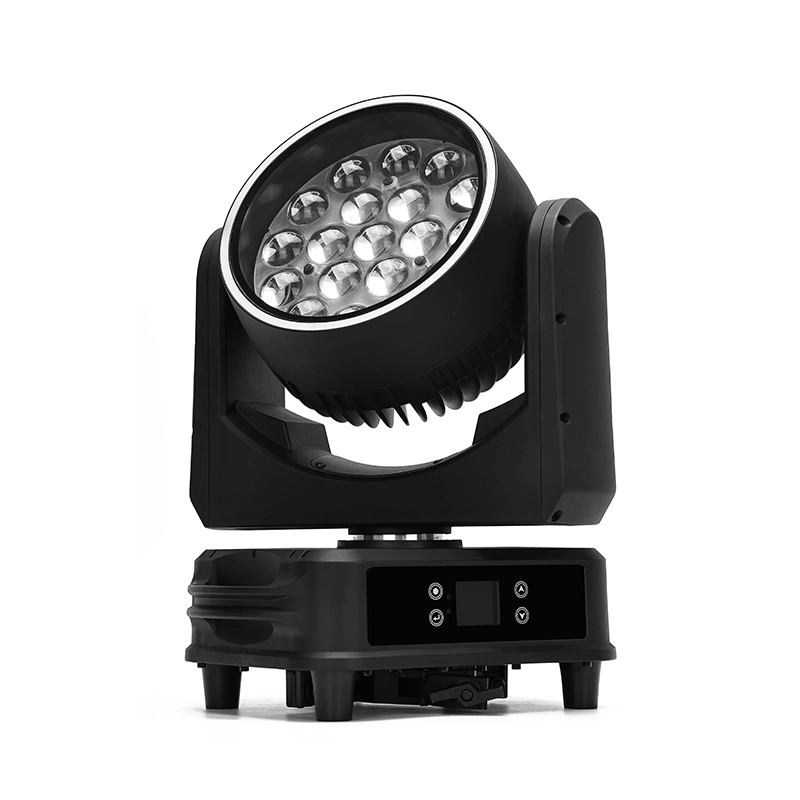

The GML AURA 1930 IP is an IP65 all-weather LED moving head wash luminaire. Its primary optical assembly features 19 × 30W RGBW 4-in-1 LEDs delivering an output of 10,915 lm, supplemented by a dual-zone ring backlight system comprising 168 × RGB 3-in-1 LEDs.
Key Functional Features
- Optical Assembly and Photometrics: Motorized zoom from 10° to 51° delivers 13,920 lx at 5 m in narrow 10° mode and 1,240 lx at 5 m in wide 51° beam spread.

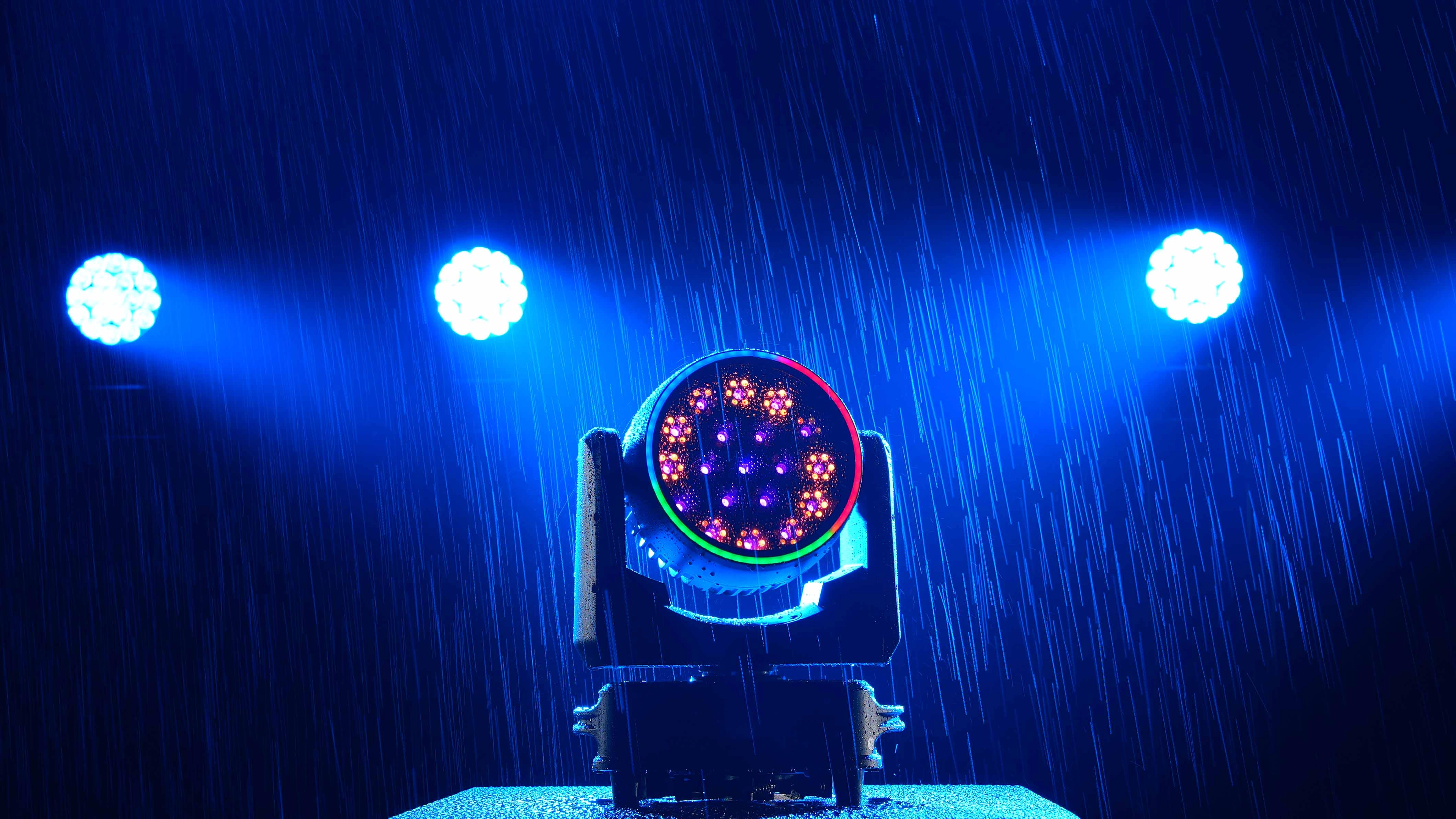

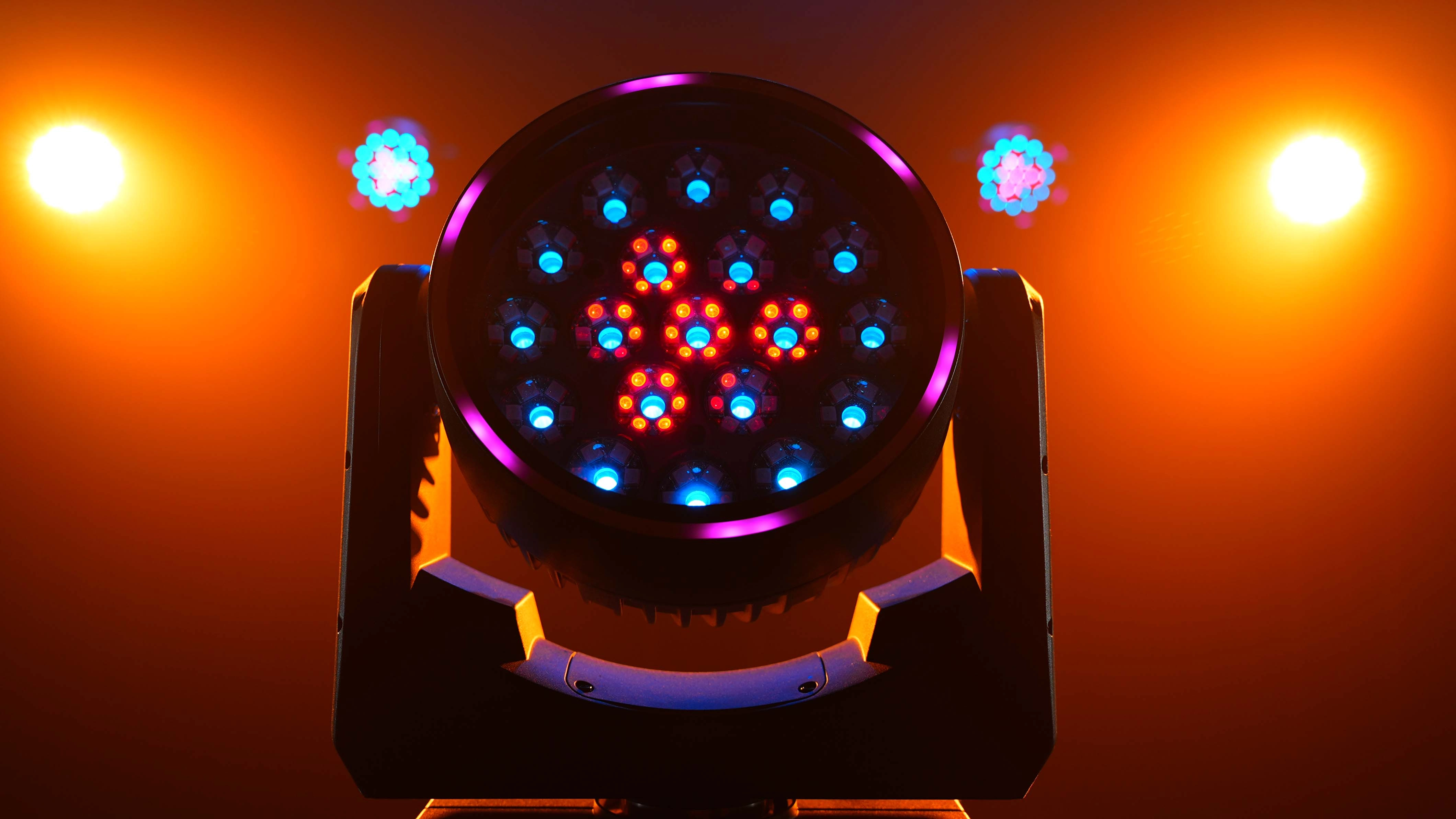

- Dual Aura Ring System: An outer perimeter of 54 RGB emitters and an inner ring of 114 RGB emitters operate as independent graphics layers on the fixture face.
- Dynamic Dimming and Strobe: 0–100% electronic dimming with 4 user-selectable response curves, paired with a 0–20 Hz multi-speed strobe engine.

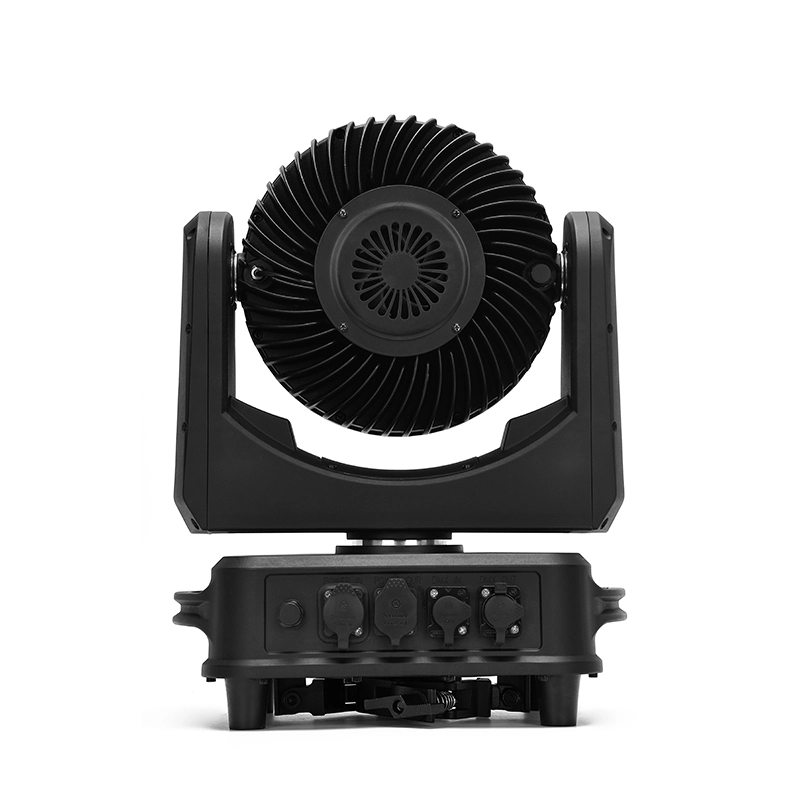

- Control and Mechanics: Native DMX512 and RDM control across 31/32/36/40 channels, Master/Slave and Standalone modes, 16-bit Pan (540°) and Tilt (270°) resolution, and a 180° reversible LCD screen.
Application Scope

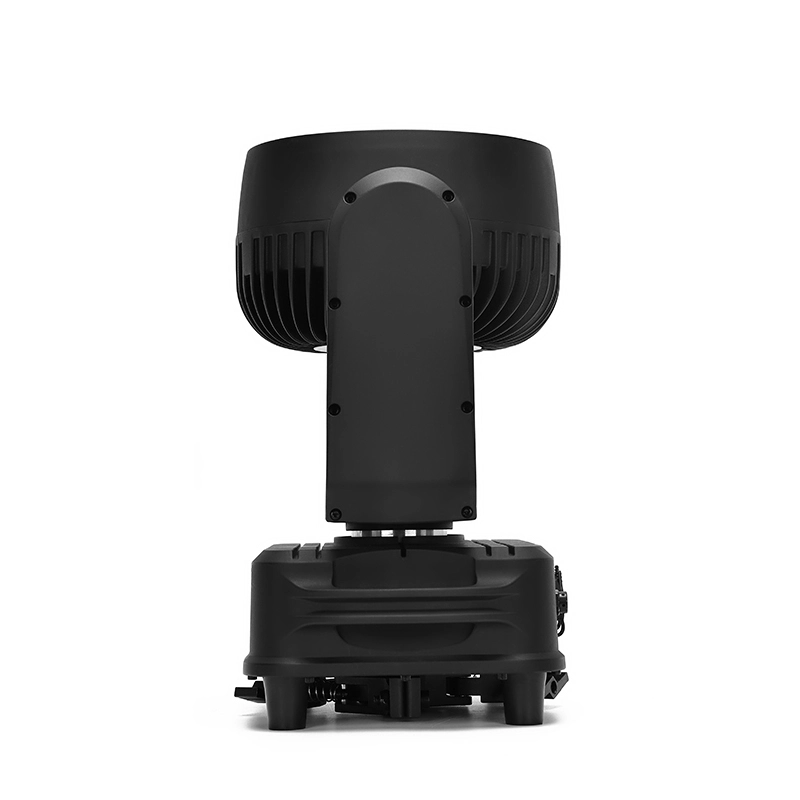

Constructed from an aluminum alloy and high-grade engineering plastic enclosure weighing 11.6 kg, the IP65-rated fixture provides rugged dependability for open-air touring, corporate events, and architectural illumination.
Specifications

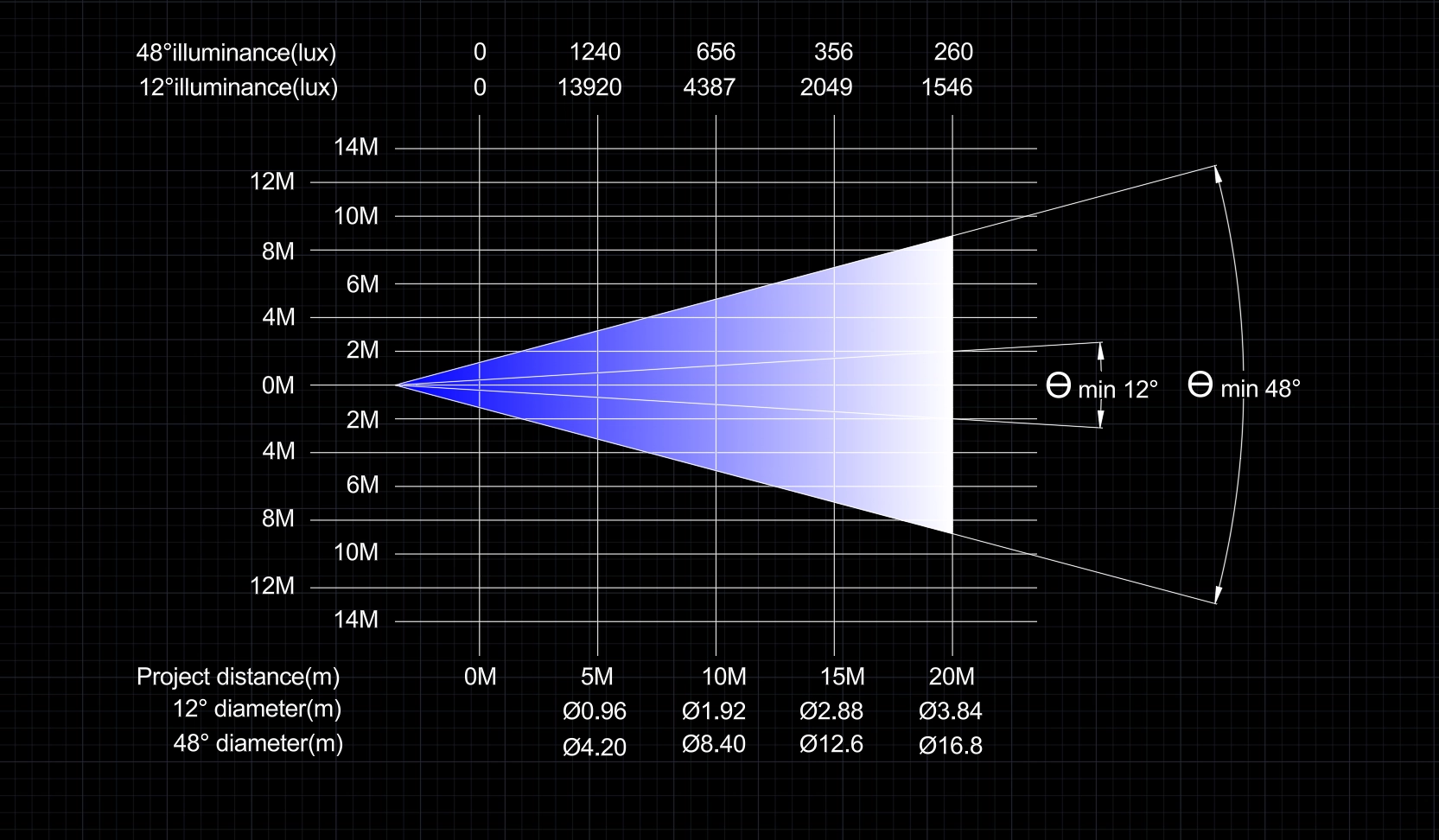

PHOTOMETRICS
DIMENSIONS(MM)
Technical Dossier
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.

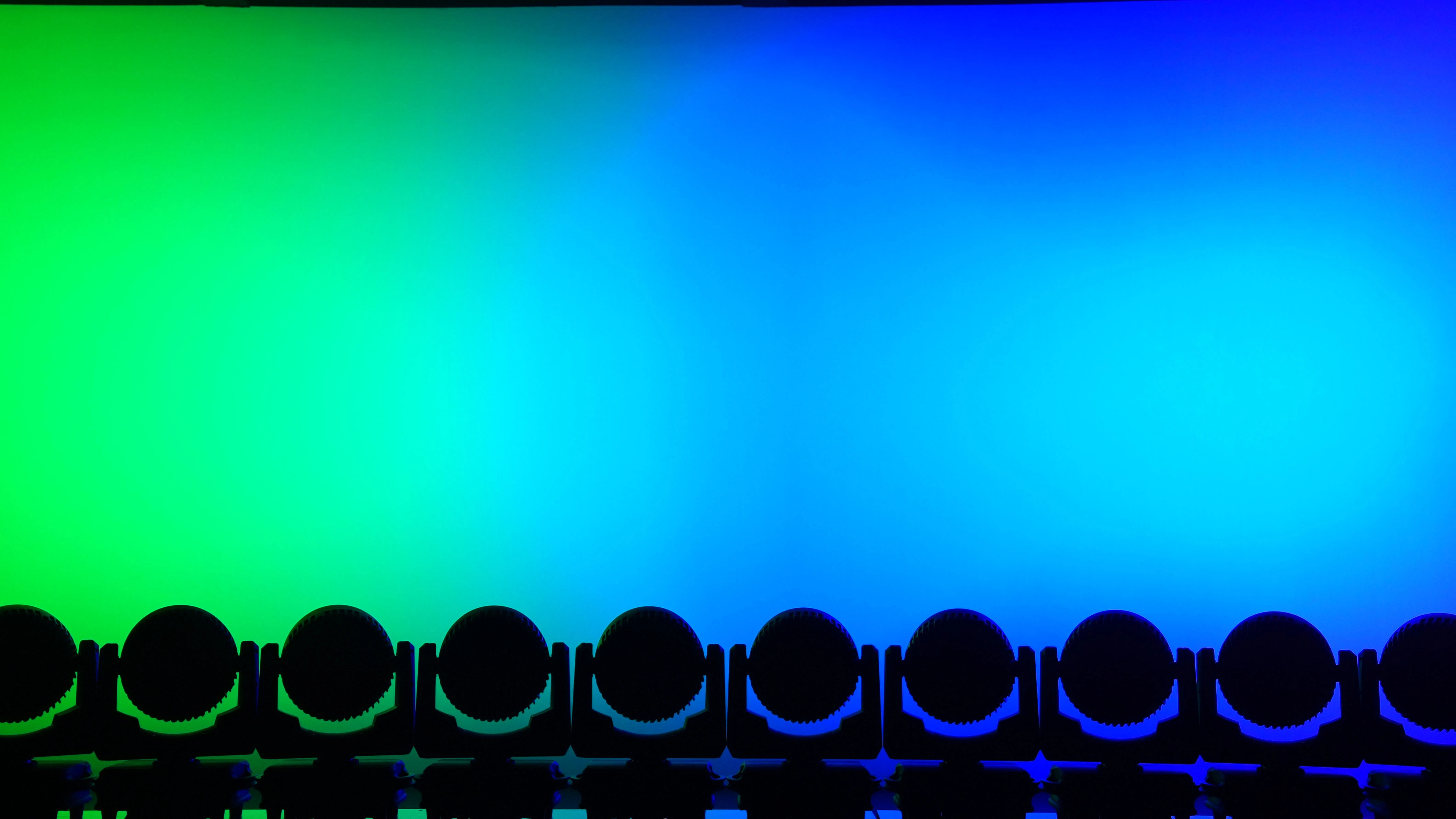

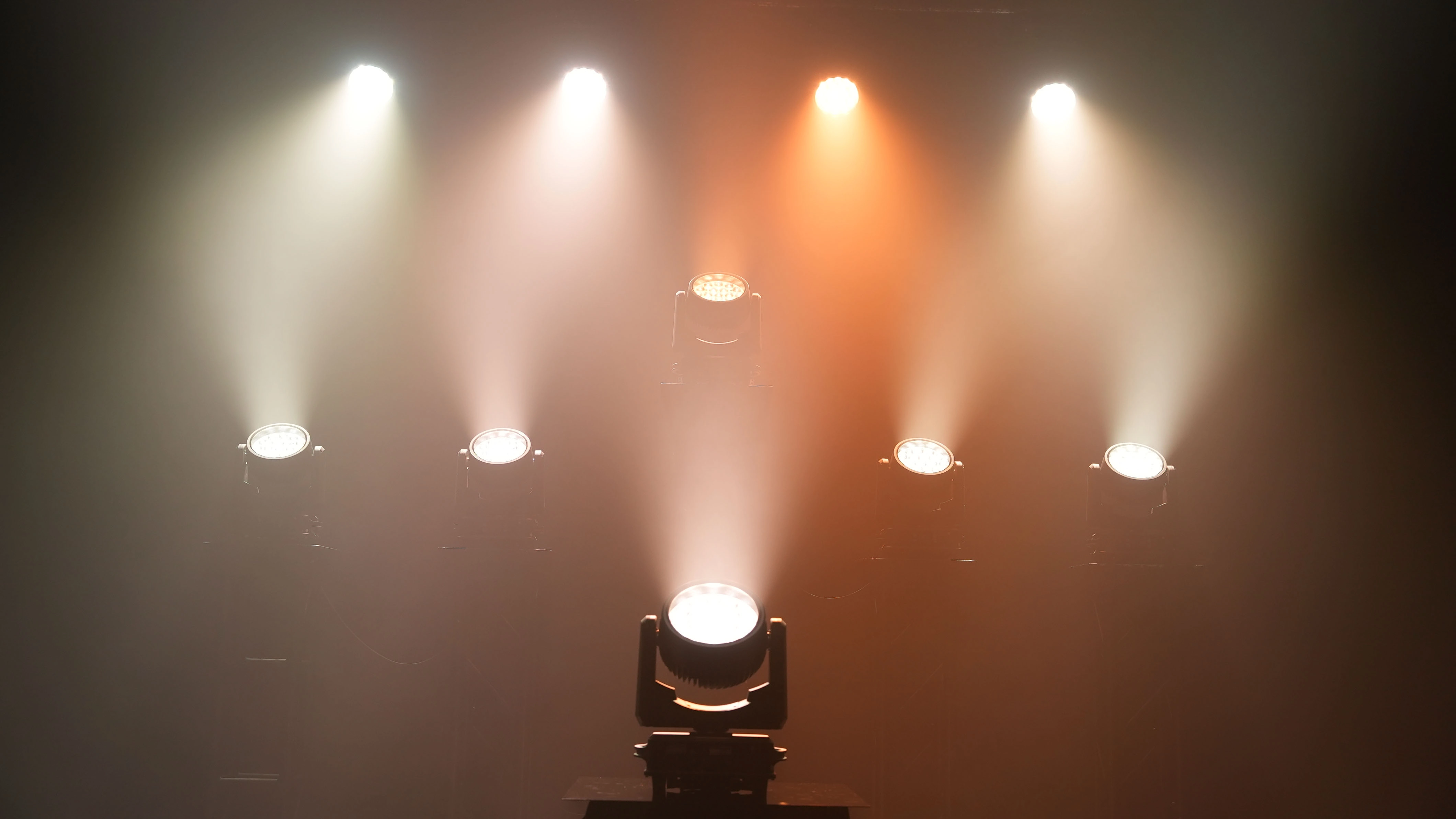

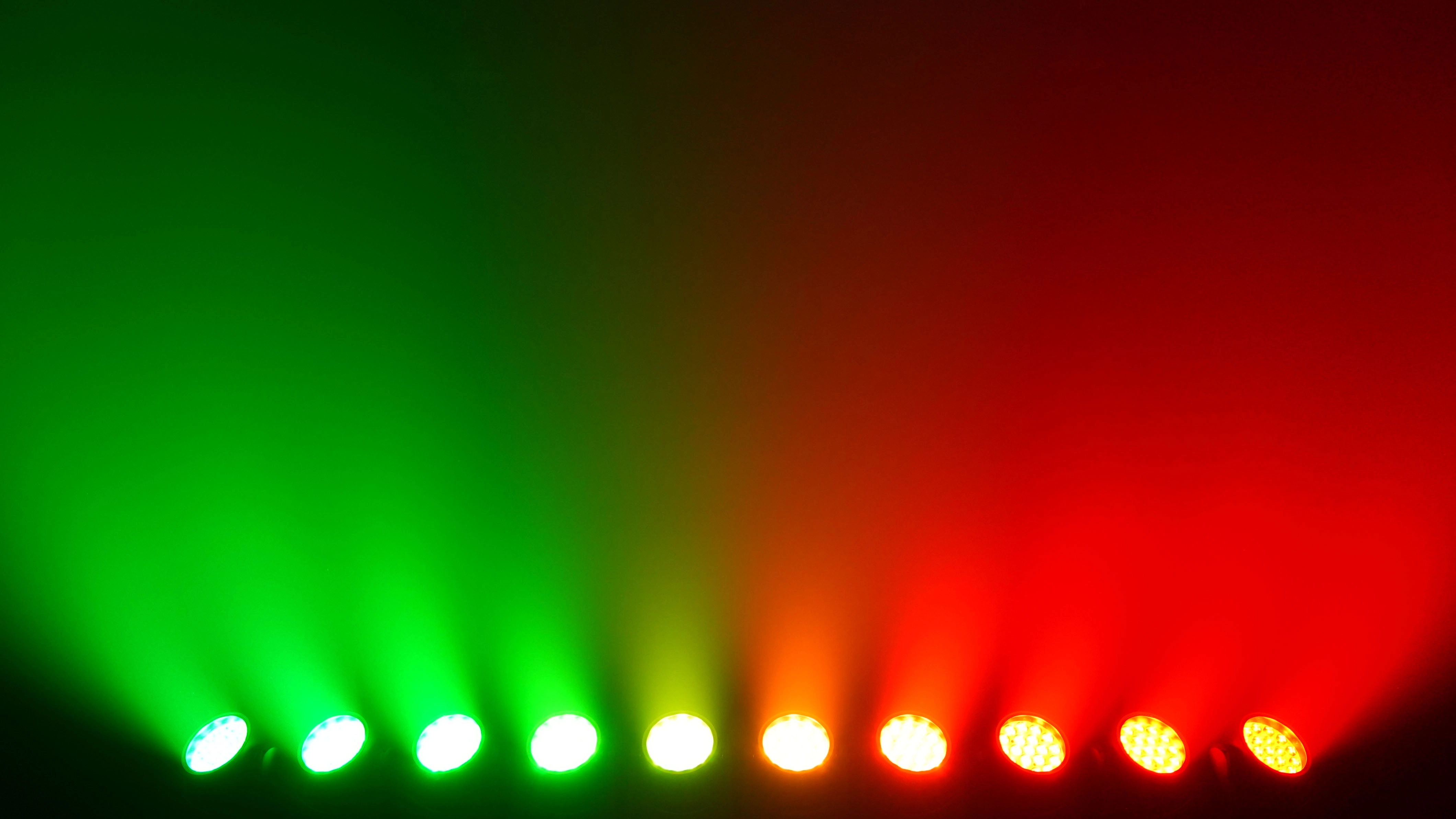

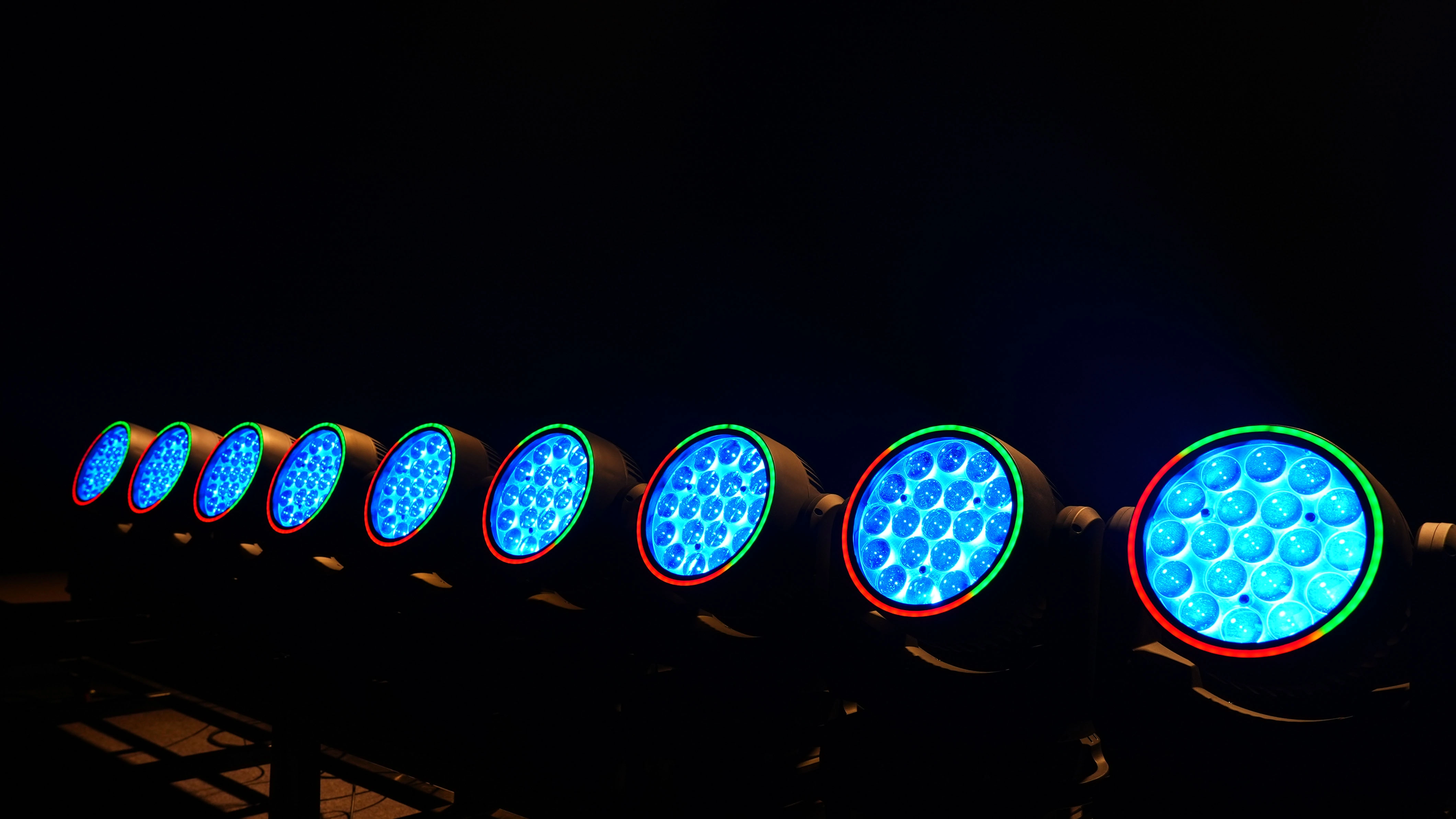

Effect Projections
