ALED BSW 600 CMY IP Moving Head (IP65)
GM-L ALED BSW 600 CMY IP Moving Head (IP65)

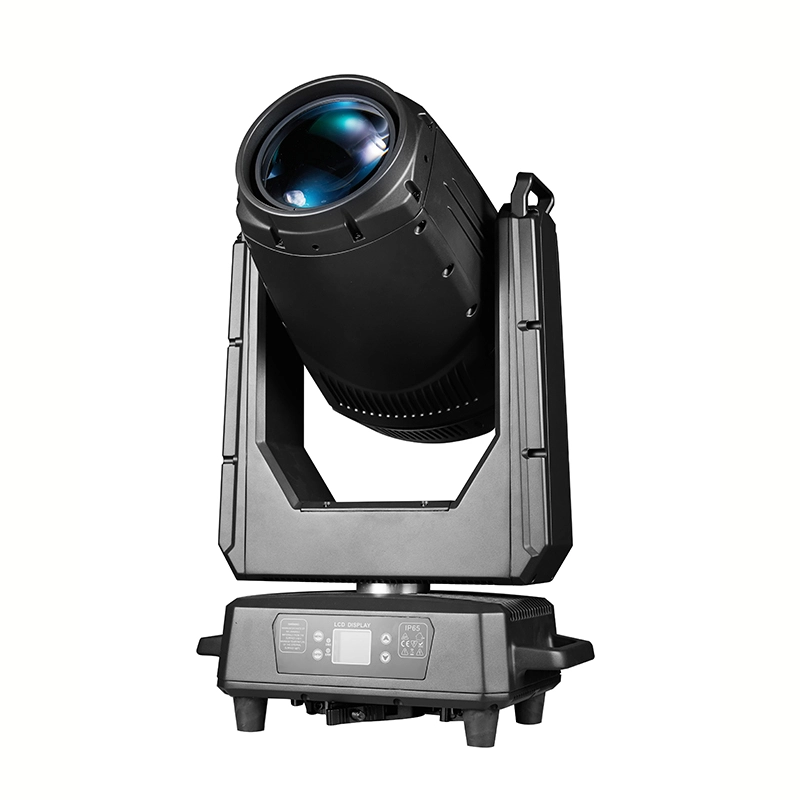

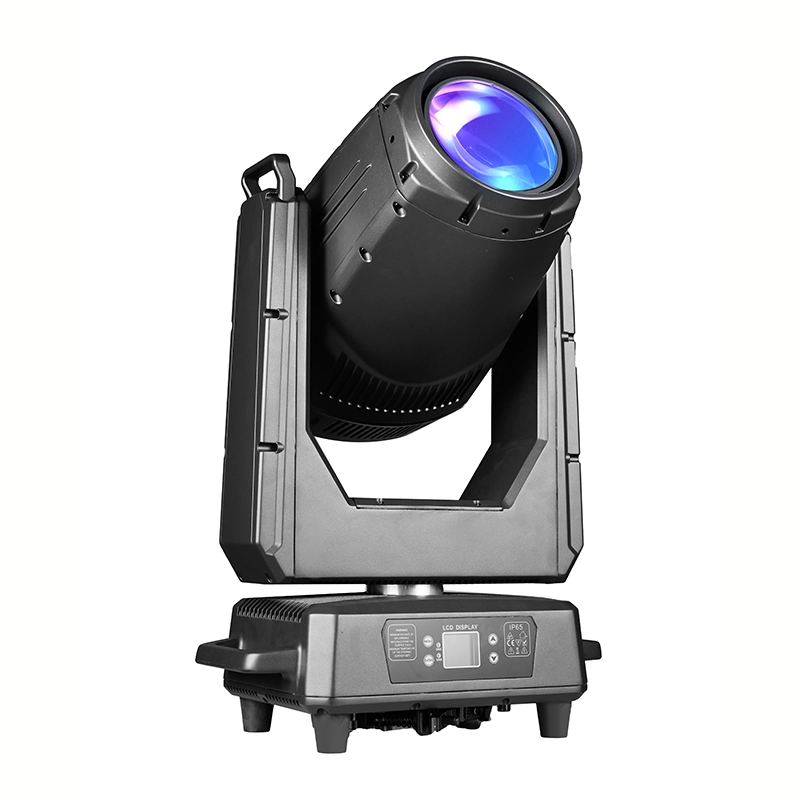

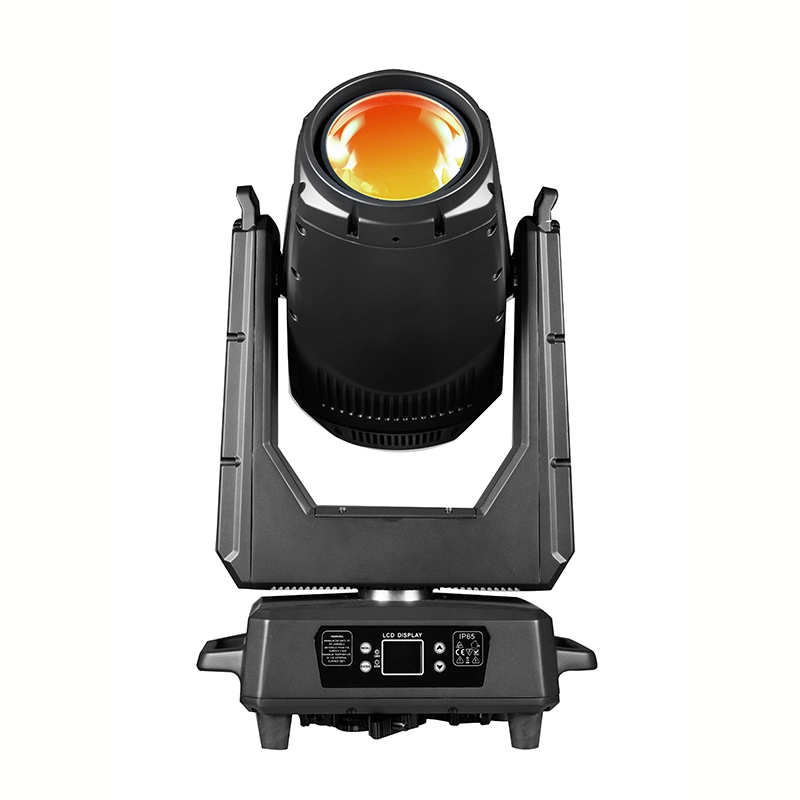

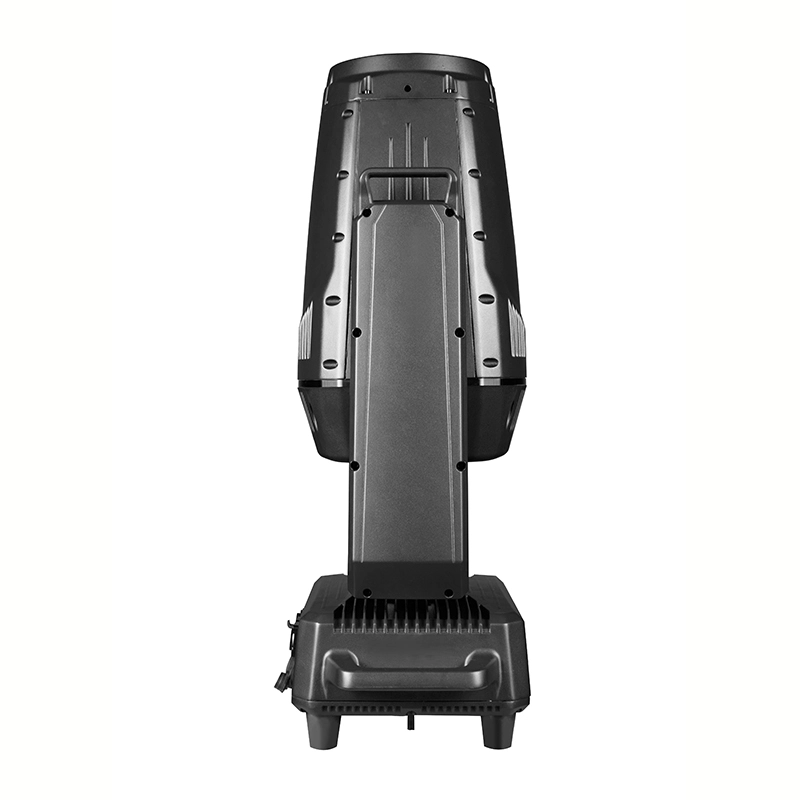

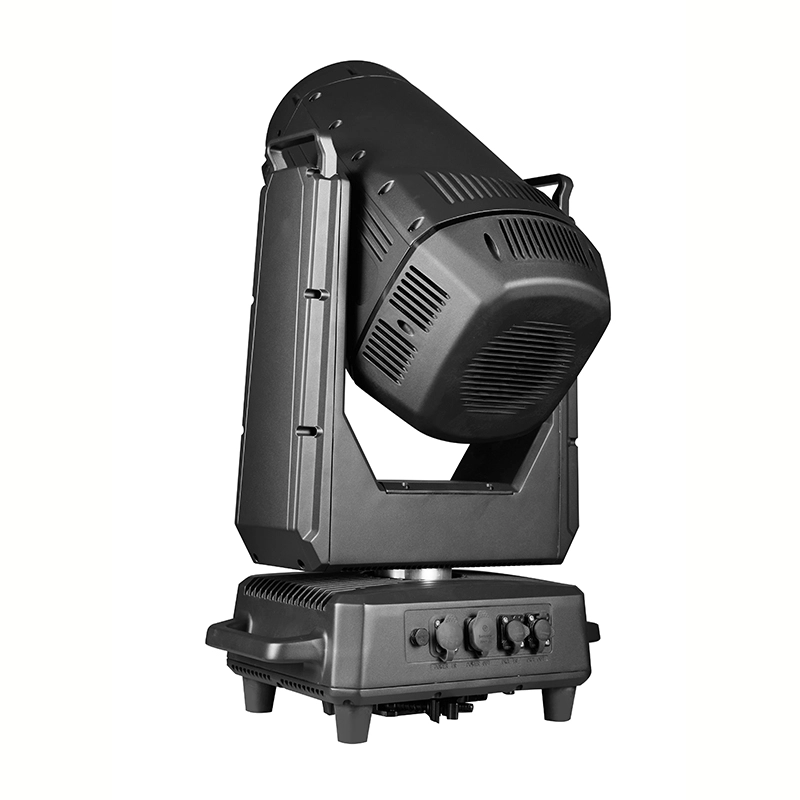

GM-L ALED BSW 600 CMY IP is a high-output IP65-rated all-weather hybrid 3-in-1 automated luminaire (Beam / Spot / Wash) engineered for heavy-duty outdoor festival stages, stadium concerts, and architectural open-air spectacles.

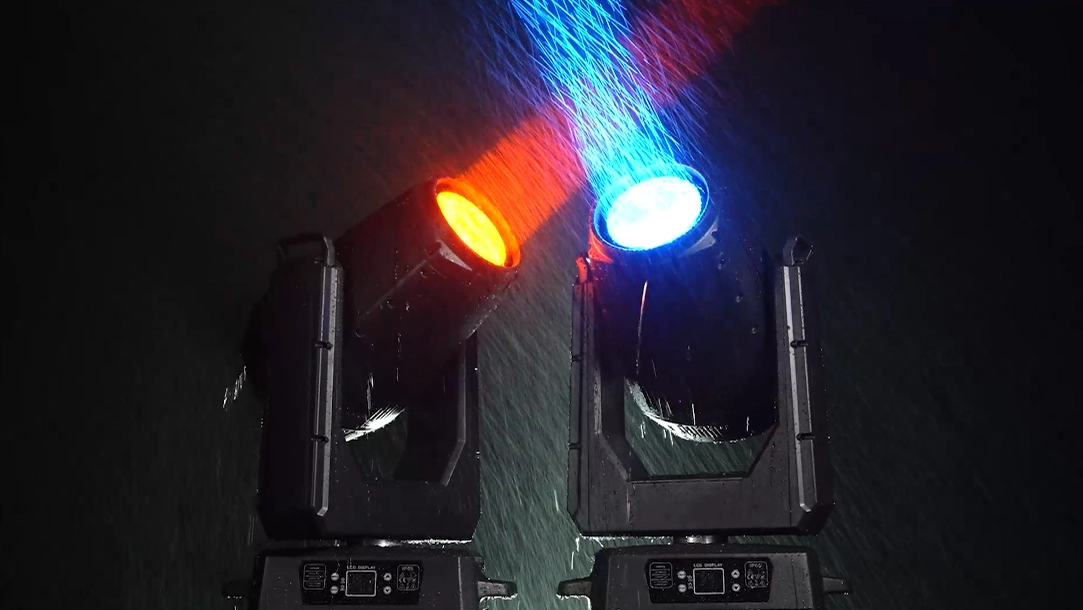

Constructed from a rugged magnalium (magnesium-aluminum) alloy chassis, it delivers true IP65 waterproof, dustproof, and corrosion-resistant operation while maintaining a nimble weight of just 23 kg. At its core is an imported 600W LED module engine calibrated to 8000K with a broadcast-friendly CRI > 85, outputting 12,000 lux at a distance of 15 meters. The precision motorized zoom system spans 3° to 45°, effortlessly shaping piercing aerial beams, crisp textured gobo projections, and smooth, uniform stage washes.

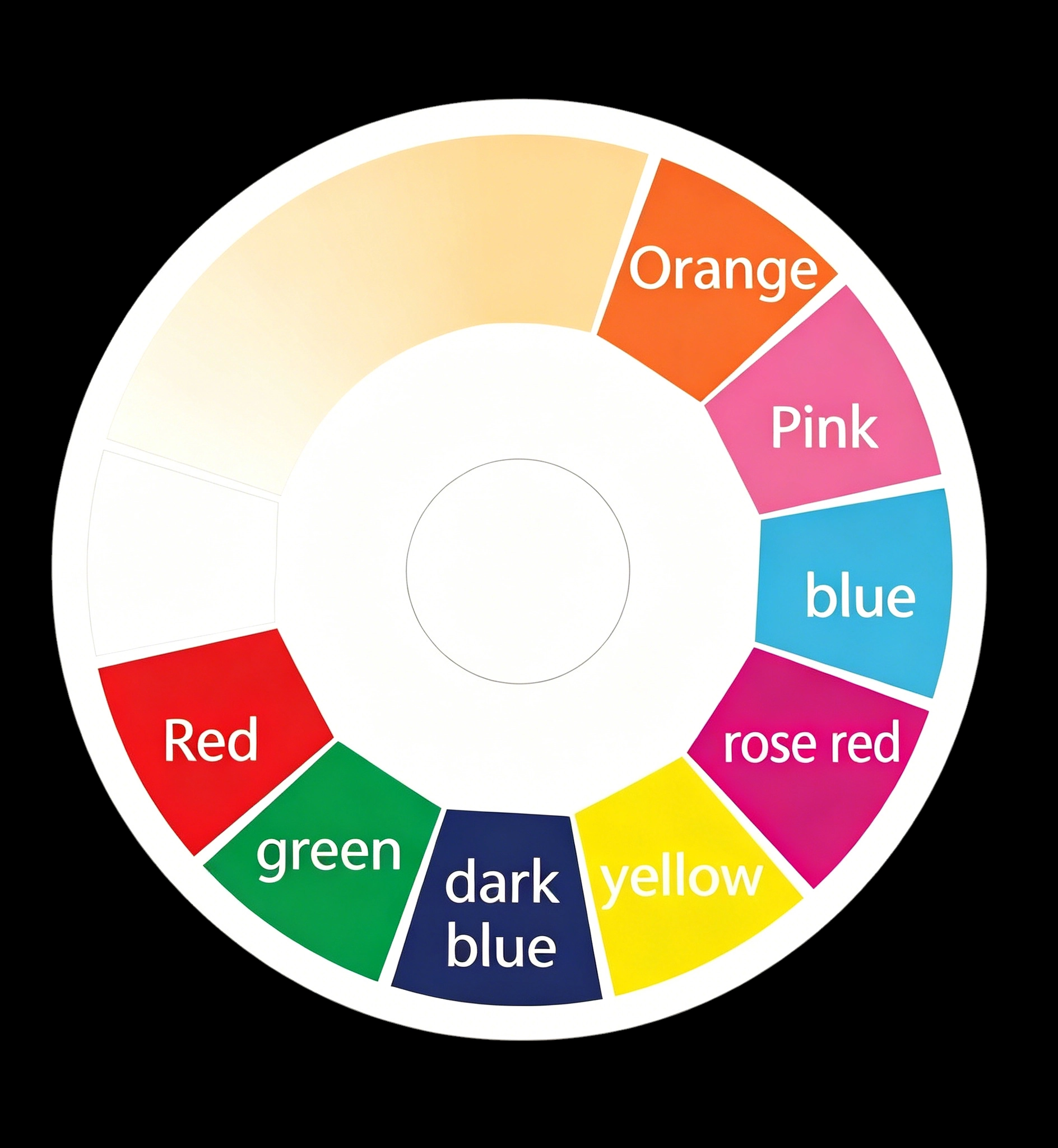

Color reproduction is governed by a seamless subtractive linear CMY system and linear CTO color temperature correction, reinforced by an 8-slot fixed dichroic color wheel with split-color capability. The projection module combines an 11-slot fixed gobo wheel and an 8-slot rotating glass gobo wheel. Multi-dimensional volumetric aerial effects are produced via two independently rotatable prisms (8-facet circular and 6-facet linear) alongside a dedicated frost atomization filter.
Precision 16-bit Pan (540°) and Tilt (270°) motors ensure rapid and whisper-smooth positioning. Waterproof connectivity features Seetronic PowerCON TRUE1 in/out and IP-sealed DMX XLR in/out (23-channel mode).
Specifications

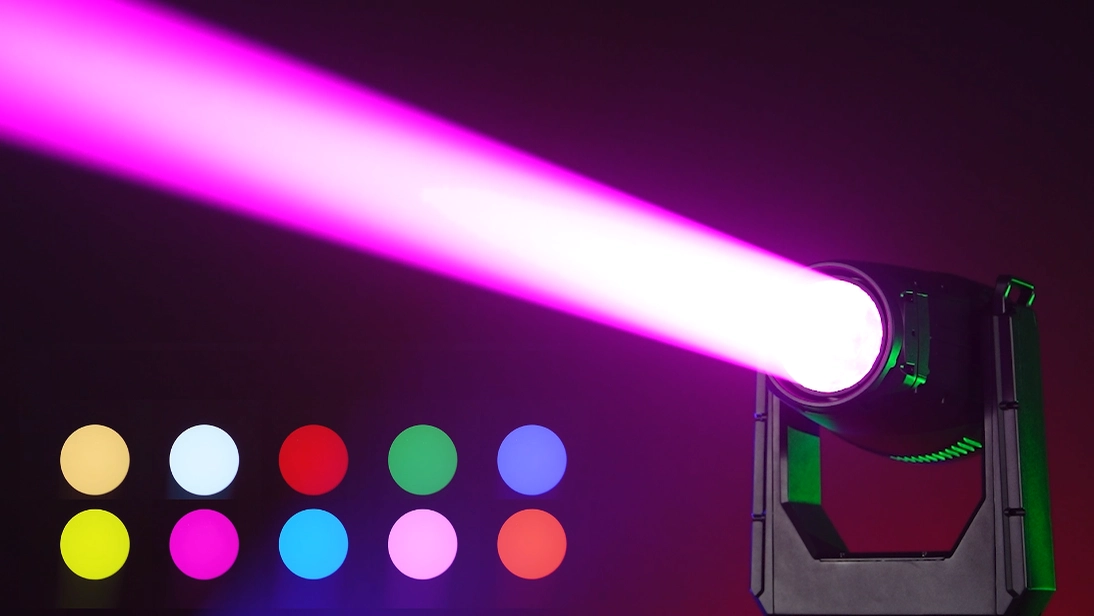

Linear CMY + CTO Color System
Cyan, Magenta, and Yellow dichroic filters adjust color balance across the full visible spectrum. The linear CTO filter corrects color temperature for studio broadcast and camera recording.

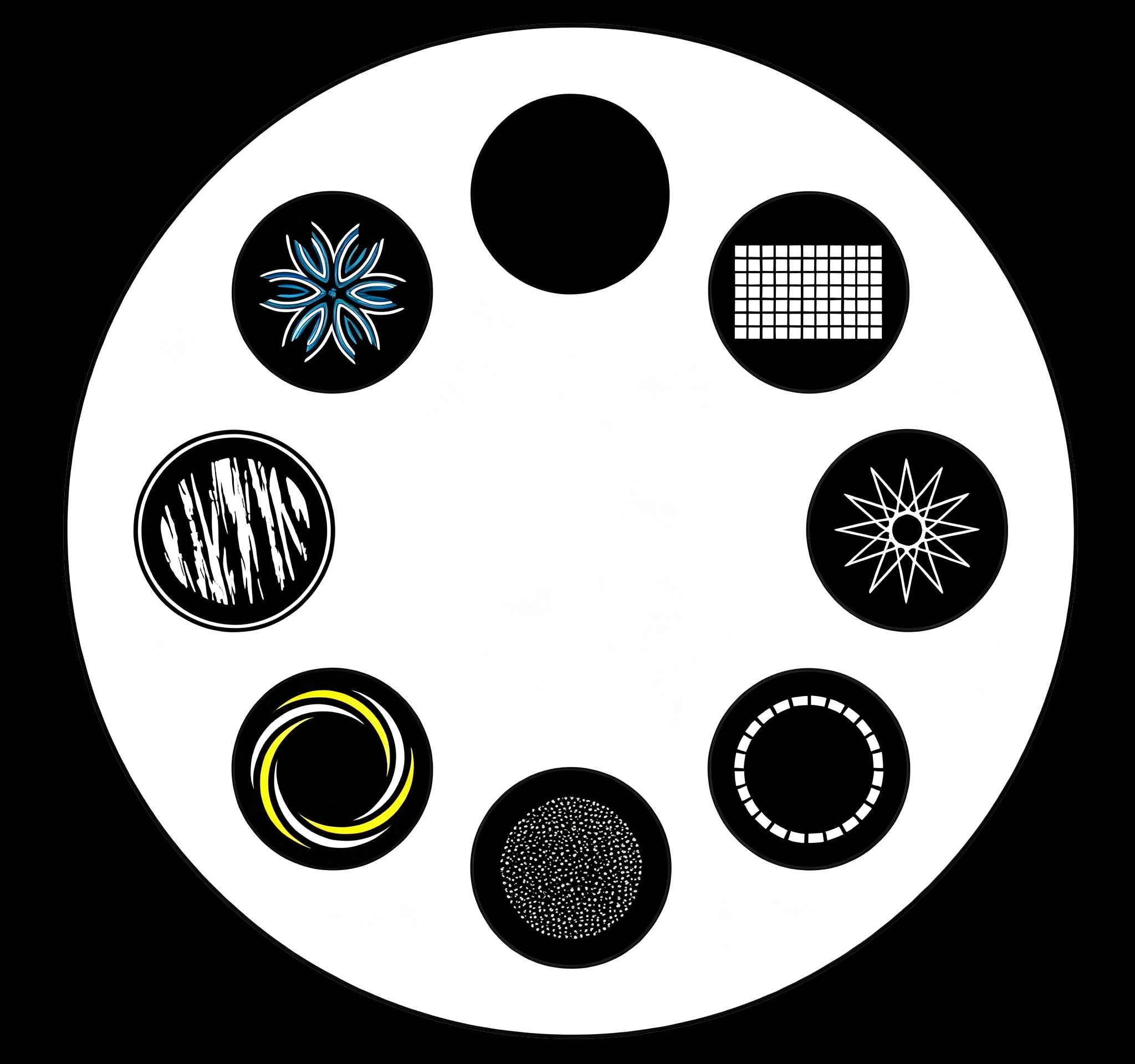

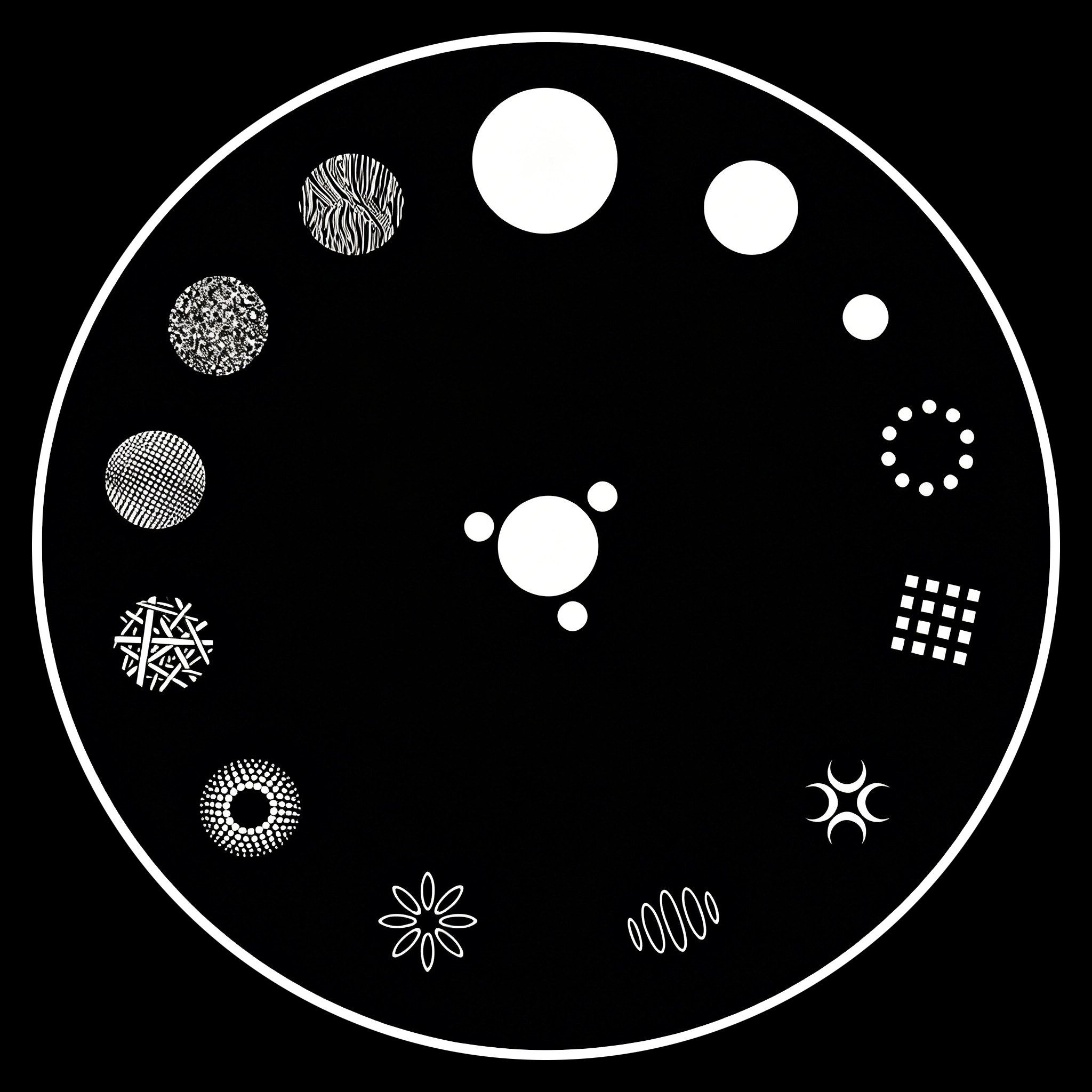

Gobo Projection & Optical Effects
Static gobos for defined geometric textures and rotating glass gobos for continuous dynamic projection, paired with multi-facet bi-directional prisms.

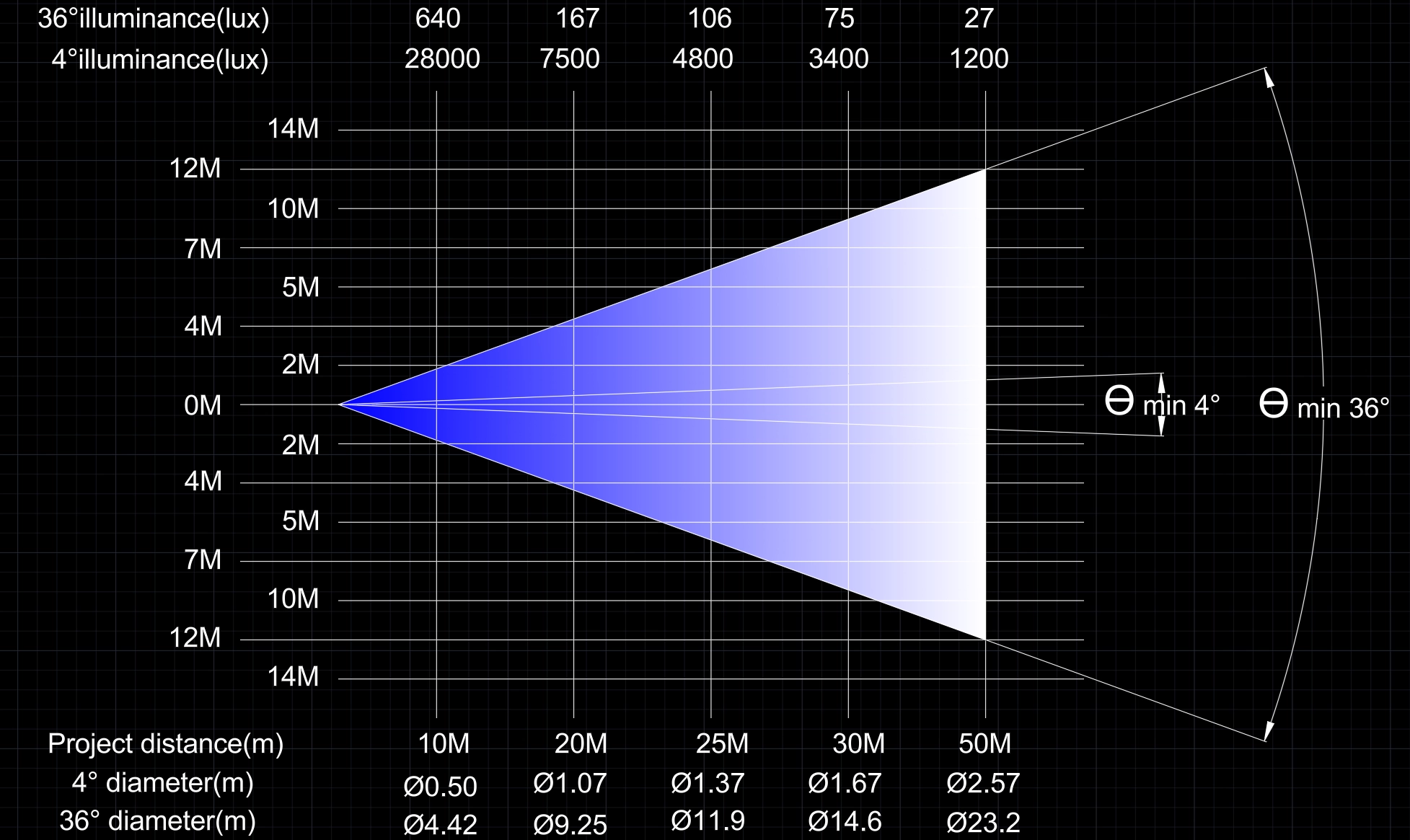

PHOTOMETRICS
DIMENSIONS(MM)
Technical Dossier
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.

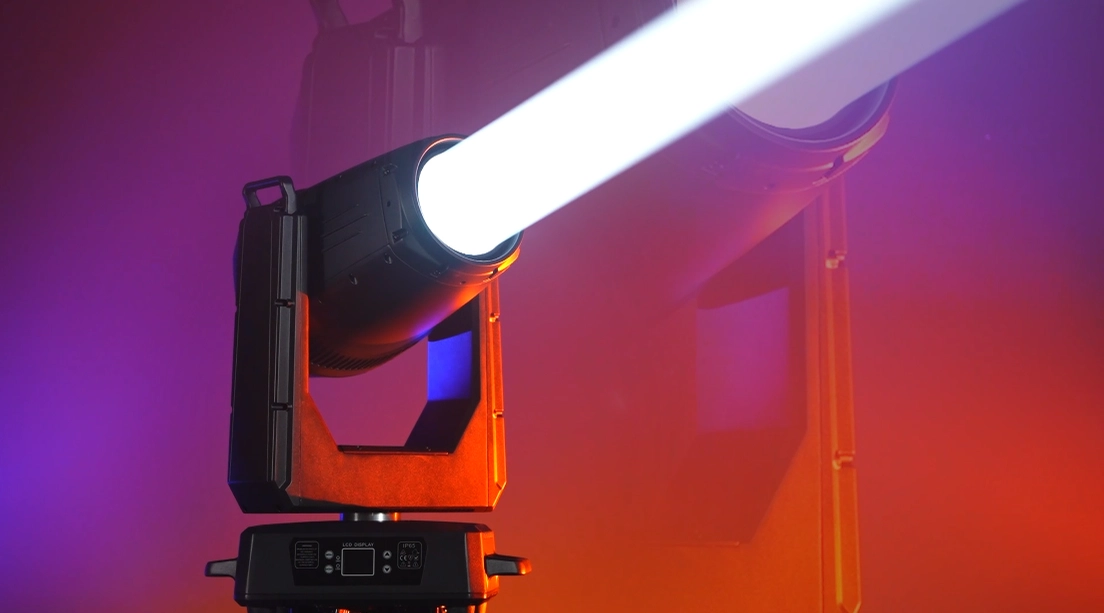

Effect Projections
