GML 360 BATTERY TUBE Wireless 360° Battery Pixel LED Tube
GML 360 BATTERY TUBE Wireless 360° Battery Pixel LED Tube
Concept and Optical Performance
The GML 360 BATTERY TUBE is an IP65 all-weather wireless battery pixel LED tube equipped with a 9600 mAh rechargeable lithium battery pack, designed for cable-free operation on live stages, outdoor sets, and architectural activations. The 360° omnidirectional optical engine features 192 × 0.2W RGBWA 5-in-1 LEDs mapped across 32 individually addressable pixel zones. Integrated CCT tuning spans 1750K to 10000K in 250K increments with high color fidelity.
Battery Autonomy and Enclosure
Encased in a sand-oxidized aluminum alloy chassis, the tube maintains structural durability and natural heat dissipation without noisy fans. Operating runtime lasts up to 8 hours in single-color wash and up to 12 hours under user-selected power saver presets, with a full recharge completed in 7 hours. Supplied accessories include rigging eyebolts, a foldable floor stand, an infrared remote, and a charging unit. Dimensions are 1435 mm length by 50 mm diameter with a lightweight build of 2.5 kg.
Wireless Control Integration
Control protocols encompass Wireless DMX (CRMX compatible), 2.4G mobile app connectivity, IR remote, Madrix playback, and Master-Slave synchronization across 4, 5, 6, 7, 12, 40, 80, and 160-channel profiles. Onboard programming is accessed via a responsive OLED touch display.
Specifications
LET’S START WITH THE REQUIREMENTS.
Stage lighting requires coordinated teamwork. We build long-term relationships based on reliable equipment, quality service, and trusted partnerships. Tell us about your project requirements, and we will select the right fixtures and provide full technical documentation.

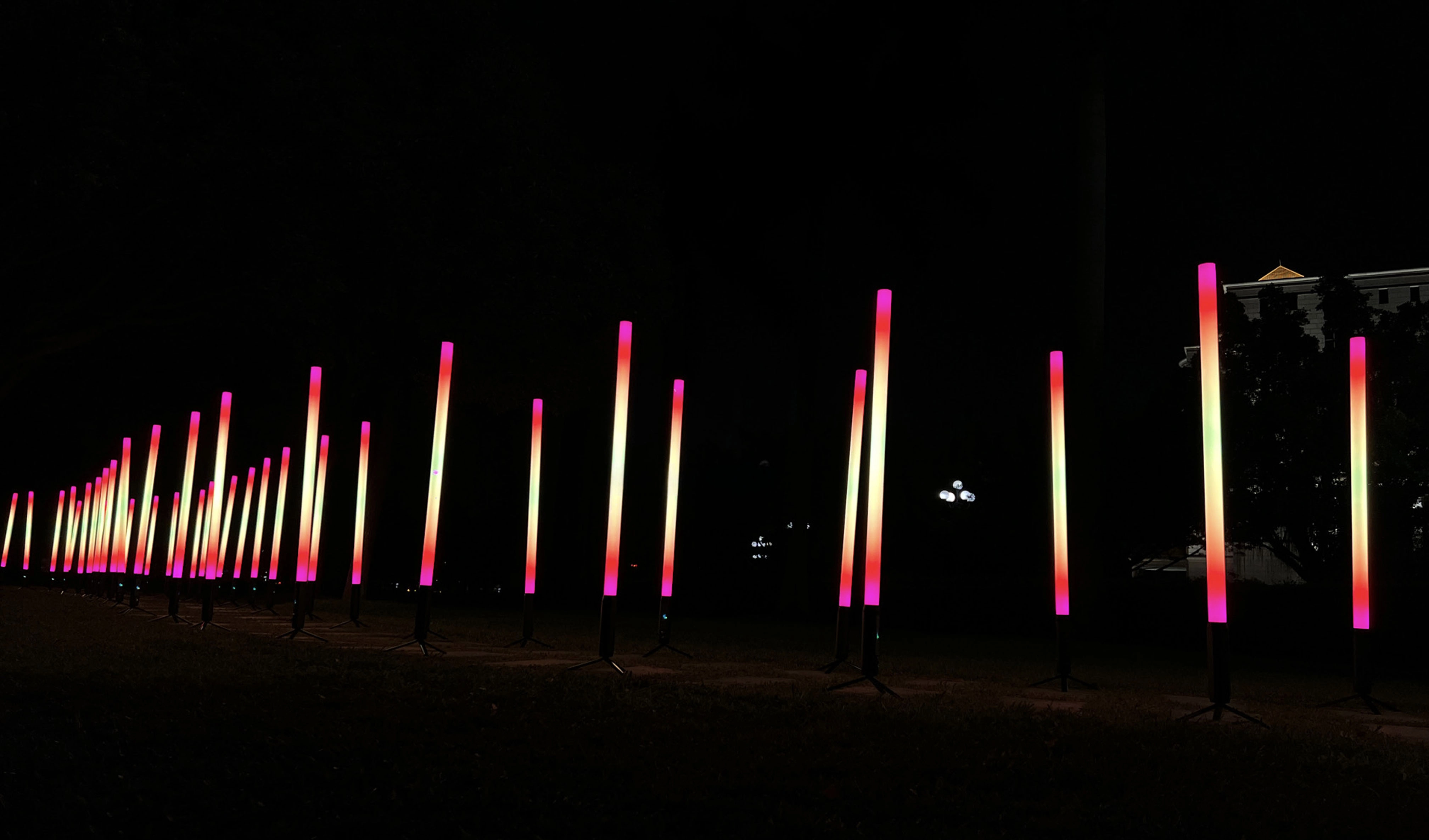

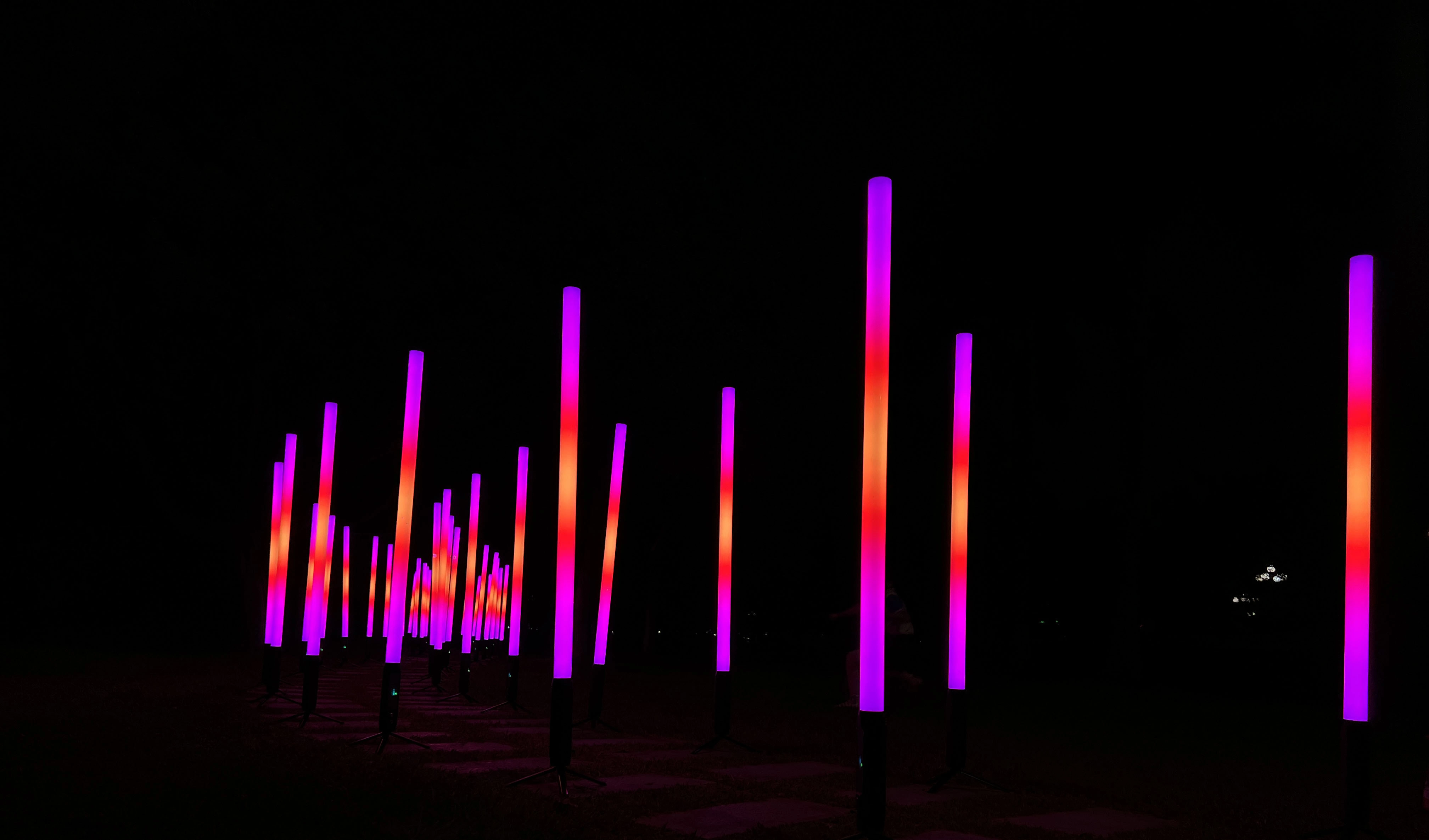

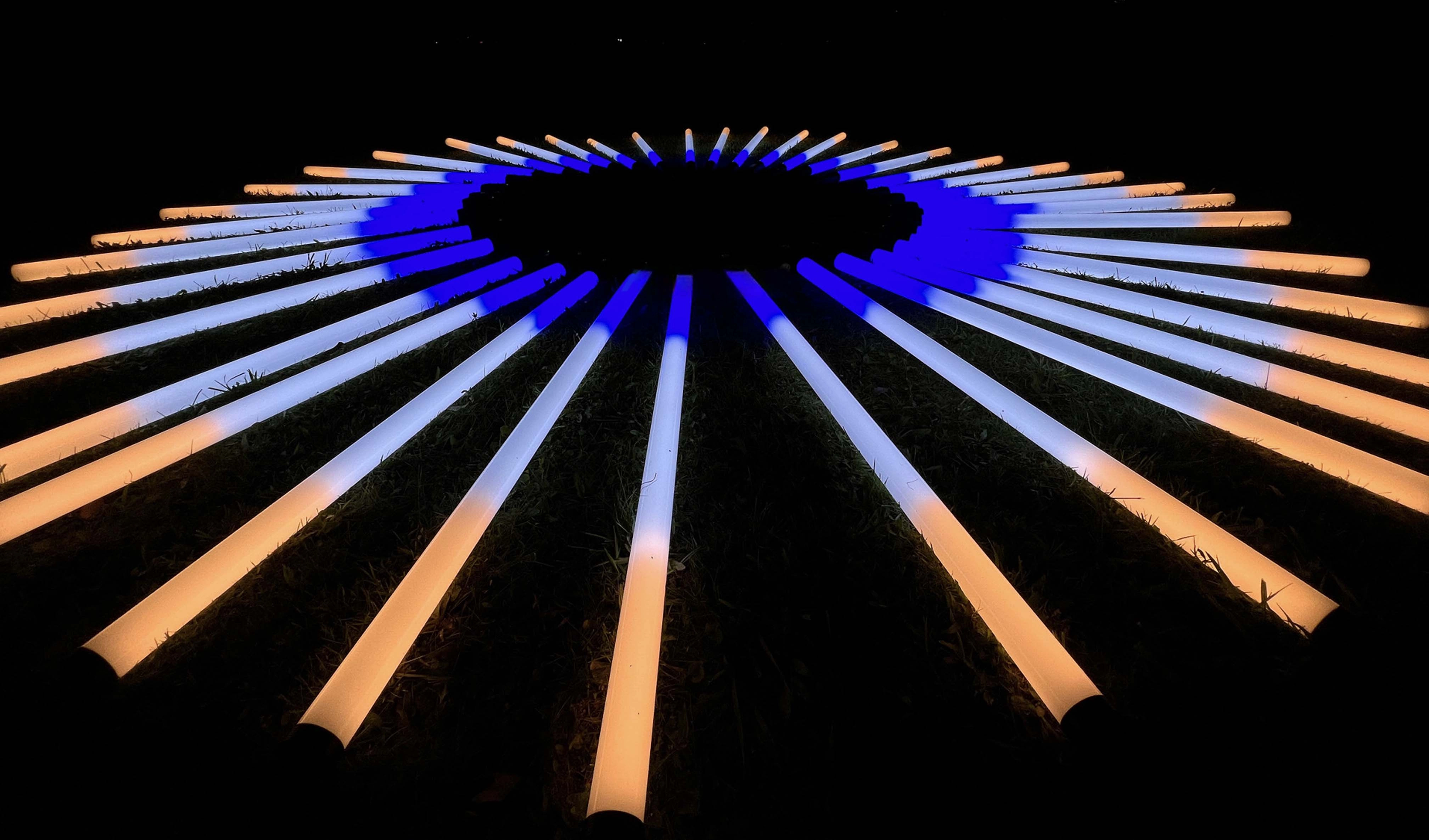

Effect Projections
